• Approved by EN, UL, CSA, and CCC (Chinese standard). (Ask your OMRON representative for information on approved models.)

• Sealing characteristics that meet IEC IP67 degree of protection.

• Triple-sealed construction:
Plunger section sealed via nitrile rubber packing seal and diaphragm; switch section sealed via nitrile rubber cap; cable entrance sealed via encapsulating material.

• Cable lengths of 3 and 5 m available on standard models. Models also available with UL and CSA-certified cables.

• Multiple mounting possible with Switches with Plungers.

• Models with red LED indicators added to series for easy confirmation of operation. (Set by default to light for non-operation.)

• VCTF oil-resistant cables with CE marking. (Applicable only to standard models.)

last update: December 19, 2013

Purchase the OMRON General-purpose Vertical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON D4C Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4CSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2K-L Liquid Level Sensor/Features
E5AC-T Programmable Temperature Controller (Digital Controller) (96 × 96 mm)/Features
GX-AD0471 / DA0271 Analog I/O Terminal 2-tier Terminal Block Type/Features
Automation Control Environment (ACE) Software/Features
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Features

OMRON D4C catalog
D4C Enclosed Switch/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

D4C Data Sheet -
[2701KB] May 14, 201820180514 D4C Data Sheet

OMRON D4C lineup
D4C Enclosed Switch/Lineup
last update: May 14, 2018
Switches
Standard Switches with No Operation Indicator

Actuator Ratings Standard load Microload
5 A at 250 VAC, 4 A at 30 VDC 0.1 A at 125 VAC, 0.1 A at 30 VDC
Cable VCTF oil-
resistant
cable *1 VCTF cable
*2 SJT(O)
cable
*3 VCTF oil-
resistant
cable *1 VCTF cable
*2
Cable
length (m) Model
Pin plunger 3 D4C-1201 D4C-1401 D4C-1601 D4C-4201 D4C-4401
5 D4C-1301 D4C-1501 D4C-1701 D4C-4301 D4C-4501
Roller plunger 3 D4C-1202 D4C-1402 D4C-1602 D4C-4202 D4C-4402
5 D4C-1302 D4C-1502 D4C-1702 D4C-4302 D4C-4502
Crossroller
plunger 3 D4C-1203 D4C-1403 D4C-1603 D4C-4203 D4C-4403
5 D4C-1303 D4C-1503 D4C-1703 D4C-4303 D4C-4503
Roller lever 3 D4C-1220 D4C-1420 D4C-1620 D4C-4220 D4C-4420
5 D4C-1320 D4C-1520 D4C-1720 D4C-4320 D4C-4520
Roller lever,
high-sensitivity 3 D4C-1224 D4C-1424 D4C-1624 D4C-4224 D4C-4424
5 D4C-1324 D4C-1524 D4C-1724 D4C-4324 D4C-4524
Sealed pin
plunger 3 D4C-1231 D4C-1431 D4C-1631 D4C-4231 D4C-4431
5 D4C-1331 D4C-1531 D4C-1731 D4C-4331 D4C-4531
Sealed roller
plunger 3 D4C-1232 D4C-1432 D4C-1632 D4C-4232 D4C-4432
5 D4C-1332 D4C-1532 D4C-1732 D4C-4332 D4C-4532
Sealed
crossroller
plunger 3 D4C-1233 D4C-1433 D4C-1633 D4C-4233 D4C-4433
5 D4C-1333 D4C-1533 D4C-1733 D4C-4333 D4C-4533
Plastic rod 3 D4C-1250 D4C-1450 D4C-1650 D4C-4250 D4C-4450
5 D4C-1350 D4C-1550 D4C-1750 D4C-4350 D4C-4550
Center roller
lever 3 D4C-1260 D4C-1460 D4C-1660 D4C-4260 D4C-4460
5 D4C-1360 D4C-1560 --- D4C-4360 D4C-4560

Note: 1. Models are available separately with resistance to viscous oils (oil drain holes are provided), but only with
Plunger Models. Add "-M" to the model number (example: D4C-1202 would be D4C-1202-M). Ask your nearest
OMRON representative for details.
2. Switches with variable roller levers are also available. Ask your nearest OMRON representative for details.
*1. Oil-resistant vinyl cabtire cables; approved by EN and IEC.
*2. Ordinary vinyl cabtire cables.
*3. Switches with SJT(O) Cables (cables approved by UL and CSA) are approved by UL and CSA.

Standard Switches with Operation Indicator (Red)

Actuator Ratings 5 A at 125 VAC 4 A at 30 VDC
Cable VCTF oil-resistant
cable *1 VCTF cable
*2 VCTF oil-resistant
cable *1 VCTF cable
*2
Cable length (m) Model
Pin plunger 3 D4C-2201 D4C-2401 D4C-3201 D4C-3401
5 D4C-2301 D4C-2501 D4C-3301 D4C-3501
Roller plunger 3 D4C-2202 D4C-2402 D4C-3202 D4C-3402
5 D4C-2302 D4C-2502 D4C-3302 D4C-3502
Crossroller
plunger 3 D4C-2203 D4C-2403 D4C-3203 D4C-3403
5 D4C-2303 D4C-2503 D4C-3303 D4C-3503
Roller lever 3 D4C-2220 D4C-2420 D4C-3220 D4C-3420
5 D4C-2320 D4C-2520 D4C-3320 D4C-3520
Roller lever,
high-sensitivity 3 D4C-2224 D4C-2424 D4C-3224 D4C-3424
5 D4C-2324 D4C-2524 D4C-3324 D4C-3524
Sealed pin
plunger 3 D4C-2231 D4C-2431 D4C-3231 D4C-3431
5 D4C-2331 D4C-2531 D4C-3331 D4C-3531
Sealed roller
plunger 3 D4C-2232 D4C-2432 D4C-3232 D4C-3432
5 D4C-2332 D4C-2532 D4C-3332 D4C-3532
Sealed
crossroller
plunger 3 D4C-2233 D4C-2433 D4C-3233 D4C-3433
5 D4C-2333 D4C-2533 D4C-3333 D4C-3533
Plastic rod 3 D4C-2250 D4C-2450 D4C-3250 D4C-3450
5 D4C-2350 D4C-2550 D4C-3350 D4C-3550
Center roller
lever 3 D4C-2260 D4C-2460 D4C-3260 D4C-3460
5 D4C-2360 D4C-2560 D4C-3360 D4C-3560

Note: Ask your nearest OMRON representative for information on Switching with approved international standards.
*1. Oil-resistant vinyl cabtire cables; approved by EN and IEC.
*2. Ordinary vinyl cabtire cables.

Standard Switches with Operation Indicator

Actuator Ratings 0.1 A at 125 VAC 0.1 A at 30 VDC
Cable VCTF oil-resistant cable * VCTF oil-resistant cable *
Cable length (m) Model
Pin plunger 3 D4C-5201 D4C-6201
5 --- D4C-6301
Roller plunger 3 D4C-5202 D4C-6202
5 D4C-5302 D4C-6302
Crossroller plunger 3 D4C-5203 D4C-6203
5 D4C-5303 D4C-6303
Roller lever 3 D4C-5220 D4C-6220
5 D4C-5320 D4C-6320
Roller lever, high-sensitivity 3 D4C-5224 D4C-6224
5 D4C-5324 D4C-6324
Sealed pin plunger 3 --- D4C-6231
5 --- D4C-6331
Sealed roller plunger 3 D4C-5232 D4C-6232
5 D4C-5332 D4C-6332
Sealed crossroller plunger 3 --- D4C-6233
5 --- D4C-6333
Plastic rod 3 D4C-5250 D4C-6250
5 D4C-5350 D4C-6350

Note: Ask your nearest OMRON representative for information on Switching with approved international standards.
* Oil-resistant vinyl cabtire cables; approved by EN and IEC.

Pre-wired Models (Use VCTF Oil-resistant Cable)

Actuator Ratings 1 A at 125 VAC 1 A at 30 VDC
Operation
indicator Without operation
indicator With operation
indicator Without operation
indicator With operation
indicator
Pin plunger --- --- --- D4C-3001-DK1EJ[]
Roller plunger D4C-1002-AK1EJ[] D4C-2002-AK1EJ[] D4C-1002-DK1EJ[] D4C-3002-DK1EJ[]
Sealed plunger --- --- --- D4C-3031-DK1EJ[]
Sealed roller
plunger --- --- D4C-1032-DK1EJ[] D4C-3032-DK1EJ[]
Roller lever
(high-sensitivity
model) --- D4C-2024-AK1EJ[] D4C-1024-DK1EJ[] D4C-3024-DK1EJ[]

Note: 1. The [] contains the length of the cable.
For example: 30 cm → D4C-2002-AK1EJ03
2. M1J models are also available. Contact your OMRON sales representative for further information.
3. Of the above model numbers, some with special specifications are not registered.

Weather-resistant Models

Actuator Operation indicator Without operating indication With operating indication
Ratings Standard load Microload Standard load
5 A at 250 VAC
4 A at 30 VDC 0.1 A at 125 VAC
0.1 A at 30 VDC 5 A at 125 VAC 4 A at 30 VDC
VCTF oil-resistant cable *
Cable length (m) Model
Roller lever 3 D4C-1220-P D4C-4220-P D4C-2220-P D4C-3220-P
5 D4C-1320-P --- --- ---
Roller lever
(high-sensitivity model) 3 D4C-1224-P D4C-4224-P D4C-2224-P D4C-3224-P
5 D4C-1324-P D4C-4324-P D4C-2324-P D4C-3324-P
Adjustable roller lever 3 D4C-1227-P D4C-4227-P D4C-2227-P D4C-3227-P
5 D4C-1327-P D4C-4327-P D4C-2327-P D4C-3327-P
Adjustable rod lever 3 D4C-1229-P D4C-4229-P --- D4C-3229-P
5 D4C-1329-P --- D4C-2329-P D4C-3329-P

* Vinyl cabtire cable with excellent oil resistance.
Note: Silicon rubber is used to increase resistance to the environment. Silicon rubber, however, can generate silicon gas.
(This can occur at room temperature, but the amount of silicon gas generated increases at higher temperatures.)
Silicon gas will react as a result of arc energy and form silicon oxide (SiO₂). If silicon oxide accumulates on the
contacts, contact interference can occur and can interfere with the device. Before using a Switch, test it under actual
application conditions (including the environment and operating frequency) to confirm that no problems will occur in
actual.

Applicable Cables

Type For AC For DC
Appearance No. of conductors Cable length Model Model
Straight 4 2 m XS2F-A421-D90-F XS2F-D421-D80-F
5 m XS2F-A421-G90-F XS2F-D421-G80-F

Mounting Plates (Order Separately)

The WL/WL-N model incorporated by equipment can be replaced with the D4C together with the Mounting Plate without changing the position of the dog or cam.

List of Replaceable Models

WL/WL-N model (Actuator) D4C model (Actuator) Plate
WLD/WL01D/WLD18-N
(Top plunger) D4C-[][]01
(Plunger) D4C-P001
WLD2/WL01D2/WLD28-N
(Top roller plunger) D4C-[][]02
(Roller plunger) D4C-P002
WLCA2/WL01CA2/WLCA2-N
(Roller lever) D4C-[][]20
(Roller lever) D4C-P020

Note: The WL01[] is for micro loads.

Example of Replacement

Note: The position of the dog remains unchanged.

Individual Parts
Head/Actuator

Actuator Head (with actuator) Actuator
Pin plunger D4C-0001 ---
Roller plunger D4C-0002 ---
Crossroller plunger D4C-0003 ---
Roller lever D4C-0020 WL-1A100
Roller lever (weather-resistant model) --- WL-1A100P1
Roller lever (high-sensitivity model) D4C-0024 WL-1A100
Variable roller lever D4C-0027 ---
Variable rod lever D4C-0029 HL-1HPA500
Sealed pin plunger D4C-0031 ---
Sealed roller plunger D4C-0032 ---
Sealed crossroller plunger D4C-0033 ---
Plastic rod D4C-0050 ---
Center roller lever D4C-0060 ---

Note: 1. The model numbers for heads are of the form D4C-00[][], with the numbers in the squares indicating the type of
actuator.
2. Actuators for plunger models, plastic rod models, and center roller lever models cannot be ordered individually.
They must be ordered together with the head.

last update: May 14, 2018

OMRON D4C specification
D4C Enclosed Switch/Specifications
last update: May 14, 2018
Approved Standards

Agency Standard File No.
TÜV Product Service EN60947-5-1 *1, 3
UL UL508 E76675 *2
CSA CSA C22.2 No.14 LR45746 *2
CCC(CQC) GB14048.5 2003010305077626 *3

*1. Excluding weather-resistant models, only models with VCTF oil-resistant cables and pre-wired models are certified.
(Contact your OMRON representative for the model numbers.)
Models with VCTF oil-resistant cables and pre-wired models (125 VAC) are certified for CE Marking.
*2. SJT(O)-cable models only.
　　(Applicable only to models listed on Lineup.)
*3. Ask your OMRON representative for information on approved models.

Ratings
Standard Model

Rated voltage Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC
250 VAC 5 (0.1)
5 1.5
1 0.7
0.5 3
2 2.5
1.5 1.3
0.8
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC 5 (0.1)
5 (0.1)
4 (0.1)
0.4
0.2 2
2
2
0.05
0.03 5
4
3 4
4
3 3
3
3
0.05
0.03
0.4
0.2

Inrush current NC 20 A max.
NO 10 A max.

Note: 1. The values given on the top are steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp loads have an inrush current of 10 times the steady-state current.
4. Motor loads have an inrush current of 6 times the steady-state current.
5. The values "0.1" given in parentheses are for micro load models.

Pre-wired Model

Rated voltage Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC 1 1 1 0.7 1 1 1 1
30 VDC 1 1 1 1 1 1 1 1

Approved Standard Ratings
TÜV (EN60947-5-1), CCC (GB14048.5)

Model Applicable category and ratings I the
D4C-1[][][] AC-15 2 A/250 V
DC-12 2 A/30 V 5 A
4 A
D4C-2[][][] AC-15 2 A/125 V 5 A
D4C-3[][][] DC-12 2 A/30 V 4 A
D4C-4[][][] AC-14 0.1 A/125 V
DC-12 0.1 A/30 V 0.5 A
0.5 A
D4C-5[][][] AC-14 0.1 A/125 V 0.5 A
D4C-6[][][] DC-12 0.1 A/30 V 0.5 A

UL/CSA
B300 (D4C-16[][], -17[][])
B150 (D4C-26[][], -27[][])
B300

Rated voltage Carry current Current (A) Volt-amperes (VA)
Make Break Make Break
120 VAC
240 VAC 5 A 30
15 3
1.5 3,600
3,600 360
360

B150

Rated voltage Carry current Current (A) Volt-amperes (VA)
Make Break Make Break
120 VAC 5 A 30 3 3,600 360

Characteristics

Degree of protection IP67
Durability *1 Mechanical *3 10,000,000 operations min.
Electrical *2 200,000 operations min. (5 A at 125 VAC, resistive load)
Operating speed 0.1 mm/s to 0.5 m/s (in case of plunger)
1 mm/s to 1 m/s (in case of roller lever)
Operating frequency Mechanical 120 operations/min
Electrical 30 operations/min
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance (initial) 250 mΩ max. (initial value with 2-m VCTF cable)
300 mΩ max. (initial value with 3-m VCTF cable)
400 mΩ max. (initial value with 5-m VCTF cable)
Dielectric strength Between terminals of the same polarity 1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal part
and ground 1,500 VAC, 50/60 Hz for 1 min
Uimp: 2.5 kV (EN60947-5-1)
Between each terminal and non-
current-carrying metal part 1,500 VAC, 50/60 Hz for 1 min
Uimp: 2.5 kV(EN60947-5-1)
Rated insulation voltage (Ui) 300 V (EN60947-5-1) *5
Pollution degree (operating environment) 3 (EN60947-5-1)
Short-circuit protective device (SCPD) 10 A fuse type gI or gG (IEC60269)
Conditional short-circuit current 100 A (EN60947-5-1)
Conventional enclosed thermal current (I the) 5 A, 4 A, 0.5 A (EN60947-5-1)
Protection against electric shock Class I (with grounding wire) *6
Vibration resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude *4
Shock resistance Destruction 1,000 m/s² max.
Malfunction 500 m/s² max. *4
Ambient operating temperature -10°C to +70°C (with no icing)
Ambient operating humidity 35% to 95%RH
Weight (D4C-1202) With 3-m VCTF cable: 360 g
With 5-m VCTF cable: 540 g

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Pre-wired Models: 1,000,000 operations min. (DC specifications, switching current: 0.1 A)
*3. Outdoor specifications: 500,000 operations min.
*4. Excluding Plastic Rods.
*5. Pre-wired models: 250 V
*6. Pre-wired models: class III

last update: May 14, 2018

OMRON D4C dimension
D4C Enclosed Switch/Dimensions
last update: April 23, 2018

(Unit: mm)

Switches

Models without LED indicators are shown in the illustrations and dimensions diagrams. Refer to below for Models with LED Indicators.
The boxes in the model numbers are replaced with the rating and cable type. Refer to Data Sheet for the Model Number Structure.

Standard Models

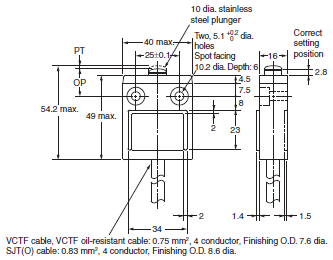

Pin Plunger
D4C-[][]01

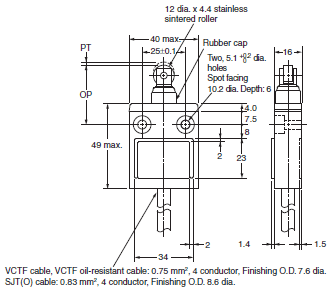

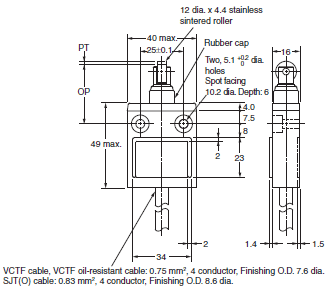

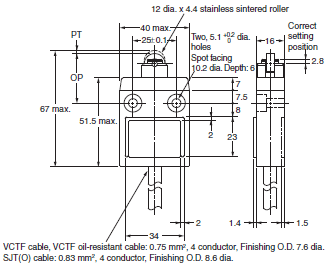

Roller Plunger
D4C-[][]02

Crossroller Plunger
D4C-[][]03

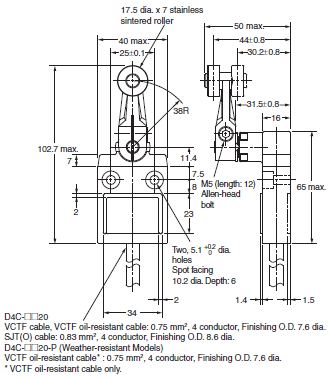

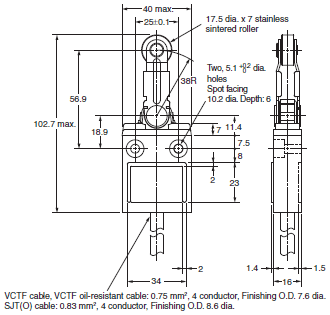

Roller Lever
D4C-[][]20
D4C-[][]20-P

Roller Lever (High-Sensitivity Model)

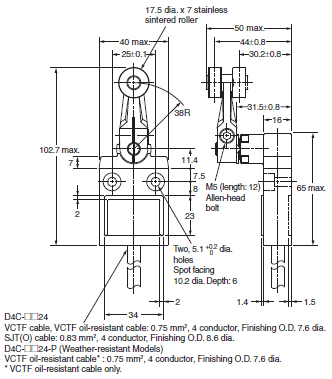

D4C-[][]24
D4C-[][]24-P

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

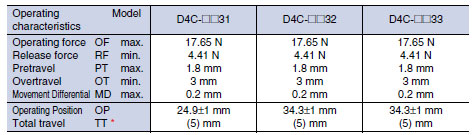

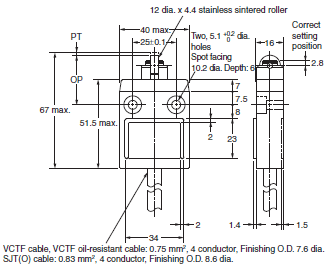

Sealed Plunger
D4C-[][]31

Sealed Roller Plunger
D4C-[][]32

Sealed Crossroller Plunger
D4C-[][]33

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

* The TT is a reference value.

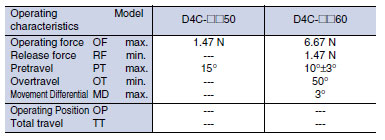

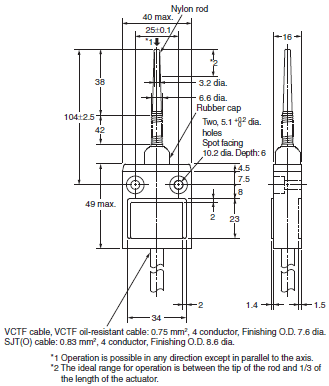

Plastic rod
D4C-[][]50

Center Roller Lever Plunger
D4C-[][]60

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Models with LED Indicator

The dimensions of the LED indicator for models equipped with one are shown below.

Pre-wired Models

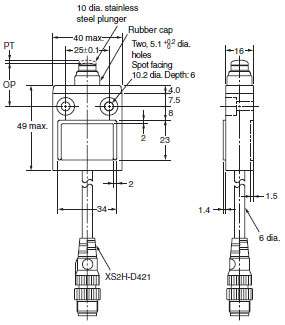

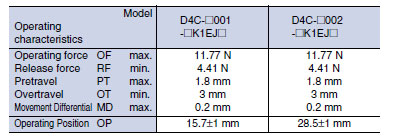

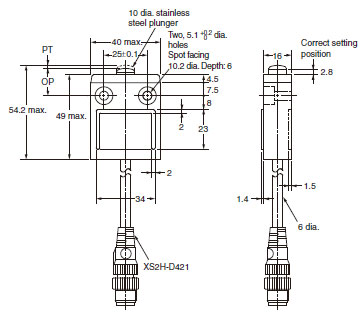

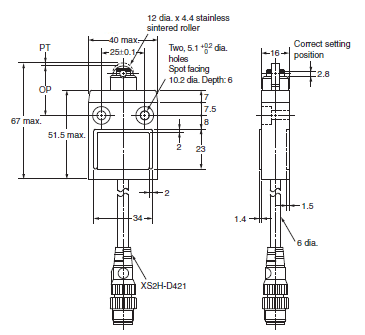

Pin Plunger
D4C-[]001-[]K1EJ[]
D4C-[]001-M1J[]

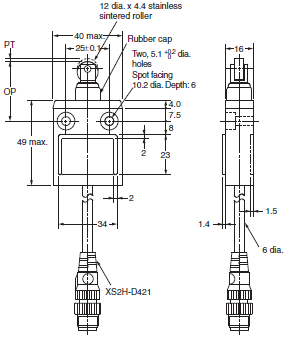

Roller Plunger
D4C-[]002-[]K1EJ[]
D4C-[]002-M1J[]

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches.

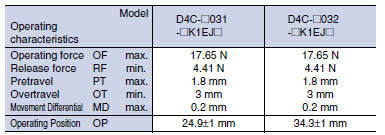

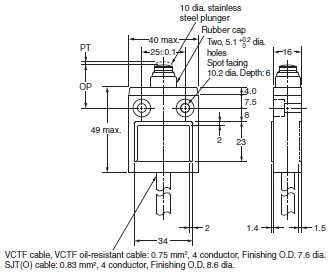

Sealed Pin Plunger
D4C-[]031-[]K1EJ[]
D4C-[]031-M1J[]

Sealed Roller Plunger
D4C-[]032-[]K1EJ[]
D4C-[]032-M1J[]

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches

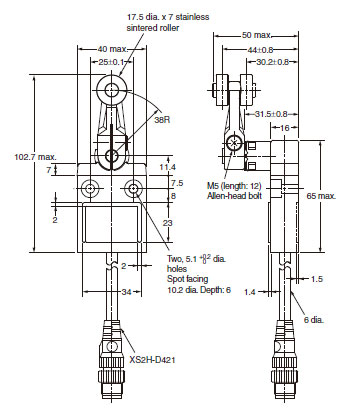

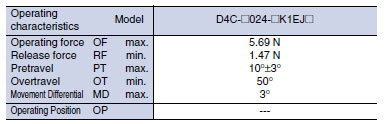

Roller Lever (High-sensitivity Model)
D4C-[]024-[]K1EJ[]
D4C-[]024-M1J[]

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches

Weather-resistant Models

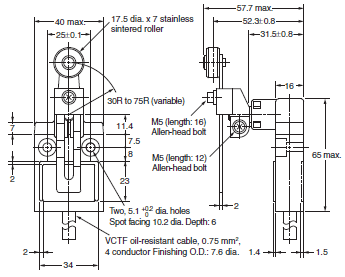

Adjustable Roller Lever
D4C-[][]27-P

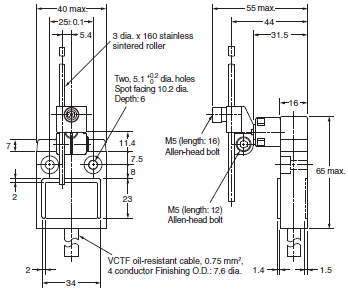

Adjustable Rod Lever
D4C-[][]29-P

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

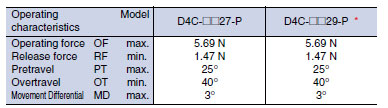

* Operation characteristics for the D4C-[][]27-P and D4C-[][]29-P are for a lever length of 38 mm.

last update: April 23, 2018

NO. D4C

TYPE:Limit Switches General-purpose Vertical Copyright Statement

DATE:2021-06-10

Associated products:
WL-N / WL Two-circuit Limit Switch/Features D4CC Miniature Limit Switch/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
D4C Data Sheet	- [2701KB]	May 14, 201820180514	D4C Data Sheet

Actuator	Ratings	Standard load	Microload
5 A at 250 VAC, 4 A at 30 VDC	0.1 A at 125 VAC, 0.1 A at 30 VDC
Cable	VCTF oil- resistant cable *1	VCTF cable *2	SJT(O) cable *3	VCTF oil- resistant cable *1	VCTF cable *2
Cable length (m)	Model
Pin plunger		3	D4C-1201	D4C-1401	D4C-1601	D4C-4201	D4C-4401
5	D4C-1301	D4C-1501	D4C-1701	D4C-4301	D4C-4501
Roller plunger		3	D4C-1202	D4C-1402	D4C-1602	D4C-4202	D4C-4402
5	D4C-1302	D4C-1502	D4C-1702	D4C-4302	D4C-4502
Crossroller plunger		3	D4C-1203	D4C-1403	D4C-1603	D4C-4203	D4C-4403
5	D4C-1303	D4C-1503	D4C-1703	D4C-4303	D4C-4503
Roller lever		3	D4C-1220	D4C-1420	D4C-1620	D4C-4220	D4C-4420
5	D4C-1320	D4C-1520	D4C-1720	D4C-4320	D4C-4520
Roller lever, high-sensitivity		3	D4C-1224	D4C-1424	D4C-1624	D4C-4224	D4C-4424
5	D4C-1324	D4C-1524	D4C-1724	D4C-4324	D4C-4524
Sealed pin plunger		3	D4C-1231	D4C-1431	D4C-1631	D4C-4231	D4C-4431
5	D4C-1331	D4C-1531	D4C-1731	D4C-4331	D4C-4531
Sealed roller plunger		3	D4C-1232	D4C-1432	D4C-1632	D4C-4232	D4C-4432
5	D4C-1332	D4C-1532	D4C-1732	D4C-4332	D4C-4532
Sealed crossroller plunger		3	D4C-1233	D4C-1433	D4C-1633	D4C-4233	D4C-4433
5	D4C-1333	D4C-1533	D4C-1733	D4C-4333	D4C-4533
Plastic rod		3	D4C-1250	D4C-1450	D4C-1650	D4C-4250	D4C-4450
5	D4C-1350	D4C-1550	D4C-1750	D4C-4350	D4C-4550
Center roller lever		3	D4C-1260	D4C-1460	D4C-1660	D4C-4260	D4C-4460
5	D4C-1360	D4C-1560	---	D4C-4360	D4C-4560

Actuator	Ratings	5 A at 125 VAC	4 A at 30 VDC
Cable	VCTF oil-resistant cable *1	VCTF cable *2	VCTF oil-resistant cable *1	VCTF cable *2
Cable length (m)	Model
Pin plunger		3	D4C-2201	D4C-2401	D4C-3201	D4C-3401
5	D4C-2301	D4C-2501	D4C-3301	D4C-3501
Roller plunger		3	D4C-2202	D4C-2402	D4C-3202	D4C-3402
5	D4C-2302	D4C-2502	D4C-3302	D4C-3502
Crossroller plunger		3	D4C-2203	D4C-2403	D4C-3203	D4C-3403
5	D4C-2303	D4C-2503	D4C-3303	D4C-3503
Roller lever		3	D4C-2220	D4C-2420	D4C-3220	D4C-3420
5	D4C-2320	D4C-2520	D4C-3320	D4C-3520
Roller lever, high-sensitivity		3	D4C-2224	D4C-2424	D4C-3224	D4C-3424
5	D4C-2324	D4C-2524	D4C-3324	D4C-3524
Sealed pin plunger		3	D4C-2231	D4C-2431	D4C-3231	D4C-3431
5	D4C-2331	D4C-2531	D4C-3331	D4C-3531
Sealed roller plunger		3	D4C-2232	D4C-2432	D4C-3232	D4C-3432
5	D4C-2332	D4C-2532	D4C-3332	D4C-3532
Sealed crossroller plunger		3	D4C-2233	D4C-2433	D4C-3233	D4C-3433
5	D4C-2333	D4C-2533	D4C-3333	D4C-3533
Plastic rod		3	D4C-2250	D4C-2450	D4C-3250	D4C-3450
5	D4C-2350	D4C-2550	D4C-3350	D4C-3550
Center roller lever		3	D4C-2260	D4C-2460	D4C-3260	D4C-3460
5	D4C-2360	D4C-2560	D4C-3360	D4C-3560

Actuator	Ratings	0.1 A at 125 VAC	0.1 A at 30 VDC
Cable	VCTF oil-resistant cable *	VCTF oil-resistant cable *
Cable length (m)	Model
Pin plunger		3	D4C-5201	D4C-6201
5	---	D4C-6301
Roller plunger		3	D4C-5202	D4C-6202
5	D4C-5302	D4C-6302
Crossroller plunger		3	D4C-5203	D4C-6203
5	D4C-5303	D4C-6303
Roller lever		3	D4C-5220	D4C-6220
5	D4C-5320	D4C-6320
Roller lever, high-sensitivity		3	D4C-5224	D4C-6224
5	D4C-5324	D4C-6324
Sealed pin plunger		3	---	D4C-6231
5	---	D4C-6331
Sealed roller plunger		3	D4C-5232	D4C-6232
5	D4C-5332	D4C-6332
Sealed crossroller plunger		3	---	D4C-6233
5	---	D4C-6333
Plastic rod		3	D4C-5250	D4C-6250
5	D4C-5350	D4C-6350

Actuator	Ratings	1 A at 125 VAC	1 A at 30 VDC
Operation indicator	Without operation indicator	With operation indicator	Without operation indicator	With operation indicator
Pin plunger		---	---	---	D4C-3001-DK1EJ[]
Roller plunger		D4C-1002-AK1EJ[]	D4C-2002-AK1EJ[]	D4C-1002-DK1EJ[]	D4C-3002-DK1EJ[]
Sealed plunger		---	---	---	D4C-3031-DK1EJ[]
Sealed roller plunger		---	---	D4C-1032-DK1EJ[]	D4C-3032-DK1EJ[]
Roller lever (high-sensitivity model)		---	D4C-2024-AK1EJ[]	D4C-1024-DK1EJ[]	D4C-3024-DK1EJ[]

Actuator	Operation indicator	Without operating indication	With operating indication
Ratings	Standard load	Microload	Standard load
5 A at 250 VAC 4 A at 30 VDC	0.1 A at 125 VAC 0.1 A at 30 VDC	5 A at 125 VAC	4 A at 30 VDC
VCTF oil-resistant cable *
Cable length (m)	Model
Roller lever		3	D4C-1220-P	D4C-4220-P	D4C-2220-P	D4C-3220-P
5	D4C-1320-P	---	---	---
Roller lever (high-sensitivity model)		3	D4C-1224-P	D4C-4224-P	D4C-2224-P	D4C-3224-P
5	D4C-1324-P	D4C-4324-P	D4C-2324-P	D4C-3324-P
Adjustable roller lever		3	D4C-1227-P	D4C-4227-P	D4C-2227-P	D4C-3227-P
5	D4C-1327-P	D4C-4327-P	D4C-2327-P	D4C-3327-P
Adjustable rod lever		3	D4C-1229-P	D4C-4229-P	---	D4C-3229-P
5	D4C-1329-P	---	D4C-2329-P	D4C-3329-P

Type	For AC	For DC
Appearance	No. of conductors	Cable length	Model	Model
Straight	4	2 m	XS2F-A421-D90-F	XS2F-D421-D80-F
5 m	XS2F-A421-G90-F	XS2F-D421-G80-F

WL/WL-N model (Actuator)	D4C model (Actuator)	Plate
WLD/WL01D/WLD18-N (Top plunger)	D4C-[][]01 (Plunger)	D4C-P001
WLD2/WL01D2/WLD28-N (Top roller plunger)	D4C-[][]02 (Roller plunger)	D4C-P002
WLCA2/WL01CA2/WLCA2-N (Roller lever)	D4C-[][]20 (Roller lever)	D4C-P020

Actuator	Head (with actuator)	Actuator
Pin plunger	D4C-0001	---
Roller plunger	D4C-0002	---
Crossroller plunger	D4C-0003	---
Roller lever	D4C-0020	WL-1A100
Roller lever (weather-resistant model)	---	WL-1A100P1
Roller lever (high-sensitivity model)	D4C-0024	WL-1A100
Variable roller lever	D4C-0027	---
Variable rod lever	D4C-0029	HL-1HPA500
Sealed pin plunger	D4C-0031	---
Sealed roller plunger	D4C-0032	---
Sealed crossroller plunger	D4C-0033	---
Plastic rod	D4C-0050	---
Center roller lever	D4C-0060	---

Agency	Standard	File No.
TÜV Product Service	EN60947-5-1	*1, 3
UL	UL508	E76675 *2
CSA	CSA C22.2 No.14	LR45746 *2
CCC(CQC)	GB14048.5	2003010305077626 *3

Rated voltage	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
125 VAC 250 VAC	5 (0.1) 5	1.5 1	0.7 0.5	3 2	2.5 1.5	1.3 0.8
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC	5 (0.1) 5 (0.1) 4 (0.1) 0.4 0.2	2 2 2 0.05 0.03	5 4 3	4 4 3	3 3 3 0.05 0.03
0.4 0.2

Inrush current	NC	20 A max.
NO	10 A max.

Rated voltage	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
125 VAC	1	1	1	0.7	1	1	1	1
30 VDC	1	1	1	1	1	1	1	1

Model	Applicable category and ratings	I the
D4C-1[][][]	AC-15 2 A/250 V DC-12 2 A/30 V	5 A 4 A
D4C-2[][][]	AC-15 2 A/125 V	5 A
D4C-3[][][]	DC-12 2 A/30 V	4 A
D4C-4[][][]	AC-14 0.1 A/125 V DC-12 0.1 A/30 V	0.5 A 0.5 A
D4C-5[][][]	AC-14 0.1 A/125 V	0.5 A
D4C-6[][][]	DC-12 0.1 A/30 V	0.5 A

Rated voltage	Carry current	Current (A)	Volt-amperes (VA)
Make	Break	Make	Break
120 VAC 240 VAC	5 A	30 15	3 1.5	3,600 3,600	360 360

Rated voltage	Carry current	Current (A)	Volt-amperes (VA)
Make	Break	Make	Break
120 VAC	5 A	30	3	3,600	360

Degree of protection	IP67
*Durability 1**	*Mechanical 3**	10,000,000 operations min.
*Electrical 2**	200,000 operations min. (5 A at 125 VAC, resistive load)
Operating speed	0.1 mm/s to 0.5 m/s (in case of plunger) 1 mm/s to 1 m/s (in case of roller lever)
Operating frequency	Mechanical	120 operations/min
Electrical	30 operations/min
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance (initial)	250 mΩ max. (initial value with 2-m VCTF cable) 300 mΩ max. (initial value with 3-m VCTF cable) 400 mΩ max. (initial value with 5-m VCTF cable)
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal part and ground	1,500 VAC, 50/60 Hz for 1 min Uimp: 2.5 kV (EN60947-5-1)
Between each terminal and non- current-carrying metal part	1,500 VAC, 50/60 Hz for 1 min Uimp: 2.5 kV(EN60947-5-1)
Rated insulation voltage (Ui)	300 V (EN60947-5-1) *5
Pollution degree (operating environment)	3 (EN60947-5-1)
Short-circuit protective device (SCPD)	10 A fuse type gI or gG (IEC60269)
Conditional short-circuit current	100 A (EN60947-5-1)
Conventional enclosed thermal current (I the)	5 A, 4 A, 0.5 A (EN60947-5-1)
Protection against electric shock	Class I (with grounding wire) *6
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude *4
Shock resistance	Destruction	1,000 m/s² max.
Malfunction	500 m/s² max. *4
Ambient operating temperature	-10°C to +70°C (with no icing)
Ambient operating humidity	35% to 95%RH
Weight (D4C-1202)	With 3-m VCTF cable: 360 g With 5-m VCTF cable: 540 g
