OMRON S8V-NF Dimensions
/Images/l_3688-25-280212-198x198.jpglast update: October 9, 2018
Realize safely reduction of noise and surge with minimal effort in a space-saving
Easy installation
Just a single action to install on a DIN track
Space saving
Thinner design than conventional noise filters
Reduced risk of electrical shock
The enclosed conductor eliminates the need for a protective terminal cover
Our shared Value Design for Panel (herein after referred to as Value Design) concept for the specifications of products used in control panels will create new value to our customer's control panels. Combining multiple products that share the Value Design concept will further increase the value provided to control panels.
last update: October 9, 2018
Purchase the OMRON Related equipment Please fill in the following
If you have just landed here, this product OMRON S8V-NF Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8V-NF We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8V-NFPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A22NN / A22NL Pushbutton Switches/Features
E5EC-T Programmable Temperature Controller (Digital Controller) (48 × 96 mm)/Features
CS1D-ETN21D Ethernet Units/Features
Hornet 565 Parallel Robots/Features
K8AK-PH Phase-sequence Phase-loss Relay/Features
OMRON S8V-NF specification
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Specificationslast update: December 1, 2017
Ratings and Characteristics
| Rated current | 3 A | 6 A | |
|---|---|---|---|
| Rated voltage | Single-phase 250 VAC 50/60 Hz *1, 250 VDC | ||
| I/O characteristics | Leakage current | 1.0 mA max. (250 VAC/60 Hz) | |
| DC resistance | 110 MΩ max. | ||
| Attenuation | 25 dB min. (Common Mode: 0.1 to 10 MHz, Normal Mode: 0.2 to 30 MHz) | ||
| Withstand voltage | 2.5 kVAC for 1 min. (between line and ground), current cutoff 10 mA | ||
| Insulation resistance | 100 MΩ min. (500 VDC, 1 min.) | ||
| Environment | Ambient operating temperature | -40 to 85°C (Derating is required. Refer to Engineering Data) (with no condensation or icing) | |
| Derating start temperature | +85°C | +60°C | |
| Storage temperature | -40 to 85°C (with no condensation or icing) | ||
| Ambient operating humidity | 95% (Storage humidity: 95% max.) | ||
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions | ||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions | ||
| Construction | Weight | 140 g max. | |
| Degree of protection | IP20 by EN/IEC 60529 | ||
| Standards | Safety standards | UL 60939 (Recognition) OVC III (≤3000 m) Pol2 CSA C22.2 No.8 EN 60939 OVC III (≤3000 m) Pol2 ENEC *2 EAC (TR CU 004 / 2011) | |
*1. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal
temperature of the product to increase, possibly causing smoking or damage.
*2. ENEC is a certification that makes product distribution to EU member countries, EFTA (European Free Trade Association)
tmember countries, and Eastern European countries possible.
last update: December 1, 2017
OMRON S8V-NF lineup
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Lineuplast update: December 1, 2017
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Model number in Ordering Information, below.
Ordering Information
Note: For details on normal stock models, contact your nearest OMRON representative.
| Rated voltage | Rated current | Model number |
|---|---|---|
| 250 VAC 250 VDC | 3 A | S8V-NFS203 |
| 6 A | S8V-NFS206 |
Mounting Brackets
| Name | Model number |
|---|---|
| Front-mounting bracket | S82Y-VS10F |
| Side-mounting bracket | S82Y-VS10S |
last update: December 1, 2017
OMRON S8V-NF catalog
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 S8V-NF Data Sheet | T212-E1-01 [2505KB] | Dec 01, 201720171201 | S8V-NF Data Sheet |
| S8V-NFS20[] Catalog | T214-E1-01 [1048KB] | Oct 09, 201820181009 | S8V-NFS20[] Catalog |
OMRON S8V-NF dimension
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Dimensionslast update: December 1, 2017
(Unit: mm)

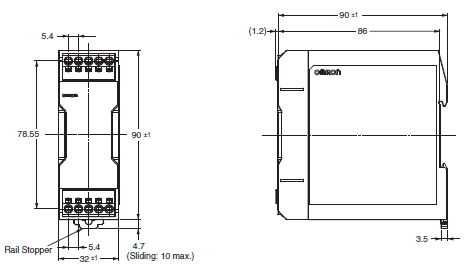

S8V-NFS203
S8V-NFS206

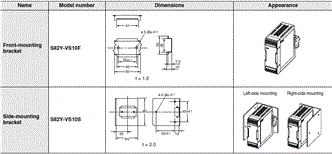

Mounting Brackets
DIN Rails (Order Separately)

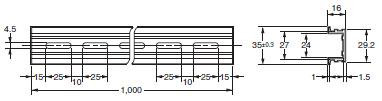

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings
may result from aluminum abrasion.
last update: December 1, 2017
