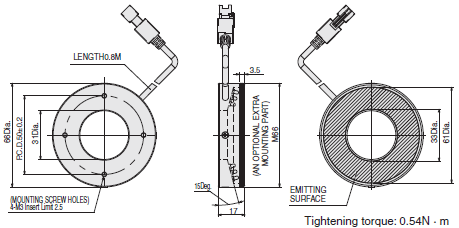

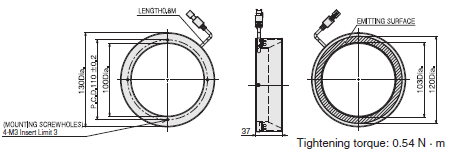

OMRON FLV Series Dimensions

/Images/l_3279-25-185706-198x198.jpg

last update: December 11, 2014

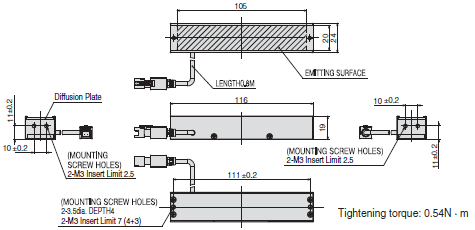

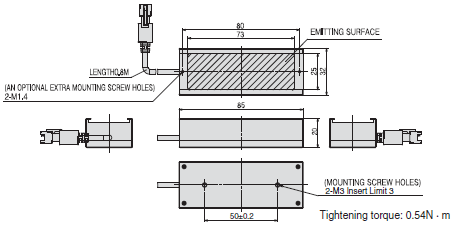

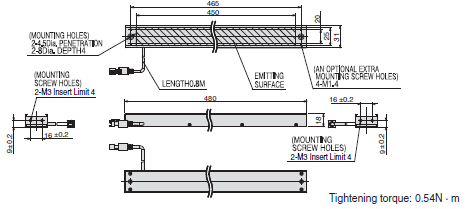

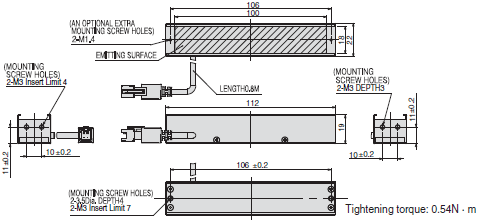

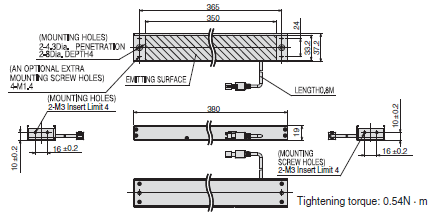

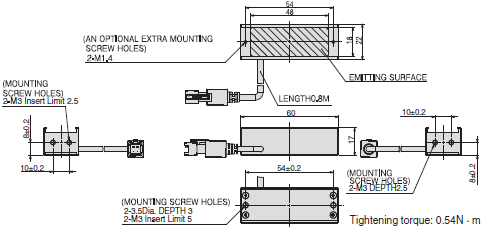

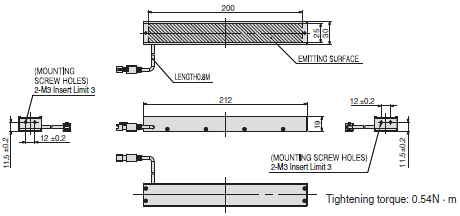

Bar Light
FLV-BR Series

Ideal for illumination of wide, rectangular surfaces.
Many color and size variations.

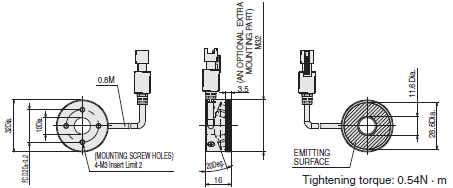

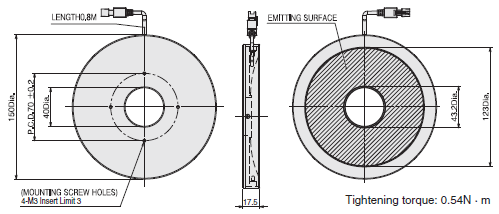

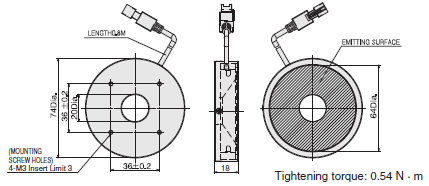

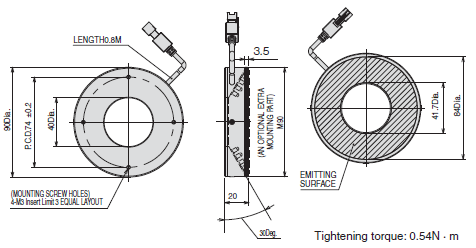

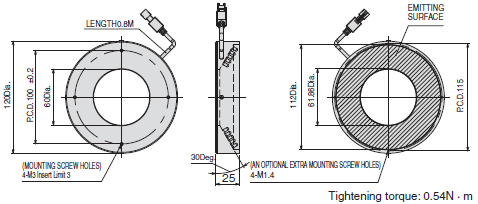

Direct Ring Light
FLV-DR Series

Bright illumination with high-density LED arrays.
Compact designs that save installation space.
Optional Diffusion Plates for uniform illumination.

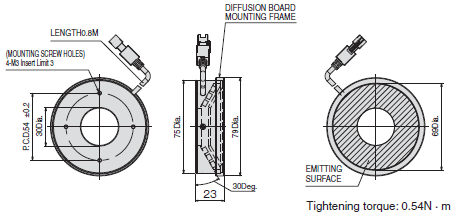

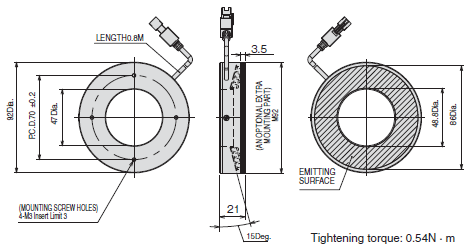

Low Angle Ring Light
FLV-DL Series

Bright illumination with high-density LED arrays.
Compact designs that save installation space.
Optional Diffusion Plates for uniform illumination.

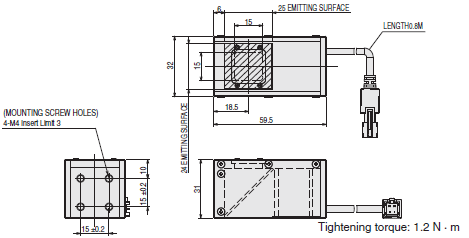

Coaxial Light
FLV-CL Series

Long life and stability result from a structure with optimum heat dissipation.
Uniform illumination for clear images.

Shadowless Light
FLV-FR Series

Special diffusion plates create greater uniformity in lighting than normal ring lighting.

Shadowless Light
FLV-FP Series

Shadowless Ring Lighting
Achieve highly uniform illumination and obtain different images at different installation distances for a much wider range of application compared to normal ring lighting.

Shadowless Light
FLV-FS Series

Uniquely designed diffusion plate achieve highly uniform illumination through reflection and diffusion.
Eliminates the influences of small surface irregularities to highlight features through large differences in inclination.
Saves space for small workpieces while achieving the benefits of dome lighting.

Shadowless Light
FLV-FQ Series

Shadowless Square Lighting
Achieves highly uniform illumination and obtains different images at different installation distances for a much wider range of applications compared to normal ring lighting.

Spot Light
FLV-EP50 Series

Superior directional characteristic, essentially parallel light, and long-distance illumination.

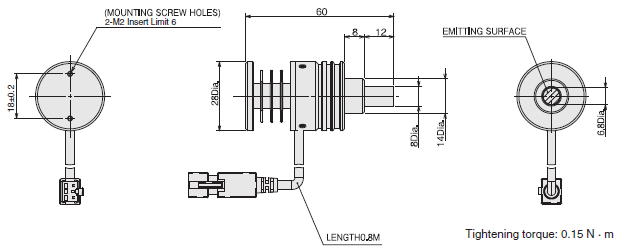

High-power Spot Light
FLV-EP08 Series

High-power LEDs generate strong light with a compact design.
Ideal for applications in combination with a Coaxial Lens.
Highly efficient heat-dissipating structure ensures a long life.

Direct Back Light
FLV-DB Series

Highly uniform backlighting with high-density LED arrays. Emphasizes the outline features of workpieces.

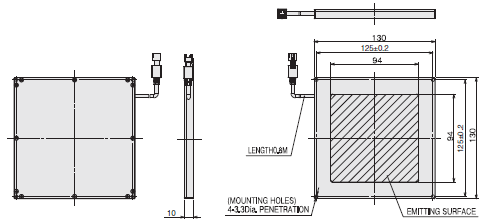

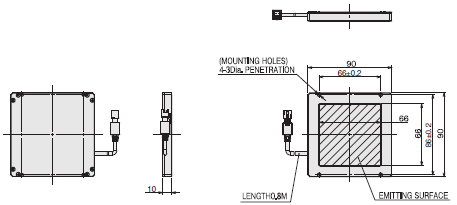

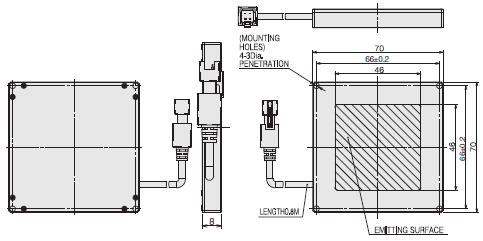

Edge Type Light
FLV-FB Series

Five size variations with emitting surfaces from 35 mm square to 164 mm square.
As thin as 8 mm (FLV-FB7070).

Edge Type Coaxial Light
FLV-FX Series

High uniformity with diffused illumination.
Achieves both shadowless and coaxial illumination.
Lightweight and compact to conveniently fit into narrow spaces.

Dome Light
FLV-DD Series

Achieves uniform illumination by reflecting light from a ring-shaped light source through a highly reflective, diffusion dome.

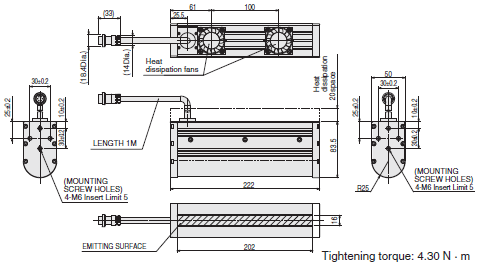

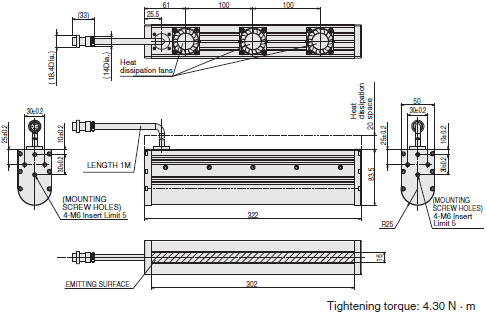

Line Light
FLV-LN Series

Extremely high brightness
Achieves highly effective line illumination with a condenser lens.

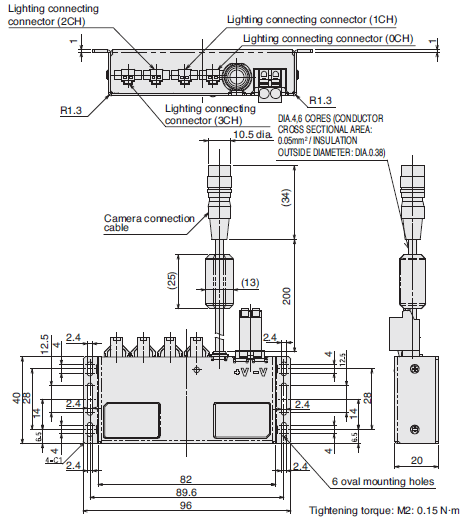

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Saves space with a compact design.
No need for space in control panels for expansion.
Maintain Lighting intensity even with long wiring distances.
No complicated wiring from the Vision System Controller.

Analog Lighting Controller for FLV Series
FLV-ATC Series

Stationary type suitable for separate installation when no space near the Camera.
Light emission trigger can be input directly even without Vision Sensor.

last update: December 11, 2014

Purchase the OMRON Lighting System Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON FLV Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the FLV Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON FLV SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZE / ZV / ZV2 / XE / XV / XV2 Enclosed Switches/Features
E5CC, E5CC-B, E5CC-U Digital Temperature Controller (48 x 48 mm)/Features
H3DK-H Power OFF-delay Timer/Features
H3CR-H Solid-state Timer/Features
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Features

OMRON FLV Series specification
FLV Series Light Units/Specifications
last update: August 1, 2018

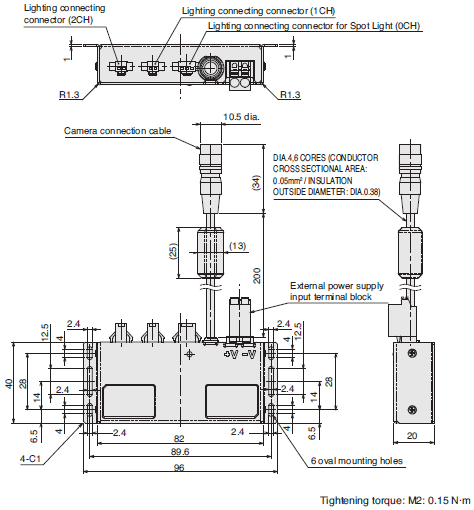

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Model FLV-TCC4 FLV-TCC1
Number of channels 4 standard lights 1 standard light
Applicable light *1 FLV series (excluding FLV-EP series and FLV-LN series)
Applicable camera *2 FH-S series, FZ-S series
Applicable vision system controller FH series, FZ5 series
Input voltage Supplied from applicable camera (12 V) or external power supply (24 V) *3
External power supply voltage 24 VDC 10% (including ripple)
Current consumption 1.5A max.
Recommended
power supply S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)
Power of
connected
light 12 VDC
for
camera
supply Continuous lighting 4ch total 7.5 W max. 7.5 W max.
Trigger
lighting Simultaneous
lighting 4ch total 7.5 W max. 7.5 W max.
Individual
lighting 7.5 W max. for 1ch
24 VDC
for
external
supply Continuous lighting 4ch total 7.5 W max. 7.5 W max.
Trigger
lighting Simultaneous
lighting 4ch total 15 W max. 15 W max.
Individual
lighting 15 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Luminance
control
method Duty light adjustment or voltage light adjustment
Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels
Voltage light adjustment: Light adjustment of 255 levels
(all are set with image sensor controller)
Trigger lighting Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time Ton: 30μs max.
Lighting duration setting Auto setting in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit)
Insulation resistance 0.5 MΩ (100VDC)
Ambient temperature Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials Case,Camera mount plate: Aluminum, Cable: FPVC
Weight Approx. 130g (including
the camera mount plate) Approx. 120g (including
the camera mount plate)
Accessories Instruction sheet, Lighting connection table, Camera Mount plate, Mounting screws (M2 set
screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards EN61326-1 *4

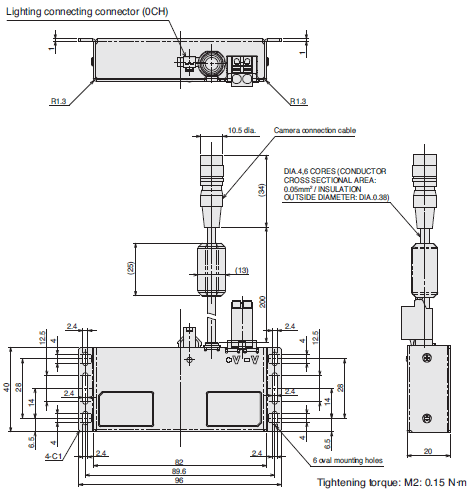

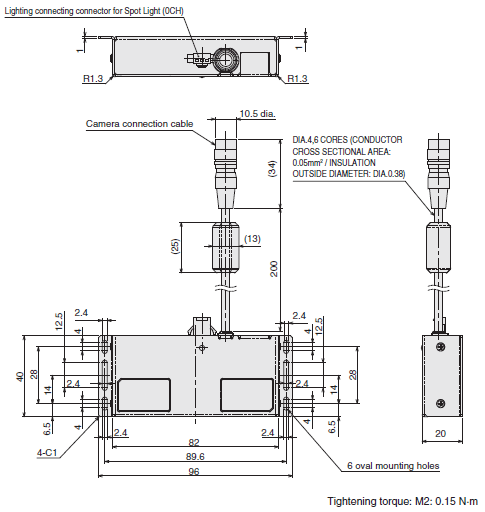

Model FLV-TCC3HB FLV-TCC1EP
Number of channels 1 Spot Light,
2 standard lights 1 Spot Light
Applicable light *1 FLV series (excluding
FLV-LN series) FLV-EP series
Applicable camera *2 FH-S series, FZ-S series
Applicable vision system controller FH series, FZ5 series
Input voltage Supplied from applicable
camera (12 V) or external
power supply (24 V) *3 Supplied from applicable
camera (12 V)
External power supply voltage 24 VDC 10% (including ripple) -
Current consumption 1.5A max. 1.0A max.
Recommended
power supply S8VS-06024
(manufactured by OMRON,
24 VDC, 2.5 A, 60 W) -
Power of
connected
light 12 VDC
for
camera
supply Continuous lighting 0ch connection: 1,2ch
total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max. All FLV-EP series
can be connected.
Trigger
lighting Simultaneous
lighting 0ch connection:
1,2ch total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max.
Individual
lighting 7.5 W max. for 1ch
24 VDC
for
external
supply Continuous lighting 0ch connection:
1,2ch total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max. -
Trigger
lighting Simultaneous
lighting 0ch connection:
1,2ch total 14 W max.
0ch non-connection:
1,2ch total 15 W max.
Individual
lighting 15 W max. for 1ch
Drive method 0ch Constant current
method
1ch/2ch: Constant
voltage method Constant current method
Lighting method Trigger lighting, Continuous lighting
Luminance
control
method 0ch Duty light adjustment or
current light adjustment
1ch/2ch Duty light adjustment or
voltage light adjustment
Duty light adjustment:
PWM frequency of 100 kHz,
light adjustment of 255 levels
current light adjustment/
Voltage light adjustment:
Light adjustment of
255 levels (all are set with
image sensor controller) Duty light adjustment or
current light adjustment
Duty light adjustment:
PWM frequency of 100 kHz,
light adjustment of 255 levels
current light adjustment:
Light adjustment of
255 levels (all are set
with image sensor controller)
Trigger lighting Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time Ton: 30μs max.
Lighting duration setting Auto setting in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit)
Insulation resistance 0.5 MΩ (100VDC)
Ambient temperature Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials Case,Camera mount plate: Aluminum, Cable: FPVC
Weight Approx. 130g (including
the camera mount plate) Approx. 120g (including
the camera mount plate)
Accessories Instruction sheet, Lighting connection table, Camera Mount plate, Mounting screws (M2 set
screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards EN61326-1 *4

*1. Check the lighting connection table of accessory.
*2. When mounting on the FH-S[]12, use the FH-SM12-XLC (sold separately).
*3. When supplying the power to this product from an external input power supply (24V), make sure to turn ON the
power to this product first or at the same time with the image sensor controller. If you reverse this order,
this product will not recognize the 24V external input, so lighting greater than 7.5W will not be possible
*4. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

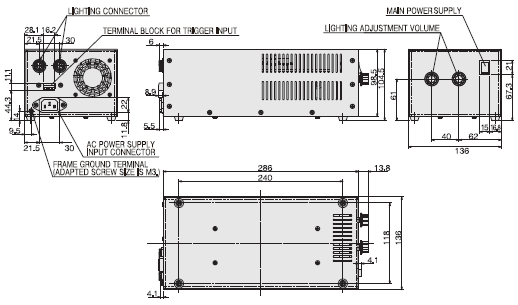

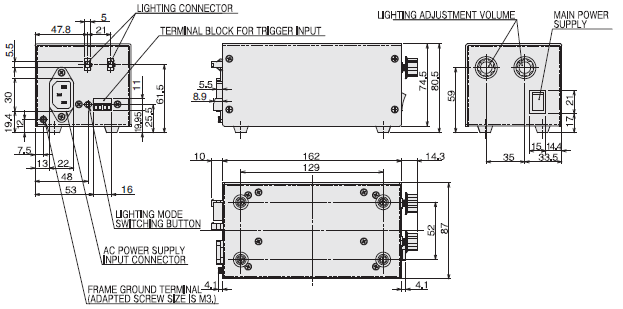

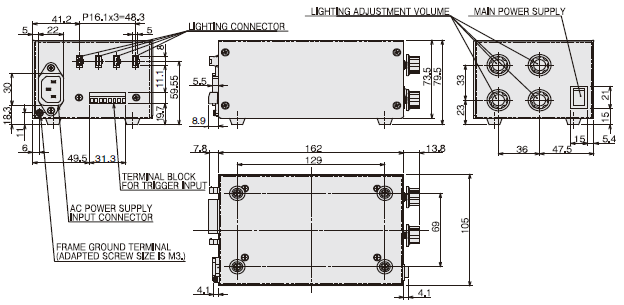

Analog Lighting Controller for FLV Series
FLV-ATC Series

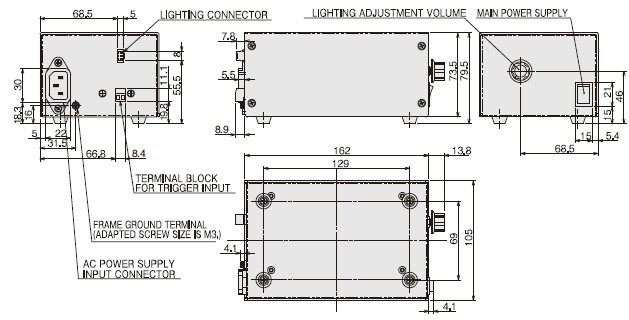

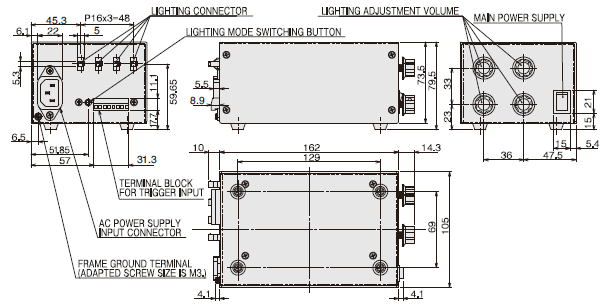

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Model FLV-ATC21024-[] *1 FLV-ATC41024-[] *1
Number of channels 2 4
Applicable light FLV series (FLV-EP series and FLV-LN series are excluded.)
Power supply voltage *2 100 to 240 VAC, 50/60 Hz
Current consumption 1 A max.
Power of connected light 2ch total 40 W max.
30 W max. for 1ch 4ch total 40 W max.
30 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Luminance control method Voltage light adjustment: 14.0 to 24.0 V
Trigger lighting Lighting in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 100 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 800 g
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Model FLV-ATC10405-[] *1 FLV-ATC40405-[] *1
Number of channels 1 4
Applicable light FLV-EP series
Power supply voltage *2 100 to 240 VAC, 50/60 Hz
Current consumption 0.6 A max.
Power of connected light 3 W max. 4ch total 12 W max.
3 W max. for 1ch
Drive method Constant current method
Lighting method Trigger lighting, Continuous lighting
Luminance control method Current light adjustment: 5 A max.
Trigger lighting Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 1000 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 800 g
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Model FLV-ATC26024-100V[] *1 FLV-ATC26024-200V[] *1
Number of channels 2
Applicable light FLV-LN series
Power supply voltage *2 100 to 120 VAC, 50/60 Hz 200 to 240 VAC, 50/60 Hz
Current consumption 7 A max. 4 A max.
Power of connected light 2ch total 240 W max.
120 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Intensity control method Current light adjustment: 5 A max.
Luminance control method Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 500 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 2.1 kg
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

last update: August 1, 2018

OMRON FLV Series catalog
FLV Series Light Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Vision Accessory Catalog Q198-E1-09
[54080KB] Dec 06, 201820181206 Vision Accessory Catalog

OMRON FLV Series dimension
FLV Series Light Units/Dimensions
last update: August 1, 2018

(Unit: mm)

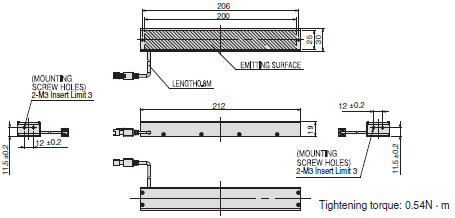

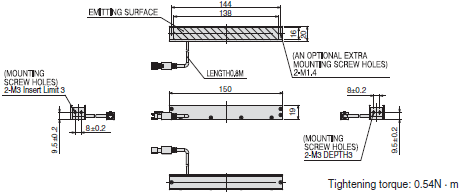

Bar Light
FLV-BR Series

FLV-BR6022[]

FLV-BR8532[]

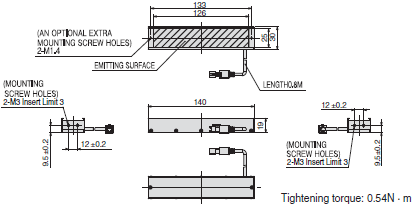

FLV-BR11222[]

FLV-BR14030[]

FLV-BR15020[]

FLV-BR21222[]

FLV-BR21230[]

FLV-BR38037[]

FLV-BR48031[]

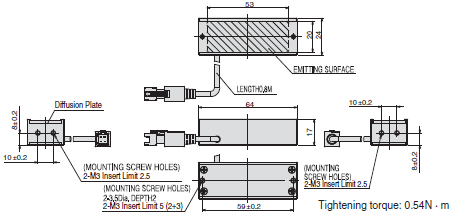

FLV-BR6424UV

FLV-BR11624UV

FLV-BR21230UV

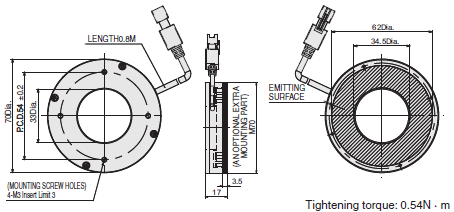

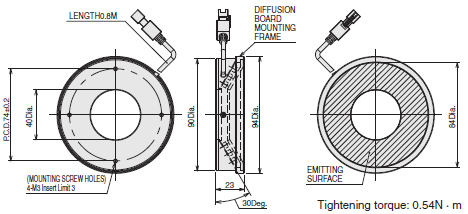

Direct Ring Light
FLV-DR Series

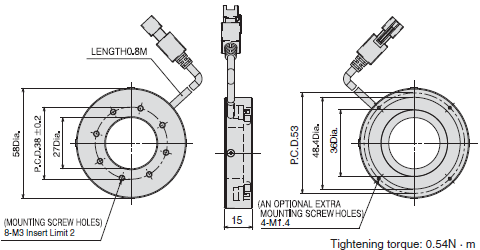

FLV-DR3220[]

FLV-DR4415[]

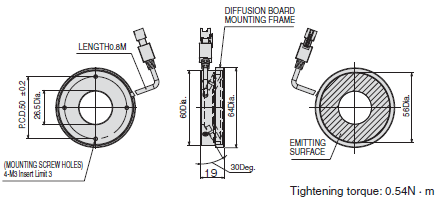

FLV-DR5030[]

FLV-DR6615[]

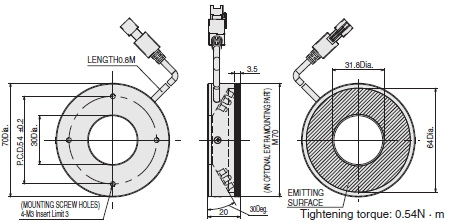

FLV-DR7000[]

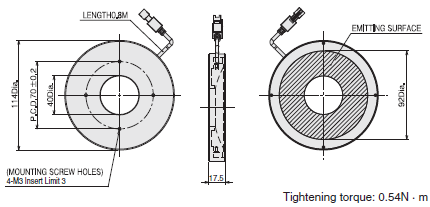

FLV-DR7030[]

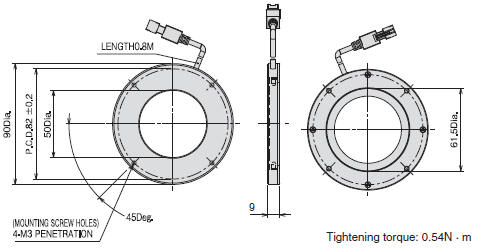

FLV-DR9000[]

FLV-DR9030[]

FLV-DR9215[]

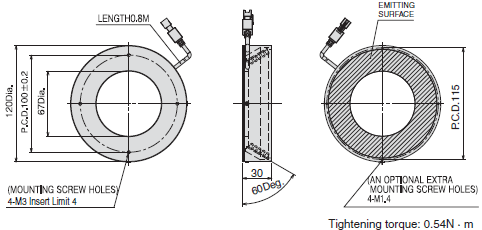

FLV-DR12030[]

FLV-DR6030UV

FLV-DR7530UV

FLV-DR9030UV

Low Angle Ring Light
FLV-DL Series

FLV-DL5890[]

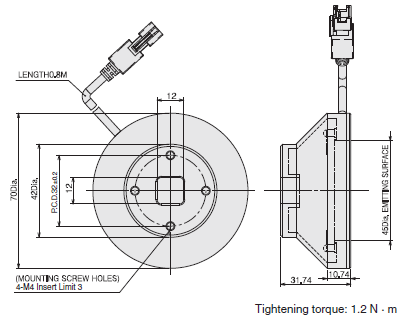

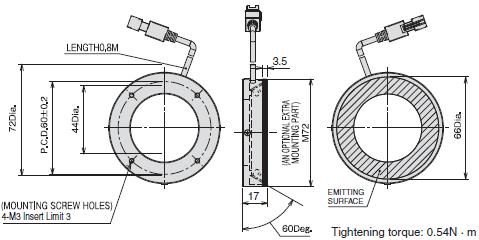

FLV-DL7260[]

FLV-DL9090[]

FLV-DL12060[]

FLV-DL15060[]

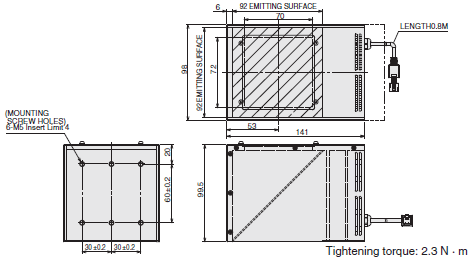

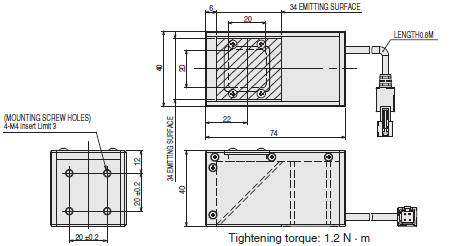

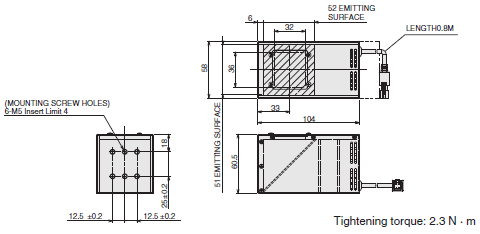

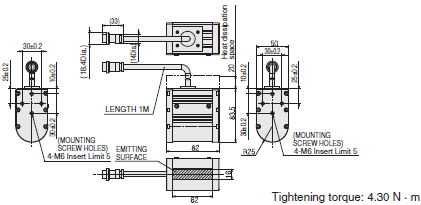

Coaxial Light
FLV-CL Series

FLV-CL30[]

FLV-CL40[]

FLV-CL60[]

FLV-CL80[]

FLV-CL100[]

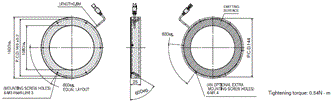

Shadowless Ring Light
FLV-FR Series

FLV-FR114[]

FLV-FR150[]

Shadowless Low Angle Ring Light
FLV-FP Series

FLV-FP130[]

Shadowless Dome Ring Light
FLV-FS Series

FLV-FS74[]

Shadowless Light
FLV-FQ Series

FLV-FQ48[]

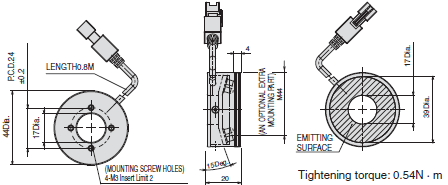

Spot Light
FLV-EP50 Series

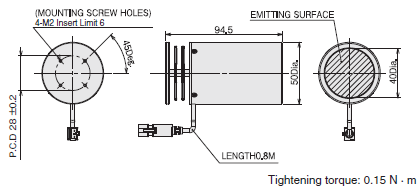

FLV-EP50[]

High-power Spot Light
FLV-EP08 Series

FLV-EP0803[]

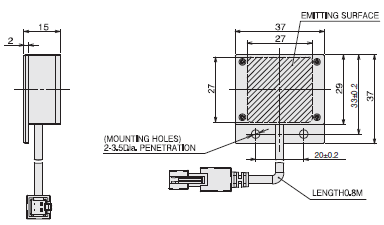

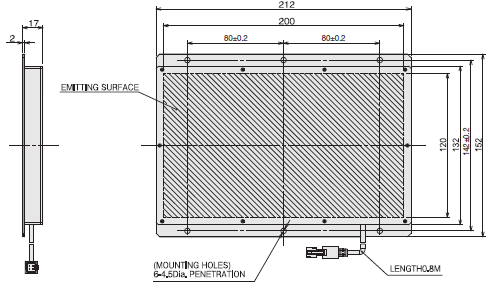

Direct Back Light
FLV-DB Series

FLV-DB3729[]

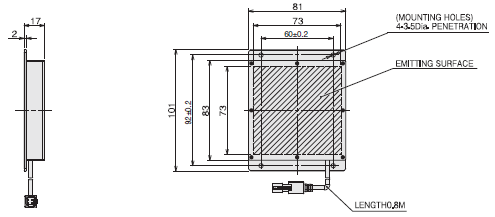

FLV-DB101812[]

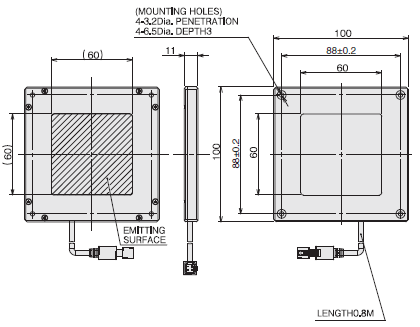

FLV-DB130130[]

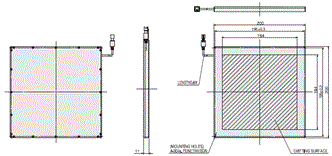

FLV-DB212152[]

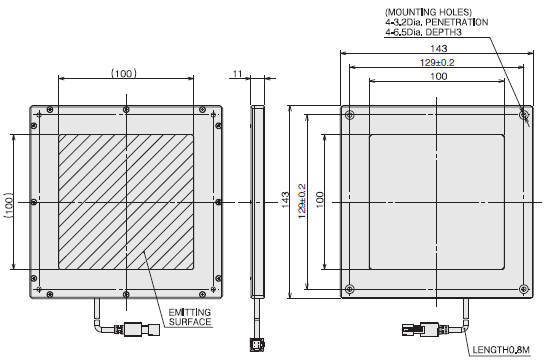

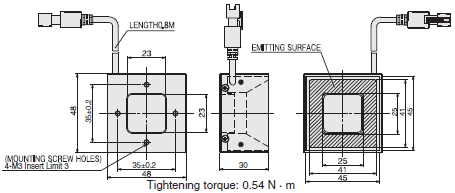

Edge Type Light
FLV-FB Series

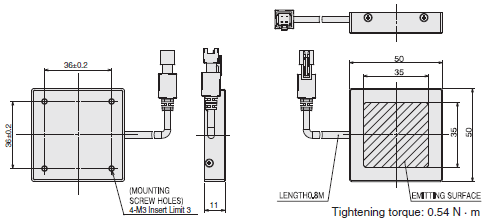

FLV-FB5050[]

FLV-FB7070[]

FLV-FB9090[]

FLV-FB130130[]

FLV-FB200200[]

Edge Type Coaxial Light
FLV-FX Series

FLV-FX100[]

FLV-FX143[]

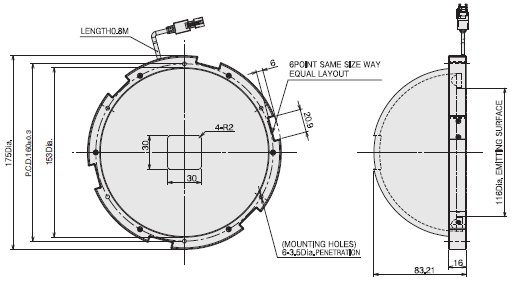

Dome Light
FLV-DD Series

FLV-DD70[]

FLV-DD100[]

FLV-DD150[]

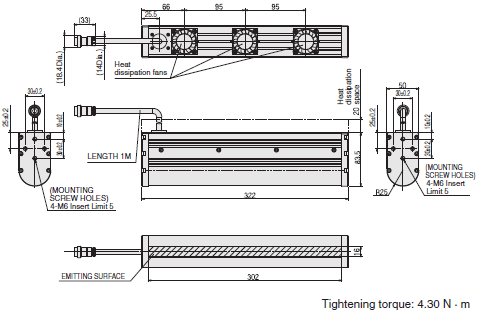

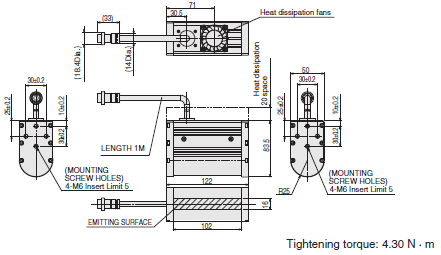

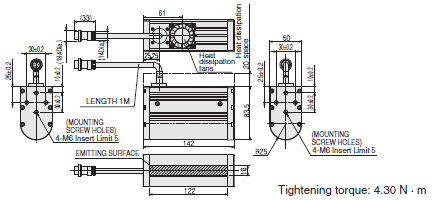

Line Light
FLV-LN Series

FLV-LN82W/B

FLV-LN142W/B

FLV-LN322W/B

FLV-LN442W/B

FLV-LN122R

FLV-LN222R

FLV-LN322R

FLV-LN422R

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series
Lighting Controller

FLV-TCC4

FLV-TCC1

FLV-TCC3HB

FLV-TCC1EP

Camera mount plate (provided)

Analog Lighting Controller for FLV Series
FLV-ATC Series
Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

FLV-ATC21024-[]

FLV-ATC41024-[]

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

FLV-ATC10405-[]

FLV-ATC40405-[]

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

FLV-ATC26024-[]

Options for FLV series

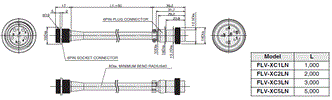

Cable

FLV-XC[]

FLV-XC[]R

FLV-XC[]EP

FLV-XC[]EPR

FLV-XC[]LN

FLV-XC[]S2

last update: August 1, 2018

OMRON FLV Series lineup
FLV Series Light Units/Lineup
last update: August 1, 2018
Bar Light
FLV-BR Series

Model Color Power
consumption
(W) Controller * Weight
(g) Options
FLV-TCC[] FLV-ATC[] Diffusion
Plate Polarization
Plate
FLV-BR6022W WHITE 1.4 ○ ○ 60 ○ ○
FLV-BR6022R RED 1.3 ○ ○
FLV-BR6022B BLUE 1.4 ○ ○
FLV-BR6022IR IR 0.9 ○ ○
FLV-BR6424UV UV 1.8 ○ ○ 70 ○ ×
FLV-BR8532W WHITE 3.5 ○ ○ 130 ○ ○
FLV-BR8532R RED 3.1 ○ ○
FLV-BR8532B BLUE 3.5 ○ ○
FLV-BR11222W WHITE 4.2 ○ ○ 100 ○ ○
FLV-BR11222R RED 2.6 ○ ○
FLV-BR11222B BLUE 4.2 ○ ○
FLV-BR11222IR IR 1.8 ○ ○
FLV-BR11624UV UV 3.6 ○ ○ 120 ○ -
FLV-BR14030W WHITE 6.1 ○ ○ 140 ○ ○
FLV-BR14030R RED 4.8 ○ ○
FLV-BR14030B BLUE 6.1 ○ ○
FLV-BR15020W WHITE 5.5 ○ ○ 120 ○ ○
FLV-BR15020R RED 3.1 ○ ○
FLV-BR15020B BLUE 5.5 ○ ○
FLV-BR21222W WHITE 8.7 ○ ○ 140 ○ ○
FLV-BR21222R RED 5.0 ○ ○
FLV-BR21222B BLUE 8.7 ○ ○
FLV-BR21230W WHITE 8.8 ○ ○ 220 ○ ○
FLV-BR21230R RED 7.0 ○ ○
FLV-BR21230B BLUE 8.8 ○ ○
FLV-BR21230IR IR 6.1 ○ ○
FLV-BR21230UV UV 7.8 ○ ○ 230 ○ ×
FLV-BR38037W WHITE 15.9 × ○ 430 ○ ○
FLV-BR38037R RED 11.3 ○ ○
FLV-BR38037B BLUE 15.9 × ○
FLV-BR48031W WHITE 21.9 × ○ 460 ○ ○
FLV-BR48031R RED 18.0 × ○
FLV-BR48031B BLUE 21.9 × ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

Direct Ring Light
FLV-DR Series

Model Color Power
consumption
(W) Controller * Weight
(g) Options
FLV-TCC[] FLV-ATC[] Diffusion
Plate Polarization
Plate
FLV-DR3220W WHITE 1.4 ○ ○ 60 ○ ○
FLV-DR3220R RED 1.3
FLV-DR3220B BLUE 1.4
FLV-DR4415W WHITE 2.7 ○ ○ 70 ○ ○
FLV-DR4415R RED 1.7 ○ ○
FLV-DR4415B BLUE 2.7 ○ ○
FLV-DR5030W WHITE 3.1 ○ ○ 60 ○ ○
FLV-DR5030R RED 1.8 ○ ○
FLV-DR5030B BLUE 3.1 ○ ○
FLV-DR5030IR IR 1.3 ○ ○
FLV-DR6030UV UV 3.2 ○ ○ 90 ○ ×
FLV-DR6615W WHITE 5.0 ○ ○ 120 ○ ○
FLV-DR6615R RED 3.9 ○ ○
FLV-DR6615B BLUE 5.0 ○ ○
FLV-DR7000W WHITE 5.0 ○ ○ 110 ○ ○
FLV-DR7000R RED 3.7 ○ ○
FLV-DR7000B BLUE 5.0 ○ ○
FLV-DR7030W WHITE 5.0 ○ ○ 120 ○ ○
FLV-DR7030R RED 3.7 ○ ○
FLV-DR7030B BLUE 5.0 ○ ○
FLV-DR7030IR IR 2.6 ○ ○
FLV-DR7530UV UV 5.4 ○ ○ 150 ○ ○
FLV-DR9000W WHITE 8.8 ○ ○ 230 ○ ×
FLV-DR9000R RED 7.0 ○ ○
FLV-DR9000B BLUE 8.8 ○ ○
FLV-DR9030W WHITE 8.1 ○ ○ 200 ○
FLV-DR9030R RED 6.6 ○ ○
FLV-DR9030B BLUE 8.1 ○ ○
FLV-DR9030IR IR 4.3 ○ ○
FLV-DR9030UV UV 6.8 ○ ○ 220 ○ ×
FLV-DR9215W WHITE 7.4 ○ ○ 200 ○ ○
FLV-DR9215R RED 5.4 ○ ○
FLV-DR9215B BLUE 7.4 ○ ○
FLV-DR12030W WHITE 11.9 ○ ○ 360 ○ ○
FLV-DR12030R RED 9.8 ○ ○
FLV-DR12030B BLUE 11.9 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

Low Angle Ring Light
FLV-DL Series

Model Color Power
consumption
(W) Controller * Weight
(g) Options
FLV-TCC[] FLV-ATC[] Diffusion
Plate Polarization
Plate
FLV-DL5890W WHITE 1.9 ○ ○ 90 ○ ×
FLV-DL5890R RED 1.3 ○ ○
FLV-DL5890B BLUE 1.9 ○ ○
FLV-DL7260W WHITE 5.7 ○ ○ 120 ○ ○
FLV-DL7260R RED 3.9 ○ ○
FLV-DL7260B BLUE 5.7 ○ ○
FLV-DL9090W WHITE 2.8 ○ ○ 100 × ×
FLV-DL9090R RED 1.8 ○ ○
FLV-DL9090B BLUE 2.8 ○ ○
FLV-DL12060W WHITE 12.7 ○ ○ 310 ○ ○
FLV-DL12060R RED 10.5 ○ ○
FLV-DL12060B BLUE 12.7 ○ ○
FLV-DL15060W WHITE 13.6 ○ ○ 260 ○ ○
FLV-DL15060R RED 11.2 ○ ○
FLV-DL15060B BLUE 13.6 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

Coaxial Light
FLV-CL Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-CL30W WHITE 2.4 ○ ○ 110
FLV-CL30R RED 1.4 ○ ○
FLV-CL30B BLUE 2.4 ○ ○
FLV-CL40W WHITE 3.9 ○ ○ 170
FLV-CL40R RED 2.3 ○ ○
FLV-CL40B BLUE 3.9 ○ ○
FLV-CL60W WHITE 10.4 ○ ○ 380
FLV-CL60R RED 5.7 ○ ○
FLV-CL60B BLUE 10.4 ○ ○
FLV-CL60IR IR 3.9 ○ ○
FLV-CL60UV UV 3.0 ○ ○
FLV-CL80W WHITE 10.8 ○ ○ 580
FLV-CL80R RED 7.2 ○ ○
FLV-CL80B BLUE 10.8 ○ ○
FLV-CL100W WHITE 22.7 × ○ 820
FLV-CL100R RED 15.2 × ○
FLV-CL100B BLUE 22.7 × ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

Shadowless Light
FLV-FR Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FR114W WHITE 3.9 ○ ○ 270
FLV-FR114R RED 3.1 ○ ○
FLV-FR114B BLUE 3.9 ○ ○
FLV-FR150W WHITE 6.1 ○ ○ 500
FLV-FR150R RED 3.5 ○ ○
FLV-FR150B BLUE 6.1 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FP Series

Model Light
Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FP130W WHITE 8.1 ○ ○ 320
FLV-FP130R RED 5.8 ○ ○
FLV-FP130B BLUE 8.1 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FS Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FS74W WHITE 5.2 ○ ○ 140
FLV-FS74R RED 3.5 ○ ○
FLV-FS74B BLUE 5.2 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FQ Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FQ48W WHITE 2.0 ○ ○ 100
FLV-FQ48R RED 1.2 ○ ○
FLV-FQ48B BLUE 2.0 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Spot Light
FLV-EP50 Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-EP50W WHITE 1.6 ○ ○ 200
FLV-EP50R RED 1.1 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

High-power Spot Light
FLV-EP08 Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-EP0803W WHITE 1.6 ○ ○ 80
FLV-EP0803R RED 1.1 ○ ○
FLV-EP0803B BLUE 1.6 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Direct Back Light
FLV-DB Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-DB3729W WHITE 0.9 ○ ○ 50
FLV-DB3729R RED 0.9 ○ ○
FLV-DB3729B BLUE 0.9 ○ ○
FLV-DB10181W WHITE 8.1 ○ ○ 160
FLV-DB10181R RED 4.7 ○ ○
FLV-DB10181B BLUE 8.1 ○ ○
FLV-DB130130W WHITE 13.0 ○ ○ 270
FLV-DB130130R RED 11.5 ○ ○
FLV-DB130130B BLUE 13.0 ○ ○
FLV-DB212152W WHITE 29.4 × ○ 510
FLV-DB212152R RED 20.2 × ○
FLV-DB212152B BLUE 29.4 × ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

Edge Type Light
FLV-FB Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FB5050W WHITE 1.9 ○ ○ 75
FLV-FB5050R RED 0.9 ○ ○
FLV-FB5050B BLUE 1.9 ○ ○
FLV-FB7070W WHITE 1.9 ○ ○ 85
FLV-FB7070R RED 1.4 ○ ○
FLV-FB7070B BLUE 1.9 ○ ○
FLV-FB9090W WHITE 3.7 ○ ○ 155
FLV-FB9090R RED 1.9 ○ ○
FLV-FB9090B BLUE 3.7 ○ ○
FLV-FB130130W WHITE 5.5 ○ ○ 230
FLV-FB130130R RED 3.7 ○ ○
FLV-FB130130B BLUE 5.5 ○ ○
FLV-FB200200W WHITE 7.3 ○ ○ 710
FLV-FB200200R RED 5.5 ○ ○
FLV-FB200200B BLUE 7.3 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Edge Type Coaxial Light
FLV-FX Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-FX100W WHITE 3.7 ○ ○ 180
FLV-FX100R RED 1.9 ○ ○
FLV-FX100B BLUE 3.7 ○ ○
FLV-FX143W WHITE 5.5 ○ ○ 240
FLV-FX143R RED 3.7 ○ ○
FLV-FX143B BLUE 5.5 ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Dome Light
FLV-DD Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-DD70W WHITE 2.3 ○ ○ 130
FLV-DD70R RED 1.4 ○ ○
FLV-DD70B BLUE 2.3 ○ ○
FLV-DD100W WHITE 17.9 × ○ 210
FLV-DD100R RED 11.9 ○ ○
FLV-DD100B BLUE 17.9 × ○
FLV-DD150W WHITE 17.9 × ○ 490
FLV-DD150R RED 11.9 ○ ○
FLV-DD150B BLUE 17.9 × ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

Line Light
FLV-LN Series

Model Color Power
consumption
(W) Controller * Weight
(g)
FLV-TCC[] FLV-ATC[]
FLV-LN82W WHITE 9.2 × ○ 640
FLV-LN82B BLUE 9.2 × ○
FLV-LN122R RED 10.4 × ○ 800
FLV-LN142W WHITE 18.4 × ○ 890
FLV-LN142B BLUE 18.4 × ○
FLV-LN222R RED 20.7 × ○ 1320
FLV-LN322W WHITE 45.9 × ○ 1950
FLV-LN322 BLUE 45.9 × ○
FLV-LN322R RED 31.1 × ○
FLV-LN442W WHITE 64.3 × ○ 2450
FLV-LN442B BLUE 64.3 × ○
FLV-LN422R RED 41.4 × ○ 2400

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Model Number of
Channels Applicable Light *5 Power
Supply
Voltage Power of
Connected
Light Luminance
Control
Method
Standard Light
FLV Series*1 Spot Light
FLV-EP Series Line Light
FLV-LN Series
FLV-TCC4 4 standard lights ○ × × 24 VDC
*2 15 W max.
*3 Digital
*4
FLV-TCC1 1 standard light ○ × ×
FLV-TCC3HB 1 Spot Light and
2 standard lights ○ ○ × ⎯ Any FLV-EPseries
Spot
Light can be
connected
FLV-TCC1EP 1 Spot Light × ○ ×

*1. Standard light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line
Lights.
*2. If the total power consumption of Lights is 7.5 W or less, an external power supply is not required because the power
is supplied from the Camera.
*3. Refer to the Specifications for the details of "power for connectable lighting".
*4. Intensity is controlled through the settings of the Vision System Controller.
*5. ○:Connectable ×:Not connectable

Analog Lighting Controller for FLV Series
FLV-ATC Series

Applicable light Model Number of
channels Power supply
voltage Power of
connected
light Luminance
control method
For standard
light *1 FLV-ATC21024 *2 2 100 to 240 VAC,
50/60 Hz 40 W max. Analog
FLV-ATC41024 *2 4
For spot light FLV-ATC10405 *2 1 3 W max.
FLV-ATC40405 *2 4 12 W max.
For line light FLV-ATC26024-100V
*2 2 100 to 120 VAC,
50/60 Hz 240 W max.
FLV-ATC26024-200V 2 200 to 240 VAC,
50/60 Hz

*1. Standard Light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line
Lights.
*2. For AC power cords: An A-type plug is standard. C-type and O-type plugs are also available. (Add "-C" or "-O" to the
end of the model number.)

Plug type A C O
Rated voltage 125 V 240 V 240 V
Standard PSE CEE CCC

Options for FLV series
Cable

Series Type Model Cable Length Weight
Extension Cable for
Standard Light *1 Standard Cable FLV-XC1 1 m Approx. 30g
FLV-XC2 2 m Approx. 50g
FLV-XC3 3 m Approx. 70g
FLV-XC5 5 m Approx. 110g
FLV-XC10 10 m Approx. 210g
Bend resistant
Cable FLV-XC1R 1 m Approx. 40g
FLV-XC2R 2 m Approx. 60g
FLV-XC3R 3 m Approx. 80g
FLV-XC5R 5 m Approx. 130g
FLV-XC10R 10 m Approx. 250g
Extension Cable for
Spot Light Standard Cable FLV-XC1EP 1 m Approx. 30g
FLV-XC2EP 2 m Approx. 50g
FLV-XC3EP 3 m Approx. 70g
FLV-XC5EP 5 m Approx. 110g
Bend resistant
Cable FLV-XC1EPR 1 m Approx. 40g
FLV-XC2EPR 2 m Approx. 60g
FLV-XC3EPR 3 m Approx. 80g
FLV-XC5EPR 5 m Approx. 130g
Extension Cable for
Line Light Standard Cable FLV-XC1LN 1 m Approx. 200g
FLV-XC2LN 2 m Approx. 270g
FLV-XC3LN 3 m Approx. 320g
FLV-XC5LN 5 m Approx. 440g
Branch Cable for
Standard Light *1 Standard Cable FLV-XC1S2 1 m Approx. 30g
FLV-XC2S2 2 m Approx. 50g
FLV-XC3S2 3 m Approx. 80g
FLV-XC5S2 5 m Approx. 120g

*1. Standard light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line Lights.

Diffusion Plate
Diffusion Plate

Type Model Applicable
light
Transparency rate High Middle Low
Diffusivity Low Middle High
For FLV-DR-series
Direct ring light FLV-DR3220DF FLV-DR3220DF50 FLV-DR3220DF30 FLV-DR3220[]
FLV-DR4415DF FLV-DR4415DF50 FLV-DR4415DF30 FLV-DR4415[]
FLV-DR5030DF FLV-DR5030DF50 FLV-DR5030DF30 FLV-DR5030[]
FLV-DR6030DF --- --- FLV-DR6030UV
FLV-DR6615DF FLV-DR6615DF50 FLV-DR6615DF30 FLV-DR6615[]
FLV-DR7000DF FLV-DR7000DF50 FLV-DR7000DF30 FLV-DR7000[]
FLV-DR7030DF FLV-DR7030DF50 FLV-DR7030DF30 FLV-DR7030[]
FLV-DR7530DF --- --- FLV-DR7530UV
FLV-DR9000DF FLV-DR9000DF50 FLV-DR9000DF30 FLV-DR9000[]
FLV-DR9030DF FLV-DR9030DF50 FLV-DR9030DF30 FLV-DR9030[]
FLV-DR9215DF FLV-DR9215DF50 FLV-DR9215DF30 FLV-DR9215[]
FLV-DR12030DF FLV-DR12030DF50 FLV-DR12030DF30 FLV-DR12030[]
For FLV-DL-series
Low angle ling light FLV-DL5890DF FLV-DL5890DF50 FLV-DL5890DF30 FLV-DL5890[]
FLV-DL7260DF FLV-DL7260DF50 FLV-DL7260DF30 FLV-DL7260[]
FLV-DL12060DF FLV-DL12060DF50 FLV-DL12060DF30 FLV-DL12060[]
FLV-DL15060DF FLV-DL15060DF50 FLV-DL15060DF30 FLV-DL15060[]
For FLV-BR-series
Bar light FLV-BR6022DF FLV-BR6022DF50 FLV-BR6022DF30 FLV-BR6022[]
FLV-BR6424DF --- --- FLV-BR6424UV
FLV-BR8532DF FLV-BR8532DF50 FLV-BR8532DF30 FLV-BR8532[]
FLV-BR11222DF FLV-BR11222DF50 FLV-BR11222DF30 FLV-BR11222[]
FLV-BR11624DF --- --- FLV-BR11624UV
FLV-BR14030DF FLV-BR14030DF50 FLV-BR14030DF30 FLV-BR14030[]
FLV-BR15020DF FLV-BR15020DF50 FLV-BR15020DF30 FLV-BR15020[]
FLV-BR21222DF FLV-BR21222DF50 FLV-BR21222DF30 FLV-BR21222[]
FLV-BR21230DF FLV-BR21230DF50 FLV-BR21230DF30 FLV-BR21230[]
FLV-BR38037DF FLV-BR38037DF50 FLV-BR38037DF30 FLV-BR38037[]
FLV-BR48031DF FLV-BR48031DF50 FLV-BR48031DF30 FLV-BR48031[]

Polarization Plate

Type Model Applicable light
For FLV-DR-series
Direct ring light FLV-DR3220PL FLV-DR3220[]
FLV-DR4415PL FLV-DR4415[]
FLV-DR5030PL FLV-DR5030[]
FLV-DR6615PL FLV-DR6615[]
FLV-DR7000PL FLV-DR7000[]
FLV-DR7030PL FLV-DR7030[]
FLV-DR9000PL FLV-DR9000[]
FLV-DR9030PL FLV-DR9030[]
FLV-DR9215PL FLV-DR9215[]
FLV-DR12030PL FLV-DR12030[]
For FLV-DL-series
Low angle ring light FLV-DL7260PL FLV-DL7260[]
FLV-DL12060PL FLV-DL12060[]
FLV-DL15060PL FLV-DL15060[]
For FLV-BR-series
Bar light Polarization direction:
Long side
FLV-BR6022PL FLV-BR6022[]
FLV-BR8532PL FLV-BR8532[]
FLV-BR11222PL FLV-BR11222[]
FLV-BR14030PL FLV-BR14030[]
FLV-BR15020PL FLV-BR15020[]
FLV-BR21222PL FLV-BR21222[]
FLV-BR21230PL FLV-BR21230[]
FLV-BR38037PL FLV-BR38037[]
FLV-BR48031PL FLV-BR48031[]
Polarization direction:
Short side
FLV-BR6022PL-V FLV-BR6022[]
FLV-BR8532PL-V FLV-BR8532[]
FLV-BR11222PL-V FLV-BR1122[]
FLV-BR14030PL-V FLV-BR14030[]
FLV-BR15020PL-V FLV-BR15020[]
FLV-BR21222PL-V FLV-BR21222[]
FLV-BR21230PL-V FLV-BR21230[]
FLV-BR38037PL-V FLV-BR38037[]
FLV-BR48031PL-V FLV-BR48031[]

last update: August 1, 2018

NO. FLV Series

TYPE:Vision Sensors / Machine Vision Systems Lighting System Copyright Statement

DATE:2021-06-08

Associated products:
FQ-M Series Vision Sensor/Features FL Series Lighting for Image Processing/Features

Model	FLV-TCC4	FLV-TCC1
Number of channels	4 standard lights	1 standard light
*Applicable light 1**	FLV series (excluding FLV-EP series and FLV-LN series)
*Applicable camera 2**	FH-S series, FZ-S series
Applicable vision system controller	FH series, FZ5 series
Input voltage	Supplied from applicable camera (12 V) or external power supply (24 V) *3
External power supply voltage	24 VDC 10% (including ripple)
Current consumption	1.5A max.
	Recommended power supply	S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)
Power of connected light	12 VDC for camera supply	Continuous lighting	4ch total 7.5 W max.	7.5 W max.
Trigger lighting	Simultaneous lighting	4ch total 7.5 W max.	7.5 W max.
Individual lighting	7.5 W max. for 1ch
24 VDC for external supply	Continuous lighting	4ch total 7.5 W max.	7.5 W max.
Trigger lighting	Simultaneous lighting	4ch total 15 W max.	15 W max.
Individual lighting	15 W max. for 1ch
Drive method	Constant voltage method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	Duty light adjustment or voltage light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels Voltage light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)
Trigger lighting	Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time	Ton: 30μs max.
Lighting duration setting	Auto setting in accordance with shutter speed.
External interface	Camera connection cable (directly connected with the main unit)
Insulation resistance	0.5 MΩ (100VDC)
Ambient temperature	Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials	Case,Camera mount plate: Aluminum, Cable: FPVC
Weight	Approx. 130g (including the camera mount plate)	Approx. 120g (including the camera mount plate)
Accessories	Instruction sheet, Lighting connection table, Camera Mount plate, Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards	EN61326-1 *4

Model	FLV-TCC3HB	FLV-TCC1EP
Number of channels	1 Spot Light, 2 standard lights	1 Spot Light
*Applicable light 1**	FLV series (excluding FLV-LN series)	FLV-EP series
*Applicable camera 2**	FH-S series, FZ-S series
Applicable vision system controller	FH series, FZ5 series
Input voltage	Supplied from applicable camera (12 V) or external power supply (24 V) *3	Supplied from applicable camera (12 V)
External power supply voltage	24 VDC 10% (including ripple)	-
Current consumption	1.5A max.	1.0A max.
	Recommended power supply	S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)	-
Power of connected light	12 VDC for camera supply	Continuous lighting	0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.	All FLV-EP series can be connected.
Trigger lighting	Simultaneous lighting	0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.
Individual lighting	7.5 W max. for 1ch
24 VDC for external supply	Continuous lighting	0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.	-
Trigger lighting	Simultaneous lighting	0ch connection: 1,2ch total 14 W max. 0ch non-connection: 1,2ch total 15 W max.
Individual lighting	15 W max. for 1ch
Drive method	0ch Constant current method 1ch/2ch: Constant voltage method	Constant current method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	0ch Duty light adjustment or current light adjustment 1ch/2ch Duty light adjustment or voltage light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels current light adjustment/ Voltage light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)	Duty light adjustment or current light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels current light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)
Trigger lighting	Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time	Ton: 30μs max.
Lighting duration setting	Auto setting in accordance with shutter speed.
External interface	Camera connection cable (directly connected with the main unit)
Insulation resistance	0.5 MΩ (100VDC)
Ambient temperature	Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials	Case,Camera mount plate: Aluminum, Cable: FPVC
Weight	Approx. 130g (including the camera mount plate)	Approx. 120g (including the camera mount plate)
Accessories	Instruction sheet, Lighting connection table, Camera Mount plate, Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards	EN61326-1 *4

Model	*FLV-ATC21024-[] 1**	*FLV-ATC41024-[] 1**
Number of channels	2	4
Applicable light	FLV series (FLV-EP series and FLV-LN series are excluded.)
*Power supply voltage 2**	100 to 240 VAC, 50/60 Hz
Current consumption	1 A max.
Power of connected light	2ch total 40 W max. 30 W max. for 1ch	4ch total 40 W max. 30 W max. for 1ch
Drive method	Constant voltage method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	Voltage light adjustment: 14.0 to 24.0 V
Trigger lighting	Lighting in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 100 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 800 g
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

Model	*FLV-ATC10405-[] 1**	*FLV-ATC40405-[] 1**
Number of channels	1	4
Applicable light	FLV-EP series
*Power supply voltage 2**	100 to 240 VAC, 50/60 Hz
Current consumption	0.6 A max.
Power of connected light	3 W max.	4ch total 12 W max. 3 W max. for 1ch
Drive method	Constant current method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	Current light adjustment: 5 A max.
Trigger lighting	Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 1000 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 800 g
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

Model	*FLV-ATC26024-100V[] 1**	*FLV-ATC26024-200V[] 1**
Number of channels	2
Applicable light	FLV-LN series
*Power supply voltage 2**	100 to 120 VAC, 50/60 Hz	200 to 240 VAC, 50/60 Hz
Current consumption	7 A max.	4 A max.
Power of connected light	2ch total 240 W max. 120 W max. for 1ch
Drive method	Constant voltage method
Lighting method	Trigger lighting, Continuous lighting
Intensity control method	Current light adjustment: 5 A max.
Luminance control method	Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 500 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 2.1 kg
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Vision Accessory Catalog	Q198-E1-09 [54080KB]	Dec 06, 201820181206	Vision Accessory Catalog

Model	Color	Power consumption (W)	Controller *	Weight (g)	Options
FLV-TCC[]	FLV-ATC[]	Diffusion Plate	Polarization Plate
FLV-BR6022W	WHITE	1.4	○	○	60	○	○
FLV-BR6022R	RED	1.3	○	○
FLV-BR6022B	BLUE	1.4	○	○
FLV-BR6022IR	IR	0.9	○	○
FLV-BR6424UV	UV	1.8	○	○	70	○	×
FLV-BR8532W	WHITE	3.5	○	○	130	○	○
FLV-BR8532R	RED	3.1	○	○
FLV-BR8532B	BLUE	3.5	○	○
FLV-BR11222W	WHITE	4.2	○	○	100	○	○
FLV-BR11222R	RED	2.6	○	○
FLV-BR11222B	BLUE	4.2	○	○
FLV-BR11222IR	IR	1.8	○	○
FLV-BR11624UV	UV	3.6	○	○	120	○	-
FLV-BR14030W	WHITE	6.1	○	○	140	○	○
FLV-BR14030R	RED	4.8	○	○
FLV-BR14030B	BLUE	6.1	○	○
FLV-BR15020W	WHITE	5.5	○	○	120	○	○
FLV-BR15020R	RED	3.1	○	○
FLV-BR15020B	BLUE	5.5	○	○
FLV-BR21222W	WHITE	8.7	○	○	140	○	○
FLV-BR21222R	RED	5.0	○	○
FLV-BR21222B	BLUE	8.7	○	○
FLV-BR21230W	WHITE	8.8	○	○	220	○	○
FLV-BR21230R	RED	7.0	○	○
FLV-BR21230B	BLUE	8.8	○	○
FLV-BR21230IR	IR	6.1	○	○
FLV-BR21230UV	UV	7.8	○	○	230	○	×
FLV-BR38037W	WHITE	15.9	×	○	430	○	○
FLV-BR38037R	RED	11.3	○	○
FLV-BR38037B	BLUE	15.9	×	○
FLV-BR48031W	WHITE	21.9	×	○	460	○	○
FLV-BR48031R	RED	18.0	×	○
FLV-BR48031B	BLUE	21.9	×	○

Model	Color	Power consumption (W)	Controller *	Weight (g)	Options
FLV-TCC[]	FLV-ATC[]	Diffusion Plate	Polarization Plate
FLV-DR3220W	WHITE	1.4	○	○	60	○	○
FLV-DR3220R	RED	1.3
FLV-DR3220B	BLUE	1.4
FLV-DR4415W	WHITE	2.7	○	○	70	○	○
FLV-DR4415R	RED	1.7	○	○
FLV-DR4415B	BLUE	2.7	○	○
FLV-DR5030W	WHITE	3.1	○	○	60	○	○
FLV-DR5030R	RED	1.8	○	○
FLV-DR5030B	BLUE	3.1	○	○
FLV-DR5030IR	IR	1.3	○	○
FLV-DR6030UV	UV	3.2	○	○	90	○	×
FLV-DR6615W	WHITE	5.0	○	○	120	○	○
FLV-DR6615R	RED	3.9	○	○
FLV-DR6615B	BLUE	5.0	○	○
FLV-DR7000W	WHITE	5.0	○	○	110	○	○
FLV-DR7000R	RED	3.7	○	○
FLV-DR7000B	BLUE	5.0	○	○
FLV-DR7030W	WHITE	5.0	○	○	120	○	○
FLV-DR7030R	RED	3.7	○	○
FLV-DR7030B	BLUE	5.0	○	○
FLV-DR7030IR	IR	2.6	○	○
FLV-DR7530UV	UV	5.4	○	○	150	○	○
FLV-DR9000W	WHITE	8.8	○	○	230	○	×
FLV-DR9000R	RED	7.0	○	○
FLV-DR9000B	BLUE	8.8	○	○
FLV-DR9030W	WHITE	8.1	○	○	200	○
FLV-DR9030R	RED	6.6	○	○
FLV-DR9030B	BLUE	8.1	○	○
FLV-DR9030IR	IR	4.3	○	○
FLV-DR9030UV	UV	6.8	○	○	220	○	×
FLV-DR9215W	WHITE	7.4	○	○	200	○	○
FLV-DR9215R	RED	5.4	○	○
FLV-DR9215B	BLUE	7.4	○	○
FLV-DR12030W	WHITE	11.9	○	○	360	○	○
FLV-DR12030R	RED	9.8	○	○
FLV-DR12030B	BLUE	11.9	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)	Options
FLV-TCC[]	FLV-ATC[]	Diffusion Plate	Polarization Plate
FLV-DL5890W	WHITE	1.9	○	○	90	○	×
FLV-DL5890R	RED	1.3	○	○
FLV-DL5890B	BLUE	1.9	○	○
FLV-DL7260W	WHITE	5.7	○	○	120	○	○
FLV-DL7260R	RED	3.9	○	○
FLV-DL7260B	BLUE	5.7	○	○
FLV-DL9090W	WHITE	2.8	○	○	100	×	×
FLV-DL9090R	RED	1.8	○	○
FLV-DL9090B	BLUE	2.8	○	○
FLV-DL12060W	WHITE	12.7	○	○	310	○	○
FLV-DL12060R	RED	10.5	○	○
FLV-DL12060B	BLUE	12.7	○	○
FLV-DL15060W	WHITE	13.6	○	○	260	○	○
FLV-DL15060R	RED	11.2	○	○
FLV-DL15060B	BLUE	13.6	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-CL30W	WHITE	2.4	○	○	110
FLV-CL30R	RED	1.4	○	○
FLV-CL30B	BLUE	2.4	○	○
FLV-CL40W	WHITE	3.9	○	○	170
FLV-CL40R	RED	2.3	○	○
FLV-CL40B	BLUE	3.9	○	○
FLV-CL60W	WHITE	10.4	○	○	380
FLV-CL60R	RED	5.7	○	○
FLV-CL60B	BLUE	10.4	○	○
FLV-CL60IR	IR	3.9	○	○
FLV-CL60UV	UV	3.0	○	○
FLV-CL80W	WHITE	10.8	○	○	580
FLV-CL80R	RED	7.2	○	○
FLV-CL80B	BLUE	10.8	○	○
FLV-CL100W	WHITE	22.7	×	○	820
FLV-CL100R	RED	15.2	×	○
FLV-CL100B	BLUE	22.7	×	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FR114W	WHITE	3.9	○	○	270
FLV-FR114R	RED	3.1	○	○
FLV-FR114B	BLUE	3.9	○	○
FLV-FR150W	WHITE	6.1	○	○	500
FLV-FR150R	RED	3.5	○	○
FLV-FR150B	BLUE	6.1	○	○

Model	Light Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FP130W	WHITE	8.1	○	○	320
FLV-FP130R	RED	5.8	○	○
FLV-FP130B	BLUE	8.1	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FS74W	WHITE	5.2	○	○	140
FLV-FS74R	RED	3.5	○	○
FLV-FS74B	BLUE	5.2	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FQ48W	WHITE	2.0	○	○	100
FLV-FQ48R	RED	1.2	○	○
FLV-FQ48B	BLUE	2.0	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-EP50W	WHITE	1.6	○	○	200
FLV-EP50R	RED	1.1	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-EP0803W	WHITE	1.6	○	○	80
FLV-EP0803R	RED	1.1	○	○
FLV-EP0803B	BLUE	1.6	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-DB3729W	WHITE	0.9	○	○	50
FLV-DB3729R	RED	0.9	○	○
FLV-DB3729B	BLUE	0.9	○	○
FLV-DB10181W	WHITE	8.1	○	○	160
FLV-DB10181R	RED	4.7	○	○
FLV-DB10181B	BLUE	8.1	○	○
FLV-DB130130W	WHITE	13.0	○	○	270
FLV-DB130130R	RED	11.5	○	○
FLV-DB130130B	BLUE	13.0	○	○
FLV-DB212152W	WHITE	29.4	×	○	510
FLV-DB212152R	RED	20.2	×	○
FLV-DB212152B	BLUE	29.4	×	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FB5050W	WHITE	1.9	○	○	75
FLV-FB5050R	RED	0.9	○	○
FLV-FB5050B	BLUE	1.9	○	○
FLV-FB7070W	WHITE	1.9	○	○	85
FLV-FB7070R	RED	1.4	○	○
FLV-FB7070B	BLUE	1.9	○	○
FLV-FB9090W	WHITE	3.7	○	○	155
FLV-FB9090R	RED	1.9	○	○
FLV-FB9090B	BLUE	3.7	○	○
FLV-FB130130W	WHITE	5.5	○	○	230
FLV-FB130130R	RED	3.7	○	○
FLV-FB130130B	BLUE	5.5	○	○
FLV-FB200200W	WHITE	7.3	○	○	710
FLV-FB200200R	RED	5.5	○	○
FLV-FB200200B	BLUE	7.3	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-FX100W	WHITE	3.7	○	○	180
FLV-FX100R	RED	1.9	○	○
FLV-FX100B	BLUE	3.7	○	○
FLV-FX143W	WHITE	5.5	○	○	240
FLV-FX143R	RED	3.7	○	○
FLV-FX143B	BLUE	5.5	○	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-DD70W	WHITE	2.3	○	○	130
FLV-DD70R	RED	1.4	○	○
FLV-DD70B	BLUE	2.3	○	○
FLV-DD100W	WHITE	17.9	×	○	210
FLV-DD100R	RED	11.9	○	○
FLV-DD100B	BLUE	17.9	×	○
FLV-DD150W	WHITE	17.9	×	○	490
FLV-DD150R	RED	11.9	○	○
FLV-DD150B	BLUE	17.9	×	○

Model	Color	Power consumption (W)	Controller *	Weight (g)
FLV-TCC[]	FLV-ATC[]
FLV-LN82W	WHITE	9.2	×	○	640
FLV-LN82B	BLUE	9.2	×	○
FLV-LN122R	RED	10.4	×	○	800
FLV-LN142W	WHITE	18.4	×	○	890
FLV-LN142B	BLUE	18.4	×	○
FLV-LN222R	RED	20.7	×	○	1320
FLV-LN322W	WHITE	45.9	×	○	1950
FLV-LN322	BLUE	45.9	×	○
FLV-LN322R	RED	31.1	×	○
FLV-LN442W	WHITE	64.3	×	○	2450
FLV-LN442B	BLUE	64.3	×	○
FLV-LN422R	RED	41.4	×	○	2400

Model	Number of Channels	*Applicable Light 5**	Power Supply Voltage	Power of Connected Light	Luminance Control Method
Standard Light FLV Series*1	Spot Light FLV-EP Series	Line Light FLV-LN Series
FLV-TCC4	4 standard lights	○	×	×	24 VDC *2	15 W max. *3	Digital *4
FLV-TCC1	1 standard light	○	×	×
FLV-TCC3HB	1 Spot Light and 2 standard lights	○	○	×	⎯	Any FLV-EPseries Spot Light can be connected
FLV-TCC1EP	1 Spot Light	×	○	×

Applicable light	Model	Number of channels	Power supply voltage	Power of connected light	Luminance control method
For standard light *1	*FLV-ATC21024 2**	2	100 to 240 VAC, 50/60 Hz	40 W max.	Analog
*FLV-ATC41024 2**	4
For spot light	*FLV-ATC10405 2**	1	3 W max.
*FLV-ATC40405 2**	4	12 W max.
For line light	FLV-ATC26024-100V *2	2	100 to 120 VAC, 50/60 Hz	240 W max.
FLV-ATC26024-200V	2	200 to 240 VAC, 50/60 Hz

Plug type	A	C	O
Rated voltage	125 V	240 V	240 V
Standard	PSE	CEE	CCC

Series	Type	Model	Cable Length	Weight
Extension Cable for Standard Light *1	Standard Cable	FLV-XC1	1 m	Approx. 30g
FLV-XC2	2 m	Approx. 50g
FLV-XC3	3 m	Approx. 70g
FLV-XC5	5 m	Approx. 110g
FLV-XC10	10 m	Approx. 210g
Bend resistant Cable	FLV-XC1R	1 m	Approx. 40g
FLV-XC2R	2 m	Approx. 60g
FLV-XC3R	3 m	Approx. 80g
FLV-XC5R	5 m	Approx. 130g
FLV-XC10R	10 m	Approx. 250g
Extension Cable for Spot Light	Standard Cable	FLV-XC1EP	1 m	Approx. 30g
FLV-XC2EP	2 m	Approx. 50g
FLV-XC3EP	3 m	Approx. 70g
FLV-XC5EP	5 m	Approx. 110g
Bend resistant Cable	FLV-XC1EPR	1 m	Approx. 40g
FLV-XC2EPR	2 m	Approx. 60g
FLV-XC3EPR	3 m	Approx. 80g
FLV-XC5EPR	5 m	Approx. 130g
Extension Cable for Line Light	Standard Cable	FLV-XC1LN	1 m	Approx. 200g
FLV-XC2LN	2 m	Approx. 270g
FLV-XC3LN	3 m	Approx. 320g
FLV-XC5LN	5 m	Approx. 440g
Branch Cable for Standard Light *1	Standard Cable	FLV-XC1S2	1 m	Approx. 30g
FLV-XC2S2	2 m	Approx. 50g
FLV-XC3S2	3 m	Approx. 80g
FLV-XC5S2	5 m	Approx. 120g

Type	Model	Applicable light
Transparency rate	High	Middle	Low
Diffusivity	Low	Middle	High
For FLV-DR-series Direct ring light	FLV-DR3220DF	FLV-DR3220DF50	FLV-DR3220DF30	FLV-DR3220[]
FLV-DR4415DF	FLV-DR4415DF50	FLV-DR4415DF30	FLV-DR4415[]
FLV-DR5030DF	FLV-DR5030DF50	FLV-DR5030DF30	FLV-DR5030[]
FLV-DR6030DF	---	---	FLV-DR6030UV
FLV-DR6615DF	FLV-DR6615DF50	FLV-DR6615DF30	FLV-DR6615[]
FLV-DR7000DF	FLV-DR7000DF50	FLV-DR7000DF30	FLV-DR7000[]
FLV-DR7030DF	FLV-DR7030DF50	FLV-DR7030DF30	FLV-DR7030[]
FLV-DR7530DF	---	---	FLV-DR7530UV
FLV-DR9000DF	FLV-DR9000DF50	FLV-DR9000DF30	FLV-DR9000[]
FLV-DR9030DF	FLV-DR9030DF50	FLV-DR9030DF30	FLV-DR9030[]
FLV-DR9215DF	FLV-DR9215DF50	FLV-DR9215DF30	FLV-DR9215[]
FLV-DR12030DF	FLV-DR12030DF50	FLV-DR12030DF30	FLV-DR12030[]
For FLV-DL-series Low angle ling light	FLV-DL5890DF	FLV-DL5890DF50	FLV-DL5890DF30	FLV-DL5890[]
FLV-DL7260DF	FLV-DL7260DF50	FLV-DL7260DF30	FLV-DL7260[]
FLV-DL12060DF	FLV-DL12060DF50	FLV-DL12060DF30	FLV-DL12060[]
FLV-DL15060DF	FLV-DL15060DF50	FLV-DL15060DF30	FLV-DL15060[]
For FLV-BR-series Bar light	FLV-BR6022DF	FLV-BR6022DF50	FLV-BR6022DF30	FLV-BR6022[]
FLV-BR6424DF	---	---	FLV-BR6424UV
FLV-BR8532DF	FLV-BR8532DF50	FLV-BR8532DF30	FLV-BR8532[]
FLV-BR11222DF	FLV-BR11222DF50	FLV-BR11222DF30	FLV-BR11222[]
FLV-BR11624DF	---	---	FLV-BR11624UV
FLV-BR14030DF	FLV-BR14030DF50	FLV-BR14030DF30	FLV-BR14030[]
FLV-BR15020DF	FLV-BR15020DF50	FLV-BR15020DF30	FLV-BR15020[]
FLV-BR21222DF	FLV-BR21222DF50	FLV-BR21222DF30	FLV-BR21222[]
FLV-BR21230DF	FLV-BR21230DF50	FLV-BR21230DF30	FLV-BR21230[]
FLV-BR38037DF	FLV-BR38037DF50	FLV-BR38037DF30	FLV-BR38037[]
FLV-BR48031DF	FLV-BR48031DF50	FLV-BR48031DF30	FLV-BR48031[]

Type	Model	Applicable light
For FLV-DR-series Direct ring light	FLV-DR3220PL	FLV-DR3220[]
FLV-DR4415PL	FLV-DR4415[]
FLV-DR5030PL	FLV-DR5030[]
FLV-DR6615PL	FLV-DR6615[]
FLV-DR7000PL	FLV-DR7000[]
FLV-DR7030PL	FLV-DR7030[]
FLV-DR9000PL	FLV-DR9000[]
FLV-DR9030PL	FLV-DR9030[]
FLV-DR9215PL	FLV-DR9215[]
FLV-DR12030PL	FLV-DR12030[]
For FLV-DL-series Low angle ring light	FLV-DL7260PL	FLV-DL7260[]
FLV-DL12060PL	FLV-DL12060[]
FLV-DL15060PL	FLV-DL15060[]
For FLV-BR-series Bar light	Polarization direction: Long side	FLV-BR6022PL	FLV-BR6022[]
FLV-BR8532PL	FLV-BR8532[]
FLV-BR11222PL	FLV-BR11222[]
FLV-BR14030PL	FLV-BR14030[]
FLV-BR15020PL	FLV-BR15020[]
FLV-BR21222PL	FLV-BR21222[]
FLV-BR21230PL	FLV-BR21230[]
FLV-BR38037PL	FLV-BR38037[]
FLV-BR48031PL	FLV-BR48031[]
Polarization direction: Short side	FLV-BR6022PL-V	FLV-BR6022[]
FLV-BR8532PL-V	FLV-BR8532[]
FLV-BR11222PL-V	FLV-BR1122[]
FLV-BR14030PL-V	FLV-BR14030[]
FLV-BR15020PL-V	FLV-BR15020[]
FLV-BR21222PL-V	FLV-BR21222[]
FLV-BR21230PL-V	FLV-BR21230[]
FLV-BR38037PL-V	FLV-BR38037[]
FLV-BR48031PL-V	FLV-BR48031[]

Return to OMRON

OMRON FLV SeriesSensors/ Vision Sensors / Machine Vision Systems/Lighting System

OMRON FLV Series Dimensions

Bar LightFLV-BR Series

Direct Ring LightFLV-DR Series

Low Angle Ring LightFLV-DL Series

Coaxial LightFLV-CL Series

Shadowless LightFLV-FR Series

Shadowless LightFLV-FP Series

Shadowless LightFLV-FS Series

Shadowless LightFLV-FQ Series

Spot LightFLV-EP50 Series

High-power Spot LightFLV-EP08 Series

Direct Back LightFLV-DB Series

Edge Type LightFLV-FB Series

Edge Type Coaxial LightFLV-FX Series

Dome LightFLV-DD Series

Line LightFLV-LN Series

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Purchase the OMRON Lighting System Please fill in the following

OMRON FLV Series specification

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

OMRON FLV Series catalog

English

Global Edition

OMRON FLV Series dimension

Bar LightFLV-BR Series

Direct Ring LightFLV-DR Series

Low Angle Ring LightFLV-DL Series

Coaxial LightFLV-CL Series

Shadowless Ring LightFLV-FR Series

Shadowless Low Angle Ring LightFLV-FP Series

Shadowless Dome Ring LightFLV-FS Series

Shadowless LightFLV-FQ Series

Spot LightFLV-EP50 Series

High-power Spot LightFLV-EP08 Series

Direct Back LightFLV-DB Series

Edge Type LightFLV-FB Series

Edge Type Coaxial LightFLV-FX Series

Dome LightFLV-DD Series

Line LightFLV-LN Series

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Lighting Controller

Camera mount plate (provided)

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Options for FLV series

Cable

OMRON FLV Series lineup

Bar LightFLV-BR Series

Direct Ring LightFLV-DR Series

Low Angle Ring LightFLV-DL Series

Coaxial LightFLV-CL Series

Shadowless LightFLV-FR Series

Shadowless LightFLV-FP Series

Shadowless LightFLV-FS Series

Shadowless LightFLV-FQ Series

Spot LightFLV-EP50 Series

High-power Spot LightFLV-EP08 Series

Direct Back LightFLV-DB Series

Edge Type LightFLV-FB Series

Edge Type Coaxial LightFLV-FX Series

Dome LightFLV-DD Series

Line LightFLV-LN Series

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Options for FLV series

Cable

Diffusion Plate

Diffusion Plate

Polarization Plate

Bar Light
FLV-BR Series

Direct Ring Light
FLV-DR Series

Low Angle Ring Light
FLV-DL Series

Coaxial Light
FLV-CL Series

Shadowless Light
FLV-FR Series

Shadowless Light
FLV-FP Series

Shadowless Light
FLV-FS Series

Shadowless Light
FLV-FQ Series

Spot Light
FLV-EP50 Series

High-power Spot Light
FLV-EP08 Series

Direct Back Light
FLV-DB Series

Edge Type Light
FLV-FB Series

Edge Type Coaxial Light
FLV-FX Series

Dome Light
FLV-DD Series

Line Light
FLV-LN Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series

Bar Light
FLV-BR Series

Direct Ring Light
FLV-DR Series

Low Angle Ring Light
FLV-DL Series

Coaxial Light
FLV-CL Series

Shadowless Ring Light
FLV-FR Series

Shadowless Low Angle Ring Light
FLV-FP Series

Shadowless Dome Ring Light
FLV-FS Series

Shadowless Light
FLV-FQ Series

Spot Light
FLV-EP50 Series

High-power Spot Light
FLV-EP08 Series

Direct Back Light
FLV-DB Series

Edge Type Light
FLV-FB Series

Edge Type Coaxial Light
FLV-FX Series

Dome Light
FLV-DD Series

Line Light
FLV-LN Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series

Bar Light
FLV-BR Series

Direct Ring Light
FLV-DR Series

Low Angle Ring Light
FLV-DL Series

Coaxial Light
FLV-CL Series

Shadowless Light
FLV-FR Series

Shadowless Light
FLV-FP Series

Shadowless Light
FLV-FS Series

Shadowless Light
FLV-FQ Series

Spot Light
FLV-EP50 Series

High-power Spot Light
FLV-EP08 Series

Direct Back Light
FLV-DB Series

Edge Type Light
FLV-FB Series

Edge Type Coaxial Light
FLV-FX Series

Dome Light
FLV-DD Series

Line Light
FLV-LN Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series
