OMRON H3CR-H Control Components
last update: April 15, 2013
• Long power OFF-delay times;
S-series: up to 12 seconds,
M-series: up to 12 minutes.
• Models with forced-reset input are available.
• 11-pin and 8-pin models are available.
last update: April 15, 2013
If you have just landed here, this product OMRON H3CR-H Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3CR-H We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3CR-HControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A4E Enabling Switch/Features
E2EF Proximity Sensor with All-stainless Housing/Features
E63-WF Direct Discrimination Unit/Features
F3SJ Series Safety Light Curtain/Features
MMK Latching Relay/Features
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | L084-E1-07 [6793KB] | Oct 09, 201820181009 | H3CR Data Sheet |
![]() | - [43KB] | Mar 12, 201820180312 | Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance |
![]() | L164-E1-02 [6820KB] | Jan 07, 201920190107 | H3CR-H8L AC100-120 S MAINTENANCE SHEET |
![]() | L166-E1-02 [6821KB] | Jan 07, 201920190107 | H3CR-H8L AC200-240 S MAINTENANCE SHEET |
![]() | L162-E1-02 [6810KB] | Jan 07, 201920190107 | H3CR-H8L AC/DC24 S MAINTENANCE SHEET |
![]() | L170-E1-02 [6616KB] | Jan 07, 201920190107 | H3CR-H8L DC48 S MAINTENANCE SHEET |
![]() | L168-E1-02 [6625KB] | Jan 07, 201920190107 | H3CR-H8L DC100-125 S MAINTENANCE SHEET |
![]() | L163-E1-02 [6822KB] | Jan 07, 201920190107 | H3CR-H8L AC100-120 M MAINTENANCE SHEET |
![]() | L165-E1-02 [6822KB] | Jan 07, 201920190107 | H3CR-H8L AC200-240 M MAINTENANCE SHEET |
![]() | L161-E1-02 [6811KB] | Jan 07, 201920190107 | H3CR-H8L AC/DC24 M MAINTENANCE SHEET |
![]() | L169-E1-02 [6618KB] | Jan 07, 201920190107 | H3CR-H8L DC48 M MAINTENANCE SHEET |
![]() | L167-E1-02 [6626KB] | Jan 07, 201920190107 | H3CR-H8L DC100-125 M MAINTENANCE SHEET |
![]() | L184-E1-02 [4540KB] | Jan 07, 201920190107 | H3CR-HRL AC100-120 S MAINTENANCE SHEET |
![]() | L186-E1-02 [4542KB] | H3CR-HRL AC200-240 S MAINTENANCE SHEET | |
![]() | L182-E1-02 [4534KB] | Jan 07, 201920190107 | H3CR-HRL AC/DC24 S MAINTENANCE SHEET |
![]() | L190-E1-02 [4519KB] | Jan 07, 201920190107 | H3CR-HRL DC48 S MAINTENANCE SHEET |
![]() | L188-E1-02 [4522KB] | Jan 07, 201920190107 | H3CR-HRL DC100-125 S MAINTENANCE SHEET |
![]() | L183-E1-02 [4544KB] | Jan 07, 201920190107 | H3CR-HRL AC100-120 M MAINTENANCE SHEET |
![]() | L185-E1-02 [4545KB] | Jan 07, 201920190107 | H3CR-HRL AC200-240 M MAINTENANCE SHEET |
![]() | L181-E1-02 [4537KB] | Jan 07, 201920190107 | H3CR-HRL AC/DC24 M MAINTENANCE SHEET |
![]() | L189-E1-02 [4522KB] | Jan 07, 201920190107 | H3CR-HRL DC48 M MAINTENANCE SHEET |
![]() | L187-E1-02 [4526KB] | Jan 07, 201920190107 | H3CR-HRL DC100-125 M MAINTENANCE SHEET |
![]() | L174-E1-02 [6824KB] | Jan 07, 201920190107 | H3CR-H8RL AC100-120 S MAINTENANCE SHEET |
![]() | L176-E1-02 [6825KB] | Jan 07, 201920190107 | H3CR-H8RL AC200-240 S MAINTENANCE SHEET |
![]() | L172-E1-02 [6814KB] | Jan 07, 201920190107 | H3CR-H8RL AC/DC24 S MAINTENANCE SHEET |
![]() | L180-E1-02 [6788KB] | Jan 07, 201920190107 | H3CR-H8RL DC48 S MAINTENANCE SHEET |
![]() | L178-E1-02 [6796KB] | Jan 07, 201920190107 | H3CR-H8RL DC100-125 S MAINTENANCE SHEET |
![]() | L173-E1-02 [6825KB] | Jan 07, 201920190107 | H3CR-H8RL AC100-120 M MAINTENANCE SHEET |
![]() | L175-E1-02 [6825KB] | Jan 07, 201920190107 | H3CR-H8RL AC200-240 M MAINTENANCE SHEET |
![]() | L171-E1-02 [6815KB] | Jan 07, 201920190107 | H3CR-H8RL AC/DC24 M MAINTENANCE SHEET |
![]() | L179-E1-02 [6789KB] | Jan 07, 201920190107 | H3CR-H8RL DC48 M MAINTENANCE SHEET |
![]() | L177-E1-02 [6797KB] | Jan 07, 201920190107 | H3CR-H8RL DC100-125 M MAINTENANCE SHEET |
last update: October 9, 2018
Item | H3CR-H8L | H3CR-H8RL | H3CR-HRL |
---|---|---|---|
Operating/Reset method | Instantaneous operation/ Time-limit reset | Instantaneous operation/Time-limit reset/Forced reset | |
Pin type | 8-pin | 11-pin | |
Input type | --- | No-voltage input | |
Output type | Relay output (DPDT) | Relay output (SPDT) | Relay output (DPDT) |
Mounting method | DIN track mounting, surface mounting, and flush mounting | ||
Approved standards | UL508, CSA C22.2 No.14, NK, Lloyds, CCC: GB/T 14048.5 * Conforms to EN61812-1 and IEC60664-1 (VDE0110) 4kV/2. Output category according to EN60947-5-1. |
Note: For details, refer to your OMRON website.
* CCC certification requirements
Recommended fuse | 0216005 (250VAC, 5A), manufactured by Littelfuse |
---|---|
Rated operating voltage Ue Rated operating current Ie | AC-15: Ue: 250 VAC, Ie: 3 A AC-13: Ue: 250 VAC, Ie: 5 A DC-13: Ue: 30 VDC, Ie: 0.5 A |
Rated insulation voltage | 250 V |
Rated impulse withstand voltage (altitude: 2,000 m max.) | 4 kV (at 240 VAC) |
Conditional short-circuit current | 1000 A |
Time unit | S-series | M-series | |
---|---|---|---|
Scale number (max.) | s (sec) | min (min) | |
0.6 | Set time range | 0.05 to 0.6 | |
1.2 | 0.12 to 1.2 | ||
6 | 0.6 to 6 | ||
12 | 1.2 to 12 | ||
Min. power ON time | 0.1 s min. | 2 s min. | |
Time-up operation repeat period | 3 s min. | ||
Forced-reset repeat period | 3 s min. |
Note: 1. If the above minimum power ON time is not secured, the H3CR may not operate. Be sure to secure the above
minimum power ON time.
2. Do not use the Timer with a repeat period of less than 3 s. Doing so may result in abnormal heating or
burning. Refer to Safety Precautions (H3CR-H) on Catalog for details.
Rated supply voltage *1 *2 | 100 to 120 VAC (50/60 Hz), 200 to 240 VAC (50/60 Hz), 24 VAC/VDC (50/60 Hz), 48 VDC, 100 to 125 VDC |
---|---|
Operating voltage range | 85% to 110% of rated supply voltage |
No-voltage input *3 | ON-impedance: 1 kΩ max. ON residual voltage: 1 V max. OFF impedance: 500 kΩ min. |
Power consumption | 100 to 120 VAC: approx. 0.23 VA (0.22 W) at 120 VAC 200 to 240 VAC: approx. 0.35 VA (0.3 W) at 240 VAC 24 VAC/DC: approx. 0.17 VA (0.15 W) at 24 VAC, approx. 1.0 W at 24 VDC 48 VDC: approx. 0.18 W at 48 VDC 100 to 125 VDC: approx. 0.5 W at 125 VDC |
Control outputs | Contact output: 5 A at 250 VAC/30 VDC, resistive load (cosφ = 1) The minimum applicable load is 10mA at 5VDC (P reference value). Contact materials: Ag-alloy |
*1. A power supply with a ripple of 20% max. (single-phase power supply with full-wave rectification) can be used with
each DC Model.
*2. Do not use an inverter output as the power supply. Refer to your OMRON website for details.
*3. For contact input, use contacts which can adequately switch 1 mA at 5 V.
Accuracy of operating time | ±0.2% FS max. (±0.2% FS ±10 ms max. in ranges of 0.6 and 1.2 s) |
---|---|
Setting error | ±5% FS ±50 ms max. |
Operation start voltage | 30% max. of rated voltage |
Influence of voltage | ±0.2% FS max. (±0.2% FS ±10 ms max. in ranges of 0.6 and 1.2 s) |
Influence of temperature | ±1% FS max. (±1% FS ±10 ms max. in ranges of 0.6 and 1.2 s) |
Insulation resistance | 100 MΩ min. (at 500 VDC) |
Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min (between current-carrying metal parts and exposed non- current-carrying metal parts) 2,000 VAC, 50/60 Hz for 1 min (between control output terminals and operating circuit) 2,000 VAC, 50/60 Hz for 1 min (between contacts of different polarities) 1,000 VAC, 50/60 Hz for 1 min (between contacts not located next to each other) |
Impulse withstand voltage | 5 kV (between power terminals) for 100 to 120 VAC, 200 to 240 VAC, 100 to 125 VDC; 1 kV for 24 VAC/DC, 48 VDC 5 kV (between current-carrying terminal and exposed non-current-carrying metal parts) for 100 to 120 VAC, 200 to 240 VAC, 100 to 125 VDC; 1.5 kV for 24 VAC/DC, 48 VDC |
Noise immunity | ±1.5 kV (between power terminals) and ±600 V (between input terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise); ±1 kV (between power terminals) for 48 VDC |
Static immunity | Malfunction: 8 kV, Destruction: 15 kV |
Vibration resistance | Destruction: 10 to 55 Hz with 0.75-mm single amplitude for 2 hrs each in three directions Malfunction: 10 to 55 Hz with 0.5-mm single amplitude for 10 min each in three directions |
Shock resistance | Destruction: 980 m/s2 three times each in six directions Malfunction: 98 m/s2 three times each in six directions |
Ambient temperature | Operating: -10°C to 55°C (with no icing), Storage: -25°C to 65°C (with no icing) |
Ambient humidity | Operating: 35% to 85% |
Life expectancy | Mechanical: 10 million operations min. (under no load at 1,200 operations/h) Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1,200 operations/h) * |
EMC | (EMI) EN61812-1 Emission Enclosure: EN55011 Group 1 class A Emission AC Mains: EN55011 Group 1 class A (EMS) EN61812-1 Immunity ESD: IEC61000-4-2 Immunity RF-interferenc: IEC61000-4-3 Immunity Burst: IEC61000-4-4 Immunity Surge: IEC61000-4-5 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Voltage Dip/Interruption: IEC61000-4-11 |
Case color | Light Gray (Munsell 5Y7/1) |
Degree of protection | IP40 (panel surface) |
Weight | Approx. 120 g |
Note: Refer to the Life-test Curve (Reference).
Reference:
A maximum current of 0.15 A can be switched at 125 VDC (cosφ = 1) and a maximum current of 0.1A can be switched at 125V DC and L/R = 7ms.
In both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC for H3CR-H8L/-HRL and 100 mA at 5 VDC for H3CR-H8RL (failure level: P).
last update: October 9, 2018
last update: April 15, 2013

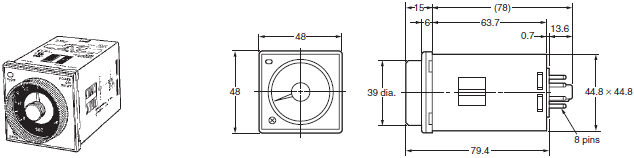

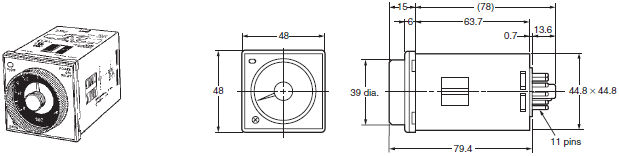

Note: There are no restrictions to the mounting direction.

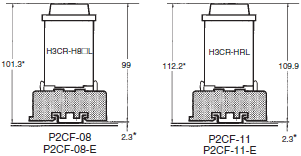

* These dimensions vary with the kind of DIN track (reference value).
last update: April 15, 2013
last update: April 15, 2013
Input | Output | Supply voltage | S-series | |
---|---|---|---|---|
11-pin models | 8-pin models | |||
Without reset input | DPDT | 100 to 120 VAC | --- | H3CR-H8L 100-120AC S |
200 to 240 VAC | H3CR-H8L 200-240AC S | |||
24 VAC/DC | H3CR-H8L 24AC/DC S | |||
48 VDC | H3CR-H8L 48DC S | |||
100 to 125 VDC | H3CR-H8L 100-125DC S | |||
With reset input | 100 to 120 VAC | H3CR-HRL 100-120AC S | --- | |
200 to 240 VAC | H3CR-HRL 200-240AC S | |||
24 VAC/DC | H3CR-HRL 24AC/DC S | |||
48 VDC | H3CR-HRL 48DC S | |||
100 to 125 VDC | H3CR-HRL 100-125DC S | |||
SPDT | 100 to 120 VAC | --- | H3CR-H8RL 100-120AC S | |
200 to 240 VAC | H3CR-H8RL 200-240AC S | |||
24 VAC/DC | H3CR-H8RL 24AC/DC S | |||
48 VDC | H3CR-H8RL 48DC S | |||
100 to 125 VDC | H3CR-H8RL 100-125DC S |
Input | Output | Supply voltage | M-series | |
---|---|---|---|---|
11-pin models | 8-pin models | |||
Without reset input | DPDT | 100 to 120 VAC | --- | H3CR-H8L 100-120AC M |
200 to 240 VAC | H3CR-H8L 200-240AC M | |||
24 VAC/DC | H3CR-H8L 24AC/DC M | |||
48 VDC | H3CR-H8L 48DC M | |||
100 to 125 VDC | H3CR-H8L 100-125DC M | |||
With reset input | 100 to 120 VAC | H3CR-HRL 100-120AC M | --- | |
200 to 240 VAC | H3CR-HRL 200-240AC M | |||
24 VAC/DC | H3CR-HRL 24AC/DC M | |||
48 VDC | H3CR-HRL 48DC M | |||
100 to 125 VDC | H3CR-HRL 100-125DC M | |||
SPDT | 100 to 120 VAC | --- | H3CR-H8RL 100-120AC M | |
200 to 240 VAC | H3CR-H8RL 200-240AC M | |||
24 VAC/DC | H3CR-H8RL 24AC/DC M | |||
48 VDC | H3CR-H8RL 48DC M | |||
100 to 125 VDC | H3CR-H8RL 100-125DC M |
Name/specifications | Models | |
---|---|---|
Flush Mounting Adapter | Y92F-30 | |
Y92F-70 *1 | ||
Y92F-71 *1 | ||
Protective Cover | Y92A-48B *2 | |
Hold-down Clip | For PF085A Socket | Y92H-2 |
For PL08 or PL11 Sockets | Y92H-1 |
Note: Refer to Operation (Common) datasheet for details.
*1. The Y92A-48B Protective Cover and the Y92F-70/-71 Flush Mounting Adapter cannot be used at the same time.
*2. The Y92F-48B Protective Cover is made from hard plastic.
Remove the Protective Cover to change the set value.
Timer | Round Sockets | ||
---|---|---|---|
Pin | Connection | Terminal | Models |
11-pin | Front Connecting | DIN track mounting | P2CF-11 |
DIN track mounting (Finger-safe type) | P2CF-11-E | ||
Back Connecting | Screw terminal | P3GA-11 | |
Solder terminal | PL11 | ||
Wrapping terminal | PL11-Q | ||
PCB terminal | PLE11-0 | ||
8-pin | Front Connecting | DIN track mounting | P2CF-08 |
DIN track mounting (Finger-safe type) | P2CF-08-E | ||
DIN track mounting | PF085A | ||
Back Connecting | Screw terminal | P3G-08 | |
Solder terminal | PL08 | ||
Wrapping terminal | PL08-Q | ||
PCB terminal | PLE08-0 |
Note: 1. The P2CF-[][]-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp
terminals.
2. The P3GA-11 and P3G-08 Socket can be used together with the Y92A-48G Terminal Cover to implement finger
protection.
3. For details, refer to your OMRON website.
Application | Model | Remarks |
---|---|---|
For back connecting socket | Y92A-48G | For P3G-08 and P3GA-11 |
Note: For details, refer to your OMRON website.
