OMRON K8DT-VS specification
K8DT-VS Single-phase Voltage Relay/Specifications
last update: April 3, 2017
Input Range

Model Range * Connection terminal Setting range Input impedance Overload capacity
K8DT-VS2[][] 0 to 10 V AC/DC V1-COM 1 to 10 V AC/DC Approx. 120 kΩ Continuous input at
115% of maximum input
10 s at 125%
(up to 600 VAC)
0 to 30 V AC/DC V2-COM 3 to 30 V AC/DC Approx. 320 kΩ
0 to 150 V AC/DC V3-COM 15 to 150 V AC/DC Approx. 1.6 MΩ
K8DT-VS3[][] 0 to 200 V AC/DC V1-COM 20 to 200 V AC/DC Approx. 1.2 MΩ
0 to 300 V AC/DC V2-COM 30 to 300 V AC/DC Approx. 1.7 MΩ
0 to 600 V AC/DC V3-COM 60 to 600 V AC/DC Approx. 3.1 MΩ

* The range is selected using connected terminals.

Ratings

Power supply voltage K8DT-VS[][]D: 24 VAC 50/60Hz, 24 VDC
K8DT-VS[][]A: 100 to 240 VAC 50/60Hz
Power consumption 24 VAC/DC: 1.8 VA/1 W max.
100 to 240 VAC: 2.5 VA max.
Rated insulation
voltage 600 VAC
Operating value setting
range (SV) 10% to 100% of maximum setting range
K8DT-VS2: 1 to 10 V AC/DC
3 to 30 V AC/DC
15 to 150 V AC/DC
K8DT-VS3: 20 to 200 V AC/DC
30 to 300 V AC/DC
60 to 600 V AC/DC
Operating value 100% operation at set value
Reset value setting range (HYS) 5% to 50% of operating value
Reset method Manual reset/automatic reset (switchable)
Note:Manual reset: Turn OFF power supply for
1 s or longer.
Operating time setting
range (T) 0.1 to 30 s
Power ON lock time 1 s or 5 s (Switched using DIP switch.)
Indicators Power (PWR): Green, Relay output (RY): Yellow,
Alarm outputs (ALM): Red
Input impedance Refer to Input Range on catalog.
Output form Relay Output: SPDT contact
Transistor Output: 1
Switchable between normally open and normally
closed with a DIP switch setting.
Output relay ratings Rated load
5 A at 250 VAC (Resistive load)
5 A at 30 VDC (Resistive load)
1 A at 250 VAC (Inductive load)
0.2 A at 48 VDC (Inductive load)
Minimum load: 5 VDC, 10 mA (reference values)
Mechanical life: 10 million operations min.
Electrical life: 5 A at 250 VAC or 30 VDC: 50,000
operations
3 A at 250 VAC or 30 VDC:
100,000 operations
Transistor output
ratings Rated voltage: 24 VDC (maximum voltage: 26.4 VDC)
Maximum current: 50 mA DC
Ambient operating
temperature -20 to 60°C (with no condensation or icing)
Storage temperature -25 to 65°C (with no condensation or icing)
Ambient operating
humidity 25% to 85% RH (with no condensation)
Storage humidity 25% to 85% RH (with no condensation)
Altitude 2,000 m max.
Applicable wires Stranded wires, solid wires, or ferrules
Applicable wire size 0.25 to 1.5 mm²(AWG24 to AWG16)
Wire insertion force 8 N max. for AWG20 wire
Screwdriver insertion force 15 N max.
Wire stripping length 8 mm
Ferrule length 8 mm
Recommended flat-blade screwdriver XW4Z-00B (Omron)
SZF 0.4 × 2.5 (Phoenix Contact)
210-719 (Wago)
SDI 0.4 × 2.5 × 75 (Weidmuller)
Current capacity 10 A (per pole)
Number of insertions 50 times
Case color N1.5
Case material PC, UL 94 V-0
Weight Approx. 100 g
Mounting Mounts to DIN Track, or screw mounting
Dimensions 17.5 × 90 × 90 mm (W×H×D)

Specifications

Allowable operating
voltage range 85% to 110% of rated power supply voltage
Allowable operating
frequency range 50/60 Hz ±5 Hz
Input frequency range 40 to 500 Hz
Overload capacity Continuous input at 115% of maximum input, 10 s at 125% (up to 600 VAC).
Repeat
accuracy Operating
value ±0.5% full scale (at 25°C and 65% humidity, rated power supply voltage)
Operating
time ±50 ms (at 25°C and 65% humidity, rated power supply voltage)
Applicable
standards Conforming
standards EN 60947-5-1
Installation environment (pollution level 2, Overvoltage category III)
EMC EN 60947-5-1
Safety
standards UL 60947-5-1 (Listing),
Korean Radio Waves Act (Act 10564), CCC (GB14048.5)
Insulation resistance 20 MΩmin.
Between external terminals and case
Between power supply terminals and input terminals
Between power supply terminals and output terminals
Between input terminals and output terminals
Dielectric strength 2,000 VAC for one minute
Between external terminals and case
Between power supply terminals and input terminals
Between power supply terminals and output terminals
Between input terminals and output terminals
Impulse withstand
voltage 6 kV (between live terminals and exposed, non-charged metal parts)
Noise immunity Square-wave noise of 1-μs/100-ns pulse width with 1-ns rise time
100 to 240 VAC: 1,500 V power supply terminal common/normal mode
24 VAC: 1,500 V power supply terminal common/normal mode
24 VDC: 480 V power supply terminal common
Vibration resistance Frequency: 10 to 55 Hz, 0.35-mm single amplitude
10 sweeps of 5 min each in X,Y, and Z directions
Shock resistance 100 m/s², 3 times each in 6 directions along 3 axes
Degree of protection Terminals: IP20

last update: April 3, 2017

OMRON K8DT-VS catalog
K8DT-VS Single-phase Voltage Relay/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

K8DT-VS Data Sheet N203-E1-01
[3026KB] Jul 10, 201720170710 K8DT-VS Data Sheet

K8DT Brochure N210-E1-01
[5229KB] Oct 11, 201620161011 K8DT Brochure

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

Measuring and Monitoring Relays Application Guide N222-E1-01
[1649KB] Jun 01, 201820180601 Measuring and Monitoring Relays Application Guide

OMRON K8DT-VS lineup
K8DT-VS Single-phase Voltage Relay/Lineup
last update: September 01, 2016
Single-phase Voltage Relay

Setting range Power supply voltage Output Model
1 to 10 V AC/DC
3 to 30 V AC/DC
15 to 150 V AC/DC 24 VAC/DC Relay: SPDT contact output K8DT-VS2CD
Transistor K8DT-VS2TD
100 to 240 VAC Relay: SPDT contact output K8DT-VS2CA
Transistor K8DT-VS2TA
20 to 200 V AC/DC
30 to 300 V AC/DC
60 to 600 V AC/DC 24 VAC/DC Relay: SPDT contact output K8DT-VS3CD
Transistor K8DT-VS3TD
100 to 240 VAC Relay: SPDT contact output K8DT-VS3CA
Transistor K8DT-VS3TA

Optional Cover
Front Cover

Appearance Model
Y92A-D1A

last update: September 01, 2016

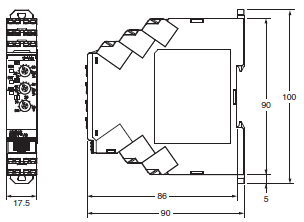

OMRON K8DT-VS dimension
K8DT-VS Single-phase Voltage Relay/Dimensions
last update: April 01, 2016
Single-phase Voltage Relays

K8AK-VS2
K8AK-VS3

Options (Order Separately)
Front Cover

Y92A-D1A

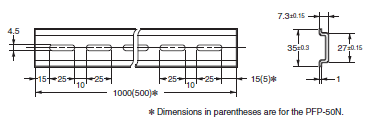

Optional Parts for DIN Track Mounting
DIN Tracks

PFP-100N
PFP-50N

last update: April 01, 2016

NO. K8DT-VS

TYPE:Measuring / Motor Protective Relays Component Protective Components Measuring & Monitoring relays

DATE:2021-06-08

Associated products:
K8DT-AW Single-phase Overcurrent/Undercurrent Relay/Features K8DT-VW Single-phase Overvoltage/Undervoltage Relay/Features

Model	Range *	Connection terminal	Setting range	Input impedance	Overload capacity
K8DT-VS2[][]	0 to 10 V AC/DC	V1-COM	1 to 10 V AC/DC	Approx. 120 kΩ	Continuous input at 115% of maximum input 10 s at 125% (up to 600 VAC)
0 to 30 V AC/DC	V2-COM	3 to 30 V AC/DC	Approx. 320 kΩ
0 to 150 V AC/DC	V3-COM	15 to 150 V AC/DC	Approx. 1.6 MΩ
K8DT-VS3[][]	0 to 200 V AC/DC	V1-COM	20 to 200 V AC/DC	Approx. 1.2 MΩ
0 to 300 V AC/DC	V2-COM	30 to 300 V AC/DC	Approx. 1.7 MΩ
0 to 600 V AC/DC	V3-COM	60 to 600 V AC/DC	Approx. 3.1 MΩ

Power supply voltage	K8DT-VS[][]D: 24 VAC 50/60Hz, 24 VDC K8DT-VS[][]A: 100 to 240 VAC 50/60Hz
Power consumption	24 VAC/DC: 1.8 VA/1 W max. 100 to 240 VAC: 2.5 VA max.
Rated insulation voltage	600 VAC
Operating value setting range (SV)	10% to 100% of maximum setting range K8DT-VS2: 1 to 10 V AC/DC 3 to 30 V AC/DC 15 to 150 V AC/DC K8DT-VS3: 20 to 200 V AC/DC 30 to 300 V AC/DC 60 to 600 V AC/DC
Operating value	100% operation at set value
Reset value setting range (HYS)	5% to 50% of operating value
Reset method	Manual reset/automatic reset (switchable) Note:Manual reset: Turn OFF power supply for 1 s or longer.
Operating time setting range (T)	0.1 to 30 s
Power ON lock time	1 s or 5 s (Switched using DIP switch.)
Indicators	Power (PWR): Green, Relay output (RY): Yellow, Alarm outputs (ALM): Red
Input impedance	Refer to Input Range on catalog.
Output form	Relay Output: SPDT contact Transistor Output: 1 Switchable between normally open and normally closed with a DIP switch setting.
Output relay ratings	Rated load 5 A at 250 VAC (Resistive load) 5 A at 30 VDC (Resistive load) 1 A at 250 VAC (Inductive load) 0.2 A at 48 VDC (Inductive load) Minimum load: 5 VDC, 10 mA (reference values) Mechanical life: 10 million operations min. Electrical life: 5 A at 250 VAC or 30 VDC: 50,000 operations 3 A at 250 VAC or 30 VDC: 100,000 operations
Transistor output ratings	Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC
Ambient operating temperature	-20 to 60°C (with no condensation or icing)
Storage temperature	-25 to 65°C (with no condensation or icing)
Ambient operating humidity	25% to 85% RH (with no condensation)
Storage humidity	25% to 85% RH (with no condensation)
Altitude	2,000 m max.
Applicable wires	Stranded wires, solid wires, or ferrules
Applicable wire size	0.25 to 1.5 mm²(AWG24 to AWG16)
Wire insertion force	8 N max. for AWG20 wire
Screwdriver insertion force	15 N max.
Wire stripping length	8 mm
Ferrule length	8 mm
Recommended flat-blade screwdriver	XW4Z-00B (Omron) SZF 0.4 × 2.5 (Phoenix Contact) 210-719 (Wago) SDI 0.4 × 2.5 × 75 (Weidmuller)
Current capacity	10 A (per pole)
Number of insertions	50 times
Case color	N1.5
Case material	PC, UL 94 V-0
Weight	Approx. 100 g
Mounting	Mounts to DIN Track, or screw mounting
Dimensions	17.5 × 90 × 90 mm (W×H×D)

Allowable operating voltage range	85% to 110% of rated power supply voltage
Allowable operating frequency range	50/60 Hz ±5 Hz
Input frequency range	40 to 500 Hz
Overload capacity	Continuous input at 115% of maximum input, 10 s at 125% (up to 600 VAC).
Repeat accuracy	Operating value	±0.5% full scale (at 25°C and 65% humidity, rated power supply voltage)
Operating time	±50 ms (at 25°C and 65% humidity, rated power supply voltage)
Applicable standards	Conforming standards	EN 60947-5-1 Installation environment (pollution level 2, Overvoltage category III)
EMC	EN 60947-5-1
Safety standards	UL 60947-5-1 (Listing), Korean Radio Waves Act (Act 10564), CCC (GB14048.5)
Insulation resistance	20 MΩmin. Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals
Dielectric strength	2,000 VAC for one minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals
Impulse withstand voltage	6 kV (between live terminals and exposed, non-charged metal parts)
Noise immunity	Square-wave noise of 1-μs/100-ns pulse width with 1-ns rise time 100 to 240 VAC: 1,500 V power supply terminal common/normal mode 24 VAC: 1,500 V power supply terminal common/normal mode 24 VDC: 480 V power supply terminal common
Vibration resistance	Frequency: 10 to 55 Hz, 0.35-mm single amplitude 10 sweeps of 5 min each in X,Y, and Z directions
Shock resistance	100 m/s², 3 times each in 6 directions along 3 axes
Degree of protection	Terminals: IP20

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
K8DT-VS Data Sheet	N203-E1-01 [3026KB]	Jul 10, 201720170710	K8DT-VS Data Sheet
K8DT Brochure	N210-E1-01 [5229KB]	Oct 11, 201620161011	K8DT Brochure
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building
Measuring and Monitoring Relays Application Guide	N222-E1-01 [1649KB]	Jun 01, 201820180601	Measuring and Monitoring Relays Application Guide

Setting range	Power supply voltage	Output	Model
1 to 10 V AC/DC 3 to 30 V AC/DC 15 to 150 V AC/DC	24 VAC/DC	Relay: SPDT contact output	K8DT-VS2CD
Transistor	K8DT-VS2TD
100 to 240 VAC	Relay: SPDT contact output	K8DT-VS2CA
Transistor	K8DT-VS2TA
20 to 200 V AC/DC 30 to 300 V AC/DC 60 to 600 V AC/DC	24 VAC/DC	Relay: SPDT contact output	K8DT-VS3CD
Transistor	K8DT-VS3TD
100 to 240 VAC	Relay: SPDT contact output	K8DT-VS3CA
Transistor	K8DT-VS3TA

Appearance	Model
	Y92A-D1A

Return to OMRON
