MPCB system (motor protection CLASS 10)

• Rotary and switch types

• Rated operational current = 12 A, 25 A, 50 A and 100 A

• Switching capacity up to 12.5 A = 100 kA/400 V

• Fixed short-circuit release = 13 x I_u

• Overload release adjustable 0.7 - 1 x I_u

• Single phasing sensivity

Auxiliary contact modules

• ON/OFF indication for MPCB front mounting and side mounting

• Trip indication for MPCB side mounting

Accessories

• Undervoltage release

• Shunt release

• Three phase busbar system up to 5 MPCB

• Moulded plastic enclosures (IP55)

• Moulded plastic front plates (IP55)

• Door coupling rotary mechanisms (black and red/yellow)

last update: April 24, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON J7MN Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the J7MN We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON J7MNRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NX-TC NX-series Temperature Control Unit/Features
ES1-N Infrared Thermosensor/Features
H3DT-N / -L Multi-range, Multi-mode Timer/Features
NX-EC0[][][] NX-series Incremental Encoder Input Unit/Features
NX-ECC NX-series EtherCAT Coupler Unit/Features

OMRON J7MN specification
J7MN Motor Protection Circuit Breaker (MPCB)/Specifications
last update: February 03, 2014
Components for Fuseless Load Feeders, DIN-Rail Mounting

Type of coordination „1“ 3 x 415 V 10 kA (other conditions on request)

Motor 3~400V
kW Setting range
A Circuit-breaker
Type Contactor
220-230V 50Hz
Type Link module
Type DIN-rail adapter
Type
- 0.11 - 0.16 J7MN-25-E16 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
- 0.14 - 0.2 J7MN-25-E2 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.06 0.18 - 0.25 J7MN-25-E25 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.09 0.22 - 0.32 J7MN-25-E32 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
- 0.28 - 0.4 J7MN-25-E4 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.12 0.35 - 0.5 J7MN-25-E5 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.18 0.45 - 0.63 J7MN-25-E63 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
- 0.55 - 0.8 J7MN-25-E8 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.25 0.7 - 1 J7MN-25-1 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.37 0.9 - 1.25 J7MN-25-1E25 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.55 1.1 - 1.6 J7MN-25-1E6 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
0.75 1.4 - 2 J7MN-25-2 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
- 1.8 - 2.5 J7MN-25-2E5 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
1.1 2.2 - 3.2 J7MN-25-3E2 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
1.5 2.8 - 4 J7MN-25-4 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
- 3.5 - 5 J7MN-25-5 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
2.2 4.5 - 6.3 J7MN-25-6E3 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
3 5.5 - 8 J7MN-25-8 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
4 7 - 10 J7MN-25-10 J7KN-10-10 230 J74MN-VD-12 J74MN-HU
5.5 9 - 12.5 J7MN-25-12E5 J7KN-14-10 230 J74MN-VD-12 J74MN-HU
7.5 11 - 16 J7MN-25-16 J7KN-18-10 230 J74MN-VD-12 J74MN-HU
- 14 - 20 J7MN-25-20 J7KN-22-10 230 J74MN-VD-25 J74MN-HU
- 17 - 22 J7MN-25-22 J7KN-22-10 230 J74MN-VD-25 J74MN-HU
11 20 - 25 J7MN-25-25 J7KN-22-10 230 J74MN-VD-25 J74MN-HU

Technical Data according to IEC/EN 60947-1, 60947-2, 60947-4-1 and VDE 0660

This table shows the rated ultimate short-circuit breaking capacity I_cu and the rated service short-circuit breaking capacity I_cs of the J7MN circuit-breakers with different operational voltages as a function of the rated current In of the circuit-breakers.
The circuit-breakers can be fed at the top or bottom supply terminals without any reduction of the rated data.
If the short-circuit current exceeds the rated short-circuit breaking capacity of the circuit-breaker specified in the tables at the installation point, a back-up fuse is to be used.
The maximum rated current for the back-up fuse is specified in the tables. These fuses are only suitable for the short-circuit-currents as indicated on the fuses.

Circuit-
breaker
Type Rated
current
In
A up to AC 240V *1 up to AC 400V *1
up to AC 415V *2 up to AC 440V *1
up to AC 460V *2
Icu
kA Ics
kA max.
fuse
(gL/gG)
A Icu
kA Ics
kA max.
fuse
(gL/gG)
A Icu
kA Ics
kA max.
fuse
(gL/gG)
A
J7MN-12 0.16 to 0.8 100 100 -- 100 100 -- 100 100 --
1 100 100 -- 100 100 -- 100 100 --
1.25 100 100 -- 100 100 -- 100 100 --
1.6 100 100 -- 100 100 -- 100 100 --
2 100 100 -- 100 100 -- 100 100 --
2.5 100 100 -- 100 100 -- 100 100 --
3.2 100 100 -- 100 100 -- 10 10 40
4 100 100 -- 100 100 -- 10 10 40
5 100 100 -- 100 100 -- 10 10 50
6.3 100 100 -- 100 100 -- 10 10 50
8 100 100 -- 50 12.5 80 *3 10 10 63
10 100 100 -- 50 12.5 80 *3 10 10 63
12 100 100 -- 50 12.5 80 *3 10 10 80
J7MN-25 0.16 to 1.25 100 100 -- 100 100 -- 100 100 --
1.6 100 100 -- 100 100 -- 100 100 --
2 100 100 -- 100 100 -- 100 100 --
2.5 100 100 -- 100 100 -- 100 100 --
3.2 100 100 -- 100 100 -- 100 100 --
4 100 100 -- 100 100 -- 100 100 --
5 100 100 -- 100 100 -- 100 100 --
6.3 100 100 -- 100 100 -- 100 100 --
8 100 100 -- 100 100 -- 50 25 63 *3
10 100 100 -- 100 100 -- 50 25 80 *3
12.5 100 100 -- 100 100 -- 50 25 80 *3
16 100 100 -- 50 25 100 *3 20 10 80
20 100 100 -- 50 25 125 *3 20 10 80
22 100 100 -- 50 25 125 *3 20 10 100
25 100 100 -- 50 25 125 *3 20 10 100
J7MN-50 25 100 100 -- 50 25 125 *3 30 15 100
32 100 100 -- 50 25 125 *3 30 15 125
40 100 100 -- 50 25 160 *3 30 15 125
45 100 100 -- 50 25 160 *3 30 15 125
50 100 100 -- 50 25 160 *3 30 15 125
J7MN-100 63 100 100 -- 50 25 160 *3 40 20 160
75 100 100 -- 50 25 160 *3 40 20 160
90 100 100 -- 50 25 160 *3 40 20 160
100 100 100 -- 50 25 160 *3 40 20 160

Circuit-
breaker
Type Rated
current
In
A up to AC 500V *1
up to AC 525V *2 up to AC 690V *1
Icu
kA Ics
kA max.
fuse
(gL/gG)
A Icu
kA Ics
kA max.
fuse
(gL/gG)
A
J7MN-12 0.16 to 0.8 100 100 -- 100 100 --
1 100 100 -- 100 100 --
1.25 100 100 -- 2 2 20
1.6 100 100 -- 2 2 20
2 10 10 35 2 2 35
2.5 10 10 35 2 2 35
3.2 3 3 40 2 2 40
4 3 3 40 2 2 40
5 3 3 50 2 2 50
6.3 3 3 50 2 2 50
8 3 3 63 2 2 63
10 3 3 63 2 2 63
12 3 3 80 2 2 80
J7MN-25 0.16 to 1.25 100 100 -- 100 100 --
1.6 100 100 -- 100 100 --
2 100 100 -- 8 8 25
2.5 100 100 -- 8 8 25
3.2 100 100 -- 8 8 32
4 100 100 -- 6 3 32
5 100 100 -- 6 3 32
6.3 100 100 -- 6 3 50
8 42 21 63 6 3 50
10 42 21 63 6 3 50
12.5 42 21 80 6 3 63
16 10 5 80 4 2 63
20 10 5 80 4 2 63
22 10 5 80 4 2 63
25 10 5 80 4 2 63
J7MN-50 25 12 6 80 5 3 63
32 10 5 100 4 2 63
40 10 5 100 4 2 63
45 10 5 100 4 2 63
50 10 5 100 4 2 80
J7MN-100 63 12 6 125 6 3 80
75 8 4 125 5 3 100
90 8 4 125 5 3 125
100 8 4 125 5 3 125

*1. 10% overvoltage
*2. 5% overvoltage
*3. Back-up fuse required if short-circuit current at installation point ＞ 50 kA
-- No back-up fuse required.

Main Circuit

Type J7MN-12 J7MN-25 J7MN-50 J7MN-100
Number of poles 3 3 3 3
Max. rated current Inmax (=max. rated operational
current Ie) A 12 25 50 100
Permissible ambient
temperature Storage/transport °C -50 to +80
Operation °C -20 to +70 *1
Permissible rated
current at
temperature inside
cubicle of: +60 °C % 100
+70 °C % 87
Circuit-breaker
inside enclosure
Permissible rated
current at
temperature inside
enclosure of: +60 °C % 100
+70 °C % 87
Rated operational voltage Ue V 690 *2
Rated frequency Hz 50/60
Rated insulation voltage Ui V 690
Rated impulse withstand voltage Uimp kV 6
Utilization category IEC 60 947-2 (circuit-breaker) A
IEC 60 947-4-1 (motor starter) AC-3
Class acc. to IEC 60 947-4-1 10
DC short-circuit
breaking capacity
(time constant
t = 5 ms) 1 conducting path DC 150 V kA 10
2 conducting paths in series
DC 300 V kA 10
3 conducting paths in series
DC 450 V kA 10
Power loss Pv per
circuit-breaker
dependent on rated
current In
(upper setting range)

R per conducting path
= P/(I² × 3) In -> to 1.25 A
In -> 1.6 to 6.3 A
In -> 8 to 12 A W
W
W 5
6
7 -
-
- -
-
- -
-
-
In -> 1 to 6.3 A
In -> 8 to 16 A
In -> 20 to 25 A W
W
W -
-
- 6
7
8 -
-
- -
-
-
In -> to 25 A
In -> 32 A
In -> 40 to 50 A W
W
W -
-
- -
-
- 12
15
20 -
-
-
In -> to 63 A
In -> 75 to 90 A
In -> to 100 A W
W
W -
-
- -
-
- -
-
- 20
30
38
Shock resistance acc. to IEC 68 Part 2-27 g 25 25 25 25
Degree of protection acc. to IEC 60 529 IP 20 IP 20 IP 20 *3 IP 20 *3
Shock hazard
protection acc. to DIN VDE 0106 Part 100 safe against finger touch
Temperature
compensation acc. to IEC 60 947-4-1 °C -20 to +60
Phase failure
sensitivity acc. to IEC 60 947-4-1 yes
Explosion protection acc. to EC Directive 94191 EC yes *4
Isolator
characteristics acc. to IEC 60 947-3 yes
Main and EM. STOP
switch characteristics acc. to IEC 60 204-1 (VDE 0113) yes *5
Safe isolation between
main and auxiliary
circuits acc. to DIN VDE
0106 Part 101 up to
400 V +10 % yes
up to
415 V +5 % yes
Mechanical endurance operating cycles 100 000 100 000 50 000 50 000
Electrical endurance 100 000 100 000 25 000 25 000
Max. operating frequency per hour (motor starts) 1/h 15 15 15 15
Permissible mounting position any. acc. to IEC 60 447 start command "I" right-
hand side or top

*1. Over +60°C current reduction
*2. 500 V with moulded-plastic enclosure
*3. Terminal compartment IP00
*4. KEMA-test certification on request
*5. With appropriate accessories

Conductor cross-sections for main Circuit

Type J7MN-12 J7MN-25 J7MN-50 J7MN-100
Terminal type Screw-type Screw-type Box terminal Box terminal
Terminal screw Pozidriv size 2 Pozidriv size 2 Pozidriv size 2 Allen screw 4 mm
Tightening torque Nm 0.8 to 1.2 2 to 2.5 3 to 4.5 4 to 6
Conductor
cross-
sections solid mm² 2 x (0.5 to 1.5) 2 x (1 to 2.5) 2 x (0.75 to 16) 2 x (2.5 to 16)
mm² 2 x (0.75 to 2.5) 2 x (2.5 to 6) - -
mm² 1 x (0.5 to 4)
finely stranded with
end ferrule mm² 2 x (0.5 to 1.5) 2 x (1 to 2.5) 2 x (0.75 to 16) 2 x (2.5 to 35)
mm² 2 x (0.75 to 2.5) 2 x (2.5 to 6) 1 x (0.75 to 25) 1 x (2.5 to 50)
mm² 1 x (1 to 10)
stranded mm² 2 x (0.5 to 1.5) 2 x (1 to 2.5) 2 x (0.75 to 25) 2 x (10 to 50)
mm² 2 x (0.75 to 2.5) 2 x (2.5 to 6) 1 x (0.75 to 35) 1 x (10 to 70)
mm² 1 x (0.5 to 4) 1 x (1 to 10)
AWG-wires, solid or
stranded AWG 2 x (18 to 14) 2 x (14 to 10) 2 x (18 to 3) 2 x (10 to 1/0)
AWG - - 1 x (18 to 2) 1 x (10 to 2/0)
conductor bar (number
x width x thick) mm - - 2 x (6 x 9 x 0.8) 2 x (6 x 9 x 0.8)
mm - - - 18 x 10
mm² - - - up to 2 x 70

Auxiliary switches

Switching capacity Control voltage
Front transverse
auxiliary switch
with 1 NO + 1 NC Rated operational
voltage Ue AC V 24 230
Rated operational
current Ie/AC-15 A 2 0.5
Rated operational
current Ie/AC-12 Ith A 2.5 2.5
Rated operational
voltage Ue DC L/R
200 ms V 24 48 60
Rated operational
current Ie/DC-13 A 1 0.3 0.15
Lateral auxiliary
switch and
signalling switch Rated operational
voltage Ue AC V 24 230 400 690
Rated operational
current Ie/AC-15 A 6 6 3 1
Rated operational
current Ie/AC-12 Ith A 10 10 10 10
Rated operational
voltage Ue DC L/R
200 ms V 24 110 220 440
Rated operational
current Ie/DC-13 A 2 0.5 0.25 0.1
Undervoltage
release Power consumption during pick-up VA/W 20.2/13
uninter-rupted
duty VA/W 7.2/2.4
Response voltage trip V 0.7 to 0.35 × Us
pick-up V 0.85 to 1.1 × Us
Max. opening time ms 20
Shunt release Power consumption during pick-up AC VA/W 20.2/13
DC W 13 to 80
Response voltage acc. to IEC 60 947-1,
trip V 0.7 to 1.1 × Us
Max. opening time ms 20
Short-circuit
protection for
auxiliary and
control circuits Fuse gL/gG A 10
Miniature circuit breaker C-
characteristic A 6 *1
Conductor
cross-sections
for auxiliary and
control circuits Screw-type Pozidriv size 2
solid mm² 2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
finely stranded with ferrule mm² 2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
stranded mm² 2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
AWG-wires, solid or stranded AWG 2 x (18 to 14)

*1. Prospective short-circuit current ＜ 0.4 kA.

last update: February 03, 2014

OMRON J7MN catalog
J7MN Motor Protection Circuit Breaker (MPCB)/Catalog

Catalog

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Low Voltage Switch Gear Catalog J510-E2-02A
[4549KB] Dec 20, 200420041220 Low Voltage Switch Gear Catalog

OMRON J7MN dimension
J7MN Motor Protection Circuit Breaker (MPCB)/Dimensions
last update: February 03, 2014

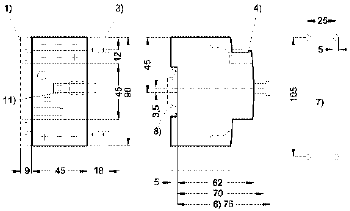

Circuit-breaker J7MN-12

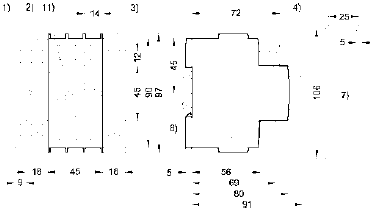

Circuit-breaker J7MN-25

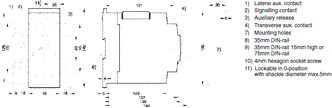

Circuit-breaker J7MN-50

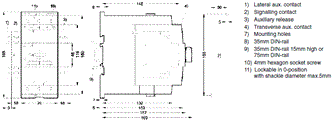

Circuit-breaker J7MN-100

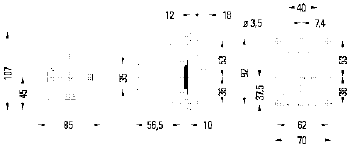

Moulded plastic front plate J74MN-P12

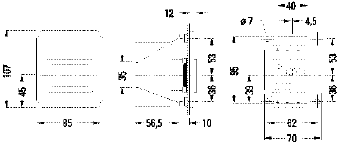

Moulded plastic front plate J74MN-P25

Moulded plastic enclosure J74MN-PF12

Door-coupling rotary operating mechanism J74MN-DC

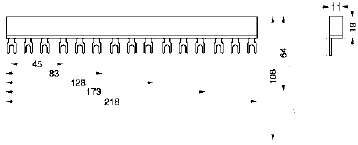

3-phase busbar J74MN-L3-[]/[]
for J7MN-12 and J7MN-25, modular spacing 45 mm

3-phase line-side terminal J74MN-TC12 and J74MN-TC25

last update: February 03, 2014

OMRON J7MN lineup
J7MN Motor Protection Circuit Breaker (MPCB)/Lineup
last update: February 03, 2014
System overview
Motor Protection Circuit Breaker (MPCB)

Rated
current
In
A Suitable
for
motors *1
3~400V
kW Current setting range Short-
circuit
breaking
capacity
at 3~400V
kA Type Pack
pcs. Weight
approx.
kg/pcs.
Thermal
overload
release
A Instantaneous
short-circuit
release
A
Circuit-Breakers J7MN-12
0.16 - 0.11 - 0.16 2.1 100 J7MN-12-E16 1 0.21
0.2 - 0.14 - 0.2 2.6 100 J7MN-12-E2 1 0.21
0.25 0.06 0.18 - 0.25 3.3 100 J7MN-12-E25 1 0.21
0.32 0.09 0.22 - 0.32 4.2 100 J7MN-12-E32 1 0.21
0.4 - 0.28 - 0.4 5.2 100 J7MN-12-E4 1 0.21
0.5 0.12 0.35 - 0.5 6.5 100 J7MN-12-E5 1 0.21
0.63 0.18 0.45 - 0.63 8.2 100 J7MN-12-E63 1 0.21
0.8 - 0.55 - 0.8 10 100 J7MN-12-E8 1 0.21
1 0.25 0.7 - 1 13 100 J7MN-12-1 1 0.21
1.25 0.37 0.9 - 1.25 16 100 J7MN-12-1E25 1 0.21
1.6 0.55 1.1 - 1.6 21 100 J7MN-12-1E6 1 0.21
2 0.75 1.4 - 2 26 100 J7MN-12-2 1 0.21
2.5 - 1.8 - 2.5 33 100 J7MN-12-2E5 1 0.21
3.2 1.1 2.2 - 3.2 42 100 J7MN-12-3E2 1 0.21
4 1.5 2.8 - 4 52 100 J7MN-12-4 1 0.21
5 - 3.5 - 5 65 100 J7MN-12-5 1 0.21
6.3 2.2 4.5 - 6.3 82 100 J7MN-12-6E3 1 0.21
8 3 5.5 - 8 104 50 J7MN-12-8 1 0.21
10 4 7 - 10 130 50 J7MN-12-10 1 0.21
12 5.5 9 - 12 156 50 J7MN-12-12 1 0.21
Circuit-Breakers J7MN-25
0.16 - 0.11 - 0.16 2.1 100 J7MN-25-E16 1 0.32
0.2 - 0.14 - 0.2 2.6 100 J7MN-25-E2 1 0.32
0.25 0.06 0.18 - 0.25 3.3 100 J7MN-25-E25 1 0.32
0.32 0.09 0.22 - 0.32 4.2 100 J7MN-25-E32 1 0.32
0.4 - 0.28 - 0.4 5.2 100 J7MN-25-E4 1 0.32
0.5 0.12 0.35 - 0.5 6.5 100 J7MN-25-E5 1 0.32
0.63 0.18 0.45 - 0.63 8.2 100 J7MN-25-E63 1 0.32
0.8 - 0.55 - 0.8 10 100 J7MN-25-E8 1 0.32
1 0.25 0.7 - 1 13 100 J7MN-25-1 1 0.32
1.25 0.37 0.9 - 1.25 16 100 J7MN-25-1E25 1 0.32
1.6 0.55 1.1 - 1.6 21 100 J7MN-25-1E6 1 0.32
2 0.75 1.4 - 2 26 100 J7MN-25-2 1 0.32
2.5 - 1.8 - 2.5 33 100 J7MN-25-2E5 1 0.32
3.2 1.1 2.2 - 3.2 42 100 J7MN-25-3E2 1 0.32
4 1.5 2.8 - 4 52 100 J7MN-25-4 1 0.32
5 - 3.5 - 5 65 100 J7MN-25-5 1 0.32
6.3 2.2 4.5 - 6.3 82 100 J7MN-25-6E3 1 0.32
8 3 5.5 - 8 104 100 J7MN-25-8 1 0.32
10 4 7 - 10 130 100 J7MN-25-10 1 0.32
12.5 5.5 9 - 12.5 163 100 J7MN-25-12E5 1 0.32
16 7.5 11 - 16 208 50 J7MN-25-16 1 0.32
20 - 14 - 20 260 50 J7MN-25-20 1 0.32
22 - 17 - 22 286 50 J7MN-25-22 1 0.32
25 11 20 - 25 325 50 J7MN-25-25 1 0.32
Circuit-Breakers J7MN-50
25 11 18 - 25 325 50 J7MN-50-25 1 0.96
32 15 22 - 32 416 50 J7MN-50-32 1 0.96
40 18.5 28 - 40 520 50 J7MN-50-40 1 0.96
45 - 36 - 45 585 50 J7MN-50-45 1 0.96
50 22 40 - 50 650 50 J7MN-50-50 1 0.96
Circuit-Breakers J7MN-100
63 30 45 - 63 819 50 J7MN-100-63 1 2.1
75 37 57 - 75 975 50 J7MN-100-75 1 2.1
90 - 70 - 90 1170 50 J7MN-100-90 1 2.1
100 45 80 - 100 *2 1235 50 J7MN-100-100 1 2.1

*1. Recommended values for standard motors
*2. max. motor current 95A

Accessories

Description Version for
circuit
breaker Type Pack
pcs. Weight
approx.
kg/pcs.
Transverse auxiliary contact block
Contact block 1NO + 1NC all J73MN-11F 10 0.02
Auxiliary contact block for left hand side mounting (max 1pc. per circuit breaker)
Contact block 1NO + 1NC 9 mm all J73MN-11S 10 0.03
Signalling switch for left hand side mounting (max 1pc. per circuit breaker)
Signalling switch 1NO + 1NC each
Individual tripped and
short-circuit signalling J7MN-25
J7MN-50 J73MN-T-11S 1 0.07
Auxiliary releases for right hand side mounting (max 1pc. per circuit breaker)
Undervoltage release
Trips the circuit-breaker when the
voltage is interrupted. Prevents the
motor from being restarted
accidentally when the voltage is
restored, suitable for EMERGENCY
STOP acc. to VDE 0113 AC 50 Hz
230 V
AC 60 Hz
240 V all J74MN-U-N1 1 0.12
Shunt release
Trips the circuit-breaker when the
release coil energized. 50/60 Hz
100% ON
210-240 V
50/60 Hz, DC
5 sec ON
190-330 V J7MN-12 J74MN-S-N2 1 0.11

Enclosures and Front Plates

Description Version for circuit
breaker Type Pack
pcs. Weight
approx.
kg/pcs.
Front Plates
Moulded plastic front plate
with actuator diaphragm
and holder for circuit
breaker for actuation of circuit-
breakers in any enclosure
protection degree IP55 J7MN-12 J74MN-P12 1 0.08
Moulded plastic front plate
with rotary operating
mechanism lockable for actuation of circuit-
breakers in any enclosure
protection degree IP55 J7MN-25
J7MN-50 J74MN-P25 1 0.08
Holder for front plate
J74MN-P25 Holder is mounted on front
plate, circuit-breaker (with
accessories) is snapped on J7MN-25 J74MN-PH 1 0.12
Enclosures
Moulded plastic enclose
with actuator diaphragm
knockouts for J7MN-25
sealable protection degree IP55
with N- and PE- terminal
(+ aux. contact + release) J7MN-12 J74MN-PF12 1 0.27
Moulded plastic enclose
with rotary operating
mechanism knockouts for
J7MN-25 lockable protection degree IP55
with N- and PE- terminal
(+ aux. contact + release) J7MN-25 J74MN-PF25 1 0.30
Door-coupling mechanisms
The door-coupling rotary operating mechanisms consist of a knob, a coupling driver and a extension
shaft (5 mm x 5 mm). The door-coupling rotary operating mechanisms are designed for degree of
protection IP 65.
The door locking device prevents accidental opening of the cubicle door in the ON position of the circuit-
breaker.
The OFF position can be locked with up to 3 padlocks.
Door-coupling rotary
mechanism black extension shaft 330 mm
with supporting bracket J7MN-25 to
J7MN-50 J74MN-DC-B 1 0.3
Emergency-Stop
Door-coupling rotary
mechanism red/yellow extension shaft 330 mm
with supporting bracket J7MN-25 to
J7MN-50 J74MN-DC-RY 1 0.3

Busbars

Description Version for
circuit
breaker Type Pack
pcs. Weight
approx.
kg/pcs.
Insulated 3-phase busbar systems
For feeding several modular circuit-breakers on standard mounting rails, insulated, shock-protected.
Rated operational voltage max. 690 V
3-phase busbars
modular spacing
45 mm for 2 circuit-breakers J7MN-12
J7MN-25 J74MN-L3-1/2 1 0.03
for 3 circuit-breakers J74MN-L3-1/3 1 0.05
for 4 circuit-breakers J74MN-L3-1/4 1 0.07
for 5 circuit-breakers J74MN-L3-1/5 1 0.10
For connecting the 3-phase busbars from circuit-breakers different sizes. Clamping together
J7MN-12 and J7MN-25 circuit-breakers is not possible due to the different modular spacings and
the different heights of the terminals.
Line side terminal
3-pole, connection
from top Conductor cross-section
solid or stranded 6- 25 mm²
with ferrule 4-16 mm² J7MN-12
J7MN-25 J74MN-TC12 1 0.04
J74MN-TC25 1 0.04
Shroud for unused terminals J7MN-12
J7MN-25 J74MN-DS 20 -

Mounting Parts for Fuseless Load Feeders

Description Version for
circuit
breaker Type Pack
pcs. Weight
approx.
kg/pcs.
DIN-rail adapters
Adapter
for mechanical fixing of
circuit-breaker and
contactor 35 mm-DIN-rail
(DIN EN50022)
or screw mounting J7MN... J74MN-HU 10 0.05
Link modules
for electrical connection between circuit-breaker and contactor
Link module up to 20 A
up to 32 A J7MN... J74MN-VD-12 10 -
J74MN-VD-25 10 -
Terminal block
with increased creepage distances and clearances acc. to cULus Type „E"
Terminal block up to 600 V acc. to UL 489
not for transverse aux.
contact block J7MN-25
J7MN-100 J74MN-TB25 1 0.12
J74MN-TB100 1 0.15

last update: February 03, 2014

NO. J7MN

TYPE:Contactors Copyright Statement Copyright Statement

DATE:2021-06-08

Associated products:
XW2Z-R Cables for I/O Relay Terminals/Features J7TKN Thermal Overload Relay/Features

Motor 3~400V kW	Setting range A	Circuit-breaker Type	Contactor 220-230V 50Hz Type	Link module Type	DIN-rail adapter Type
-	0.11 - 0.16	J7MN-25-E16	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
-	0.14 - 0.2	J7MN-25-E2	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.06	0.18 - 0.25	J7MN-25-E25	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.09	0.22 - 0.32	J7MN-25-E32	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
-	0.28 - 0.4	J7MN-25-E4	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.12	0.35 - 0.5	J7MN-25-E5	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.18	0.45 - 0.63	J7MN-25-E63	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
-	0.55 - 0.8	J7MN-25-E8	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.25	0.7 - 1	J7MN-25-1	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.37	0.9 - 1.25	J7MN-25-1E25	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.55	1.1 - 1.6	J7MN-25-1E6	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
0.75	1.4 - 2	J7MN-25-2	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
-	1.8 - 2.5	J7MN-25-2E5	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
1.1	2.2 - 3.2	J7MN-25-3E2	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
1.5	2.8 - 4	J7MN-25-4	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
-	3.5 - 5	J7MN-25-5	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
2.2	4.5 - 6.3	J7MN-25-6E3	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
3	5.5 - 8	J7MN-25-8	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
4	7 - 10	J7MN-25-10	J7KN-10-10 230	J74MN-VD-12	J74MN-HU
5.5	9 - 12.5	J7MN-25-12E5	J7KN-14-10 230	J74MN-VD-12	J74MN-HU
7.5	11 - 16	J7MN-25-16	J7KN-18-10 230	J74MN-VD-12	J74MN-HU
-	14 - 20	J7MN-25-20	J7KN-22-10 230	J74MN-VD-25	J74MN-HU
-	17 - 22	J7MN-25-22	J7KN-22-10 230	J74MN-VD-25	J74MN-HU
11	20 - 25	J7MN-25-25	J7KN-22-10 230	J74MN-VD-25	J74MN-HU

Circuit- breaker Type	Rated current In A	*up to AC 240V 1**	up to AC 400V 1 up to AC 415V 2	up to AC 440V 1 up to AC 460V 2
Icu kA	Ics kA	max. fuse (gL/gG) A	Icu kA	Ics kA	max. fuse (gL/gG) A	Icu kA	Ics kA	max. fuse (gL/gG) A
J7MN-12	0.16 to 0.8	100	100	--	100	100	--	100	100	--
1	100	100	--	100	100	--	100	100	--
1.25	100	100	--	100	100	--	100	100	--
1.6	100	100	--	100	100	--	100	100	--
2	100	100	--	100	100	--	100	100	--
2.5	100	100	--	100	100	--	100	100	--
3.2	100	100	--	100	100	--	10	10	40
4	100	100	--	100	100	--	10	10	40
5	100	100	--	100	100	--	10	10	50
6.3	100	100	--	100	100	--	10	10	50
8	100	100	--	50	12.5	80 *3	10	10	63
10	100	100	--	50	12.5	80 *3	10	10	63
12	100	100	--	50	12.5	80 *3	10	10	80
J7MN-25	0.16 to 1.25	100	100	--	100	100	--	100	100	--
1.6	100	100	--	100	100	--	100	100	--
2	100	100	--	100	100	--	100	100	--
2.5	100	100	--	100	100	--	100	100	--
3.2	100	100	--	100	100	--	100	100	--
4	100	100	--	100	100	--	100	100	--
5	100	100	--	100	100	--	100	100	--
6.3	100	100	--	100	100	--	100	100	--
8	100	100	--	100	100	--	50	25	63 *3
10	100	100	--	100	100	--	50	25	80 *3
12.5	100	100	--	100	100	--	50	25	80 *3
16	100	100	--	50	25	100 *3	20	10	80
20	100	100	--	50	25	125 *3	20	10	80
22	100	100	--	50	25	125 *3	20	10	100
25	100	100	--	50	25	125 *3	20	10	100
J7MN-50	25	100	100	--	50	25	125 *3	30	15	100
32	100	100	--	50	25	125 *3	30	15	125
40	100	100	--	50	25	160 *3	30	15	125
45	100	100	--	50	25	160 *3	30	15	125
50	100	100	--	50	25	160 *3	30	15	125
J7MN-100	63	100	100	--	50	25	160 *3	40	20	160
75	100	100	--	50	25	160 *3	40	20	160
90	100	100	--	50	25	160 *3	40	20	160
100	100	100	--	50	25	160 *3	40	20	160

Circuit- breaker Type	Rated current In A	up to AC 500V 1 up to AC 525V 2	*up to AC 690V 1**
Icu kA	Ics kA	max. fuse (gL/gG) A	Icu kA	Ics kA	max. fuse (gL/gG) A
J7MN-12	0.16 to 0.8	100	100	--	100	100	--
1	100	100	--	100	100	--
1.25	100	100	--	2	2	20
1.6	100	100	--	2	2	20
2	10	10	35	2	2	35
2.5	10	10	35	2	2	35
3.2	3	3	40	2	2	40
4	3	3	40	2	2	40
5	3	3	50	2	2	50
6.3	3	3	50	2	2	50
8	3	3	63	2	2	63
10	3	3	63	2	2	63
12	3	3	80	2	2	80
J7MN-25	0.16 to 1.25	100	100	--	100	100	--
1.6	100	100	--	100	100	--
2	100	100	--	8	8	25
2.5	100	100	--	8	8	25
3.2	100	100	--	8	8	32
4	100	100	--	6	3	32
5	100	100	--	6	3	32
6.3	100	100	--	6	3	50
8	42	21	63	6	3	50
10	42	21	63	6	3	50
12.5	42	21	80	6	3	63
16	10	5	80	4	2	63
20	10	5	80	4	2	63
22	10	5	80	4	2	63
25	10	5	80	4	2	63
J7MN-50	25	12	6	80	5	3	63
32	10	5	100	4	2	63
40	10	5	100	4	2	63
45	10	5	100	4	2	63
50	10	5	100	4	2	80
J7MN-100	63	12	6	125	6	3	80
75	8	4	125	5	3	100
90	8	4	125	5	3	125
100	8	4	125	5	3	125

Type	J7MN-12	J7MN-25	J7MN-50	J7MN-100
Number of poles	3	3	3	3
Max. rated current Inmax (=max. rated operational current Ie)	A	12	25	50	100
Permissible ambient temperature	Storage/transport	°C	-50 to +80
Operation	°C	-20 to +70 *1
Permissible rated current at temperature inside cubicle of:	+60 °C	%	100
+70 °C	%	87
Circuit-breaker inside enclosure Permissible rated current at temperature inside enclosure of:	+60 °C	%	100
+70 °C	%	87
Rated operational voltage Ue	V	690 *2
Rated frequency	Hz	50/60
Rated insulation voltage Ui	V	690
Rated impulse withstand voltage Uimp	kV	6
Utilization category	IEC 60 947-2 (circuit-breaker)	A
IEC 60 947-4-1 (motor starter)	AC-3
Class	acc. to IEC 60 947-4-1	10
DC short-circuit breaking capacity (time constant t = 5 ms)	1 conducting path DC 150 V	kA	10
2 conducting paths in series DC 300 V	kA	10
3 conducting paths in series DC 450 V	kA	10
Power loss Pv per circuit-breaker dependent on rated current In (upper setting range) R per conducting path = P/(I² × 3)	In -> to 1.25 A In -> 1.6 to 6.3 A In -> 8 to 12 A	W W W	5 6 7	- - -	- - -	- - -
In -> 1 to 6.3 A In -> 8 to 16 A In -> 20 to 25 A	W W W	- - -	6 7 8	- - -	- - -
In -> to 25 A In -> 32 A In -> 40 to 50 A	W W W	- - -	- - -	12 15 20	- - -
In -> to 63 A In -> 75 to 90 A In -> to 100 A	W W W	- - -	- - -	- - -	20 30 38
Shock resistance	acc. to IEC 68 Part 2-27	g	25	25	25	25
Degree of protection	acc. to IEC 60 529	IP 20	IP 20	IP 20 *3	IP 20 *3
Shock hazard protection	acc. to DIN VDE 0106 Part 100	safe against finger touch
Temperature compensation	acc. to IEC 60 947-4-1	°C	-20 to +60
Phase failure sensitivity	acc. to IEC 60 947-4-1	yes
Explosion protection	acc. to EC Directive 94191 EC	yes *4
Isolator characteristics	acc. to IEC 60 947-3	yes
Main and EM. STOP switch characteristics	acc. to IEC 60 204-1 (VDE 0113)	yes *5
Safe isolation between main and auxiliary circuits	acc. to DIN VDE 0106 Part 101	up to 400 V +10 %	yes
up to 415 V +5 %	yes
Mechanical endurance	operating cycles	100 000	100 000	50 000	50 000
Electrical endurance	100 000	100 000	25 000	25 000
Max. operating frequency per hour (motor starts)	1/h	15	15	15	15
Permissible mounting position	any. acc. to IEC 60 447 start command "I" right- hand side or top

Type	J7MN-12	J7MN-25	J7MN-50	J7MN-100
Terminal type	Screw-type	Screw-type	Box terminal	Box terminal
Terminal screw	Pozidriv size 2	Pozidriv size 2	Pozidriv size 2	Allen screw 4 mm
Tightening torque	Nm	0.8 to 1.2	2 to 2.5	3 to 4.5	4 to 6
Conductor cross- sections	solid	mm²	2 x (0.5 to 1.5)	2 x (1 to 2.5)	2 x (0.75 to 16)	2 x (2.5 to 16)
mm²	2 x (0.75 to 2.5)	2 x (2.5 to 6)	-	-
mm²	1 x (0.5 to 4)
finely stranded with end ferrule	mm²	2 x (0.5 to 1.5)	2 x (1 to 2.5)	2 x (0.75 to 16)	2 x (2.5 to 35)
mm²	2 x (0.75 to 2.5)	2 x (2.5 to 6)	1 x (0.75 to 25)	1 x (2.5 to 50)
mm²		1 x (1 to 10)
stranded	mm²	2 x (0.5 to 1.5)	2 x (1 to 2.5)	2 x (0.75 to 25)	2 x (10 to 50)
mm²	2 x (0.75 to 2.5)	2 x (2.5 to 6)	1 x (0.75 to 35)	1 x (10 to 70)
mm²	1 x (0.5 to 4)	1 x (1 to 10)
AWG-wires, solid or stranded	AWG	2 x (18 to 14)	2 x (14 to 10)	2 x (18 to 3)	2 x (10 to 1/0)
AWG	-	-	1 x (18 to 2)	1 x (10 to 2/0)
conductor bar (number x width x thick)	mm	-	-	2 x (6 x 9 x 0.8)	2 x (6 x 9 x 0.8)
	mm	-	-	-	18 x 10
mm²	-	-	-	up to 2 x 70

Switching capacity	Control voltage
Front transverse auxiliary switch with 1 NO + 1 NC	Rated operational voltage Ue	AC	V	24	230
Rated operational current Ie/AC-15	A	2	0.5
Rated operational current Ie/AC-12 Ith	A	2.5	2.5
Rated operational voltage Ue	DC L/R 200 ms	V	24	48	60
Rated operational current Ie/DC-13	A	1	0.3	0.15
Lateral auxiliary switch and signalling switch	Rated operational voltage Ue	AC	V	24	230	400	690
Rated operational current Ie/AC-15	A	6	6	3	1
Rated operational current Ie/AC-12 Ith	A	10	10	10	10
Rated operational voltage Ue	DC L/R 200 ms	V	24	110	220	440
Rated operational current Ie/DC-13	A	2	0.5	0.25	0.1
Undervoltage release	Power consumption	during pick-up	VA/W	20.2/13
uninter-rupted duty	VA/W	7.2/2.4
Response voltage	trip	V	0.7 to 0.35 × Us
pick-up	V	0.85 to 1.1 × Us
Max. opening time	ms	20
Shunt release	Power consumption during pick-up	AC VA/W	20.2/13
DC W	13 to 80
Response voltage acc. to IEC 60 947-1, trip	V	0.7 to 1.1 × Us
Max. opening time	ms	20
Short-circuit protection for auxiliary and control circuits	Fuse	gL/gG	A	10
Miniature circuit breaker C- characteristic	A	6 *1
Conductor cross-sections for auxiliary and control circuits		Screw-type Pozidriv size 2
solid	mm²	2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
finely stranded with ferrule	mm²	2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
stranded	mm²	2 x (0.5 to 1.5)/2 x (0.75 to 2.5)
AWG-wires, solid or stranded	AWG	2 x (18 to 14)

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Low Voltage Switch Gear Catalog	J510-E2-02A [4549KB]	Dec 20, 200420041220	Low Voltage Switch Gear Catalog

	Rated current In A	Suitable for motors *1 3~400V kW	Current setting range	Short- circuit breaking capacity at 3~400V kA	Type	Pack pcs.	Weight approx. kg/pcs.
Thermal overload release A	Instantaneous short-circuit release A
Circuit-Breakers J7MN-12
	0.16	-	0.11 - 0.16	2.1	100	J7MN-12-E16	1	0.21
0.2	-	0.14 - 0.2	2.6	100	J7MN-12-E2	1	0.21
0.25	0.06	0.18 - 0.25	3.3	100	J7MN-12-E25	1	0.21
0.32	0.09	0.22 - 0.32	4.2	100	J7MN-12-E32	1	0.21
0.4	-	0.28 - 0.4	5.2	100	J7MN-12-E4	1	0.21
0.5	0.12	0.35 - 0.5	6.5	100	J7MN-12-E5	1	0.21
0.63	0.18	0.45 - 0.63	8.2	100	J7MN-12-E63	1	0.21
0.8	-	0.55 - 0.8	10	100	J7MN-12-E8	1	0.21
1	0.25	0.7 - 1	13	100	J7MN-12-1	1	0.21
1.25	0.37	0.9 - 1.25	16	100	J7MN-12-1E25	1	0.21
1.6	0.55	1.1 - 1.6	21	100	J7MN-12-1E6	1	0.21
2	0.75	1.4 - 2	26	100	J7MN-12-2	1	0.21
2.5	-	1.8 - 2.5	33	100	J7MN-12-2E5	1	0.21
3.2	1.1	2.2 - 3.2	42	100	J7MN-12-3E2	1	0.21
4	1.5	2.8 - 4	52	100	J7MN-12-4	1	0.21
5	-	3.5 - 5	65	100	J7MN-12-5	1	0.21
6.3	2.2	4.5 - 6.3	82	100	J7MN-12-6E3	1	0.21
8	3	5.5 - 8	104	50	J7MN-12-8	1	0.21
10	4	7 - 10	130	50	J7MN-12-10	1	0.21
12	5.5	9 - 12	156	50	J7MN-12-12	1	0.21
Circuit-Breakers J7MN-25
	0.16	-	0.11 - 0.16	2.1	100	J7MN-25-E16	1	0.32
0.2	-	0.14 - 0.2	2.6	100	J7MN-25-E2	1	0.32
0.25	0.06	0.18 - 0.25	3.3	100	J7MN-25-E25	1	0.32
0.32	0.09	0.22 - 0.32	4.2	100	J7MN-25-E32	1	0.32
0.4	-	0.28 - 0.4	5.2	100	J7MN-25-E4	1	0.32
0.5	0.12	0.35 - 0.5	6.5	100	J7MN-25-E5	1	0.32
0.63	0.18	0.45 - 0.63	8.2	100	J7MN-25-E63	1	0.32
0.8	-	0.55 - 0.8	10	100	J7MN-25-E8	1	0.32
1	0.25	0.7 - 1	13	100	J7MN-25-1	1	0.32
1.25	0.37	0.9 - 1.25	16	100	J7MN-25-1E25	1	0.32
1.6	0.55	1.1 - 1.6	21	100	J7MN-25-1E6	1	0.32
2	0.75	1.4 - 2	26	100	J7MN-25-2	1	0.32
2.5	-	1.8 - 2.5	33	100	J7MN-25-2E5	1	0.32
3.2	1.1	2.2 - 3.2	42	100	J7MN-25-3E2	1	0.32
4	1.5	2.8 - 4	52	100	J7MN-25-4	1	0.32
5	-	3.5 - 5	65	100	J7MN-25-5	1	0.32
6.3	2.2	4.5 - 6.3	82	100	J7MN-25-6E3	1	0.32
8	3	5.5 - 8	104	100	J7MN-25-8	1	0.32
10	4	7 - 10	130	100	J7MN-25-10	1	0.32
12.5	5.5	9 - 12.5	163	100	J7MN-25-12E5	1	0.32
16	7.5	11 - 16	208	50	J7MN-25-16	1	0.32
20	-	14 - 20	260	50	J7MN-25-20	1	0.32
22	-	17 - 22	286	50	J7MN-25-22	1	0.32
25	11	20 - 25	325	50	J7MN-25-25	1	0.32
Circuit-Breakers J7MN-50
	25	11	18 - 25	325	50	J7MN-50-25	1	0.96
32	15	22 - 32	416	50	J7MN-50-32	1	0.96
40	18.5	28 - 40	520	50	J7MN-50-40	1	0.96
45	-	36 - 45	585	50	J7MN-50-45	1	0.96
50	22	40 - 50	650	50	J7MN-50-50	1	0.96
Circuit-Breakers J7MN-100
	63	30	45 - 63	819	50	J7MN-100-63	1	2.1
75	37	57 - 75	975	50	J7MN-100-75	1	2.1
90	-	70 - 90	1170	50	J7MN-100-90	1	2.1
100	45	80 - 100 *2	1235	50	J7MN-100-100	1	2.1

	Description	Version	for circuit breaker	Type	Pack pcs.	Weight approx. kg/pcs.
Transverse auxiliary contact block
	Contact block	1NO + 1NC	all	J73MN-11F	10	0.02
Auxiliary contact block for left hand side mounting (max 1pc. per circuit breaker)
	Contact block	1NO + 1NC 9 mm	all	J73MN-11S	10	0.03
Signalling switch for left hand side mounting (max 1pc. per circuit breaker)
	Signalling switch	1NO + 1NC each Individual tripped and short-circuit signalling	J7MN-25 J7MN-50	J73MN-T-11S	1	0.07
Auxiliary releases for right hand side mounting (max 1pc. per circuit breaker)
	Undervoltage release Trips the circuit-breaker when the voltage is interrupted. Prevents the motor from being restarted accidentally when the voltage is restored, suitable for EMERGENCY STOP acc. to VDE 0113	AC 50 Hz 230 V AC 60 Hz 240 V	all	J74MN-U-N1	1	0.12
	Shunt release Trips the circuit-breaker when the release coil energized.	50/60 Hz 100% ON 210-240 V 50/60 Hz, DC 5 sec ON 190-330 V	J7MN-12	J74MN-S-N2	1	0.11

	Description	Version	for circuit breaker	Type	Pack pcs.	Weight approx. kg/pcs.
Front Plates
	Moulded plastic front plate with actuator diaphragm and holder for circuit breaker	for actuation of circuit- breakers in any enclosure protection degree IP55	J7MN-12	J74MN-P12	1	0.08
Moulded plastic front plate with rotary operating mechanism lockable	for actuation of circuit- breakers in any enclosure protection degree IP55	J7MN-25 J7MN-50	J74MN-P25	1	0.08
Holder for front plate J74MN-P25	Holder is mounted on front plate, circuit-breaker (with accessories) is snapped on	J7MN-25	J74MN-PH	1	0.12
Enclosures
	Moulded plastic enclose with actuator diaphragm knockouts for J7MN-25 sealable	protection degree IP55 with N- and PE- terminal (+ aux. contact + release)	J7MN-12	J74MN-PF12	1	0.27
	Moulded plastic enclose with rotary operating mechanism knockouts for J7MN-25 lockable	protection degree IP55 with N- and PE- terminal (+ aux. contact + release)	J7MN-25	J74MN-PF25	1	0.30
Door-coupling mechanisms
	The door-coupling rotary operating mechanisms consist of a knob, a coupling driver and a extension shaft (5 mm x 5 mm). The door-coupling rotary operating mechanisms are designed for degree of protection IP 65. The door locking device prevents accidental opening of the cubicle door in the ON position of the circuit- breaker. The OFF position can be locked with up to 3 padlocks.
Door-coupling rotary mechanism black	extension shaft 330 mm with supporting bracket	J7MN-25 to J7MN-50	J74MN-DC-B	1	0.3
Emergency-Stop Door-coupling rotary mechanism red/yellow	extension shaft 330 mm with supporting bracket	J7MN-25 to J7MN-50	J74MN-DC-RY	1	0.3

	Description	Version	for circuit breaker	Type	Pack pcs.	Weight approx. kg/pcs.
Insulated 3-phase busbar systems
	For feeding several modular circuit-breakers on standard mounting rails, insulated, shock-protected. Rated operational voltage max. 690 V
3-phase busbars modular spacing 45 mm	for 2 circuit-breakers	J7MN-12 J7MN-25	J74MN-L3-1/2	1	0.03
for 3 circuit-breakers	J74MN-L3-1/3	1	0.05
for 4 circuit-breakers	J74MN-L3-1/4	1	0.07
for 5 circuit-breakers	J74MN-L3-1/5	1	0.10
For connecting the 3-phase busbars from circuit-breakers different sizes. Clamping together J7MN-12 and J7MN-25 circuit-breakers is not possible due to the different modular spacings and the different heights of the terminals.
	Line side terminal 3-pole, connection from top	Conductor cross-section solid or stranded 6- 25 mm² with ferrule 4-16 mm²	J7MN-12 J7MN-25	J74MN-TC12	1	0.04
J74MN-TC25	1	0.04
	Shroud	for unused terminals	J7MN-12 J7MN-25	J74MN-DS	20	-

	Description	Version	for circuit breaker	Type	Pack pcs.	Weight approx. kg/pcs.
DIN-rail adapters
	Adapter for mechanical fixing of circuit-breaker and contactor	35 mm-DIN-rail (DIN EN50022) or screw mounting	J7MN...	J74MN-HU	10	0.05
Link modules
	for electrical connection between circuit-breaker and contactor
Link module	up to 20 A up to 32 A	J7MN...	J74MN-VD-12	10	-
J74MN-VD-25	10	-
Terminal block
	with increased creepage distances and clearances acc. to cULus Type „E"
Terminal block	up to 600 V acc. to UL 489 not for transverse aux. contact block	J7MN-25 J7MN-100	J74MN-TB25	1	0.12
J74MN-TB100	1	0.15

Return to OMRON
