last update: April 01, 2016

New Value For Control Panels

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel concept for the specifications of products used in control panels.

Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

Technology and Quality Developed over 80 Years of History

Now the H3DT Series of Timers Are Available with New Advanced Concepts

It's been 80 years since the production of OMRON's first product: an X-ray Timer.
They provide more value to the customer while leading control panels to a new stage.

The Top Class in Industry*1 for Low Power Consumption

Power consumption is low, which reduces the DC power supply load for the entire control panel.

Push-In Plus Terminal Blocks for Easy Wiring

Just Insert Wires: No Tools Required
Now you can use Push-In Plus terminal blocks to reduce the time and work involved in wiring.

Greatly Reduce Wiring Work with Push-In Plus Terminal Blocks

No Retightening Required

Tightening screws is necessary for screw terminal blocks, but with Push-In Plus terminal blocks, there is no need for retightening.
This reduces works for wirings, inspections, delivery (shipping), or maintenance.

Easy to Insert

OMRON’s Push-In Plus terminal blocks are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.

Held Firmly in Place

Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism design technology and manufacturing technology produced a spring that ensures better workability and reliability.

Certified for Safety Standards of Major Countries

The Timers help to reduce the work involved in control panel design with certifications and compliance for various standards, including UL Listing.

last update: April 01, 2016

Purchase the OMRON Analog Timers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H3DT-N / -L Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3DT-N / -L We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3DT-N / -LControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A4EG Enabling Grip Switch/Features
R87F / R87T AC Axial Fans/Features
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Features
D5A High-precision Switch/Features
CJ1W-AD / DA / MAD CJ-Series Analog I/O Unit/Features

OMRON H3DT-N / -L catalog
H3DT-N / -L Multi-range, Multi-mode Timer/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H3DT Data Sheet M090-E1-01
[9435KB] Jul 12, 201720170712 H3DT Data Sheet

H3DT Catalog M091-E1-01
[2563KB] Oct 11, 201620161011 H3DT Catalog

Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB] Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

OMRON H3DT-N / -L specification
H3DT-N / -L Multi-range, Multi-mode Timer/Specifications
last update: October 20, 2016
Time Ranges

Time range setting 0.1 s 1 s 10 s 1 min 10 min 1 h 10 h 100 h
Set time range 0.1 to 1.2 s 1 to 12 s 10 to 120 s 1 to 12 min 10 to 120 min 1 to 12 h 10 to 120 h 100 to 1,200 h
Scale numbers 12

Ratings

Power supply voltage *1 24 to 240 VAC/DC, 50/60 Hz *2
Allowable voltage fluctuation
range 85% to 110% of rated voltage
Power reset Minimum power-OFF time: 0.1 s
Reset voltage 10% of rated voltage
Voltage input 24 to 240 VAC/DC
High level: 20.4 to 264 VAC/DC, Low level: 0 to 2.4 VAC/DC
*3
Power
consumption H3DT-N2/-L2 At 240 VAC: 2.3 VA max., at 240 VDC: 1.0 W max.,
at 24 VDC: 0.3 W max.
H3DT-N1/-L1 At 240 VAC: 2.0 VA max., at 240 VDC: 0.9 W max.,
at 24 VDC: 0.3 W max.
Rated Insulation Voltage 250 VAC
Control output Contact output:
5 A at 250 VAC with resistive load (cosφ = 1),
5 A at 30 VDC with resistive load *5,
0.15 A max. at 125 VDC with resistive load,
0.1A max. at 125 VDC with L/R of 7 ms.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Contact materials: Ag-alloy + Gold plating
(Recommended fuse: BLN5 (Littelfuse) or 0216005MXEP)
Ambient operating
temperature -20 to 60°C (with no icing)
Storage temperature -40 to 70°C (with no icing)
Surrounding air operating
humidity 25% to 85%

*1. When using a 24-VDC power supply voltage, there will be an inrush current of approximately 0.5 A.
     Allow for this inrush current when turning ON and OFF the power supply to the Timer with device with a solid-state output,
     such as a sensor.
*2. DC ripple: 20% max.
*3. The power consumption is for after the Timer times out in mode F2 for the H3DT-N and mode A for the H3DT-L.
     The maximum power consumption is given, including the current consumed by the input circuit.

Characteristics

Accuracy of operating
time ±1% of FS max. (±1% ±10 ms max. at 1.2-s range)
Setting error ±10% of FS ±0.05 s max.
Minimum input signal
width 50 ms (start input)
Influence of voltage ±0.5% of FS max. (±0.5% ±10 ms max. at 1.2-s range)
Influence of
temperature ±2% of FS max. (±2% ±10 ms max. at 1.2-s range)
Insulation resistance 100 MΩ min. at 500 VDC
Dielectric strength Between charged metal part and operating section:
2,900 VAC 50/60 Hz for 1 min.
Between control output terminals and operating circuit:
2,000 VAC 50/60 Hz for 1 min.
Between contacts not located next to each other:
1,000 VAC 50/60 Hz for 1 min.
Impulse withstand
test voltage 5 kV between power terminals, 7.4 kV between conductor terminal and
operating section
Noise immunity Square-wave noise generated by noise simulator
(pulse width: 100 ns/1 μs, 1-ns rise): ±1.5 kV
Static immunity Malfunction: 4 kV, Destruction: 8 kV
Vibration
resistance Destruction 0.75-mm single amplitude at 10 to 55 Hz for 2 h each in 3 directions
Malfunction 0.5-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions
Shock
resistance Destruction 1,000 m/s² 3 times each in 6 directions
Malfunction 100 m/s² 3 times each in 6 directions
Life
expectancy Mechanical 10 million operations min. (under no load at 1,800 operations/h)
Electrical 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)
Degree of protection IP30 (Terminal block: IP20)
Weight Approx. 100 g

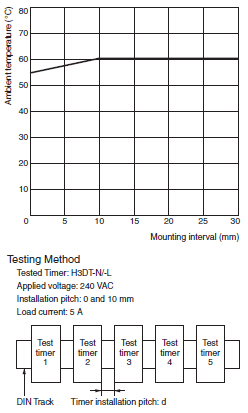

Relation between H3DT Ambient Temperature and Mounting Interval (Reference Values)

The relation between the ambient temperature and mounting interval is shown in the following graph.
If the Timer is used at 55°C or higher with a mounting interval that is smaller than that shown in the following diagram, the temperature inside the Timer will increase, reducing the life expectancy of internal parts.

Applicable standards

Safety
standards cULus: UL 508/CSA C22.2 No. 14
EN 61812-1: Pollution degree 2, Overvoltage category III
CCC: Pollution degree 2, Overvoltage category II, section GB 14048.5
LR: Category ENV1.2
DNV GL (Temperature B, Humidity B, Vibration A, EMC A, Enclosure A)
EMC (EMI) EN 61812-1
Radiated Emissions: EN 55011 class B
Emission AC Mains: EN 55011 class B
Harmonic Current: EN 61000-3-2
Voltage Fluctuations and Flicker: EN 61000-3-3
(EMS) EN 61812-1
Immunity ESD: EN 61000-4-2
Immunity RF-interference: EN 61000-4-3
Immunity Burst: EN 61000-4-4
Immunity Surge: EN 61000-4-5
Immunity Conducted Disturbance: EN 61000-4-6
Immunity Voltage Dip/Interruption: EN 61000-4-11

I/O

Item Model H3DT-N/L
Input Start Functions to start timing.
Output Control output The output is turned ON/OFF according to the operating
mode when the value that is set on the dial is reached. *

* If the INST/TIME switch on the front of the Timer is set to INST, relay R2 will operate as instantaneous contacts and will turn ON/OFF in synchronization with the power supply.

last update: October 20, 2016

OMRON H3DT-N / -L dimension

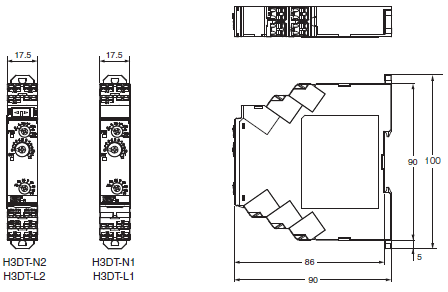

H3DT-N / -L Multi-range, Multi-mode Timer/Dimensions
last update: April 01, 2016
Timers

H3DT-N
H3DT-L

Track Mounting Products (Sold Separately)

DIN Track
PFP-100N
PFP-50N

DIN Track
PFP-100N2

End Plate
PFP-M

Spacer
PFP-S

Note: 1. Order the above products in multiples of 10.
     2. The Tracks conform to DIN standards.

Options (Order Separately)

Front Cover
Y92A-D1A

last update: April 01, 2016

OMRON H3DT-N / -L lineup
H3DT-N / -L Multi-range, Multi-mode Timer/Lineup
last update: October 20, 2016
List of Models

Supply voltage Control output H3DT-N/H3DT-L
Standard
Eight-mode Timer Expansion
Eight-mode Timer
24 to 240 VAC/DC Contact output, DPDT
(time-limit DPDT, or timelimit SPDT +
instantaneous SPDT)
Changed using a switch. Model H3DT-N2 H3DT-L2
Contact output, SPDT (time-limit SPDT) H3DT-N1 H3DT-L1

Model Structure

Model Operating modes Terminal
block Input type Output type Mounting
method Safety standards
H3DT-N2 A2: ON Delay (Power ON Delay)
B3: Flicker OFF Start (Power ON Start)
B4: Flicker ON Start (Power ON Start)
D: Signal OFF Delay
E2: Interval (Power ON Start)
E3: Signal OFF Interval
F2: Cumulative (ON Delay)
F3: Cumulative (Interval) 10 terminals Voltage
input Relay,
DPDT DIN Track
mounting cULus
(UL 508 CSA C22.2 No.14)
CCC
LR
DNV GL
EN 61812-1
IEC 60664-1 4 kV/2
H3DT-N1 8 terminals Relay,
SPDT
H3DT-L2 A: ON Delay (Signal ON Delay)
B: Flicker OFF Start (Signal Start)
B2: Flicker ON Start (Signal Start)
C: Signal ON/OFF Delay
E: Interval (Signal Start)
G: Signal ON/OFF Delay
J: One-shot Output (Signal Start)
J2: One-shot Output (Power ON Start) 10 terminals Relay,
DPDT
H3DT-L1 8 terminals Relay,
SPDT

last update: October 20, 2016

NO. H3DT-N / -L

TYPE:Timers Analog Timers Copyright Statement

DATE:2021-06-17

Associated products:
E58-CIFQ1 USB-Serial Conversion Cable/Features H3DT-A Power ON-delay Timer/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
H3DT Data Sheet	M090-E1-01 [9435KB]	Jul 12, 201720170712	H3DT Data Sheet
H3DT Catalog	M091-E1-01 [2563KB]	Oct 11, 201620161011	H3DT Catalog
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance	- [43KB]	Mar 12, 201820180312	Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building

Time range setting	0.1 s	1 s	10 s	1 min	10 min	1 h	10 h	100 h
Set time range	0.1 to 1.2 s	1 to 12 s	10 to 120 s	1 to 12 min	10 to 120 min	1 to 12 h	10 to 120 h	100 to 1,200 h
Scale numbers	12

*Power supply voltage 1**	24 to 240 VAC/DC, 50/60 Hz *2
Allowable voltage fluctuation range	85% to 110% of rated voltage
Power reset	Minimum power-OFF time: 0.1 s
Reset voltage	10% of rated voltage
Voltage input	24 to 240 VAC/DC High level: 20.4 to 264 VAC/DC, Low level: 0 to 2.4 VAC/DC
*3 Power consumption	H3DT-N2/-L2	At 240 VAC: 2.3 VA max., at 240 VDC: 1.0 W max., at 24 VDC: 0.3 W max.
H3DT-N1/-L1	At 240 VAC: 2.0 VA max., at 240 VDC: 0.9 W max., at 24 VDC: 0.3 W max.
Rated Insulation Voltage	250 VAC
Control output	Contact output: 5 A at 250 VAC with resistive load (cosφ = 1), 5 A at 30 VDC with resistive load *5, 0.15 A max. at 125 VDC with resistive load, 0.1A max. at 125 VDC with L/R of 7 ms. The minimum applicable load is 10 mA at 5 VDC (P reference value). Contact materials: Ag-alloy + Gold plating (Recommended fuse: BLN5 (Littelfuse) or 0216005MXEP)
Ambient operating temperature	-20 to 60°C (with no icing)
Storage temperature	-40 to 70°C (with no icing)
Surrounding air operating humidity	25% to 85%

Accuracy of operating time	±1% of FS max. (±1% ±10 ms max. at 1.2-s range)
Setting error	±10% of FS ±0.05 s max.
Minimum input signal width	50 ms (start input)
Influence of voltage	±0.5% of FS max. (±0.5% ±10 ms max. at 1.2-s range)
Influence of temperature	±2% of FS max. (±2% ±10 ms max. at 1.2-s range)
Insulation resistance	100 MΩ min. at 500 VDC
Dielectric strength	Between charged metal part and operating section: 2,900 VAC 50/60 Hz for 1 min. Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz for 1 min. Between contacts not located next to each other: 1,000 VAC 50/60 Hz for 1 min.
Impulse withstand test voltage	5 kV between power terminals, 7.4 kV between conductor terminal and operating section
Noise immunity	Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise): ±1.5 kV
Static immunity	Malfunction: 4 kV, Destruction: 8 kV
Vibration resistance	Destruction	0.75-mm single amplitude at 10 to 55 Hz for 2 h each in 3 directions
Malfunction	0.5-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions
Shock resistance	Destruction	1,000 m/s² 3 times each in 6 directions
Malfunction	100 m/s² 3 times each in 6 directions
Life expectancy	Mechanical	10 million operations min. (under no load at 1,800 operations/h)
Electrical	100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)
Degree of protection	IP30 (Terminal block: IP20)
Weight	Approx. 100 g

Safety standards	cULus: UL 508/CSA C22.2 No. 14 EN 61812-1: Pollution degree 2, Overvoltage category III CCC: Pollution degree 2, Overvoltage category II, section GB 14048.5 LR: Category ENV1.2 DNV GL (Temperature B, Humidity B, Vibration A, EMC A, Enclosure A)
EMC	(EMI) EN 61812-1 Radiated Emissions: EN 55011 class B Emission AC Mains: EN 55011 class B Harmonic Current: EN 61000-3-2 Voltage Fluctuations and Flicker: EN 61000-3-3 (EMS) EN 61812-1 Immunity ESD: EN 61000-4-2 Immunity RF-interference: EN 61000-4-3 Immunity Burst: EN 61000-4-4 Immunity Surge: EN 61000-4-5 Immunity Conducted Disturbance: EN 61000-4-6 Immunity Voltage Dip/Interruption: EN 61000-4-11

Item	Model	H3DT-N/L
Input	Start	Functions to start timing.
Output	Control output	The output is turned ON/OFF according to the operating mode when the value that is set on the dial is reached. *

Supply voltage	Control output	H3DT-N/H3DT-L
Standard Eight-mode Timer	Expansion Eight-mode Timer
24 to 240 VAC/DC	Contact output, DPDT (time-limit DPDT, or timelimit SPDT + instantaneous SPDT) Changed using a switch.	Model	H3DT-N2	H3DT-L2
Contact output, SPDT (time-limit SPDT)	H3DT-N1	H3DT-L1

Model	Operating modes	Terminal block	Input type	Output type	Mounting method	Safety standards
H3DT-N2	A2: ON Delay (Power ON Delay) B3: Flicker OFF Start (Power ON Start) B4: Flicker ON Start (Power ON Start) D: Signal OFF Delay E2: Interval (Power ON Start) E3: Signal OFF Interval F2: Cumulative (ON Delay) F3: Cumulative (Interval)	10 terminals	Voltage input	Relay, DPDT	DIN Track mounting	cULus (UL 508 CSA C22.2 No.14) CCC LR DNV GL EN 61812-1 IEC 60664-1 4 kV/2
H3DT-N1	8 terminals	Relay, SPDT
H3DT-L2	A: ON Delay (Signal ON Delay) B: Flicker OFF Start (Signal Start) B2: Flicker ON Start (Signal Start) C: Signal ON/OFF Delay E: Interval (Signal Start) G: Signal ON/OFF Delay J: One-shot Output (Signal Start) J2: One-shot Output (Power ON Start)	10 terminals	Relay, DPDT
H3DT-L1	8 terminals	Relay, SPDT

Return to OMRON
