OMRON HL-5000 specification

last update: September 24, 2012

Ratings

Rated voltage	Non-inductive load (A)				Inductive load (A)
	Resistive load		Lamp load		Inductive load		Motor load
	NC	NO	NC	NO	NC	NO	NC	NO
125 VAC 250 VAC	5 5		1.5 1	0.7 0.5	3 3		2 1.5	1 0.8
12 VDC 24 VDC 125 VDC 250 VDC	5 5		3 3		4 4		3 3
	0.4 0.4	0.2 0.2	-		-		-

Note:Note:
1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.

Inrush current	NC	24 A max.
	NO	12 A max.

Characteristics

Degree of protection		IP65
Durability *	Mechanical	10,000,000 operations min. (under rated conditions)
	Electrical	See the following Electrical Durability.
Operating speed		5 mm/s to 0.5 m/s
Operating frequency	Mechanical	120 operations/min
	Electrical	30 operations/min
Insulation resistance		100 MΩ min. (at 500 VDC)
Contact resistance		25 mΩ max. (initial value)
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
		1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground
		1,500 VAC, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
Rated frequency		50/60 Hz
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Ambient operating temperature		-5°C to +65°C (with no icing)
Ambient operating humidity		35% to 95%RH
Weight		Approx. 130 to 190 g

Note:Note:

Note:The above figures are initial values.

Note:The above characteristics may vary depending on the model. For further details, contact your OMRON sales representative.

Note:The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

last update: September 24, 2012

OMRON HL-5000 dimension

last update: October 16, 2012

Switches

(Dimensions not shown are the same as roller lever models.)

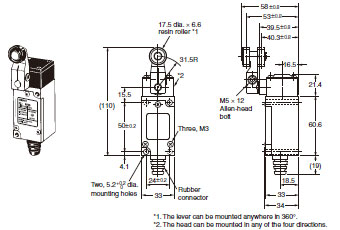

Roller Lever
HL-5000

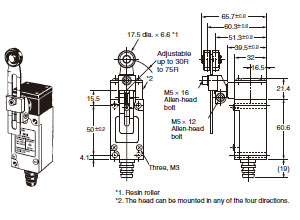

Adjustable Roller Lever
HL-5030

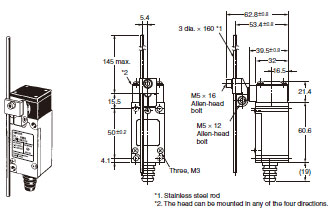

Adjustable Rod Lever
HL-5050

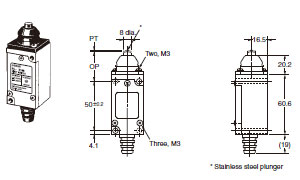

Sealed Plunger
HL-5100

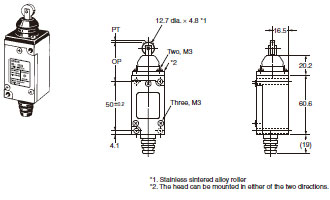

Sealed Roller Plunger
HL-5200

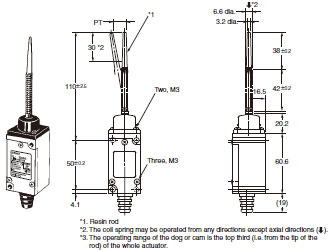

Coil Spring
HL-5300

Note:Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note:* Measured with the types of the 31.5-mm arm or rod length.

OF and RF measured at the arm length of 75 mm for HL-5030, and 145 mm for HL-5050 (reference values).

last update: October 16, 2012

OMRON HL-5000 catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
HL-5000 Data Sheet	- [713KB]	Aug 24, 201220120824	HL-5000 Data Sheet

OMRON HL-5000 lineup

last update: September 24, 2012

List of Models

Actuator		Model
Roller lever		HL-5000 *
Adjustable roller lever		HL-5030 *
Adjustable rod lever		HL-5050 *
Sealed plunger		HL-5100 *
Sealed roller plunger		HL-5200
Coil spring		HL-5300

Note:* HL-5000 Limit Switches are offered with a choice of ground terminal/M5 tapping on the rear side conforming to various standards. When placing an order, add the code to the model number to indicate if ground terminal/M5 tapping on the rear side is required.
-G: with ground terminal/M5 tapping on the rear side.
