OMRON NX-EIC202Automation Systems/ Networks/EtherNet/IP

OMRON NX-EIC202 Automation Systems

NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Lineup
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Specifications
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Dimensions
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Catalog
Purchase the OMRON NX-EIC202 EtherNet/IP

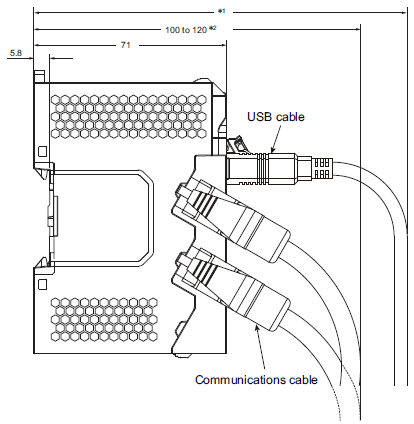

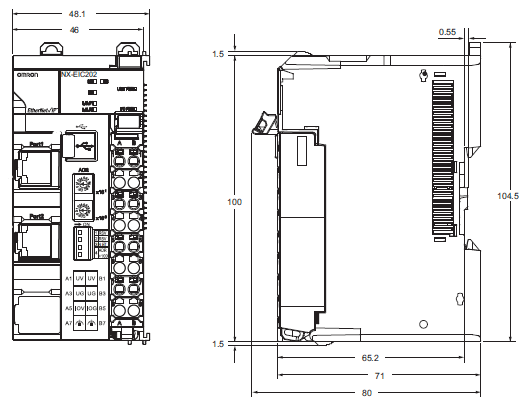

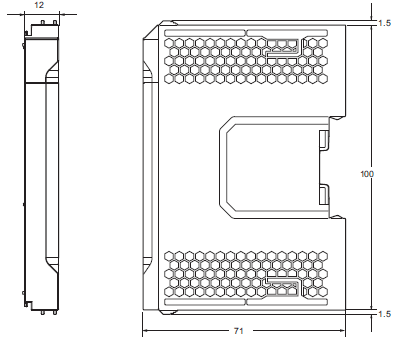

OMRON NX-EIC202 Dimensions

/Images/l_3412-25-229903-198x198.jpg

last update: October 11, 2016

• Up to 63 NX-IO Units can be connected to one EtherNet/IP Coupler Unit. Standard and high-performance units can be mixed.*

• Each Coupler plus its I/O form just a single EtherCAT node on the network.

• I/O control and safety control can be integrated by connecting Units for safety.

• The IP address can be found on the label on the Unit, without using software.

• Slave configuration by Sysmac Studio can be done centrally via the controller, or on-the-spot using the Coupler's built-in USB port.

* Input per Coupler Unit: Maximum 504 bytes, Output per Coupler Unit: Maximum 504 bytes

Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products.
EtherCAT® is a registered trademark of Beckhoff Automation GmbH for their patented technology. EtherNet/IP™ is the trademarks of ODVA.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

last update: October 11, 2016

Purchase the OMRON EtherNet/IP Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON NX-EIC202 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NX-EIC202 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NX-EIC202Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V400-H Handheld 2D Code Reader/Features
R88L-EC, R88D-KN[]-ECT-L G5 Series Linear Motor/Servo Drives with built-in EtherCAT Communication...
E6D-C High-resolution Encoder with Diameter of 55 mm/Features
E6F-C Incremental 60-mm-dia. Rotary Encoder/Features
K8DT-LS Conductive Level Controller/Features

OMRON NX-EIC202 lineup
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Lineup
last update: February 1, 2019
Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

EtherNet/IP Coupler Unit

Product name Current consumption Maximum I/O power supply current Model
EtherNet/IP Coupler Unit
1.60 W or lower 10 A NX-EIC202

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product
name Specifications Model
Number of
licenses Media
Sysmac Studio
NX-I/O Edition
Ver.1.[][] *1 *2 Sysmac Studio NX-I/O Edition is a limited license that
provides selected functions required for EtherNet/IP
Coupler settings.
Because this product is a license only, you need the
Sysmac Studio Standard Edition DVD media to install it. 1 license --- SYSMAC-NE001L
Sysmac Studio
Standard Edition
Ver.1.[][] *2 The Sysmac Studio is the software that provides an
integrated environment for setting, programming,
debugging and maintenance of machine automation
controllers including the NJ/NX-series CPU Units, NY-
series Industrial PC, EtherCAT Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version)/
Windows 8 (32-bit/64-bit version)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

This software provides functions of the Vision Edition.
Refer to your OMRON website for details such as
supported models and functions. ---
(Media only) DVD SYSMAC-SE200D

*1. The Sysmac Studio Standard Edition with license(s) (SYSMAC-SE[][][]L) provides functions of the NX-I/O Edition
(SYSMAC-NE001L).
*2. With the Sysmac Studio Standard Edition with license(s) (SYSMAC-SE[][][]L) version 1.10 or higher, you can use the
      setup functions for the EtherNet/IP Coupler.

Connecting Cable
Peripheral (USB) Port

Use a commercially available USB-certified cable.
Specifications: USB 1.1 or 2.0 cable (A connector - B connector), 5.0 m max.

Recommended EtherNet/IP Communications Cables

For EtherNet/IP, required specification for the communications cables varies depending on the baud rate. For 100BASE-TX/10BASE-T, use a straight or cross STP (shielded twisted-pair) cable of category 5 or higher. For 1000BASE-T, use a straight or cross STP cable of category 5e or higher with double shielding (aluminum tape and braiding).

Cable with Connectors

Item Appearance Recommended
manufacturer Cable
length
(m) Model
Cable with Connectors on Both Ends
(RJ45/RJ45)
Standard RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG26, 4-pair Cable
Cable Sheath material: LSZH *2
Cable color: Yellow *3 OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends
(RJ45/RJ45)
Rugged RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Light blue OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
Cable with Connectors on Both Ends
(M12 Straight/M12 Straight)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black OMRON 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Connectors on Both Ends
(M12 Straight/RJ45)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Rugged RJ45 plugs type
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black OMRON 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

*1. Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
      Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available. For details, refer to Cat.No.G019.
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
      Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cables colors are available in blue, yellow, or Green.
*4. For details, contact your OMRON representative.

Cables / Connectors

Item Recommended
manufacturer Model
Products for
EtherNet/IP
(100BASE-TX) Wire Gauge and
Number of Pairs:
AWG24, 4-pair Cable Cables Hitachi Cable, Ltd. NETSTAR-C5E SAB 0.5 × 4P CP
*1
Kuramo Electric Co. KETH-SB *1
SWCC Showa Cable
Systems Co. FAE-5004 *1
RJ45 Connectors Panduit Corporation MPS588-C *1
Products for
EtherNet/IP
(100BASE-TX) Wire Gauge and
Number of Pairs:
AWG22, 2-pair Cable Cables Kuramo Electric Co. KETH-PSB-OMR *2
JMACS Japan Co., Ltd. PNET/B *2
RJ45 Assembly
Connector
OMRON XS6G-T421-1 *2

*1. We recommend you to use above cable for EtherNet/IP and RJ45 Connector together.
*2. We recommend you to use above cable for EtherNet/IP and RJ45 Assembly Connector together.

Optional Products

Product name Specification Model
Unit/Terminal Block Coding Pins Pins for 10 Units (30 terminal block pins and 30 Unit pins) NX-AUX02

Product name Specification Model
No. of terminals Terminal number
indications Ground
terminal mark Terminal current
capacity
Terminal Block 8 A/B Provided 10 A NX-TBC082

last update: February 1, 2019

OMRON NX-EIC202 specification
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Specifications
last update: August 1, 2018
General Specification

Item Specification
Enclosure Mounted in a panel
Grounding method Ground to 100 Ω or less
Operating
environment Ambient operating
temperature 0 to 55°C
Ambient operating
humidity 10% to 95% (with no condensation or icing)
Atmosphere Must be free from corrosive gases.
Ambient storage
temperature -25 to 70°C (with no condensation or icing)
Altitude 2,000 m max.
Pollution degree Pollution degree 2 or less: Conforms to JIS B 3502 and IEC 61131-2.
Noise immunity Conforms to IEC 61000-4-4. 2 kV (power supply line)
Overvoltage category Category II: Conforms to JIS B 3502 and IEC 61131-2.
EMC immunity level Zone B
Vibration resistance Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s²,
100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min
total) *1
Shock resistance Conforms to IEC 60068-2-27. 147 m/s², 3 times each in X, Y, and Z directions *1
Applicable standards *2 cULus: Listed UL508, ANSI/ISA 12.12.01
EU: EN 61131-2, C-Tick or RCM, KC: KC Registration

*1. Refer to the NX-series Digital I/O Units User’s Manual (Cat. No. W521) for the vibration and shock resistance
     specifications of the Relay Output Unit.
*2. Consult your OMRON representative for the most recent applicable standards for each model.

EtherNet/IP Coupler Unit Specifications

Item Specification
Model NX-EIC202
Number of connectable
NX Units 63 Units max.*1
Communications
protocols EtherNet/IP
UDP/IP and TCP/IP (Message Services) Number of buffers (sockets):
• 8 message buffers for server
• No message buffers for client
• Shared buffers for UDP/IP messages
and TCP/IP messages
Maximum message size:
• Request: 492 bytes
• Response: 496 bytes
Maximum NX output data size:
• 490 bytes
Maximum NX input data size:
• 496 bytes
Modulation Baseband
Link speed 100 Mbps
Physical layer 100BASE-TX (IEEE 802.3)
Number of connections 8
Received Packet Interval
(RPI, refresh cycle) 4 to 1,000 ms
Allowed communications
bandwidth addressing to the
local node 1,000 pps
Topology Line, Tree, Star
Ethernet Switch Layer 2 Ethernet switch
Transmission media Category 5 or higher twisted-pair cable (Recommended cable:
double-shielded cable with aluminum tape and braiding)
Transmission distance Distance between nodes: 100 m or less
NX bus I/O data size Input: 512 bytes max. (including input data, status, and unused areas)
Output: 512 bytes max. (including output data and unused areas)
EtherNet/IP I/O connection
size Input: 504 bytes max. (including input data, status, and unused areas)
Output: 504 bytes max. (including output data and unused areas)
Refreshing methods Free-Run refreshing
Unit
power
supply
*2 Power supply voltage 24 VDC (20.4 to 28.8 VDC)
NX Unit power supply
capacity 10 W max. (Refer to Installation orientation and restrictions for details.)
NX Unit power supply
efficiency 70%
Isolation method No isolation between NX Unit power supply and Unit power supply terminals
Current capacity of
power supply
terminals 4 A max.
I/O
power
supply
*2 Power supply voltage 5 to 24 VDC (4.5 to 28.8 VDC) *3
Maximum I/O power
supply current 10 A (Refer to Installation orientation and restrictions for details.)
Current capacity of
power supply
terminals 10 A max.
NX Unit power consumption 1.60 W max.
Current consumption from
I/O power supply 10 mA max. (for 24 VDC)
Dielectric strength 510 VAC for 1 min, leakage current: 5 mA max. (between isolated circuits)
Insulation resistance 100 VDC, 20 MΩ min. (between isolated circuits)
External connection
terminals Communications Connector
For EtherNet/IP communications.
• RJ45 × 2 (shielded)
Screwless Clamping Terminal Block
For Unit power supply, I/O power supply, and grounding. Removable.
Peripheral USB Port
For Sysmac Studio connection.
• Physical layer: USB 2.0-compliant, B-type connector
• Transmission distance: 5 m max.
Dimensions 46 × 100 × 71 mm (W×H×D)
Weight 150 g max.

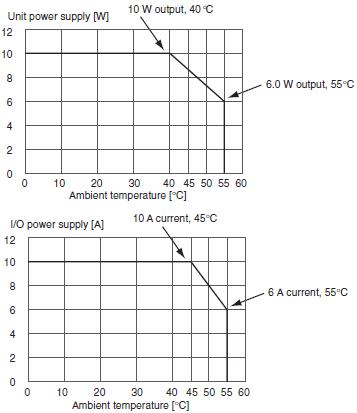

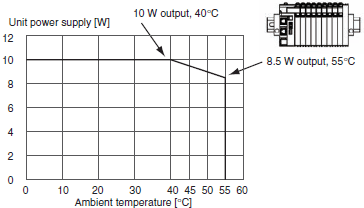

Installation orientation
and restrictions Installation orientation: 6 possible orientations
Restrictions:
• Used in the upright installation orientation.

• Used in any other orientation than the upright installation orientation.

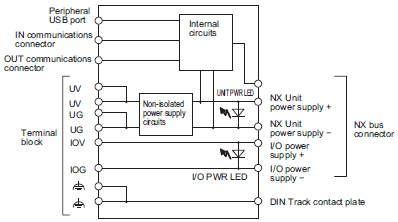

Circuit layout

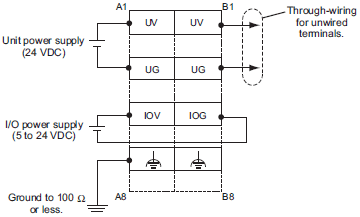

Terminal arrangement
Accessory End Cover (NX-END01): 1

*1. Refer to the NX-series Safety Control Unit User's Manual (Cat. No. Z930) for the number of Safety Control Units that
      can be connected.
*2. Refer to the NX-series EtherNet/IP™Coupler Unit User’s Manual (Cat. No. W536) for procedures for designing the
      Unit power supply system and I/O power supply system.
*3. Use a voltage that is appropriate for the I/O circuits of the NX Units and the connected external devices.

Configuration Unit

Refer to the user's manuals for information on the NX Units that can be connected to the NX-series EtherNet/IP Coupler Unit.

EtherNet/IP Coupler Unit

Unit Model
EtherNet/IP Coupler Unit NX-EIC202

I/O Units

Unit Model
2-point Units 4-point Units 8-point Units 16-point Units 32-point Units
Digital Input Unit - NX-ID3317
NX-ID3343
NX-ID3417
NX-ID3443
NX-IA3117 NX-ID4342
NX-ID4442 NX-ID5142-1
NX-ID5142-5
NX-ID5342
NX-ID5442 NX-ID6142-5
NX-ID6142-6
Digital Output Unit NX-OC2633
NX-OC2733 NX-OD3121
NX-OD3153
NX-OD3256
NX-OD3257
NX-OD3268 NX-OD4121
NX-OD4256
NX-OC4633 NX-OD5121
NX-OD5121-1
NX-OD5121-5
NX-OD5256
NX-OD5256-1
NX-OD5256-5 NX-OD6121-5
NX-OD6256-5
Digital Mixed I/O Unit - - - NX-MD6121-5
NX-MD6121-6
NX-MD6256-5 -
Analog Input Unit NX-AD2603
NX-AD2604
NX-AD2608
NX-AD2203
NX-AD2204
NX-AD2208 NX-AD3603
NX-AD3604
NX-AD3608
NX-AD3203
NX-AD3204
NX-AD3208 NX-AD4603
NX-AD4604
NX-AD4608
NX-AD4203
NX-AD4204
NX-AD4208 - -
Analog Output Unit NX-DA2603
NX-DA2605
NX-DA2203
NX-DA2205 NX-DA3603
NX-DA3605
NX-DA3203
NX-DA3205 - - -
Temperature Input Unit NX-TS2101
NX-TS2102
NX-TS2104
NX-TS2201
NX-TS2202
NX-TS2204 NX-TS3101
NX-TS3102
NX-TS3104
NX-TS3201
NX-TS3202
NX-TS3204 - - -
Heater Burnout
Detection Unit - NX-HB3101
NX-HB3201 - - -

Temperature Control Units

Unit Model
2CH 4CH
Temperature Control Unit NX-TC2405, NX-TC2406, NX-TC2407,
NX-TC2408 NX-TC3405, NX-TC3406, NX-TC3407,
NX-TC3408

Load Cell Input Unit

Unit Model
Load Cell Input Unit NX-RS1201

Position Interface Units

Unit Model
1CH 2CH
Incremental Encoder Input Unit NX-EC0112, NX-EC0122, NX-EC0132, NX-EC0142 NX-EC0212, NX-EC0222
SSI Input Unit NX-ECS112 NX-ECS212
Pulse Output Unit NX-PG0112, NX-PG0122 -

Communications Interface Units

Unit Model
Communications Interface Unit NX-CIF101, NX-CIF105, NX-CIF210

System Units

Unit Model
Additional NX Unit Power Supply Unit NX-PD1000
Additional I/O Power Supply Unit NX-PF0630, NX-PF0730
I/O Power Supply Connection Unit NX-PC0010, NX-PC0020, NX-PC0030
Shield Connection Unit NX-TBX01

IO-Link Master Unit

Unit Model
IO-Link Master Unit NX-ILM400

Safety Control Units

Unit Model
Safety CPU Unit NX-SL3300 *1
Safety Input Unit NX-SIH400 *2, NX-SID800
Safety Output Unit NX-SOH200, NX-SOD400

*1 Safety CPU Unit Ver.1.1 or higher.
*2 Safety Input Unit Ver.1.1 or higher.

Version Information

Depending on the type and model of the Unit, some Units do not have all of the versions given in the corresponding versions. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.

Connection to the NJ/NX-series CPU Unit or NY-series Industrial PC
NX-series CPU Unit or NY-series Industrial PC

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version of
CPU Unit or
Industrial PC Sysmac Studio
version Network Configurator
for EtherNet/IP
version CX-ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.14 Ver.1.19 Ver.3.21 Ver.2.4 *
Ver.1.0 Not possible. Not possible. Not possible. Not possible.

* The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.

NJ-series CPU Unit

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version
of CPU Unit Unit version
of
CJ1W-EIP21 Sysmac
Studio
version Network
Configurator for
EtherNet/IP
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.14 Ver.2.1 Ver.1.19 Ver.3.21 Ver.2.4 *
Ver.1.0 Not possible. Not possible. Not possible. Not possible. Not possible.

* The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.

Connection to CS/CJ/CP-series CPU Unit
CS1G/CS1H/CJ1H/CJ1M CPU Units

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version
of CPU Unit Unit version
of
CS1W-EIP21/
CJ1W-EIP21 Network
Configurator for
EtherNet/IP
version NX-IO
Configurator
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.3.0 Ver.2.1 Ver.3.00 Ver.1.00 Ver.2.4 *1
Ver.1.0 Ver.1.00 *2 Ver.2.2

*1. The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.
*2. You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other
path.

CJ2H-CPU6[]/CJ2M-CPU1[]/CP1H CPU Unit

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version
of CPU Unit Unit version
of
CJ1W-EIP21 Network
Configurator for
EtherNet/IP
version NX-IO
Configurator
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.0 Ver.2.1 Ver.3.00 Ver.1.00 Ver.2.4 *1
Ver.1.0 Ver.1.00 *2 Ver.2.2

*1. The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.
*2. You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other
path.

CJ2H-CPU6[]-EIP CPU Unit

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version
of CPU Unit Unit version
of
CJ1W-EIP21 Network
Configurator for
EtherNet/IP
version NX-IO
Configurator
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.5 Ver.2.1 Ver.3.00 Ver.1.00 Ver.2.4 *1
Ver.1.0 Ver.1.00 *2 Ver.2.2

*1. The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.
*2. You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other
path.

CJ2M-CPU3[] CPU Unit

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Unit version
of CPU Unit Unit version
of
CJ1W-EIP21 Network
Configurator for
EtherNet/IP
version NX-IO
Configurator
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.0 Ver.2.1 Ver.3.21 Ver.1.00 Ver.2.4 *1
Ver.1.0 Ver.1.00 *2 Ver.2.2

*1. The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.
*2. You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other
path.

Connection to the Sysmac Gateway
Sysmac Gateway

EtherNet/IP Coupler Unit Corresponding unit version/version
Model Unit version Sysmac Gateway
version Network Configurator
for EtherNet/IP version NX-IO
Configurator
version CX-
ConfiguratorFDT
version
NX-EIC202 Ver.1.2 Ver.1.31 Ver.3.50 Ver.1.00 Ver.2.4 *1
Ver.1.0 Ver.1.00 *2 Ver.2.2

*1. The CX-ConfiguratorFDT with version 2.2 or later can be used if it is connected to the peripheral USB port on the
EtherNet/IP Coupler Unit.
*2. You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other
path.

last update: August 1, 2018

OMRON NX-EIC202 dimension
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Dimensions
last update: October 23, 2017

(Unit: mm)

EtherCAT Coupler Unit Only

With Cables Connected

*1. This dimension depends on the specifications of the commercially available USB-certified cable.
       Check the specifications of the USB cable that is used.
*2. This is the dimension from the back of the Unit to the communications cables.
       • 100 mm: When an MPS588-C Connector is used.
       • 120 mm: When an XS6G-T421-1 Connector is used.

End Cover

last update: October 23, 2017

OMRON NX-EIC202 catalog
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NX-EIC Data Sheet -
[2286KB] Feb 01, 201920190201 NX-EIC Data Sheet

NX-series I/O System Catalog R183-E1-09
[6738KB] Mar 01, 201920190301 NX-series I/O System Catalog

NO. NX-EIC202

TYPE:Networks EtherNet/IP Communications Coupler

DATE:2021-06-10

Associated products:
CJ2H-CPU6[]-EIP CJ-series CJ2H (Built-in EtherNet/IP) CPU Units/Features W4S1 Industrial Switching Hubs/Features

Product name	Current consumption	Maximum I/O power supply current	Model
EtherNet/IP Coupler Unit	1.60 W or lower	10 A	NX-EIC202

Product name	Specifications	Model
	Number of licenses	Media
Sysmac Studio NX-I/O Edition Ver.1.[][] 1 2	Sysmac Studio NX-I/O Edition is a limited license that provides selected functions required for EtherNet/IP Coupler settings. Because this product is a license only, you need the Sysmac Studio Standard Edition DVD media to install it.	1 license	---	SYSMAC-NE001L
Sysmac Studio Standard Edition Ver.1.[][] *2	The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY- series Industrial PC, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) This software provides functions of the Vision Edition. Refer to your OMRON website for details such as supported models and functions.	--- (Media only)	DVD	SYSMAC-SE200D

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs type 1 Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH 2 Cable color: Yellow *3		OMRON	0.3	XS6W-6LSZH8SS30CM-Y
0.5	XS6W-6LSZH8SS50CM-Y
1	XS6W-6LSZH8SS100CM-Y
2	XS6W-6LSZH8SS200CM-Y
3	XS6W-6LSZH8SS300CM-Y
5	XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Light blue		OMRON	0.3	XS5W-T421-AMD-K
0.5	XS5W-T421-BMD-K
1	XS5W-T421-CMD-K
2	XS5W-T421-DMD-K
5	XS5W-T421-GMD-K
10	XS5W-T421-JMD-K
Cable with Connectors on Both Ends (M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BM2-SS
1	XS5W-T421-CM2-SS
2	XS5W-T421-DM2-SS
3	XS5W-T421-EM2-SS
5	XS5W-T421-GM2-SS
10	XS5W-T421-JM2-SS
Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BMC-SS
1	XS5W-T421-CMC-SS
2	XS5W-T421-DMC-SS
3	XS5W-T421-EMC-SS
5	XS5W-T421-GMC-SS
10	XS5W-T421-JMC-SS

Item	Recommended manufacturer	Model
Products for EtherNet/IP (100BASE-TX)	Wire Gauge and Number of Pairs: AWG24, 4-pair Cable	Cables	Hitachi Cable, Ltd.	NETSTAR-C5E SAB 0.5 × 4P CP *1
Kuramo Electric Co.	*KETH-SB 1**
SWCC Showa Cable Systems Co.	*FAE-5004 1**
RJ45 Connectors	Panduit Corporation	*MPS588-C 1**
Products for EtherNet/IP (100BASE-TX)	Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	Cables	Kuramo Electric Co.	*KETH-PSB-OMR 2**
JMACS Japan Co., Ltd.	*PNET/B 2**
RJ45 Assembly Connector	OMRON	*XS6G-T421-1 2**

Product name	Specification	Model
Unit/Terminal Block Coding Pins	Pins for 10 Units (30 terminal block pins and 30 Unit pins)	NX-AUX02

Product name	Specification	Model
No. of terminals	Terminal number indications	Ground terminal mark	Terminal current capacity
Terminal Block	8	A/B	Provided	10 A	NX-TBC082

Item	Specification
Enclosure	Mounted in a panel
Grounding method	Ground to 100 Ω or less
Operating environment	Ambient operating temperature	0 to 55°C
Ambient operating humidity	10% to 95% (with no condensation or icing)
Atmosphere	Must be free from corrosive gases.
Ambient storage temperature	-25 to 70°C (with no condensation or icing)
Altitude	2,000 m max.
Pollution degree	Pollution degree 2 or less: Conforms to JIS B 3502 and IEC 61131-2.
Noise immunity	Conforms to IEC 61000-4-4. 2 kV (power supply line)
Overvoltage category	Category II: Conforms to JIS B 3502 and IEC 61131-2.
EMC immunity level	Zone B
Vibration resistance	Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s², 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) *1
Shock resistance	Conforms to IEC 60068-2-27. 147 m/s², 3 times each in X, Y, and Z directions *1
*Applicable standards 2**	cULus: Listed UL508, ANSI/ISA 12.12.01 EU: EN 61131-2, C-Tick or RCM, KC: KC Registration

Item	Specification
Model	NX-EIC202
Number of connectable NX Units	63 Units max.*1
Communications protocols	EtherNet/IP
UDP/IP and TCP/IP (Message Services)	Number of buffers (sockets): • 8 message buffers for server • No message buffers for client • Shared buffers for UDP/IP messages and TCP/IP messages Maximum message size: • Request: 492 bytes • Response: 496 bytes Maximum NX output data size: • 490 bytes Maximum NX input data size: • 496 bytes
Modulation	Baseband
Link speed	100 Mbps
Physical layer	100BASE-TX (IEEE 802.3)
Number of connections	8
Received Packet Interval (RPI, refresh cycle)	4 to 1,000 ms
Allowed communications bandwidth addressing to the local node	1,000 pps
Topology	Line, Tree, Star
Ethernet Switch	Layer 2 Ethernet switch
Transmission media	Category 5 or higher twisted-pair cable (Recommended cable: double-shielded cable with aluminum tape and braiding)
Transmission distance	Distance between nodes: 100 m or less
NX bus I/O data size	Input: 512 bytes max. (including input data, status, and unused areas) Output: 512 bytes max. (including output data and unused areas)
EtherNet/IP I/O connection size	Input: 504 bytes max. (including input data, status, and unused areas) Output: 504 bytes max. (including output data and unused areas)
Refreshing methods	Free-Run refreshing
Unit power supply *2	Power supply voltage	24 VDC (20.4 to 28.8 VDC)
NX Unit power supply capacity	10 W max. (Refer to Installation orientation and restrictions for details.)
NX Unit power supply efficiency	70%
Isolation method	No isolation between NX Unit power supply and Unit power supply terminals
Current capacity of power supply terminals	4 A max.
I/O power supply *2	Power supply voltage	5 to 24 VDC (4.5 to 28.8 VDC) *3
Maximum I/O power supply current	10 A (Refer to Installation orientation and restrictions for details.)
Current capacity of power supply terminals	10 A max.
NX Unit power consumption	1.60 W max.
Current consumption from I/O power supply	10 mA max. (for 24 VDC)
Dielectric strength	510 VAC for 1 min, leakage current: 5 mA max. (between isolated circuits)
Insulation resistance	100 VDC, 20 MΩ min. (between isolated circuits)
External connection terminals	Communications Connector For EtherNet/IP communications. • RJ45 × 2 (shielded)
Screwless Clamping Terminal Block For Unit power supply, I/O power supply, and grounding. Removable.
Peripheral USB Port For Sysmac Studio connection. • Physical layer: USB 2.0-compliant, B-type connector • Transmission distance: 5 m max.
Dimensions	46 × 100 × 71 mm (W×H×D)
Weight	150 g max.
Installation orientation and restrictions	Installation orientation: 6 possible orientations Restrictions: • Used in the upright installation orientation. • Used in any other orientation than the upright installation orientation.
Circuit layout
Terminal arrangement
Accessory	End Cover (NX-END01): 1

Unit	Model
EtherNet/IP Coupler Unit	NX-EIC202

Unit	Model
2-point Units	4-point Units	8-point Units	16-point Units	32-point Units
Digital Input Unit	-	NX-ID3317 NX-ID3343 NX-ID3417 NX-ID3443 NX-IA3117	NX-ID4342 NX-ID4442	NX-ID5142-1 NX-ID5142-5 NX-ID5342 NX-ID5442	NX-ID6142-5 NX-ID6142-6
Digital Output Unit	NX-OC2633 NX-OC2733	NX-OD3121 NX-OD3153 NX-OD3256 NX-OD3257 NX-OD3268	NX-OD4121 NX-OD4256 NX-OC4633	NX-OD5121 NX-OD5121-1 NX-OD5121-5 NX-OD5256 NX-OD5256-1 NX-OD5256-5	NX-OD6121-5 NX-OD6256-5
Digital Mixed I/O Unit	-	-	-	NX-MD6121-5 NX-MD6121-6 NX-MD6256-5	-
Analog Input Unit	NX-AD2603 NX-AD2604 NX-AD2608 NX-AD2203 NX-AD2204 NX-AD2208	NX-AD3603 NX-AD3604 NX-AD3608 NX-AD3203 NX-AD3204 NX-AD3208	NX-AD4603 NX-AD4604 NX-AD4608 NX-AD4203 NX-AD4204 NX-AD4208	-	-
Analog Output Unit	NX-DA2603 NX-DA2605 NX-DA2203 NX-DA2205	NX-DA3603 NX-DA3605 NX-DA3203 NX-DA3205	-	-	-
Temperature Input Unit	NX-TS2101 NX-TS2102 NX-TS2104 NX-TS2201 NX-TS2202 NX-TS2204	NX-TS3101 NX-TS3102 NX-TS3104 NX-TS3201 NX-TS3202 NX-TS3204	-	-	-
Heater Burnout Detection Unit	-	NX-HB3101 NX-HB3201	-	-	-

Unit	Model
2CH	4CH
Temperature Control Unit	NX-TC2405, NX-TC2406, NX-TC2407, NX-TC2408	NX-TC3405, NX-TC3406, NX-TC3407, NX-TC3408

Unit	Model
Load Cell Input Unit	NX-RS1201

Unit	Model
1CH	2CH
Incremental Encoder Input Unit	NX-EC0112, NX-EC0122, NX-EC0132, NX-EC0142	NX-EC0212, NX-EC0222
SSI Input Unit	NX-ECS112	NX-ECS212
Pulse Output Unit	NX-PG0112, NX-PG0122	-

Unit	Model
Communications Interface Unit	NX-CIF101, NX-CIF105, NX-CIF210

Unit	Model
Additional NX Unit Power Supply Unit	NX-PD1000
Additional I/O Power Supply Unit	NX-PF0630, NX-PF0730
I/O Power Supply Connection Unit	NX-PC0010, NX-PC0020, NX-PC0030
Shield Connection Unit	NX-TBX01

Unit	Model
IO-Link Master Unit	NX-ILM400

Unit	Model
Safety CPU Unit	NX-SL3300 *1
Safety Input Unit	NX-SIH400 *2, NX-SID800
Safety Output Unit	NX-SOH200, NX-SOD400

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit or Industrial PC	Sysmac Studio version	Network Configurator for EtherNet/IP version	CX-ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.14	Ver.1.19	Ver.3.21	Ver.2.4 *
Ver.1.0	Not possible.	Not possible.	Not possible.	Not possible.

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit	Unit version of CJ1W-EIP21	Sysmac Studio version	Network Configurator for EtherNet/IP version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.14	Ver.2.1	Ver.1.19	Ver.3.21	Ver.2.4 *
Ver.1.0	Not possible.	Not possible.	Not possible.	Not possible.	Not possible.

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit	Unit version of CS1W-EIP21/ CJ1W-EIP21	Network Configurator for EtherNet/IP version	NX-IO Configurator version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.3.0	Ver.2.1	Ver.3.00	Ver.1.00	Ver.2.4 *1
Ver.1.0	Ver.1.00 *2	Ver.2.2

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit	Unit version of CJ1W-EIP21	Network Configurator for EtherNet/IP version	NX-IO Configurator version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.0	Ver.2.1	Ver.3.00	Ver.1.00	Ver.2.4 *1
Ver.1.0	Ver.1.00 *2	Ver.2.2

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit	Unit version of CJ1W-EIP21	Network Configurator for EtherNet/IP version	NX-IO Configurator version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.5	Ver.2.1	Ver.3.00	Ver.1.00	Ver.2.4 *1
Ver.1.0	Ver.1.00 *2	Ver.2.2

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Unit version of CPU Unit	Unit version of CJ1W-EIP21	Network Configurator for EtherNet/IP version	NX-IO Configurator version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.0	Ver.2.1	Ver.3.21	Ver.1.00	Ver.2.4 *1
Ver.1.0	Ver.1.00 *2	Ver.2.2

EtherNet/IP Coupler Unit	Corresponding unit version/version
Model	Unit version	Sysmac Gateway version	Network Configurator for EtherNet/IP version	NX-IO Configurator version	CX- ConfiguratorFDT version
NX-EIC202	Ver.1.2	Ver.1.31	Ver.3.50	Ver.1.00	Ver.2.4 *1
Ver.1.0	Ver.1.00 *2	Ver.2.2

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
NX-EIC Data Sheet	- [2286KB]	Feb 01, 201920190201	NX-EIC Data Sheet
NX-series I/O System Catalog	R183-E1-09 [6738KB]	Mar 01, 201920190301	NX-series I/O System Catalog

Return to OMRON
