• Dual power supplies for free AC/DC.

• Eight operation modes selectable with one unit.

• Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs.

• Four external signal inputs.

• ON/OFF indicator for control output and bar indicator for remaining time.

• Conforms to UL, CSA, and CE marking.

last update: December 19, 2013

Purchase the OMRON Digital Timers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H3CA Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3CA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3CAControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

K3HB-V Weighing Indicator/Features
S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features
CJ1 CJ1 Overview/Features
CJ1W-SRM21 CJ-series CompoBus/S Master Unit/Features
D6FZ-FGT Series Air Flow Sensor/Features

OMRON H3CA specification
H3CA Solid-state Timer/Specifications
last update: February 9, 2018
Time Ranges

A desired time can be set within a range of 0.1 s to 9,990 hrs by combining the three thumbwheel switch modules for time setting and one module for time unit selection.

Time unit 0.1 s 1 s 0.1 min 1 min 0.1 hrs 1 hr 10 hrs
Time range 1 to 999 (3 digits)

Ratings

Item H3CA-A/H3CA-FA H3CA-8 H3CA-8H
Rated supply voltage
*2 24 to 240 VAC (50/60 Hz),
12 to 240 VDC (permissible
ripple: 20% max.) 100/110/120, 200/220/240 VAC, (50/60 Hz), 24 VDC,
110 VDC (permissible ripple: 20% max.) *1
Operating voltage range 90% to 110% of rated supply
voltage 85% to 110% of rated supply voltage
Power consumption AC: approx. 4 VA
DC: approx. 2 W AC: approx. 10 VA/1 W
DC: approx. 1 W AC: approx. 10 VA/1.5 W
DC: approx. 2 W
Control outputs 3 A at 250 VAC, resistive load (cosφ = 1)
Minimum applicable load
H3CA-8, H3CA-A and H3CA-FA: 10 mA at 5 VDC (failure level: Preference value)
H3CA-8H: 100mA at 5 VDC (failure level: Preference value)
Contact materials: Ag-alloy

*1. Single-phase, full-wave rectified power sources may be used for 24 to 240 VDC.
*2. Refer to Safety Precautions for All Times when combining the Timer with an AC 2-wire proximity sensor.

Characteristics

Accuracy of operating time ±0.3% ±0.05 s
Influence of voltage
Influence of temperature
Setting error ±0.5% ±0.05 s max.
Reset time H3CA-A/-FA: 0.5 s max.
H3CA-8H/-8: 0.1 s max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying parts
and between contact and control circuit)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Impulse withstand voltage A wide AC/DC power supply range, 200/220/240 V specifications
Between power terminals: 5 kV, Between current-carrying terminal and exposed non-
current-carrying metal parts: 5 kV
100/110/120 VAC, 100/110 VDC specifications
Between power terminals: 3 kV, Between current-carrying terminal and exposed non-
current-carrying metal parts: 4.5 kV
24 VDC specifications
Between power terminals: 1 kV, Between current-carrying terminal and exposed non-
current-carrying metal parts: 1.5 kV
Vibration resistance Destruction: 10 to 55 Hz with 0.75-mm double amplitude for 1 h each in three directions
Malfunction: 10 to 55 Hz with 0.5-mm double amplitude for 10 min each in three directions
Shock resistance Destruction: 980 m/s²
Malfunction: 98 m/s²
Ambient temperature Operating: -10°C to 55°C
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (3 A at 250 VAC, cosφ = 1 at 1,800 operations/h)
See Lift-test Curve for more details.
Approved standards UL508, CSA C22.2 No. 14, LR, NK
Conforms to EN61812-1.
EMC (EMI) EN61812-1
Emission Enclosure: EN55011 Group 1 class A
Emission AC mains: EN55011 Group 1 class A
(EMS) EN61812-1
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
Immunity Surge: IEC61000-4-5
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Voltage Dip/Interruption: IEC61000-4-11
Weight H3CA-A: approx. 110 g
H3CA-FA: approx. 190 g

last update: February 9, 2018

OMRON H3CA lineup
H3CA Solid-state Timer/Lineup
last update: May 8, 2018

Operation/
resetting system Operation
mode Terminal Time-
limit
contact Instan-
taneous
contact Mounting
Surface
mounting/
track mounting Flush
mounting
Time-limit operation/
self-resetting/external
resetting *2 8 operation modes
(selectable) *3 11-pin round
socket SPDT --- H3CA-A H3CA-A
Front screw H3CA-FA ---
Time-limit operation/
self-resetting ON-delay operation 8-pin round
socket DPDT --- H3CA-8 H3CA-8
SPDT SPDT H3CA-8H H3CA-8H

*1. Specify both the model number and supply voltage when ordering for the H3CA-8H and H3CA-8.
*2. The operation/resetting system depends on the selected operation mode. For details, see "Timing Chart".
*3. The 8 operation modes are as follows:
A: ON-delay operation
B: Repeat cycle operation
C: Signal ON/OFF-delay operation (1)
D: Signal OFF-delay operation (1)
E: Interval operation
F: One-shot and flicker operation
G: Signal ON/OFF-delay operation (2)
H: Signal OFF-delay operation (2)

Accessories (Order Separately)

Name/specifications Model
Flush mounting adapter Y92F-30
Y92F-70
Y92F-71
Front cover Y92A-48B
Y92A-48D
Front connecting socket P2CF-08
P2CF-11
Front connecting socket
Finger protection *1 P2CF-08-E
P2CF-11-E
Back connecting socket P3G-08
P3GA-11
Back connecting socket
Solder terminal PL08
PL11
Terminal block cover for P3G-08/P3GA-11 *2 Y92A-48G

*1. Round crimp terminals cannot be used with fingerprotection structure sockets. Use forked crimp terminals.
*2. A terminal cover (Y92A-48G) can be used with P3GA-11 and P3G-08 for finger protection.

last update: May 8, 2018

OMRON H3CA dimension
H3CA Solid-state Timer/Dimensions
last update: October 12, 2012
Timers

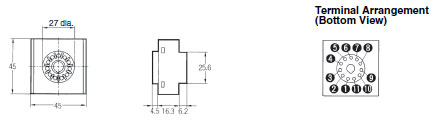

H3CA-A/-8H

H3CA-FA

Accessories (Order Separately)

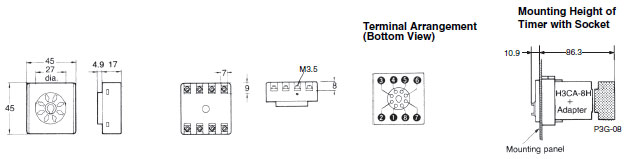

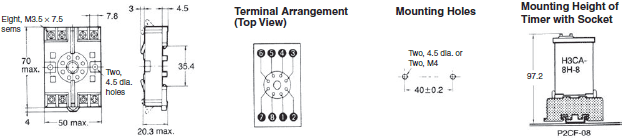

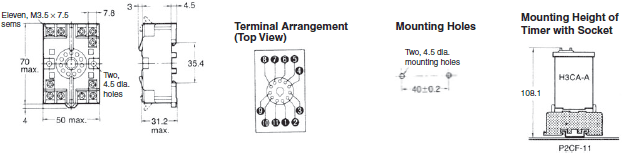

Track Mounted Front Connecting Socket
P2CF-11

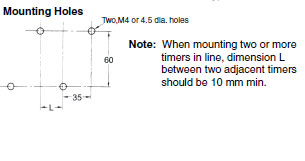

Note:Note:

Note:P2CF-11 can be used as a front connecting socket.

Note:There are no restrictions to the mounting direction.

P2CF-08

Note:Note:

Note:P2CF-08 can be used as a front connecting socket.

Note:There are no restrictions to the mounting direction.

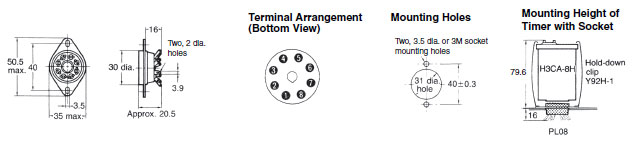

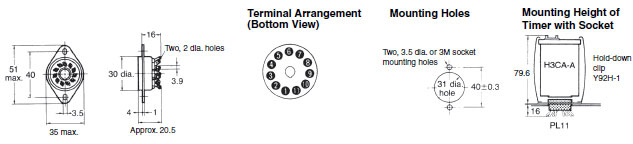

Back Connecting Socket
P3GA-11

P3G-08

PL11

PL08

Note:There are no restrictions to the mounting direction.

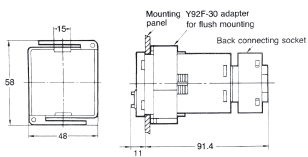

Adapter for Flush Mounting
