OMRON E52-THE5A / 6D / 6F specification

last update: September 24, 2012

Temperature Ranges

Temperature range	Color code	Nominal resistance	Thermistor constant	Lead wire
-50°C to 50°C	Blue	6 kΩ (0°C)	3390K	A pair of 0.12 dia. 7 Fluororesin-insulated stranded wires with 0.86 outer dia. each
0°C to 100°C	Black	6 kΩ (0°C)	3390K
50°C to 150°C	Red	30 kΩ (0°C)	3450K
100°C to 200°C	Yellow	0.55 kΩ (200°C)	4300K
150°C to 300°C	Green	4 kΩ (200°C)	5133K	Flat glass-wool-shielded lead cable with 0.12 dia. 10 conductors and external dimensions of 2.5 × 1.55

Specifications

Item	E52-THE[][]
Coupling method	Element interchangeable thermistor
Class	JIS class 1
Protective tubing material	SUS304
Time constant	8 to 15 s in still water
Dissipation factor	2.4 to 2.8 mW/°C in still air
Lead wire heat resistive temperature	180°C

Error

Detectable temperature	Error
-50°C to 100°C	±1°C max.
100°C to 350°C	±1% max. of detectable temperature

Permissible Temperature

Detectable temperature	Operating temperature
-50°C to 50°C	100°C
0°C to 100°C	150°C
50°C to 150°C	200°C
100°C to 200°C	250°C
150°C to 300°C	350°C

Note: Models with non-standard lead wire length and protective tubing length are available on request.

This Thermistor is a dedicated Thermistor for the E5C2 and E5CS.

last update: September 24, 2012

OMRON E52-THE5A / 6D / 6F dimension

last update: April 01, 2016

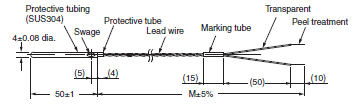

Exposed-lead Models

E52-THE5A

Note: The lead wires have no polarity

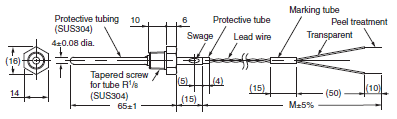

Exposed-lead Models with Screws

E52-THE6D

Note: The lead wires have no polarity

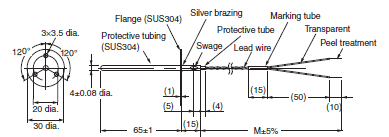

Exposed-lead Models with Flange

E52-THE6F

Note: The lead wires have no polarity

last update: April 01, 2016

OMRON E52-THE5A / 6D / 6F lineup

last update: April 01, 2016

Exposed-lead Models

E52-THE5A

Temperature range	Model
-50 ° C to 50 ° C	E52-THE5A -50-50 ° C 1M
0 ° C to 100 ° C	E52-THE5A 0-100 ° C 1M
50 ° C to 150 ° C	E52-THE5A 50-150 ° C 1M
100 ° C to 200 ° C	E52-THE5A 100-200 ° C 1M
150 ° C to 300 ° C	E52-THE5A 150-300 ° C 1M

Exposed-lead Models with Screws

E52-THE6D

Temperature range	Model
-50 ° C to 50 ° C	E52-THE6D -50-50 ° C 1M
0 ° C to 100 ° C	E52-THE6D 0-100 ° C 1M
50 ° C to 150 ° C	E52-THE6D 50-150 ° C 1M
100 ° C to 200 ° C	E52-THE6D 100-200 ° C 1M
150 ° C to 300 ° C	E52-THE6D 150-300 ° C 1M

Exposed-lead Models with Flange

E52-THE6F

Temperature range	Model
-50 ° C to 50 ° C	E52-THE6F -50-50 ° C 1M
0 ° C to 100 ° C	E52-THE6F 0-100 ° C 1M
50 ° C to 150 ° C	E52-THE6F 50-150 ° C 1M
100 ° C to 200 ° C	E52-THE6F 100-200 ° C 1M
150 ° C to 300 ° C	E52-THE6F 150-300 ° C 1M

Note: 1. The Thermistor lead cable can be extended with a standard lead wire for extension.
          2. Be sure to specify the model and temperature range when ordering the Thermistor. The Thermistor has a color
               code according to the temperature range.
