Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.
*1 Value Design for Panel
Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.
1. Alarms do not occur before equipment is damaged.
2. Protection is necessary because of poor power supply quality
overseas.
3. Preventing excessive temperature increases in heaters is
necessary.
4. Control panels for electrode-based water level control must
be downsized.
5. Measuring and Monitoring Relays that conform to international
safety standards are necessary.
[Input signal*] A voltage, current, temperature (thermocouple or platinum resistance thermometer), or water level
(electrode) can be input.
[Alarm output] You can select a relay or transistor output.
*There are different models for different inputs.
*According to OMRON investigation in November 2015.
The operating frequency of Measuring and Monitoring Relays is low, which means the surfaces of relay contacts can deteriorate and reduces reliability. Particularly for microcomputer board and PLC inputs, a microcurrent of 5 mA or less for switching reliability is required, making transistor outputs superior.
A lower power consumption means that internal heat generation is suppressed, which enables side-by-side mounting.
• The slim body is only 17.5 mm wide to enable control panel downsizing.
• To simplify wiring, Push-In Plus terminal blocks are positioned at the front.
• To simplify changing settings, the setting switches were placed on the front.
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
You can insert wires with pin terminals or ferrules, or you can also insert solid wires or stranded wires.
[Application] Ideal for prevention of excessive temperature increase in heaters
(e.g., electronic components, semiconductors, and industrial furnaces).
[Features] (1) Slim design enables addition to narrow spaces.
(2) Rotary switches simplify setting procedure.
(3) Safety considerations with a manual reset button.
last update: April 01, 2016
If you have just landed here, this product OMRON K8DT-TH Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the K8DT-TH We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON K8DT-THPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
Z4D-F Micro Displacement Sensor/Features
G7J Power Relay/Features
NX-TC NX-series Temperature Control Unit/Features
3G8F7-DRM21-E DeviceNet Board (PCI Board)/Features
DRT2-ROS16 Remote I/O Terminal with Relay Outputs/Features
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | N209-E1-01 [3244KB] | Jul 10, 201720170710 | K8DT-TH Data Sheet |
![]() | N210-E1-01 [5229KB] | Oct 11, 201620161011 | K8DT Brochure |
![]() | Y218-E1-03 [13592KB] | Oct 02, 201720171002 | Innovation in Control Panel Building |
![]() | N222-E1-01 [1649KB] | Jun 01, 201820180601 | Measuring and Monitoring Relays Application Guide |
last update: April 3, 2017
Power supply voltage | K8DT-TH[][]D: 24 VAC 50/60 Hz or 24 VDC K8DT-TH[][]A: 100 to 240 VAC 50/60 Hz | |
---|---|---|
Allowable voltage range | 85% to 110% of power supply voltage | |
Power consumption | 24 VAC or 24 VDC: 2.1 VA max. or 1.2 W max. 100 to 240 VAC: 3.1 VA max. | |
Rated insulation voltage | 253 VAC | |
Sensor inputs | K8DT-TH1 | Thermocouple: K, J, T, E; Platinum-resistance thermometer: Pt100, Pt1000 |
K8DT-TH2 | Thermocouple: K, J, T, E, B, R, S, PL II | |
Setting method | Set of three rotary DIP switches | |
Indicators | Power (PWR): Green, Alarm (ALM): Red | |
Output form | Relay Output: SPDT contact Transistor Output: 1 | |
Output relay ratings | Rated load 5 A at 250 VAC (Resistive load) 5 A at 30 VDC (Resistive load) 1 A at 250 VAC (Inductive load) 0.2 A at 48 VDC (Inductive load) Minimum load: 5 VDC, 10 mA (reference values) Mechanical life: 10 million operations min. Electrical life: 5 A at 250 VAC or 30 VDC: 50,000 operations 3 A at 250 VAC/30 VDC: 100,000 operations | |
Transistor output ratings | Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC | |
Ambient operating temperature | -20 to 60°C (with no condensation or icing) | |
Storage temperature | -25 to 65°C (with no condensation or icing) | |
Ambient operating humidity | 25% to 85% RH (with no condensation) | |
Storage humidity | 25% to 85% RH (with no condensation) | |
Altitude | 2,000 m max. | |
Applicable wires | Stranded wires, solid wires, or ferrules | |
Applicable wire size | 0.25 to 1.5 mm2 (AWG24 to AWG16) | |
Wire insertion force | 8 N max. for AWG20 wire | |
Screwdriver insertion force | 15 N max. | |
Wire stripping length | 8 mm | |
Ferrule length | 8 mm | |
Recommended flatblade screwdriver | XW4Z-00B (Omron) SZF 0.4 × 2.5 (Phoenix Contact) 210-719 (Wago) SDI 0.4 × 2.5 × 75 (Weidmuller) | |
Current capacity | 10 A (per pole) | |
Number of insertions | 50 times | |
Case color | N1.5 | |
Case material | PC, UL 94 V-0 | |
Weight | Approx. 100 g | |
Mounting | Mounts to DIN Track, or screw mounting | |
Dimensions | 17.5 × 90 × 90 mm (W×D×H) |
Measurement accuracy | K8DT-TH1[][]: ±1% of the setting range or ±4 °C, whichever is larger. K8DT-TH2[][]: ±1% of the setting range (±1%FS). | |
---|---|---|
Hysteresis width | 2°C | |
Sampling cycle | 100 ms | |
Applicable standards | Approved standards | EN 61010-1 Installation environment: Overvoltage category II, pollution level 2 |
EMC | EN 61326-1 * | |
Safety standards | UL 61010-1 (Listing) Korean Radio Waves Act (Act 10564) | |
Insulation resistance | 20 MΩ min. Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals | |
Dielectric strength | 3,000 VAC for 1 min Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals | |
Impulse withstand voltage | 6 kV (between live terminals and exposed, non-charged metal parts) | |
Noise immunity | Square-wave noise of 1 μs/100 ns pulse width with 1-ns rise time 100 to 240 VAC: 1,500 V power supply terminal common/normal mode 24 VAC: 1,500 V power supply terminal common/normal mode 24 VDC: 480 V power supply terminal common | |
Vibration resistance | Frequency: 10 to 55 Hz, 0.35-mm single amplitude 10 sweeps of 5 min each in X,Y, and Z directions | |
Shock resistance | 100 m/s2, 3 times each in 6 directions along 3 axes | |
Degree of protection | Terminals: IP20 |
* Industrial Electromagnetic Environment (EN/IEC 61326-1, Table 2)
K8DT-TH1 | °C | °F | ||
---|---|---|---|---|
Input type | Lower limit | Upper limit | Lower limit | Upper limit |
K | -20 | 1019 | -40 | 1039 |
J | -20 | 870 | -40 | 1039 |
T | -20 | 420 | -40 | 740 |
E | -20 | 620 | -40 | 1039 |
Pt100 | -20 | 870 | -40 | 1039 |
Pt1000 | -20 | 870 | -40 | 1039 |
K8DT-TH2 | °C | °F | ||
---|---|---|---|---|
Input type | Lower limit | Upper limit | Lower limit | Upper limit |
K | -20 | 1320 | -40 | 2340 |
J | -20 | 870 | -40 | 1540 |
T | -20 | 420 | -40 | 740 |
E | -20 | 620 | -40 | 1140 |
B | 0 | 1820 | 0 | 3240 |
R | -20 | 1720 | -40 | 3040 |
S | -20 | 1720 | -40 | 3040 |
PL II | -20 | 1320 | -40 | 2340 |
last update: April 3, 2017
last update: April 01, 2016

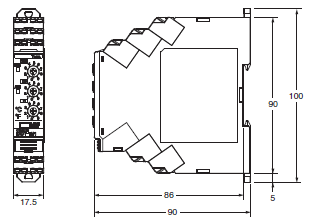

K8DT-TH
Y92A-D1A

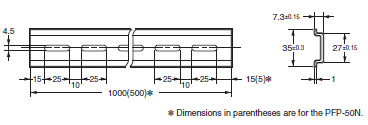

PFP-100N
PFP-50N
last update: April 01, 2016
last update: September 01, 2016
Power supply voltage | Input types | Setting units (setting range) | Output relays Type | Model |
---|---|---|---|---|
24 V AC/DC | Thermocouple or platinum resistance thermometer | Setting unit: 1°C or 1°F (0 to 999°C/°F) | Relay: SPDT contact output | K8DT-TH1CD |
Transistor | K8DT-TH1TD | |||
100-240 V AC | Relay: SPDT contact output | K8DT-TH1CA | ||
Transistor | K8DT-TH1TA | |||
24 V AC/DC | Thermocouple | Setting unit: 10°C/°F * | Relay: SPDT contact output | K8DT-TH2CD |
Transistor | K8DT-TH2TD | |||
100-240 V AC | Relay: SPDT contact output | K8DT-TH2CA | ||
Transistor | K8DT-TH2TA |

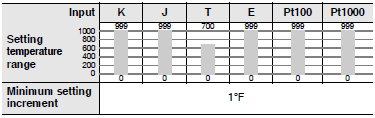

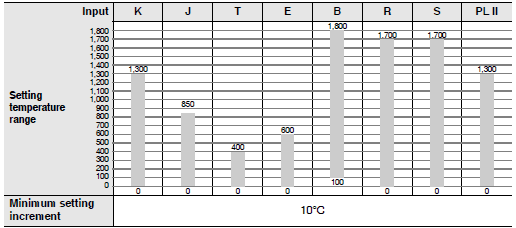

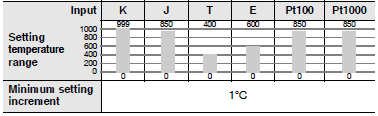

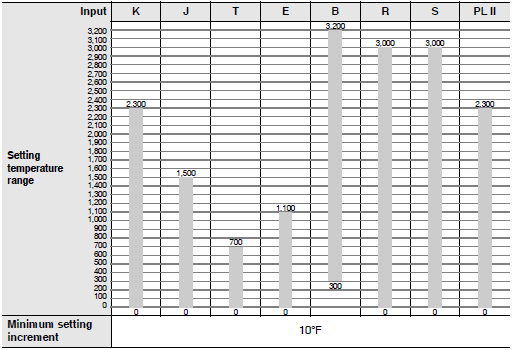

* Refer to Setting Ranges on catalog for the setting ranges.
Appearance | Model |
---|---|
![]() | Y92A-D1A |
