OMRON Z4D-FSensors/ Displacement Sensors / Measurement Sensors/Other Displacement Sensors
OMRON Z4D-F Sensors
OMRON Z4D-F Dimensions
/Images/l_1264-25-119077-198x198.jpglast update: December 19, 2013
• Meets various needs with high performance at the resolution of 5 μm.
• Numerous applications are possible when the analog output model is integrated with OMRON’s K3TX Intelligent Signal Processors.
• ON/OFF output model (NPN open collector) is available.
last update: December 19, 2013
Purchase the OMRON Other Displacement Sensors Please fill in the following
If you have just landed here, this product OMRON Z4D-F Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Z4D-F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Z4D-FSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
TL-LP / LY Long-distance Proximity Sensor/Features
61F-GPN-BT / -BC Conductive Level Controller/Features
D4E-[]N Small Sealed Switch/Features
D5C Touch Switch/Features
NX-PD / PF / PC / TBX NX-series System Unit/Features
OMRON Z4D-F specification
Z4D-F Micro Displacement Sensor/Specificationslast update: February 04, 2013
Ratings/Characteristics
| Item | Z4D-F04A | Z4D-F04D |
|---|---|---|
| Supply voltage | 12 to 24 VDC±10%, ripple voltage (p-p): 10 mV max. | |
| Current consumption | 35 mA max. | |
| Sensing range *1 | 4±1.25 mm | |
| Light source | Red LED with a wavelength of 700 nm | |
| Spot diameter *2 | 1.5 x 1.5 mm max. (at the sensing range of 4 mm) | |
| Connection impedance *3 | 200 kΩ min. | --- |
| Resolution *4 | 5 μm max. | --- |
| Hysteresis *1 | --- | 40 μm |
| Linearity *5 | ±1% FS | --- |
| Analog output *1 | 1 to 5 V (1.6 V/mm±10%) | --- |
| Control output | --- | NPN open collector, 12 to 24 VDC, 50 mA max. |
| Residual output voltage | --- | 1 V max. |
| Response time *6 | 5 ms max. | 1.5 ms max. |
| Temperature influence *7 | 0.15% FS/°C | --- |
| Indicator | PWR indicator (green): Lit when power is supplied ALM indicator (red): Lit when illumination is insufficient. | STB indicator (green): Lit when illumination is sufficient. OPE indicator (orange): Lit when output is ON. |
| Ambient temperature | Operating: -10°C to 55°C (with no icing) Storage: -15°C to 60°C (with no icing) | |
| Ambient humidity | Operating: 35% to 85% (with no icing) | |
| Ambient illumination | Operating: 3000 lx max. (incandescent lamp), 10,000 lx max. (sunlight) | |
| Enclosure rating | IP50 (IEC standard) | |
| Vibration resistance | Destruction: 10 to 500 Hz (1-mm max. single amplitude) for 11 min for 3 times each in X, Y, and Z directions | |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions (total of 18 times) | |
| Dielectric strength | 1,000 VAC for 1 min between current carry parts and case | |
| Tightening torque | 0.6 Nm max. | |
| Material | ABS (Polycarbonate for the sensing part) | |
| Weight | Approx. 10 g (without connector cable) | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) | |
| Cable length | 1 m | |
*1. The values are for N8.5 Munsell paper.
*2. The spot diameter is defined by 1/e2 of the Sensor's laser beam center. Although a sub-beam may be observed
around the main beam, this does not mean that the product is defective.
*3. Refers to input impedance of a device to be connected.
*4. Resolution (Z4D-F04A)
The resolution is the peak-to-peak displacement conversion value of the analog displacement output (Conditions:
N8.5 Munsell mat paper at the center of measurement point with a power ripple noise of 10 mV (p-p) max.)
*5. The value is the peak-to-peak error rate of a displacement output voltage line with N8.5 Munsell mat paper. The
value varies with the sensing object.
*6. Response Time (Z4D-F04A)
The response time of the Sensor (Z4D-F04A) is the time required for the analog displacement output to increase
from 10% to 90% of the full value (at the rise time) or decrease from 90% to 10% of the full value (at the fall time).
The response time of the Sensor (Z4D-F04D): ON/OFF switching time
*7. The value is at the sensing range of 4 mm.
last update: February 04, 2013
OMRON Z4D-F lineup
Z4D-F Micro Displacement Sensor/Lineuplast update: February 04, 2013
Z4D-F
| Output | Model |
|---|---|
| Analog | Z4D-F04A |
| ON/OFF | Z4D-F04D |
Accessories (Attached)
| Item | Z4D-F04A | Z4D-F04D |
|---|---|---|
| Mounting bracket | 1 pc. | 1 pc. |
| Mounting screws (M3 x 2) | 2 pcs. | 2 pcs. |
| Connector with 1-m cord | 1 pc. | 1 pc. |
| Screwdriver | --- | 1 pc. |
| Operation Manual | 1 copy | 1 copy |
Accessories (Optional)
| Appearance | Name | Model number | Remarks |
|---|---|---|---|
 | Mounting Bracket | E39-L69 | The following products are provided with the Sensors. The products can also be purchased separately. |
 | Connector with 1-m Cord | EE-1010D |
last update: February 04, 2013
OMRON Z4D-F dimension
Z4D-F Micro Displacement Sensor/Dimensionslast update: February 04, 2013

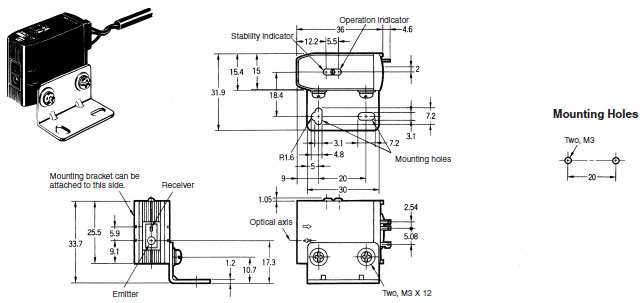

Z4D-F04A
Z4D-F04D
Accessories
The following products are provided with the Sensors. The products can also be purchased separately.

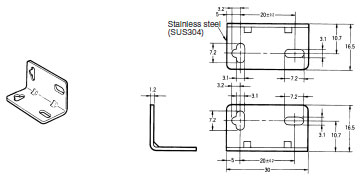

E39-L69 Mounting Bracket

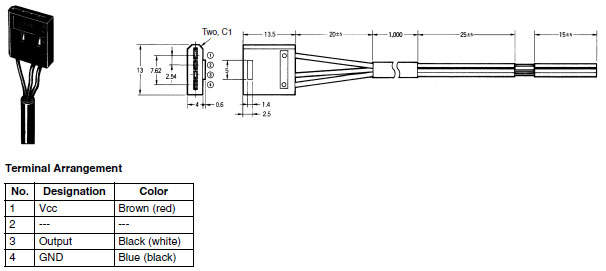

EE-1010D Connector with 1-m Cord
last update: February 04, 2013
