OMRON Viper 850 Dimensions

/Images/l_3520-25-257439-198x198.jpg

last update: August 1, 2018

• Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of Machine Automation Controller NJ/NX/NY Series

• Diagnostics display enables faster trouble shooting

• High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration

• High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration

• Reach 855 mm

• Maximum payload 5 kg

• Weight 36 kg

last update: August 1, 2018

Purchase the OMRON Articulated Robots Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON Viper 850 Robotics,Robotics is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Robotics at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Viper 850 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Viper 850Robotics tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G3ZA Multi-channel Power Controller/Features
E69-[] Rotary Encoders Accessories/Features
NX-SI / SO Safety I/O Unit/Features
H3FA Solid-state Timer/Features
VT-S730-H PCB Inspection System/Features

OMRON Viper 850 dimension
Viper 850 Articulated Robots/Dimensions
last update: June 1, 2018

(Unit: mm)

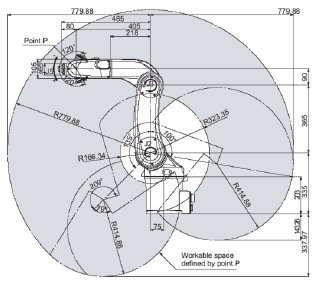

Viper 850

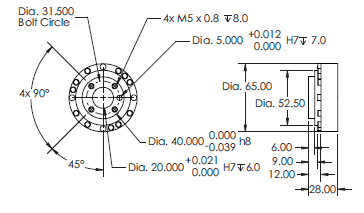

Flange

Footprint

eMotionBlox-60R

Weight : 9.3 kg

Front panel

last update: June 1, 2018

OMRON Viper 850 catalog
Viper 850 Articulated Robots/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Industrial Robots Datasheet I822-E1-07
[7789KB] Feb 07, 201920190207 Industrial Robots Datasheet

Robotic Automation Concept Book I824-E1-01
[1600KB] Jun 13, 201620160613 Robotic Automation Concept Book

Robotics packaging line solution Catalog Y127-E1-04
[6572KB] Oct 09, 201820181009 Robotics packaging line solution Catalog

Robot Care Pamphlet I829-E1-02
[1707KB] Nov 07, 201820181107 Robot Care Pamphlet

OMRON Viper 850 specification
Viper 850 Articulated Robots/Specifications
last update: June 1, 2018

Product name Viper
Size 850
Cleanroom/IP Standard Cleanroom IP54/65
Model 1720[ ]-38000 1720[ ]-38020 1720[ ]-38010
Mounting Table/Floor/Inverted
Number of axes 6
Reach 855 mm
Maximum Payload 5 kg
Repeatability XYZ ±0.03 mm
Joint Range Joint 1 ±170°
Joint 2 -190°, +45°
Joint 3 -29°, +256°
Joint 4 ±190°
Joint 5 ±120°
Joint 6 ±360°
Inertia Moment
(Max.) Joint 4 0.295 kgm²
Joint 5 0.295 kgm²
Joint 6 0.045 kgm²
Joint Speeds Joint 1 250°/s
Joint 2 250°/s
Joint 3 250°/s
Joint 4 375°/s
Joint 5 375°/s
Joint 6 600°/s
Power Requirements 24 VDC: 6 A
200 to 240 VAC: 10 A, single-phase
Protection Base IP40 IP40 IP54
Robot Joints (J4, J5, J6) IP40 IP40 IP65
Clean Class --- Class10 ---
Environment
Requirements Ambient Temperature 5 to 40°C
Humidity Range 5 to 90% (non-condensing)
Weight 36 kg
cULus Compliant ---
Basic
configuration Controller eMotionBlox-60R
On-board I/O (Input/Output) 12/8
Conveyor tracking input 2
RS-232C serial communications
port 1
Programming environment ACE, PackXpert, ePLC
ACE Sight Yes
ePLC Connect Yes
ePLC I/O Yes
Connectable controller *1 eMotionBlox-60R, SmartController EX, NJ/NX/NY Series *2

*1. Choose a controller to suit your application.
*2. The robot version 2.3.C or later is required to connect with the NJ/NX/NY Series.

Protection and Cleanroom Classes

Type Name Specifications Option Remarks
Articulated
Robots Viper 650
Viper 850 IP40 IP54: robot main body
IP65: robot joints (J4, J5, J6)
Class10 Cleanroom model See Data Sheet for model numbers.

last update: June 1, 2018

OMRON Viper 850 lineup
Viper 850 Articulated Robots/Lineup
last update: August 1, 2018
Articulated Robots

Type Model
Viper 850 17201-38000
Viper 850 Cleanroom 17201-38020
Viper 850 IP54/65 17201-38010
Viper 850 Add-On 17203-38000
Viper 850 Cleanroom Add-On 17203-38020
Viper 850 IP54/65 Add-On 17203-38010

Options

Type Name/Specifications Model
Robot
Controller SmartController EX with Front Panel 19300-000
SmartController EX (without Front Panel) 19200-000
Pendant T20 Pendant with 10 m Cable 10046-010
T20 Pendant-Jumper Plug 10048-000
T20 Pendant Wall Bracket 10079-000
T20 Adapter Cable, 3 m 10051-003
Camera GigE PoE, 658 x 492 pixels, 120 fps, Color, CCD
(1/4-inch equivalent), 10 m camera cables included 24114-101
GigE PoE, 1296 x 966 pixels, 30 fps, Monochrome, CCD
(1/3-inch equivalent), 10 m camera cables included 24114-200
GigE PoE, 1294 x 964 pixels, 30 fps, Color, CCD
(1/3-inch equivalent), 10 m camera cables included 24114-201
GigE PoE, 1602 x 1202 pixels, 60 fps, Monochrome, CMOS
(1/1.8-inch equivalent), 10 m camera cables included 24114-250
GigE PoE, 1600 x 1200 pixels, 60 fps, Color, CMOS
(1/1.8-inch equivalent), 10 m camera cables included 24114-251
GigE PoE, 2048 x 2048 pixels, 25 fps, Monochrome, CMOS
(1-inch equivalent), 10 m camera cables included 24114-300
GigE PoE, 2046 x 2046 dots, 25 fps, Color, CMOS
(1-inch equivalent), 10 m camera cables included 24114-301
Belt Encoder
(Conveyor-
Tracking) Encoder Kit IP65 09742-001
Y-Adapter Cable, 3 m 09443-000
Encoder Extension Cable, 5 m 09446-050
SCEX-BELT,Y-Adapter Cable, 0.5 m 09550-000
XBELTIO Cable, 0.6 m 13463-000
Additional I/O
Options IO Blox (connect to robot), 8 inputs/8 outputs, 0.3 m cables
included 90356-30200
IO Block (connect to previous IO Blox), 8 inputs/8 outputs, 0.3
m cables included 90356-30100
IO Blox-to-robot Cable, 3 m 04679-030
IO Blox-to-IO Blox Cable, 0.3 m 04679-003
IO Blox-to-IO Blox Cable, 3 m 04677-030
Termination Block, 12inputs/8 outputs, cables included (1.8 m) 90356-40100
Front panel Front Panel with 3 m cable 90356-10358
Front Panel Cable, 3 m 10356-10500
Power Supply/
Cable AC Power Cable, 5 m 04118-000
24 VDC Power Cable, 5 m 04120-000
24 VDC, 6.5 A, 150 W (Front Mounting), Power Supply S8FS-G15024C *1
24 VDC, 6.5 A, 150 W (DIN-Rail Mounting), Power Supply S8FS-G15024CD *1
1394 Cable, 4.5 m 13632-045
eAIB XSYSTEM Cable Assembly, 1.8 m 13323-000
DB9 Splitter, 0.3 m 00411-000
eAIB XSYS Cable, 4.5 m 11585-000
Ethernet Cable XS6W-6LSZH8SS[ ][ ][ ]CM-Y *2
Industrial Switching Hubs W4S1-05C *3
Solenoid Valve
Kit eCobra robots 02853-000
Cable Seal Kit Hornet 565 IP65/67, Quattro 650HS IP65/67, Quattro 800HS
IP65/67 08765-000
Quattro 650HS Standard/Quattro 800HS Standard 09564-000
eCobra 800 IP65/67 04813-000
eCobra 800 Inverted IP65 09073-000
ACE License Automation Control Environment (ACE) Please download it from
following URL:
http://www.adept.com/Robots-Tool
ACE PackXpert 09187-000
ACE Sight Vision Software 01056-030
ACE PackXpert with ACE Sight Vision
This license contains an ACE PackXpert license and an ACE
Sight license. 09187-010
Related
Products Machine Automation Controller NJ/NX/NY Series NJ/NX/NY *4
Automation Software Sysmac Studio SYSMAC-SE2[ ] [ ] [ ] *4
Collection of software functional components
Sysmac Library
Adept Robot Control Library SYSMAC-XR009 *5

*1. Refer to the S8FS-G Switch Mode Power Supply DATASHEET (Cat.No.T207) for details.
*2. Refer to the Industrial Ethernet Cables Catalog (Cat.No.G019) for details.
*3. Refer to the Industrial Switching Hubs Catalog (Cat.No.V227) for details.
*4. Refer to the Sysmac Catalog (Cat.No.P072) for details.
*5. Refer to the Sysmac Library Catalog (Cat.No.P106) for details.

Robot Parts Code and Bundled Accessories

Type Viper Viper Add-On
Cleanroom/IP Standard Cleanroom IP54/65 Standard Cleanroom IP54/65
Viper 850 17201-38000 17201-38020 17201-38010 17203-38000 17203-38020 17203-38010
Overview Robot + eMotionBlox-60R amplifier with fully
integrated controls Robot + eMotionBlox-60R + required connection
cables
Purpose Typical for use in single robot system Typically added to systems with an existing
SmartController EX to create multi-robot systems
Bundled
Accessories • XSYSTEM cable with jumpers,
1.8 m/6 ft (13323-000)
• Front panel kit (90356-10358)
• Arm power/signal cable, 4 m/13 ft (05020-000) • XSYSTEM cable with jumpers,
1.8 m/6 ft (13323-000)
• XSYS cable, 4.5 m/15 ft (11585-000)
• DB9 splitter (00411-000)
• 1394 latch cable, 4.5 m/15 ft (13632-045)
• eV+ license to connect to controller (14529-103)

last update: August 1, 2018
