Couplings
Coupling Materials and Characteristics
OMRON provides two types of couplings for different application conditions: Resin and metal. Select the best type for the application.
As a general rule, use metal couplings for high resolution and resin couplings for low resolution. (As a rough guide, a high resolution is one that exceeds 3,600 ppr.)
Even for applications requiring relatively low resolution, a metal coupling will provide more reliability in applications involving rapid acceleration/deceleration or for Encoders with high starting torque.
Characteristics
![E69-[] Features 6 E69-[]_Features1](/Images/1468_fe_125-104789.gif)
last update: December 19, 2013
Purchase the OMRON Peripheral Devices Please fill in the following
If you have just landed here, this product OMRON E69-[] Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E69-[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E69-[]Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3C-LDA Photoelectric Sensor with Separate Digital Amplifier (Laser-type)/Features
FJ Series (Camera and Software Vision Package) PC Vision System/Features
X General-purpose Basic Switch/Features
E5AR Digital Controller/Features
SRT2-VID / VOD(-1) Transistor Remote I/O Terminals with Connectors (8/16 Points)/Features
OMRON E69-[] specification
E69-[] Rotary Encoders Accessories/Specificationslast update: April 16, 2015
Couplings
Comparison of Specifications for 6-mm Shafts
| Material | Resin (standard type) | Metal (aluminum, helical) |
|---|---|---|
| Machine specification | ||
| Eccentricity (mm) | 0.5 | 0.25 |
| Eccentricity (degrees) | 5 | 5 |
| Deviation in shaft direction (mm) | ±0.4 | ±0.25 |
| Allowable torque (N·m) | 0.8 | 1 |
| Torsion rigidity (Nm/rad) | 16 | 8.2 |
| Moment of inertia (kgm2) | 1.2 × 10-7 | 7 × 10-7 |
| Weight (g) | 4 | 13 |
Note: Note: The above specifications are for the coupling by itself. When the coupling is used together with a Rotary Encoder, allow for the precautions for all Rotary Encoders and for the specifications of the Encoder.
last update: April 16, 2015
OMRON E69-[] lineup
E69-[] Rotary Encoders Accessories/Lineuplast update: September 24, 2012
Couplings
Coupling Suitability Table
❍ : Suitable and provided with product, Δ: Suitable and sold separately, ---: Not suitable.
| Couplings | Specification | Resin, standard type | ||||
|---|---|---|---|---|---|---|
| Rotary Encoder Model/shaft dia. | Shaft interior (tolerance * ) exterior dia. | 2 dia. (Height: 8), 9 dia. | 4 dia. (Height: 8), 13 dia. | 6 dia. (Height: 8), 15 dia. | 8 dia. (Height: 8), 19 dia. | 10 dia. (Height: 8), 22 dia. |
| Model | E69-C02B | E69-C04B | E69-C06B | E69-C08B | E69-C10B | |
| E6A2-C 4 dia. | --- | ○ | --- | --- | --- | |
| E6B2-C 6 dia. | --- | --- | ○ | --- | --- | |
| E6C2-C 6 dia. | --- | --- | △ | --- | --- | |
| E6C3-C 8 dia. | --- | --- | --- | △ | --- | |
| E6D-C 6 dia. | --- | --- | ○ | --- | --- | |
| E6F-C 10 dia. | --- | --- | --- | --- | △ | |
| E6H-C Hollow shaft interior dia.: 8 mm | Hollow-shaft Model; Coupling not required. | |||||
| E6J-C 2 dia. | ○ | --- | --- | --- | --- | |
| E6CP-A 6 dia. | --- | --- | ○ Sold separately only for E6CP-AG5C-C. | --- | --- | |
| E6C3-A 8 dia. | --- | --- | --- | △ | --- | |
| E6F-A 10 dia. | --- | --- | --- | --- | ○ Only Pre-wired Models | |
| E6J-A 4 dia. | --- | ○ | --- | --- | --- | |
| Couplings | Specification | Resin, different end diameter | Metal | ||
|---|---|---|---|---|---|
| Rotary Encoder Model/shaft dia. | Shaft interior (tolerance * ) exterior dia. | 6 dia., 8 dia., (Height: 8), 19 dia. | 6 dia., 10 dia., (Height: 8), 22 dia. | 6 dia. (Height: 8), 19.1 dia. | 10 dia. (Height: 8), 25.4 dia. |
| Model | E69-C68B | E69-C610B | E69-C06M | E69-C10M | |
| E6A2-C 4 dia. | --- | --- | --- | --- | |
| E6B2-C 6 dia. | △ | △ | △ | --- | |
| E6C2-C 6 dia. | △ | △ | △ | --- | |
| E6C3-C 8 dia. | △ | --- | --- | --- | |
| E6D-C 6 dia. | △ | △ | △ | --- | |
| E6F-C 10 dia. | --- | △ | --- | △ | |
| E6H-C Hollow shaft interior dia.: 8 mm | Hollow-shaft Model; Coupling not required. | ||||
| E6J-C 2 dia. | --- | --- | --- | --- | |
| E6CP-A 6 dia. | △ | △ | △ | --- | |
| E6C3-A 8 dia. | △ | --- | --- | --- | |
| E6F-A 10 dia. | --- | △ | --- | △ | |
| E6J-A 4 dia. | --- | --- | --- | --- | |
* Tolerance conforms to JIS standard: JIS B 0401. Refer to Data Sheet.
Flanges and Servo Mounting Brackets
Flange and Servo Mounting Bracket Suitability Table
❍: Suitable and provided with product, Δ: Suitable and sold separately, ---: Not suitable.
| Rotary Encoder Model | Type | Flange | Servo Mounting Bracket | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Remarks | E69-FBA | E69-FCA | E69-FCA03 | E69-FBA02 | E69-FCA02 | E69-FCA04 | E69-1 | E69-2 | |
| E69-2 Servo Mounting Bracket provided. | |||||||||
| E6A2-C | --- | --- | --- | --- | --- | --- | ○ Provided with the E6A2-CWZ. | --- | |
| E6B2-C | △ | --- | --- | △ | --- | --- | --- | △ | |
| E6C2-C | --- | △ | --- | --- | △ | --- | --- | △ | |
| E6C3-C | --- | --- | △ | --- | --- | △ | --- | △ | |
| E6D-C | --- | --- | --- | --- | --- | --- | --- | ○ | |
| E6F-C | --- | --- | --- | --- | --- | --- | --- | △ | |
| E6H-C | Hollow-shaft Model; Flange not required. | ||||||||
| E6CP-A | --- | --- | --- | --- | --- | --- | --- | ○ | |
| E6C3-A | --- | --- | △ | --- | --- | △ | --- | △ | |
| E6F-A | --- | --- | --- | --- | --- | --- | --- | ○ | |
last update: September 24, 2012
OMRON E69-[] catalog
E69-[] Rotary Encoders Accessories/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Rotary Encoders Accessories Data Sheet | - [654KB] | Apr 16, 201520150416 | Rotary Encoders Accessories Data Sheet |
OMRON E69-[] dimension
E69-[] Rotary Encoders Accessories/Dimensionslast update: November 12, 2012
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Coupling Dimensions
E69-C02B
![E69-[] Dimensions 3](/images/8767/1468_dm_125-104791.gif)
Material: Glass-reinforced PBT
Applicable model: E6J-C
E69-C04B
![E69-[] Dimensions 4](/images/8767/1468_dm_225-104793.gif)
Material: Glass-reinforced PBT
Applicable model: E6A2-C, E6J-A
E69-C06B
![E69-[] Dimensions 5](/images/8767/1468_dm_325-104795.gif)
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6D-C, E6CP-A
E69-C06M
![E69-[] Dimensions 6](/images/8767/1468_dm_425-104797.gif)
Material: Extra-super duralumin
Applicable model: E6B2-C, E6C2-C, E6D-C, E6CP-A
E69-C10B
![E69-[] Dimensions 7](/images/8767/1468_dm_525-104798.gif)
Material: Glass-reinforced PBT
Applicable model:E6F-C, E6F-A
E69-C10M
![E69-[] Dimensions 8](/images/8767/1468_dm_625-104800.gif)
Material: Extra-super duralumin
Applicable model:E6F-C, E6F-A
E69-C08B
![E69-[] Dimensions 9](/images/8767/1468_dm_725-104802.gif)
Material: Glass-reinforced PBT
Applicable model: E6C3-A, E6C3-C
E69-C68B
Model with Different End Diameter
![E69-[] Dimensions 10](/images/8767/1468_dm_825-104804.gif)
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6C3-C, E6D-C, E6CP-A, E6C3-A
E69-C610B
Model with Different End Diameter
![E69-[] Dimensions 11](/images/8767/1468_dm_925-104808.gif)
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6D-C, E6F-C, E6CP-A, E6F-A

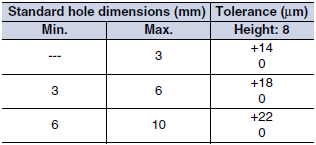

![E69-[] Dimensions 12](/images/8767/1468_dm_1025-104806.gif)
Flange Dimensions
E69-FBA
![E69-[] Dimensions 14](/images/8767/1468_dm_1125-104810.gif)
Material: SPCC
Thickness: 3.2
Applicable model: E6B2-C
Note: Three phillips screws M3 ✕ 6 provided
E69-FCA
![E69-[] Dimensions 15](/images/8767/1468_dm_1225-104812.gif)
Material: SPCC
Thickness: 3.2
Applicable model: E6C2-C
Note: Three phillips screws M4 ✕ 8 provided
E69-FCA03
![E69-[] Dimensions 16](/images/8767/1468_dm_1325-104814.gif)
Material: SPCC
Thickness: 3.2
Applicable model: E6C3-A, E6C3-C
Note: Three phillips screws M4 ✕ 8 provided
E69-FBA02

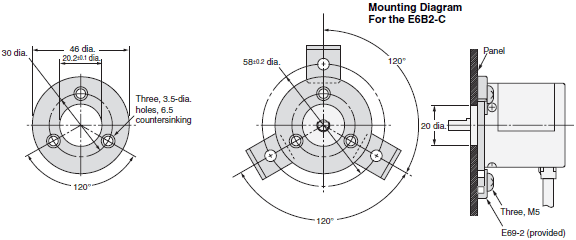

![E69-[] Dimensions 17](/images/8767/1468_dm_1425-104816.gif)
Material: SPCC
Thickness: 3.2
Applicable model: E6B2-C
Note: Three phillips screws M3 ✕ 10 provided, E69-2 Servo Mounting Bracket provided
E69-FCA02

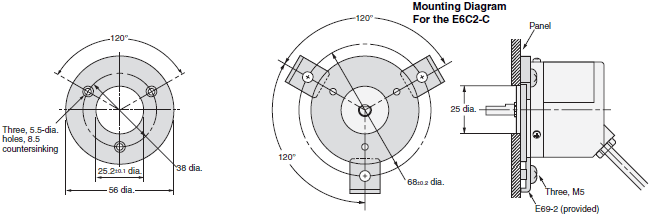

![E69-[] Dimensions 18](/images/8767/1468_dm_1525-104818.gif)
Material: SPCC
Thickness: 3.2
Applicable model: E6C2-C
Note: Three phillips screws M4 ✕ 10 provided, E69-2 Servo Mounting Bracket provided
E69-FCA04

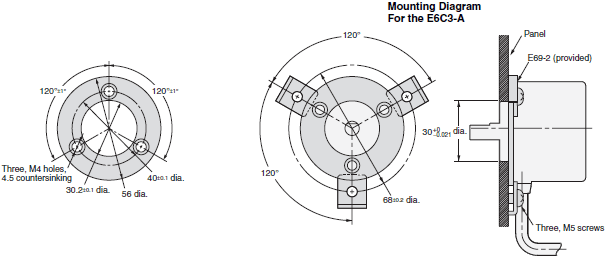

![E69-[] Dimensions 19](/images/8767/1468_dm_1625-104819.gif)
