No Cutting Oil Ingress by Any Path The Strongest Material Cables with Fluororesin Sheaths
The results of a thorough analysis of the ingress paths of cutting oil show that the deterioration of cable sheaths is a large factor. The cable sheaths of OMRON’s Oil-resistant Components are made from fluororesin materials to provide maximum protection against the deterioration with a unique new concept. The result is an oil resistance impregnable to even highly aggressive cutting oils.
Fluororesin Blocks Ingress from Cables
[Patent Pending] Fluororesin Outer Cable Sheath
Fluororesin, which provides superior resistance to corrosion, is used for the outer cable sheath to suppress cable swelling and deterioration and prevent the ingress of cutting oil to the PCB section.
[Patented] Smartclick Structure + O-ringWith traditional screw-tightened structures, differences in tightening torque made achieving oil resistance difficult. The Smartclick structure, however, locks in a single operation. The built-in O-ring at the lock position is dependably compressed to block the ingress of cutting oil. This structure eliminates the needs to manage screw tightening torque and prevents screw loosening due to vibration, which were issues in environments requiring oil resistance.
![XS5[]R Features 10](/Images/3547_fe_425-264228.jpg)
![XS5[]R Features 11](/Images/3547_fe_5-25-264227-332x111.jpg)
last update: July 01, 2016
Purchase the OMRON Sensor I/O Connectors Please fill in the following
If you have just landed here, this product OMRON XS5[]R Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS5[]R We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS5[]RPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
LVS-9585 Series Code Verification System/Features
D4F Small Safety Limit Switch/Features
R88M-G, R88D-GN[]-ML2 G-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communic...
NX-ECC NX-series EtherCAT Coupler Unit/Features
Cobra 650 SCARA Robots/Features
OMRON XS5[]R lineup
XS5[]R Oil-resistant Connectors/Lineuplast update: February 1, 2019
XS5FR Connector Connected to Cable, Socket on One Cable End
Cable with fluororesin sheath
Model Number Structure
Model Number Legend
![XS5[]R Lineup 3](/images/8767/3547_lu_125-289907.gif)
Ordering Information
| Type | Cable outer diameter (mm) | No. of conductors | Cable length (m) | Model | UL |
|---|---|---|---|---|---|
| Socket on One Cable End | 4 dia. | 4 | 2 | XS5FR-D423-D80-RB1 | --- |
| 5 | XS5FR-D423-G80-RB1 | ||||
| 10 | XS5FR-D423-J80-RB1 |
XS5WR Connectors Connected to Cable, Socket and Plug on Cable Ends
Cable with fluororesin sheath

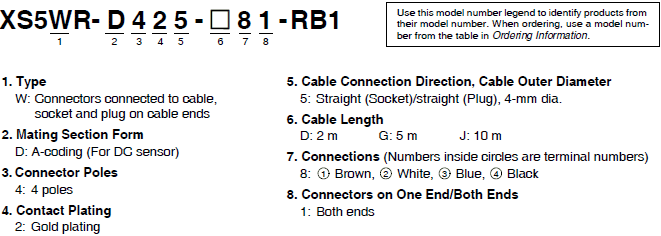

Model Number Structure
Model Number Legend
![XS5[]R Lineup 7](/images/8767/3547_lu_325-289908.gif)
Ordering Information
| Type | Cable outer diameter (mm) | No. of conductors | Cable length (m) | Model | UL |
|---|---|---|---|---|---|
| Socket and Plug on Cable Ends | 4 dia. | 4 | 2 | XS5WR-D425-D81-RB1 | --- |
| 5 | XS5WR-D425-G81-RB1 | ||||
| 10 | XS5WR-D425-J81-RB1 |
last update: February 1, 2019
OMRON XS5[]R catalog
XS5[]R Oil-resistant Connectors/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Environment-resistant Series Oil-resistant Components Catalog | Y215-E1-06 [20561KB] | Feb 01, 201920190201 | Environment-resistant Series Oil-resistant Components Catalog |
OMRON XS5[]R specification
XS5[]R Oil-resistant Connectors/Specificationslast update: February 1, 2019
Ratings and Specifications
| Rated current | 1 A |
|---|---|
| Rated voltage | 30 VDC |
| Contact resistance (connector) | 40 mΩ max. (20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) *1 |
| Dielectric strength (connector) | 1,500 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC 60529) and IP67G (JIS C 0920 Annex 1) *2 Passed OMRON's Oil-resistant Component Evaluation Standards*3 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) |
| Insertion tolerance | 50 times min. |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s |
| Ambient operating temperature range/ Ambient storage temperature range | -25 to +70°C |
| Ambient humidity range | 20% to 85% |
*1. This value represents the condition when the Connector is shipped from the factory.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector type meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
Materials and Finishes
| Contacts | Phosphor bronze/Gold plating |
|---|---|
| Fixtures | Zinc alloy/Nickel plating |
| Fixtures (Lock) | Stainless steel |
| Pin block | PA resin (UL 94 HB) |
| O-ring | New rubber material combining HNBR and fluororubber |
| Cover | PA resin (UL 94 HB) |
| Cable | Cable with fluororesin sheath: 4-mm dia. Core wire: 0.2mm2 |

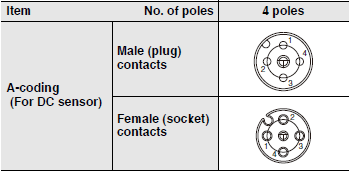

Connector Pinout Diagram (from Mating Side)
![XS5[]R Specifications 4](/images/8767/3547_sp_325-289909.gif)
last update: February 1, 2019
OMRON XS5[]R dimension
XS5[]R Oil-resistant Connectors/Dimensionslast update: February 1, 2019
(Unit: mm)

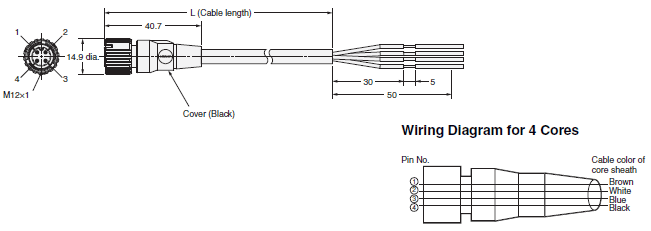

XS5FR Connector Connected to Cable, Socket on One Cable End
XS5FR-D423-[]80-RB1
Straight
![XS5[]R Dimensions 2](/images/8767/3547_dm_125-264071.gif)

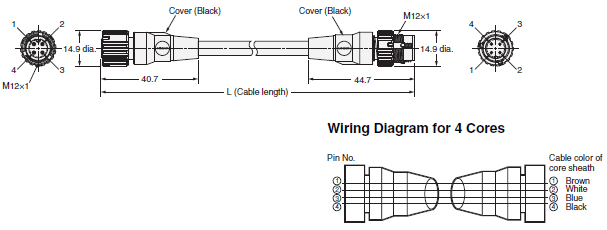

XS5WR Connectors Connected to Cable, Socket and Plug on Cable Ends
XS5WR-D425-[]81-RB1
Straight (Socket)/straight (Plug)
![XS5[]R Dimensions 4](/images/8767/3547_dm_225-264066.gif)
last update: February 1, 2019
