OMRON D4F lineup

last update: October 30, 2012

Safety Limit Switches (with Direct Opening Mechanism)

Consult with your OMRON representative when ordering any models that are not listed in this table.

Actuator	Cable length	Pull-outing direction of cable	Built-in switch
			1NC/1NO (slow-action)	2NC (slow-action)	2NC/2NO (slow-action)	4NC (slow-action)
			Model	Model	Model	Model
Roller lever (Metal lever, resin roller)	1 m	Horizontal	D4F-120-1R	D4F-220-1R	D4F-320-1R	D4F-420-1R
		Vertical	D4F-120-1D	D4F-220-1D	D4F-320-1D	D4F-420-1D
	3 m	Horizontal	D4F-120-3R	D4F-220-3R	D4F-320-3R	D4F-420-3R
		Vertical	D4F-120-3D	D4F-220-3D	D4F-320-3D	D4F-420-3D
	5 m	Horizontal	D4F-120-5R	D4F-220-5R	D4F-320-5R	D4F-420-5R
		Vertical	D4F-120-5D	D4F-220-5D	D4F-320-5D	D4F-420-5D
Roller plunger (Metal roller)	1 m	Horizontal	D4F-102-1R	D4F-202-1R	D4F-302-1R	D4F-402-1R
		Vertical	D4F-102-1D	D4F-202-1D	D4F-302-1D	D4F-402-1D
	3 m	Horizontal	D4F-102-3R	D4F-202-3R	D4F-302-3R	D4F-402-3R
		Vertical	D4F-102-3D	D4F-202-3D	D4F-302-3D	D4F-402-3D
	5 m	Horizontal	D4F-102-5R	D4F-202-5R	D4F-302-5R	D4F-402-5R
		Vertical	D4F-102-5D	D4F-202-5D	D4F-302-5D	D4F-402-5D

last update: October 30, 2012

OMRON D4F catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D4F Data Sheet	- [1805KB]	Aug 26, 201520150826	D4F Data Sheet

OMRON D4F dimension

last update: November 06, 2012

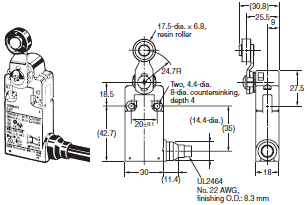

Roller lever (Metal lever, resin roller)
D4F-[]20-[]R

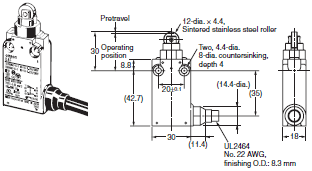

Roller plunger (Metal roller)
D4F-[]02-[]R

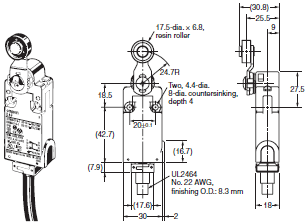

Roller lever (Metal lever, resin roller)
D4F-[]20-[]D

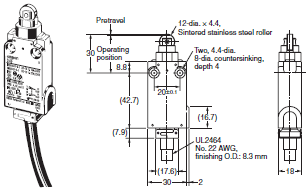

Roller plunger (Metal roller)
D4F-[]02-[]D

Note: Each dimension has a tolerance of 0.4 mm unless otherwise specified.

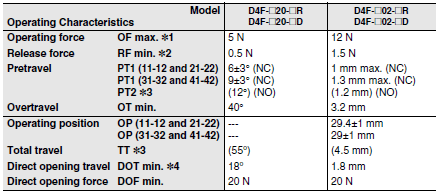

Slow-action (1NC/1NO), (2NC), (2NC/2NO), and (4NC)

Note: Variation occurs in the simultaneity of contact opening/closing operations of 2NC, 2NC/2NO, and 4NC contacts.
          Check contact operation.
*1. The OF value is the maximum load that opens an NC contact (11-12, 21-22, 31-32, 41-42).
*2. The RF value is the minimum load that closes an NC contact (11-12, 21-22, 31-32, 41-42).
*3. The PT2 and TT values are reference values.
*4. The D4F is used in accordance with EN81 and EN115 at a minimum DOT of 30° and 2.8 mm.

last update: November 06, 2012

OMRON D4F specification

last update: November 06, 2012

Characteristics

Degree of protection *1		IP67 (EN60947-5-1)
Durability *2	Mechanical	10,000,000 times min.
	Electrical	1,000,000 times min. (4 mA resistive load at 24 VDC, 4 circuits) 150,000 times min. (1 A resistive load at 125 VAC, 2 circuits/4 mA resistive load at 24 VDC, 2 circuits) *3
Operating speed		1 mm/s to 0.5 m/s
Operating frequency	Mechanical	120 operations/minute
	Electrical	30 operations/minute
Contact resistance *5		300 mΩ max. (with 1 m cable), 500 mΩ max. (with 3 m cable), 700 m Ωmax. (with 5 m cable)
Minimum applicable load *4		4 mA resistive load at 24 VDC, 4 circuits (N-level reference value)
Rated insulation voltage (Ui)		250 V
Rated frequency		50/60 Hz
Protection against electric shock		Class I (with a ground wire)
Pollution degree (operating environment)		3 (EN60947-5-1)
Impulse withstand voltage (EN60947-5-1)	Between terminals of same polarity	2.5 kV
	Between terminals of different polarity	4 kV
	Between each terminal and ground	4 kV
Insulation resistance		100 MΩ min. (at 500 VDC) between terminals of the same polarities, between terminals of different polarities, between current-carrying metal parts and grounds, and between each terminal and non-current carrying metal parts
Contact gap		2 × 2 mm min.
Vibration resistance	Malfunction	10 to 55 Hz, 0.75 mm single amplitude
Shock resistance	Destruction	1,000 m/s2 min.
	Malfunction	300 m/s2 min.
Conditional short-circuit current		100 A (EN60947-5-1)
Conventional free air thermal current (Ith)		2.5 A (EN60947-5-1)
Ambient operating temperature		- 30 to 70°C (with no icing)
Ambient operating humidity		95% max.
Cable		UL2464 No. 22 AWG, finishing O.D.: 8.3 mm
Weight		Approx. 190 g (D4F-102-1R, with 1 m cable) Approx. 220 g (D4F-120-1R, with 1 m cable)

Note: 1. The above values are initial values.
           2. Once the contact is opened or closed with an ordinary load, it cannot be used for a load smaller than that. The
               contact surface may be rough, which impairs the reliability of contacting.
*1. The degree of protection shown above is based on the test method specified in EN60947-5-1. Be sure to confirm in
       advance the sealing performance under the actual operating environment and conditions.
*2. Durability values are calculated at an operating temperature of 5 to 35°C, and an operating humidity of 40% to 70%.
       Contact your OMRON sales representative for more detailed information on other operating environments.
*3. Do not apply 1 A at 125 VAC to more than two circuits.
*4. The value will vary depending on factors such as the switching frequency, the ambient environment, and the reliability
       level.
       Be sure to confirm correct operation with the actual load before application.
*5. The contact resistance was measured with 0.1 A at 5 to 8 VDC with a fall-of-potential method.

last update: November 06, 2012
