OMRON A7PS / A7PH dimension

last update: October 16, 2012

Swithes

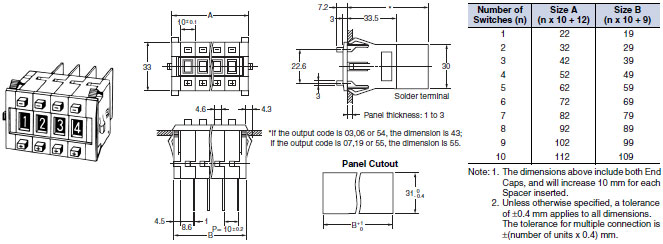

A7PS-2[][](-1)
A7PH-2[][](-1)
Solder Terminal

Accessories (Order Separately)

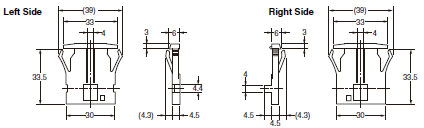

End Caps for Push-operated Switches
A7P-M(-1) Snap-in Panel Mounting

Spacers for Push-operated Switches
A7P-P[](-1) Snap-in Panel Mounting

Note:The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table under the explanation about Spacers on Lineup.)

Connectors

Note:(These devices allow Switches to be quickly removed for maintenance and inspection of connectivity, and quickly re-installed.)

NRT-C Solder Terminals

NRT-CN Solder Terminals

NRT-CP PCB Terminals

Note:Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.

Inserting Connectors

Insert Connectors with the "UP" arrow pointing up.

last update: October 16, 2012

OMRON A7PS / A7PH lineup

last update: April 01, 2014

Switches (Single Switch Units)

Model	A7PS		A7PH
Classification (See note 1.)	Snap-in (front mounting)		Snap-in (front mounting) Long-life type
Character height	Decimal: 6.8 mm Hexadecimal: 4.0 mm
Terminals	Solder terminals
Color	Light gray	Black	Light gray	Black
Output code number	Model
03 (decimal code)	A7PS-203	A7PS-203-1	A7PH-203	A7PH-203-1
06 (binary coded decimal)	A7PS-206	A7PS-206-1	A7PH-206	A7PH-206-1
07 (binary coded decimal, with component-adding provision) * 1	A7PS-207	A7PS-207-1	A7PH-207	A7PH-207-1
19 (decimal code, with component-adding provision)	A7PS-219	A7PS-219-1	---	---
54 (binary coded hexadecimal)	A7PS-254	A7PS-254-1	A7PH-254	A7PH-254-1
55 (binary coded hexadecimal, with component adding provision) * 1	A7PS-255	A7PS-255-1	---	---

Note: 1. The classification diagrams show 4 Switch Units combined with End Caps to create 4-digit displays.
           2. The model numbers given above are for 1 Switch Unit.
           3. Models with stoppers are also available. Add "-S[][]" after the "203," "206," "207," "219," "254," or "255" in the
                model number and specify the display range in the [][]. For example, to specify the range 0 to 6, add "-S06" to
                the model number (e.g., A7PS-206-S06-1).
                “-SOF” can not be available for type -254, -255.
           4. Models with +, - displays can also be produced. Add "-PM" after the "206" in the model number (e.g.,
                A7PS-206-PM or A7PS-206-PM-1)
*1. Models with diodes are available. Add “-D” to the model number (e.g., A7PS-207-D or A7PS-207-D-1).

Accessories (Order Separately)

Use accessories, such as End Caps and Spacers, with the Switch Units.

Color		Light gray	Black
End Caps		A7P-M	A7P-M-1
Spacer		A7P-P[] (See note.)	A7P-P[]-1 (See note.)
Connectors	Solder terminals	NRT-C
		NRT-CN
	PCB terminals	NRT-CP

Note: The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table in the following
          explanation about Spacers.)

End Caps

End Caps are used on the Switch Units at each end and allow all the Switch Units to be securely mounted to a panel. They come in pairs, one for the left and one for the right.

Spacers

• Spacers are used for creating extra space or gaps between the Switch Units and have the same dimensions as the Switch Units themselves.
• There are also Spacers with engraved characters or symbols that can be used for indicating units, such as time and length. (Refer to the following table.) Consult your OMRON representative for details.

Symbol	A	B	C	D	E	F	G	H	J	K	L	Q	T	U
Stamp	No designation	SEC	MIN	H	g	kg	mm	cm	m	°C	PCS	x 10 SEC	0	●

last update: April 01, 2014

OMRON A7PS / A7PH catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
A7PS, A7PH Data Sheet	- [879KB]	Sep 29, 201420140929	A7PS, A7PH Data Sheet

OMRON A7PS / A7PH specification

last update: August 20, 2014

Model		A7PS	A7PH
Switching capacity (resistive load)		50 VAC or 3.3 to 28 VDC 1 mA to 0.1 A	125 VAC or 3.3 to 28 VDC 10 μA to 0.15 A
Continuous carry current		1 A max.	3 A max.
Contact resistance		300 mΩ max.
Insulation resistance	Between non-connected terminals	10 MΩ min. (at 500 VDC)	100 MΩ min. (at 500 VDC)
	Between terminal and non-current carrying part	1,000 MΩ min. (at 500 VDC)
Dielectric strength	Between non-connected terminals	600 VAC, 50/60 Hz for 1 min
	Between terminal and non-current carrying part	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance		10 to 55 Hz, 1.5-mm double amplitude for 2 hours min.
Shock resistance		490 m/s2 min.
Durability	Mechanical	100,000 operations min.	2,000,000 operations min.
	Electrical	50,000 operations min.	1,000,000 operations min.
Ambient temperature		Operating: -10°C to 65°C
Ambient humidity		Operating: 45% to 85%
Max. operating force		6.37 N max.

last update: August 20, 2014
