last update: April 24, 2017

• Screw-less (M3) design reduces the need for extra tightening.

• Removable terminal block gives powerful support to maintenance work.

• One-step wiring. Wire simply by inserting the ferrules.

• Applicable wire: AWG24 to AWG16 (cross-section: 0.2 to 1.25 mm²)

last update: April 24, 2017

Purchase the OMRON CompoNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CRT1-[]D08SL(-1) / []D16SL(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1-[]D08SL(-1) / []D16SL(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1-[]D08SL(-1) / []D16SL(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3NX-MA Smart Fiber Amplifier Units/Features
61F-G[] Floatless Level Switch (Basic Type)/Features
61F-03B / -04B Surge Killer Unit/Features
D40A / G9SX-NS Compact Non-Contact Door Switch/Non-Contact Door Switch Controller/Features
G3NE Solid State Relays/Features

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) catalog
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CompoNet Catalog P056-E1-08
[4302KB] May 07, 201820180507 CompoNet Catalog

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) lineup
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Lineup
last update: September 24, 2012

Name Specifications Model

Clamp Terminals Inputs 8 inputs NPN CRT1-ID08SL

PNP CRT1-ID08SL-1

Outputs 8 outputs NPN CRT1-OD08SL

PNP CRT1-OD08SL-1

Inputs 16 inputs NPN CRT1-ID16SL

PNP CRT1-ID16SL-1

Outputs 16 outputs NPN CRT1-OD16SL

PNP CRT1-OD16SL-1

Inputs/Outputs 8 inputs/8 outputs NPN CRT1-MD16SL

PNP CRT1-MD16SL-1

last update: September 24, 2012

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) dimension
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Dimensions
last update: September 24, 2012

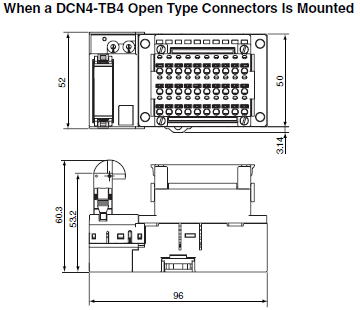

CRT1-ID08SL (-1)
CRT1-OD08SL (-1)

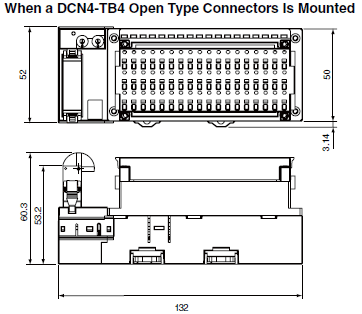

CRT1-ID16SL (-1)
CRT1-OD16SL (-1)

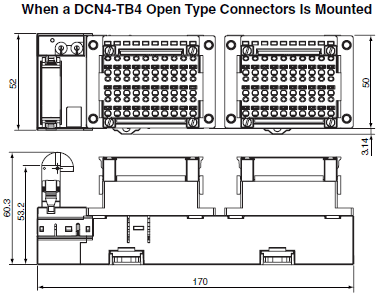

CRT1-MD16SL (-1)

last update: September 24, 2012

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) specification
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Specifications
last update: September 24, 2012
Basic Performance Specifications

Item Specification
Communications power supply voltage 14 to 26.4 VDC
I/O power supply voltage *1 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z
directions for 80 min each
Shock resistance 150 m/s² (3 times each in 6 directions on 3 axes)
Dielectric strength 500 VAC (between isolated circuits)
Insulation resistance 20 MΩ min. (between isolated circuits)
Ambient operating temperature -10 to 55°C
Ambient operating humidity 25% to 85% (with no condensation)
Ambient operating atmosphere No corrosive gases
Storage temperature -25 to 65°C
Storage humidity 25% to 85% (with no condensation)
Terminal block screw tightening torque *2 M3 wiring screws: 0.5 Nm
M3 mounting screws: 0.5 Nm
Installation Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws
(depending on model)

*1 The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2 Applicable only to Slaves to which screw terminal blocks are mounted.

Input Section Specifications
Eight-point Input Units

Item Specification
Model CRT1-ID08SL CRT1-ID08SL-1
I/O capacity 8 inputs
Internal I/O common NPN PNP
ON voltage 15 VDC min. (between each input terminal
and the V terminal) 15 VDC min. (between each input terminal
and the G terminal)
OFF voltage 5 VDC max. (between each input terminal
and the V terminal) 5 VDC max. (between each input terminal
and the G terminal)
OFF current 1 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA min./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 8 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Current supplied to input devices 100 mA/input
Communications power supply current
consumption 30 mA max. for 24-VDC power supply voltage
50 mA max. for 14-VDC power supply voltage
I/O power supply current consumption 15 mA max. for 24-VDC power supply voltage
Weight 170 g max.

Sixteen-point Input Units

Item Specification
Model CRT1-ID16SL CRT1-ID16SL-1
I/O capacity 16 inputs
Internal I/O common NPN PNP
ON voltage 15 VDC min. (between each input terminal
and the V terminal) 15 VDC min. (between each input terminal
and the G terminal)
OFF voltage 5 VDC max. (between each input terminal
and the V terminal) 5 VDC max. (between each input terminal
and the G terminal)
OFF current 1.0 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA max./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 16 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Installation DIN Track mounting
Power supply type Multi-power supply
Communications power supply current
consumption 35 mA max. for 24-VDC power supply voltage
55 mA max. for 14-VDC power supply voltage
I/O power supply current consumption 15 mA max. for 24-VDC power supply voltage
Weight 250 g max.

Output Section Specifications
Eight-point Output Units

Item Specification
Model CRT1-OD08SL CRT1-OD08SL-1
I/O capacity 8 outputs
Internal I/O common NPN PNP
Rated output current 0.5 A/output, 2 A/common
Residual voltage 1.2 V max. (0.5 A DC, between each
output terminal and the G terminal) 1.2 V max. (0.5 A DC, between each
output terminal and the V terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 8 outputs/common
Isolation method Photocoupler
Output indicators LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Current supplied to output devices 100 mA/output
Communications power supply current
consumption 35 mA max. for 24-VDC power supply voltage
55 mA max. for 14-VDC power supply voltage
I/O power supply current consumption 25 mA max. for 24-VDC power supply voltage
Output handling for communications errors Select either hold or clear from CX-Integrator.
Weight 170 g max.

Sixteen-point Output Unit

Item Specification
Model CRT1-OD16SL CRT1-OD16SL-1
I/O capacity 16 outputs
Internal I/O common NPN PNP
Rated output current 0.5 A/output, 4 A/common
Residual voltage 1.2 V max. (0.5 A DC, between each
output terminal and the G terminal) 1.2 V max. (0.5 A DC, between each
output terminal and the V terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 16 outputs/common
Isolation method Photocoupler
Output indicators LED (yellow)
Installation DIN Track mounting
Power supply type Multi-power supply
Communications power supply current
consumption 35 mA max. for 24-VDC power supply voltage
60 mA max. for 14-VDC power supply voltage
I/O power supply current consumption 30 mA max. for 24-VDC power supply voltage
Output handling for communications errors Hold or clear can be selected. (CompoNet Support Software)
Weight 250 g max.

Input and Output Section Specifications
Eight-point Input and Eight-point Output Units
Common Specifications

Item Specification
Model CRT1-MD16SL CRT1-MD16SL-1
Installation DIN Track
Communications power supply current consumption 35 mA max. for 24-VDC power supply voltage
60 mA max. for 14-VDC power supply voltage
Weight 290 g max.

Input Specifications

Item Specification
Model CRT1-MD16SL CRT1-MD16SL-1
I/O capacity 8 inputs
Internal I/O common NPN PNP
ON voltage 15 VDC min. (between each input terminal
and the V terminal) 15 VDC min. (between each input terminal
and the G terminal)
OFF voltage 5 VDC min. (between each input terminal
and the V terminal) 5 VDC min. (between each input terminal
and the G terminal)
OFF current 1.0 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 11 VDC: 3.0 mA min./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 8 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Power supply type Multi-power supply
Current supplied to input devices 100 mA/input
I/O power supply current consumption 15 mA max. for 24-VDC power supply voltage

Output Specifications

Item Specification
Model CRT1-MD16SL CRT1-MD16SL-1
I/O capacity 8 outputs
Internal I/O common NPN PNP
Rated output current 0.5 A/output, 2 A/common
Residual voltage 1.2 V max. (0.5 A DC, between each
output terminal and the G terminal) 1.2 V max. (0.5 A DC, between each
output terminal and the V terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 8 outputs/common
Isolation method Photocoupler
Output indicators LED (yellow)
Power supply type Multi-power supply
Current supplied to output devices 100 mA/output
I/O power supply current consumption 25 mA max. for 24-VDC power supply voltage
Output handling for communications errors Select either hold or clear from CX-Integrator.

last update: September 24, 2012

NO. CRT1-[]D08SL(-1) / []D16SL(-1)

TYPE:Networks CompoNet Digital I/O Slave Units

DATE:2021-06-10

Associated products:
CRT1-VID32ML(-1) / VOD32ML(-1) / VMD32ML(-1) Digital I/O Slave Units with MIL Connector (Vertical type)/Features CRT1-VAD04[][] / VDA02[][] Analog I/O Slave Units with MIL Connectors/e-CON Connectors/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CompoNet Catalog	P056-E1-08 [4302KB]	May 07, 201820180507	CompoNet Catalog

Name	Specifications	Model
Clamp Terminals	Inputs	8 inputs	NPN	CRT1-ID08SL
PNP	CRT1-ID08SL-1
Outputs	8 outputs	NPN	CRT1-OD08SL
PNP	CRT1-OD08SL-1
Inputs	16 inputs	NPN	CRT1-ID16SL
PNP	CRT1-ID16SL-1
Outputs	16 outputs	NPN	CRT1-OD16SL
PNP	CRT1-OD16SL-1
Inputs/Outputs	8 inputs/8 outputs	NPN	CRT1-MD16SL
PNP	CRT1-MD16SL-1

Item	Specification
Communications power supply voltage	14 to 26.4 VDC
*I/O power supply voltage 1**	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity	Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance	10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z directions for 80 min each
Shock resistance	150 m/s² (3 times each in 6 directions on 3 axes)
Dielectric strength	500 VAC (between isolated circuits)
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Storage temperature	-25 to 65°C
Storage humidity	25% to 85% (with no condensation)
*Terminal block screw tightening torque 2**	M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm
Installation	Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model)

Item	Specification
Model	CRT1-ID08SL	CRT1-ID08SL-1
I/O capacity	8 inputs
Internal I/O common	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)
OFF current	1 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Current supplied to input devices	100 mA/input
Communications power supply current consumption	30 mA max. for 24-VDC power supply voltage 50 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage
Weight	170 g max.

Item	Specification
Model	CRT1-ID16SL	CRT1-ID16SL-1
I/O capacity	16 inputs
Internal I/O common	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA max./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	16 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Installation	DIN Track mounting
Power supply type	Multi-power supply
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 55 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage
Weight	250 g max.

Item	Specification
Model	CRT1-OD08SL	CRT1-OD08SL-1
I/O capacity	8 outputs
Internal I/O common	NPN	PNP
Rated output current	0.5 A/output, 2 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Current supplied to output devices	100 mA/output
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 55 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	25 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.
Weight	170 g max.

Item	Specification
Model	CRT1-OD16SL	CRT1-OD16SL-1
I/O capacity	16 outputs
Internal I/O common	NPN	PNP
Rated output current	0.5 A/output, 4 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	16 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
Installation	DIN Track mounting
Power supply type	Multi-power supply
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	30 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Hold or clear can be selected. (CompoNet Support Software)
Weight	250 g max.

Item	Specification
Model	CRT1-MD16SL	CRT1-MD16SL-1
Installation	DIN Track
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage
Weight	290 g max.

Item	Specification
Model	CRT1-MD16SL	CRT1-MD16SL-1
I/O capacity	8 inputs
Internal I/O common	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC min. (between each input terminal and the V terminal)	5 VDC min. (between each input terminal and the G terminal)
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 11 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Power supply type	Multi-power supply
Current supplied to input devices	100 mA/input
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage

Item	Specification
Model	CRT1-MD16SL	CRT1-MD16SL-1
I/O capacity	8 outputs
Internal I/O common	NPN	PNP
Rated output current	0.5 A/output, 2 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
Power supply type	Multi-power supply
Current supplied to output devices	100 mA/output
I/O power supply current consumption	25 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.

Return to OMRON

OMRON CRT1-[]D08SL(-1) / []D16SL(-1)Automation Systems/ Networks/CompoNet

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) Dimensions

Purchase the OMRON CompoNet Please fill in the following

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) catalog

English

Global Edition

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) lineup

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) dimension

CRT1-ID08SL (-1)CRT1-OD08SL (-1)

CRT1-ID16SL (-1)CRT1-OD16SL (-1)

CRT1-MD16SL (-1)

OMRON CRT1-[]D08SL(-1) / []D16SL(-1) specification

Basic Performance Specifications

Input Section Specifications

Eight-point Input Units

Sixteen-point Input Units

Output Section Specifications

Eight-point Output Units

Sixteen-point Output Unit

Input and Output Section Specifications

Eight-point Input and Eight-point Output Units

Common Specifications

Input Specifications

Output Specifications

CRT1-ID08SL (-1)
CRT1-OD08SL (-1)

CRT1-ID16SL (-1)
CRT1-OD16SL (-1)
