OMRON CRT1-VID08S(-1) / VOD08S(-1) lineup

last update: September 24, 2012

Name	Specifications				Model
e-CON Connectors *	Inputs	8 inputs	NPN	Without Short-circuit and Disconnected Line Detection	CRT1-VID08S
			PNP		CRT1-VID08S-1
	Outputs	8 outputs	NPN		CRT1-VOD08S
			PNP		CRT1-VOD08S-1
Mounting Bracket	Unit with e-CON Connectors CRT1-V[]D08S(-1)				CRT1-ATT02

* These Units are also available with a DCN-TB4 Terminal Conversion Adapter included in the package. Add "(-B)" to the
  end of the model number to receive the Adapter as well.

last update: September 24, 2012

OMRON CRT1-VID08S(-1) / VOD08S(-1) catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
CompoNet Catalog	P056-E1-08 [4302KB]	May 07, 201820180507	CompoNet Catalog

OMRON CRT1-VID08S(-1) / VOD08S(-1) dimension

last update: November 12, 2012

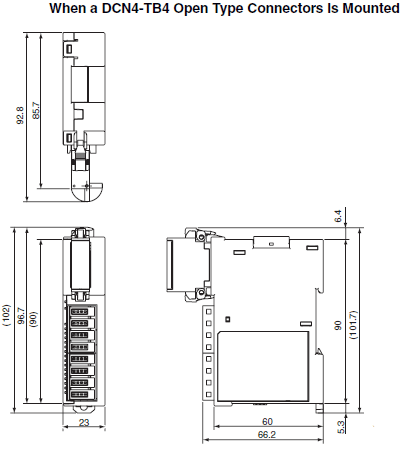

CRT1-VID08S (-1)
CRT1-VOD08S (-1)

The numbers inside the parentheses are reference dimensions.

Mounting Bracket
CRT1-ATT02

last update: November 12, 2012

OMRON CRT1-VID08S(-1) / VOD08S(-1) specification

last update: September 24, 2012

Basic Performance Specifications

Item	Specification
Communications power supply voltage	14 to 26.4 VDC
I/O power supply voltage *1	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity	Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance	10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s2 in X, Y, and Z directions for 80 min each
Shock resistance	150 m/s2 (3 times each in 6 directions on 3 axes)
Dielectric strength	500 VAC (between isolated circuits)
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Storage temperature	-25 to 65°C
Storage humidity	25% to 85% (with no condensation)
Terminal block screw tightening torque *2	M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm
Installation	Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model)

*1 The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2 Applicable only to Slaves to which screw terminal blocks are mounted.

Input Section Specifications

Item	Specification
Model	CRT1-VID08S	CRT1-VID08S-1
I/O capacity	8 inputs
Internal I/O common	NPN	PNP
ON voltage	10.5 VDC min. (between each input terminal and the V terminal)	10.5 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 11 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Installation	DIN Track or Mounting Bracket
Power supply type	Network power supply
Power short-circuit protection	Operates at 50 mA/point min.
Current supplied to input devices	50 mA/input
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 50 mA max. for 14-VDC power supply voltage
Weight	80 g max.

Output Section Specifications

Item	Specification
Model	CRT1-VOD08S	CRT1-VOD08S-1
I/O capacity	8 outputs
Internal I/O common	NPN	PNP
Rated output current	0.3 A/output, 2 A/common
Residual voltage	1.2 V max. (0.3 A DC, between each output terminal and the G terminal)	1.2 V max. (0.3 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
Installation	DIN Track or Mounting Bracket
Power supply type	Multi-power supply
Current supplied to output devices	100 mA/output
Communications power supply current consumption	40 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.
Weight	80 g max.

last update: September 24, 2012
