OMRON Hornet 565 Dimensions

/Images/l_3512-25-257431-198x198.jpg

last update: August 1, 2018

• Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of Machine Automation Controller NJ/NX/NY Series

• The amplifier and controller built into the robot reduces the number of cables

• Tracks up to a conveyor speed of 1.4 m/s

• Designed with a high payload to support multi-hand (multi-picking)

• Supports fast Pick & Place on a fast conveyor

• Helps reduce mounting cost and robot vibration

• Maximum working diameter 1,130 mm

• Working height 425 mm

• Maximum payload 8 kg

• Weight 52 kg

last update: August 1, 2018

Purchase the OMRON Parallel Robots Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON Hornet 565 Robotics,Robotics is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Robotics at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Hornet 565 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Hornet 565Robotics tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NJ101-[][][][] NJ-Series NJ101 CPU Units/Features
ZW-SQ Series Confocal Fiber Displacement Sensor Sensor Head/Features
3Z4S-LE VS-L / M42-10 Series Lens for M42-mount Cameras/Features
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Features
GX-AD0471 / DA0271 Analog I/O Terminal 2-tier Terminal Block Type/Features

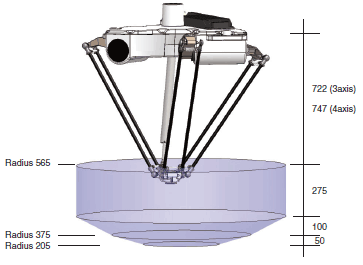

OMRON Hornet 565 dimension
Hornet 565 Parallel Robots/Dimensions
last update: October 10, 2017

(Unit: mm)

Hornet 565

Flange

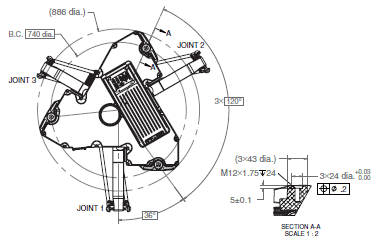

Footprint

Front panel

last update: October 10, 2017

OMRON Hornet 565 specification
Hornet 565 Parallel Robots/Specifications
last update: June 1, 2018

Product name Hornet
Size 565
Number of axes 3 Axis 4 Axis
IP Standard IP65/67 Standard IP65/67
Model 1720[ ]-45600 1720[ ]-45610 1720[ ]-45604 1720[ ]-45614
Mounting inverted
Working volume X,Y axis (stroke) 1130 mm
Z axis (stroke) 425 mm
theta axis (rotation angle) - ±360°
Maximum Payload 8 kg 3 kg
Repeatability ±0.10 mm
Cycle times,
sustained,
20°C
ambient *1 Payload 0.1 kg 0.32 s 0.35 s
Payload 1.0 kg 0.34 s 0.37 s
Payload 3.0 kg 0.38 s 0.42 s
Power Requirements 24 VDC: 6 A
200 to 240 VAC: 10 A, single-phase
Protection Base Topside of robot IP20 IP65 IP20 IP65
Underside of robot IP65
Platform, Arms IP67
Environment
Requirements Ambient Temperature 1 to 40°C
Humidity Range 5 to 90% (non-condensing)
Weight 52 kg
Basic
configuration Controller eAIB
On-board I/O (Input/Output) 12/8
Conveyor tracking input 2
RS-232C serial communications
port 1
Programming environment ACE, PackXpert, ePLC
ACE Sight Yes
ePLC Connect Yes
ePLC I/O Yes
Connectable controller *2 SmartController EX, NJ/NX/NY Series *3

*1. Adept cycle, in mm (25/305/25)
*2. Choose a controller to suit your application.
*3. The robot version 2.3.C or later is required to connect with the NJ/NX/NY Series.

Protection and Cleanroom Classes

Type Name Specifications Option Remarks
Parallel
Robots Hornet 565 IP67: arms and platform
IP65: underside of robot
IP20: topside of robot
Class 1000 IP65: topside of
robot The addition of the cable sealing kit raises the
IP rating of the topside of the robot to IP65.
Quattro 650H
Quattro 800H IP67: arms and platform
Class 1000 IP65: underside
of robot The addition of the cable sealing kit raises the
IP rating of the topside of the robot to IP65.
Quattro 650HS
Quattro 800HS IP67: arms and platform
IP66: robot base
Class 1000 --- Mount the Cable Inlet Box (09564-000) on the
topside of the robot.

last update: June 1, 2018

OMRON Hornet 565 catalog
Hornet 565 Parallel Robots/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Industrial Robots Datasheet I822-E1-07
[7789KB] Feb 07, 201920190207 Industrial Robots Datasheet

Robotic Automation Concept Book I824-E1-01
[1600KB] Jun 13, 201620160613 Robotic Automation Concept Book

Robotics packaging line solution Catalog Y127-E1-04
[6572KB] Oct 09, 201820181009 Robotics packaging line solution Catalog

Robot Care Pamphlet I829-E1-02
[1707KB] Nov 07, 201820181107 Robot Care Pamphlet

OMRON Hornet 565 lineup
Hornet 565 Parallel Robots/Lineup
last update: August 1, 2018
Parallel Robots

Type Model
Hornet 565 4Axis 17201-45604
Hornet 565 3Axis 17201-45600
Hornet 565 4Axis IP65/67 17201-45614
Hornet 565 3Axis IP65/67 17201-45610
Hornet 565 4Axis Add-On 17203-45604
Hornet 565 3Axis Add-On 17203-45600
Hornet 565 4Axis IP65/67 Add-On 17203-45614
Hornet 565 3Axis IP65/67 Add-On 17203-45610

Options

Type Name/Specifications Model
Robot
Controller SmartController EX with Front Panel 19300-000
SmartController EX (without Front Panel) 19200-000
Pendant T20 Pendant with 10 m Cable 10046-010
T20 Pendant-Jumper Plug 10048-000
T20 Pendant Wall Bracket 10079-000
T20 Adapter Cable, 3 m 10051-003
Camera GigE PoE, 658 x 492 pixels, 120 fps, Color, CCD
(1/4-inch equivalent), 10 m camera cables included 24114-101
GigE PoE, 1296 x 966 pixels, 30 fps, Monochrome, CCD
(1/3-inch equivalent), 10 m camera cables included 24114-200
GigE PoE, 1294 x 964 pixels, 30 fps, Color, CCD
(1/3-inch equivalent), 10 m camera cables included 24114-201
GigE PoE, 1602 x 1202 pixels, 60 fps, Monochrome, CMOS
(1/1.8-inch equivalent), 10 m camera cables included 24114-250
GigE PoE, 1600 x 1200 pixels, 60 fps, Color, CMOS
(1/1.8-inch equivalent), 10 m camera cables included 24114-251
GigE PoE, 2048 x 2048 pixels, 25 fps, Monochrome, CMOS
(1-inch equivalent), 10 m camera cables included 24114-300
GigE PoE, 2046 x 2046 dots, 25 fps, Color, CMOS
(1-inch equivalent), 10 m camera cables included 24114-301
Belt Encoder
(Conveyor-
Tracking) Encoder Kit IP65 09742-001
Y-Adapter Cable, 3 m 09443-000
Encoder Extension Cable, 5 m 09446-050
SCEX-BELT,Y-Adapter Cable, 0.5 m 09550-000
XBELTIO Cable, 0.6 m 13463-000
Additional I/O
Options IO Blox (connect to robot), 8 inputs/8 outputs, 0.3 m cables
included 90356-30200
IO Block (connect to previous IO Blox), 8 inputs/8 outputs, 0.3
m cables included 90356-30100
IO Blox-to-robot Cable, 3 m 04679-030
IO Blox-to-IO Blox Cable, 0.3 m 04679-003
IO Blox-to-IO Blox Cable, 3 m 04677-030
Termination Block, 12inputs/8 outputs, cables included (1.8 m) 90356-40100
Front panel Front Panel with 3 m cable 90356-10358
Front Panel Cable, 3 m 10356-10500
Power Supply/
Cable AC Power Cable, 5 m 04118-000
24 VDC Power Cable, 5 m 04120-000
24 VDC, 6.5 A, 150 W (Front Mounting), Power Supply S8FS-G15024C *1
24 VDC, 6.5 A, 150 W (DIN-Rail Mounting), Power Supply S8FS-G15024CD *1
1394 Cable, 4.5 m 13632-045
eAIB XSYSTEM Cable Assembly, 1.8 m 13323-000
DB9 Splitter, 0.3 m 00411-000
eAIB XSYS Cable, 4.5 m 11585-000
Ethernet Cable XS6W-6LSZH8SS[ ][ ][ ]CM-Y *2
Industrial Switching Hubs W4S1-05C *3
Solenoid Valve
Kit eCobra robots 02853-000
Cable Seal Kit Hornet 565 IP65/67, Quattro 650HS IP65/67, Quattro 800HS
IP65/67 08765-000
Quattro 650HS Standard/Quattro 800HS Standard 09564-000
eCobra 800 IP65/67 04813-000
eCobra 800 Inverted IP65 09073-000
ACE License Automation Control Environment (ACE) Please download it from
following URL:
http://www.adept.com/Robots-Tool
ACE PackXpert 09187-000
ACE Sight Vision Software 01056-030
ACE PackXpert with ACE Sight Vision
This license contains an ACE PackXpert license and an ACE
Sight license. 09187-010
Related
Products Machine Automation Controller NJ/NX/NY Series NJ/NX/NY *4
Automation Software Sysmac Studio SYSMAC-SE2[ ] [ ] [ ] *4
Collection of software functional components
Sysmac Library
Adept Robot Control Library SYSMAC-XR009 *5

*1. Refer to the S8FS-G Switch Mode Power Supply DATASHEET (Cat.No.T207) for details.
*2. Refer to the Industrial Ethernet Cables Catalog (Cat.No.G019) for details.
*3. Refer to the Industrial Switching Hubs Catalog (Cat.No.V227) for details.
*4. Refer to the Sysmac Catalog (Cat.No.P072) for details.
*5. Refer to the Sysmac Library Catalog (Cat.No.P106) for details.

Robot Parts Code and Bundled Accessories

Type Hornet Hornet Add-On
IP Standard IP65/67 Standard IP65/67
Hornet 565
3 Axis 17201-45600 17201-45610 17203-45600 17203-45610
Hornet 565
4 Axis 17201-45604 17201-45614 17203-45604 17203-45614
Overview Robot + eAIB with fully integrated controller Robot + eAIB required connection cables
Purpose Typical for use in single robot system Typically added to systems with an existing
SmartController EX to create multi-robot systems
Bundled
Accessories • XSYSTEM cable with
jumpers,
1.8 m/6 ft (13323-000)
• Front panel kit
(90356-10358) • XSYSTEM cable with
jumpers,
1.8 m/6 ft (13323-000)
• Front panel kit
(90356-10358)
• Cable Seal Kit
(08765-000) • XSYSTEM cable with
jumpers,
1.8 m/6 ft (13323-000)
• XSYS cable, 4.5 m/15 ft
(11585-000)
• DB9 splitter (00411-000)
• 1394 latch cable,
4.5 m/15 ft (13632-045)
• eV+ license to connect to
controller (14529-103) • XSYSTEM cable with
jumpers,
1.8 m/6 ft (13323-000)
• XSYS cable, 4.5 m/15 ft
(11585-000)
• DB9 splitter (00411-000)
• 1394 latch cable,
4.5 m/15 ft (13632-045)
• eV+ license to connect to
controller (14529-103)
• Cable Seal Kit
(08765-000)

last update: August 1, 2018

NO. Hornet 565

TYPE:Industrial Robots Parallel Robots Copyright Statement

DATE:2021-06-07

Associated products:
SRT2-ID16P / OD16P Remote I/O Modules/Features Quattro 650H / HS Parallel Robots/Features

Product name	Hornet
	Size	565
Number of axes	3 Axis	4 Axis
IP	Standard	IP65/67	Standard	IP65/67
Model	1720[ ]-45600	1720[ ]-45610	1720[ ]-45604	1720[ ]-45614
Mounting	inverted
Working volume	X,Y axis (stroke)	1130 mm
Z axis (stroke)	425 mm
theta axis (rotation angle)	-	±360°
Maximum Payload	8 kg	3 kg
Repeatability	±0.10 mm
Cycle times, sustained, 20°C ambient *1	Payload 0.1 kg	0.32 s	0.35 s
Payload 1.0 kg	0.34 s	0.37 s
Payload 3.0 kg	0.38 s	0.42 s
Power Requirements	24 VDC: 6 A 200 to 240 VAC: 10 A, single-phase
Protection	Base	Topside of robot	IP20	IP65	IP20	IP65
Underside of robot	IP65
Platform, Arms	IP67
Environment Requirements	Ambient Temperature	1 to 40°C
Humidity Range	5 to 90% (non-condensing)
Weight	52 kg
Basic configuration	Controller	eAIB
On-board I/O (Input/Output)	12/8
Conveyor tracking input	2
RS-232C serial communications port	1
Programming environment	ACE, PackXpert, ePLC
ACE Sight	Yes
ePLC Connect	Yes
ePLC I/O	Yes
*Connectable controller 2**	SmartController EX, NJ/NX/NY Series *3

Type	Name	Specifications	Option	Remarks
Parallel Robots	Hornet 565	IP67: arms and platform IP65: underside of robot IP20: topside of robot Class 1000	IP65: topside of robot	The addition of the cable sealing kit raises the IP rating of the topside of the robot to IP65.
Quattro 650H Quattro 800H	IP67: arms and platform Class 1000	IP65: underside of robot	The addition of the cable sealing kit raises the IP rating of the topside of the robot to IP65.
Quattro 650HS Quattro 800HS	IP67: arms and platform IP66: robot base Class 1000	---	Mount the Cable Inlet Box (09564-000) on the topside of the robot.

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Industrial Robots Datasheet	I822-E1-07 [7789KB]	Feb 07, 201920190207	Industrial Robots Datasheet
Robotic Automation Concept Book	I824-E1-01 [1600KB]	Jun 13, 201620160613	Robotic Automation Concept Book
Robotics packaging line solution Catalog	Y127-E1-04 [6572KB]	Oct 09, 201820181009	Robotics packaging line solution Catalog
Robot Care Pamphlet	I829-E1-02 [1707KB]	Nov 07, 201820181107	Robot Care Pamphlet

Type	Model
Hornet 565 4Axis	17201-45604
Hornet 565 3Axis	17201-45600
Hornet 565 4Axis IP65/67	17201-45614
Hornet 565 3Axis IP65/67	17201-45610
Hornet 565 4Axis Add-On	17203-45604
Hornet 565 3Axis Add-On	17203-45600
Hornet 565 4Axis IP65/67 Add-On	17203-45614
Hornet 565 3Axis IP65/67 Add-On	17203-45610

Type	Name/Specifications	Model
Robot Controller	SmartController EX with Front Panel	19300-000
SmartController EX (without Front Panel)	19200-000
Pendant	T20 Pendant with 10 m Cable	10046-010
T20 Pendant-Jumper Plug	10048-000
T20 Pendant Wall Bracket	10079-000
T20 Adapter Cable, 3 m	10051-003
Camera	GigE PoE, 658 x 492 pixels, 120 fps, Color, CCD (1/4-inch equivalent), 10 m camera cables included	24114-101
GigE PoE, 1296 x 966 pixels, 30 fps, Monochrome, CCD (1/3-inch equivalent), 10 m camera cables included	24114-200
GigE PoE, 1294 x 964 pixels, 30 fps, Color, CCD (1/3-inch equivalent), 10 m camera cables included	24114-201
GigE PoE, 1602 x 1202 pixels, 60 fps, Monochrome, CMOS (1/1.8-inch equivalent), 10 m camera cables included	24114-250
GigE PoE, 1600 x 1200 pixels, 60 fps, Color, CMOS (1/1.8-inch equivalent), 10 m camera cables included	24114-251
GigE PoE, 2048 x 2048 pixels, 25 fps, Monochrome, CMOS (1-inch equivalent), 10 m camera cables included	24114-300
GigE PoE, 2046 x 2046 dots, 25 fps, Color, CMOS (1-inch equivalent), 10 m camera cables included	24114-301
Belt Encoder (Conveyor- Tracking)	Encoder Kit IP65	09742-001
Y-Adapter Cable, 3 m	09443-000
Encoder Extension Cable, 5 m	09446-050
SCEX-BELT,Y-Adapter Cable, 0.5 m	09550-000
XBELTIO Cable, 0.6 m	13463-000
Additional I/O Options	IO Blox (connect to robot), 8 inputs/8 outputs, 0.3 m cables included	90356-30200
IO Block (connect to previous IO Blox), 8 inputs/8 outputs, 0.3 m cables included	90356-30100
IO Blox-to-robot Cable, 3 m	04679-030
IO Blox-to-IO Blox Cable, 0.3 m	04679-003
IO Blox-to-IO Blox Cable, 3 m	04677-030
Termination Block, 12inputs/8 outputs, cables included (1.8 m)	90356-40100
Front panel	Front Panel with 3 m cable	90356-10358
Front Panel Cable, 3 m	10356-10500
Power Supply/ Cable	AC Power Cable, 5 m	04118-000
24 VDC Power Cable, 5 m	04120-000
24 VDC, 6.5 A, 150 W (Front Mounting), Power Supply	*S8FS-G15024C 1**
24 VDC, 6.5 A, 150 W (DIN-Rail Mounting), Power Supply	*S8FS-G15024CD 1**
1394 Cable, 4.5 m	13632-045
eAIB XSYSTEM Cable Assembly, 1.8 m	13323-000
DB9 Splitter, 0.3 m	00411-000
eAIB XSYS Cable, 4.5 m	11585-000
Ethernet Cable	*XS6W-6LSZH8SS[ ][ ][ ]CM-Y 2**
Industrial Switching Hubs	*W4S1-05C 3**
Solenoid Valve Kit	eCobra robots	02853-000
Cable Seal Kit	Hornet 565 IP65/67, Quattro 650HS IP65/67, Quattro 800HS IP65/67	08765-000
Quattro 650HS Standard/Quattro 800HS Standard	09564-000
eCobra 800 IP65/67	04813-000
eCobra 800 Inverted IP65	09073-000
ACE License	Automation Control Environment (ACE)	Please download it from following URL: http://www.adept.com/Robots-Tool
ACE PackXpert	09187-000
ACE Sight Vision Software	01056-030
ACE PackXpert with ACE Sight Vision This license contains an ACE PackXpert license and an ACE Sight license.	09187-010
Related Products	Machine Automation Controller NJ/NX/NY Series	*NJ/NX/NY 4**
Automation Software Sysmac Studio	*SYSMAC-SE2[ ] [ ] [ ] 4**
Collection of software functional components Sysmac Library Adept Robot Control Library	*SYSMAC-XR009 5**

Type	Hornet	Hornet Add-On
IP	Standard	IP65/67	Standard	IP65/67
Hornet 565 3 Axis	17201-45600	17201-45610	17203-45600	17203-45610
Hornet 565 4 Axis	17201-45604	17201-45614	17203-45604	17203-45614
Overview	Robot + eAIB with fully integrated controller	Robot + eAIB required connection cables
Purpose	Typical for use in single robot system	Typically added to systems with an existing SmartController EX to create multi-robot systems
Bundled Accessories	• XSYSTEM cable with jumpers, 1.8 m/6 ft (13323-000) • Front panel kit (90356-10358)	• XSYSTEM cable with jumpers, 1.8 m/6 ft (13323-000) • Front panel kit (90356-10358) • Cable Seal Kit (08765-000)	• XSYSTEM cable with jumpers, 1.8 m/6 ft (13323-000) • XSYS cable, 4.5 m/15 ft (11585-000) • DB9 splitter (00411-000) • 1394 latch cable, 4.5 m/15 ft (13632-045) • eV+ license to connect to controller (14529-103)	• XSYSTEM cable with jumpers, 1.8 m/6 ft (13323-000) • XSYS cable, 4.5 m/15 ft (11585-000) • DB9 splitter (00411-000) • 1394 latch cable, 4.5 m/15 ft (13632-045) • eV+ license to connect to controller (14529-103) • Cable Seal Kit (08765-000)

Return to OMRON
