OMRON XS5 NEXT Series Dimensions
/Images/l_3701-25-281518-198x198.jpglast update: January 15, 2019
Better Cable Oil Resistance, and Improved Overall Oil Resistance with New Rubber Material in Mating Sections
The XS5 NEXT Series uses a special PVC cable that limits deterioration of the cable sheath due to both water-soluble and water-insoluble cutting oil.
Omron's proprietary molding technique prevents cutting oil intrusion from mating sections. Moreover, using the same new HNBR/fluoride rubber as in oil-resistant components of connector mating sections helps improve the overall oil resistance.
Special PVC Cable + Molding Sealing Method
Smartclick Structure + O-ring
[Patented] New Rubber Material Combining and Fluororubber
Hydrogenated nitrile butadiene rubber (HNBR), which provides superior resistance to oil, was blended with fluororubber in a unique OMRON compound to develop a new rubber that provides superior resistance to both swelling and deterioration due to cutting oil.
It is used in seals for joints and moving sections that prevent ingress to prevent deterioration and destruction of the seal due to cutting oil, resulting in increased oil resistance performance.
P67G quality and Omron's Oil Resistance Component Evaluation System for two years of proven oil resistant capability
* Applicable oil types: specified in JIS K 2241:2000
“2-year oil resistance” refers to median values (=Typical values) of the product designs and the oil-resistance performance
evaluation results.
Products to be shipped will have around 2 years of oil resistance; actual oil resistance will vary depending on the product.
Varied product lineup to suit the application
last update: January 15, 2019
Purchase the OMRON Sensor I/O Connectors Please fill in the following
If you have just landed here, this product OMRON XS5 NEXT Series Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS5 NEXT Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS5 NEXT SeriesPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Features
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Features
CJ1W-SCU CJ-series Serial Communications Units/Features
CS1W-PDC / PTW / PTR SYSMAC CS-series Process Analog I/O Units/Features
WS02-ALDC1 DeviceNet Analyzer/Features
OMRON XS5 NEXT Series lineup
XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Lineuplast update: January 15, 2019

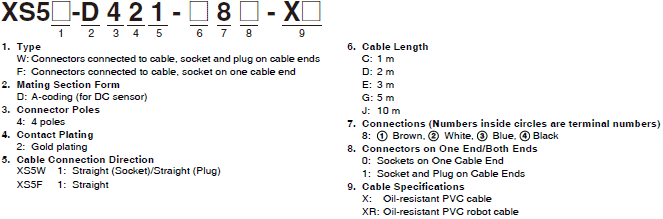

Model Number Legend
Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.
Ordering Information
Connectors
| Type | Cable outer diameter (mm) | Cable specifications | Cable length (m) | Model | UL |
|---|---|---|---|---|---|
| Socket and Plug on Cable Ends | 6 dia. | Oil-resistant PVC cable | 1 | XS5W-D421-C81-X | UL2238 certified (File no. E207683) |
| 2 | XS5W-D421-D81-X | ||||
| 3 | XS5W-D421-E81-X | ||||
| 5 | XS5W-D421-G81-X | ||||
| 10 | XS5W-D421-J81-X | ||||
| 6 dia. | Oil-resistant PVC robot cable | 1 | XS5W-D421-C81-XR | ||
| 2 | XS5W-D421-D81-XR | ||||
| 3 | XS5W-D421-E81-XR | ||||
| 5 | XS5W-D421-G81-XR | ||||
| 10 | XS5W-D421-J81-XR | ||||
| Sockets on One Cable End | 6 dia. | Oil-resistant PVC cable | 1 | XS5F-D421-C80-X | |
| 2 | XS5F-D421-D80-X | ||||
| 3 | XS5F-D421-E80-X | ||||
| 5 | XS5F-D421-G80-X | ||||
| 10 | XS5F-D421-J80-X | ||||
| 6 dia. | Oil-resistant PVC robot cable | 1 | XS5F-D421-C80-XR | ||
| 2 | XS5F-D421-D80-XR | ||||
| 3 | XS5F-D421-E80-XR | ||||
| 5 | XS5F-D421-G80-XR | ||||
| 10 | XS5F-D421-J80-XR |
Accessories (Sold Separately)
Connector Covers
Water-resistive Covers
| Model | Material | Suitable connector | Remarks | |
|---|---|---|---|---|
| Model | Mounting portion | |||

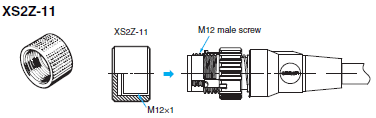

| XS2Z-11 | Brass/ nickel plated | XS5W | M12 male screw | This provides IP67 levels of protection. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49 N·m to tighten the Water-resistive Cover. |

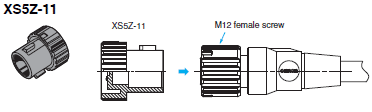

| XS5Z-11 | PBT | XS5F/XS5W | M12 female screw | This provides IP67 levels of protection. This uses the Smart click mechanism. There's no need to keep track of locking torque. |
Water-resistive Covers
Dust Covers
| Model | Material | Suitable connector | Remarks | |
|---|---|---|---|---|
| Model | Mounting portion | |||

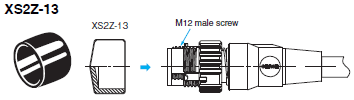

| XS2Z-13 | Rubber/ black | XS5W | M12 male screw | The Dust Cover is for dust prevention and does not ensure IP67 degree of protection. When mounting the Dust Cover to a connector, be sure to press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover. |

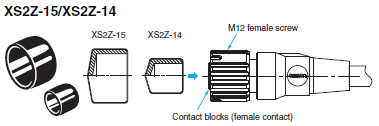

| XS2Z-14 | XS5F/XS5W | Contact blocks (female contact) | ||
| XS2Z-15 | M12 female screw | |||
Dust Covers
last update: January 15, 2019
OMRON XS5 NEXT Series dimension
XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Dimensionslast update: January 15, 2019
(Unit: mm)

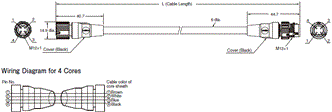

Both end connector type
XS5W-D421-[]81-X
XS5W-D421-[]81-XR

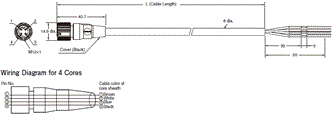

One end connector type
XS5F-D421-[]80-X
XS5F-D421-[]80-XR
last update: January 15, 2019
OMRON XS5 NEXT Series catalog
XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XS5 NEXT Series Data Sheet | - [2443KB] | Jan 15, 201920190115 | XS5 NEXT Series Data Sheet |
| E2E/E2EQ NEXT Series Catalog | D120-E1-05 [30530KB] | Jan 15, 201920190115 | E2E/E2EQ NEXT Series Catalog |
OMRON XS5 NEXT Series specification
XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Specificationslast update: January 15, 2019
Ratings and Specifications
| Rated current | 4 A |
|---|---|
| Rated voltage | 250 VDC |
| Contact resistance (connector) | 40 mΩ max. (at 20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) *1 |
| Dielectric strength (connector) | 1,500 VAC for 1 minute (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) IP69K (ISO20653 (formerly DIN Standard 40050 PART9)) OMRON’s Oil-resistant Component Evaluation Standards *2 Cutting oil type JIS K 2241:2000-specification cutting oil, at 35°C or below) |
| Insertion tolerance | 50 times |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Lock operating force | 0.1 to 0.25 N·m |
| Ambient operating temperature range | -25 to +70°C *3 |
| Ambient humidity range | 20 to 85%RH |
*1. State at shipping.
*2. “OMRON’s Oil-resistant Component Evaluation Standards” are OMRON’s own durability evaluation standards.
Protection performance with oil-resistive connector (XS5F/W-X) correctly mated.
This performance does not apply if an oil-resistive connector (XS5F/W-X) is missing, and cord wiring is exposed.
*3. Use the robot cable within a temperature range of 0 to 70°C to avoid the wire breakage when moving.
Materials and Finishes
| Item | XS5F/W-X | XS5F/W-XR |
|---|---|---|
| Oil-resistant PVC cable | Oil-resistant PVC robot cable | |
| Contacts | Copper alloy/Gold plating | |
| Fixtures | Zinc alloy/Nickel plating | |
| Fixtures (Lock) * | Stainless | |
| Pin block | PBT resin | |
| O-ring | Material combining HNBR and fluororubber | |
| Cover | PBT resin | |
| Cable | UL 758 (AWM) 6 mm dia. AWG20 | UL 758 (AWM) 6 mm dia. AWG21 |
* Only plug

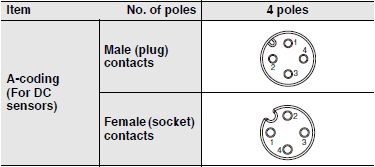

Connector Pinout Diagram (from Mating Side)
