OMRON EE-SX95 Dimensions
/Images/l_3199-25-172121-198x198.jpglast update: May 30, 2013
Mount Using M2 or M3 Screws
The EE-SX95 can be mounted using M2 or M3 screws, so it can easily replace an existing Sensor mounted with M2 screws.
Reliable Best-in-Class Sensing Slot Depth of 6.5 mm
(Based on April 2013 OMRON investigation.)
A deeper slot helps prevent the sensing object from coming into contact with the base of the slot, creating greater tolerance in mechanism design.
Indication of Sensing Window for Easy Confirmation of Insertion Depth
The location of the sensing window is indicated on the insertion slot so that you can visually confirm whether the sensing object covers the sensing window and easily check the insertion depth.
Bright Indicator for Confirmation from Many Directions
The bright light indicator can be checked from up to four directions to enable flexible selection of the installation location.
last update: May 30, 2013
Purchase the OMRON Slot-type Please fill in the following
If you have just landed here, this product OMRON EE-SX95 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SX95 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SX95Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2K-F Flat Proximity Sensor/Features
EE-SPZ-A Retroreflective Photomicrosensor with Lens/Features
G3F / G3FD Solid State Relays G3[]-VD/Features
NX-V680C NX-series RFID Units/Features
CJ2 CJ2 Overview/Features
OMRON EE-SX95 lineup
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Lineuplast update: July 15, 2015
Sensors
| Appearance | Sensing method | Sensing distance | Output configuration | Connection method (Cable length) | Output type | Model |
|---|---|---|---|---|---|---|
Standard | Throughbeam (with slot) | 5 mm (slot width) (Infrared light) | Light-ON Dark-ON (2 outputs) | Pre-wired model with standard cable (1 m) | NPN | EE-SX950-W 1M *1 |
| PNP | EE-SX950P-W 1M *2 | |||||
| Pre-wired model with robot cable (1 m) | NPN | EE-SX950-R 1M *1 | ||||
| Pre-wired connector model with robot cable (0.3 m) | NPN | EE-SX950-C1J-R 0.3M | ||||
L-shaped | Pre-wired model with standard cable (1 m) | NPN | EE-SX951-W 1M *1 | |||
| PNP | EE-SX951P-W 1M *2 | |||||
| Pre-wired model with robot cable (1 m) | NPN | EE-SX951-R 1M *1 | ||||
| Pre-wired connector model with robot cable (0.3 m) | NPN | EE-SX951-C1J-R 0.3M | ||||
F-shaped | Pre-wired model with standard cable (1 m) | NPN | EE-SX952-W 1M *1 | |||
| PNP | EE-SX952P-W 1M *2 | |||||
| Pre-wired model with robot cable (1 m) | NPN | EE-SX952-R 1M *1 | ||||
| Pre-wired connector model with robot cable (0.3 m) | NPN | EE-SX952-C1J-R 0.3M | ||||
R-shaped | Pre-wired model with standard cable (1 m) | NPN | EE-SX953-W 1M *1 | |||
| PNP | EE-SX953P-W 1M *2 | |||||
| Pre-wired model with robot cable (1 m) | NPN | EE-SX953-R 1M *1 | ||||
| Pre-wired connector model with robot cable (0.3 m) | NPN | EE-SX953-C1J-R 0.3M | ||||
U-shaped | Pre-wired model with standard cable (1 m) | NPN | EE-SX954-W 1M *1 | |||
| PNP | EE-SX954P-W 1M *2 | |||||
| Pre-wired model with robot cable (1 m) | NPN | EE-SX954-R 1M *1 | ||||
| Pre-wired connector model with robot cable (0.3 m) | NPN | EE-SX954-C1J-R 0.3M |
*1. A model is available with a 3-m cable. The model number is EE-SX95[]-[]3M. (Example: EE-SX950-W 3M)
*2. A pre-wired model with a PNP output and 1-m robot cable is available. The model number is EE-SX95[]P-R 1M.
(Example: EE-SX950P-R 1M)
Accessories (Order Separately)
Connector with Robot Cable
| Type | Cable length | Model | Remarks |
|---|---|---|---|
| Connector with Cable | 2 m | EE-1016-R 2M | Connector with lock, AWG26, 4-core Robot Cable |
last update: July 15, 2015
OMRON EE-SX95 catalog
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 EE-SX95 Data Sheet | E435-E1-02 [1540KB] | Nov 17, 201520151117 | EE-SX95 Data Sheet |
OMRON EE-SX95 specification
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Specificationslast update: March 02, 2015
| Type | Standard | L-shaped | F-shaped | R-shaped | U-shaped | |
|---|---|---|---|---|---|---|
| NPN output | Pre-wired models | EE-SX950-[] | EE-SX951-[] | EE-SX952-[] | EE-SX953-[] | EE-SX954-[] |
| Pre-wired connector models | EE-SX950-C1J-R | EE-SX951-C1J-R | EE-SX952-C1J-R | EE-SX953-C1J-R | EE-SX954-C1J-R | |
| PNP output | Pre-wired models | EE-SX950P-[] | EE-SX951P-[] | EE-SX952P-[] | EE-SX953P-[] | EE-SX954P-[] |
| Sensing distance | 5 mm (slot width) | |||||
| Standard sensing object | Opaque: 1.8 × 0.8 mm min. | |||||
| Differential travel | 0.025 mm max. *1 | |||||
| Light source (wave length) | Infrared LED (940 nm) | |||||
| Indicator | Light indicator (red LED) | |||||
| Power supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. | |||||
| Current consumption | 15 mA max. | |||||
| Control output | Load power supply voltage: 5 to 24 VDC Load current: 50 mA max. OFF current: 0.5 mA max. 50 mA load current with a residual voltage of 0.7 V max. 5 mA load current with a residual voltage of 0.4 V max. | |||||
| Protection circuit | Load short-circuit protection | |||||
| Response frequency | 1 kHz min. (3 kHz average) *2 | |||||
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver | |||||
| Ambient temperature range | Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation) | |||||
| Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation) | |||||
| Vibration resistance (destruction) | 10 to 2,000 Hz (peak acceleration: 150m/s2) with a 0.75-mm single amplitude for 2.5 h (15-min periods, 10 cycles) each in X, Y, and Z directions | |||||
| Shock resistance (destruction) | 500 m/s2 for 3 times each in X, Y, and Z directions | |||||
| Degree of protection | IEC60529 IP50 | |||||
| Connection method | Pre-wired models (standard length: 1 m), Pre-wired connector models (standard length: 0.3 m) | |||||
| Weight (packed state) | Pre-wired models | Approx. 15 g | ||||
| Pre-wired connector models | Approx. 7 g | |||||
| Materials | Case/cover | Polybutylene terephthalate (PBT) | ||||
| Emitter/ receiver | Polycarbonate (PC) | |||||
*1. The differential travel is the value when a sensing object is moved in a lateral direction to the slot.

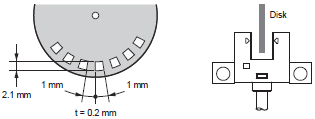

*2. The response frequency was measured by detecting the following rotating disk.
Applicable Connector
| Product | Connector with Robot Cable | |
|---|---|---|
| Model | EE-1016-R | |
| Appearance |  | |
| Contact resistance | 25 mΩ max. (at 10 mA DC and 20 mV max.) | |
| Insertion strength | 20 N max. | |
| Surplus strength (housing holding strength) | 15 N min. | |
| Cable length | 2 m | |
| Ambient temperature range | -25 to 85°C | |
| Materials | Housing | Nylon |
| Contact | Phosphor bronze | |
last update: March 02, 2015
OMRON EE-SX95 dimension
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Dimensionslast update: November 17, 2015
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors

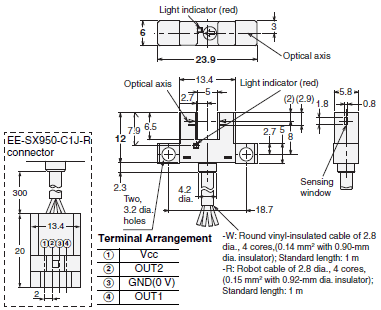

EE-SX950-[]
EE-SX950P-[]
EE-SX950-C1J-R

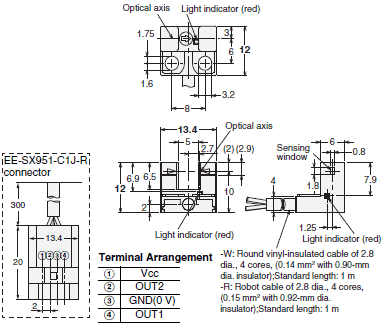

EE-SX951-[]
EE-SX951P-[]
EE-SX951-C1J-R

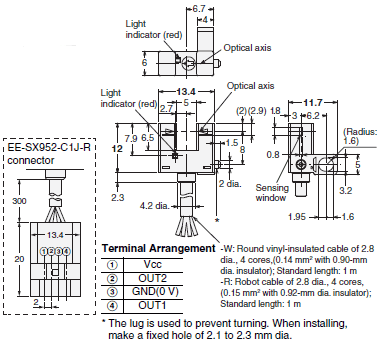

EE-SX952-[]
EE-SX952P-[]
EE-SX952-C1J-R

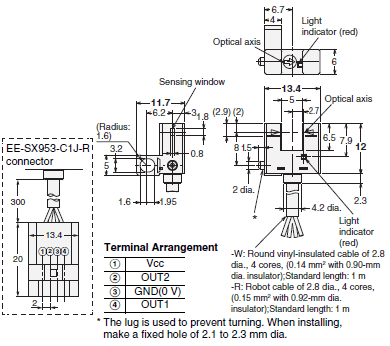

EE-SX953-[]
EE-SX953P-[]
EE-SX953-C1J-R

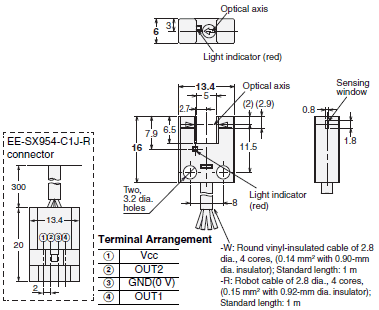

EE-SX954-[]
EE-SX954P-[]
EE-SX954-C1J-R
Accessories (Order Separately)

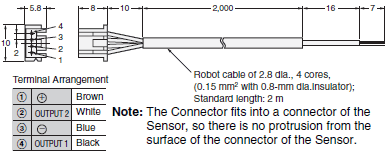

Connector with Robot Cable
EE-1016-R
last update: November 17, 2015
