• Vibrations and shocks resistant lens for megapixel C-mount cameras.

• Lineup of 10 models with focal lengths ranging from 4 to 75 mm.

• The increased resistance to vibration enables application in environments where the lens is moved and where ambient vibrations occur.

• Install in narrow space without a lock screw.

• The hexagonal lock ring makes tightening easier.

last update: August 1, 2018

Purchase the OMRON Lens Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON 3Z4S-LE VS-MCA Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 3Z4S-LE VS-MCA Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 3Z4S-LE VS-MCA SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V500-R2 Laser-type Bar Code Reader/Features
G6D-F4B / G3DZ-F4B Terminal Relay/Features
DZ Special-purpose Basic Switch/Features
DST1 Series Safety I/O Terminals/Features
CJ1W-PRT21 PROFIBUS-DP slave unit/Features

OMRON 3Z4S-LE VS-MCA Series lineup

3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Lineup

last update: August 1, 2018

Recommended
camera		ModelFocal
distance
(mm)		Aperture
(fixed F
No.)		Maximum
outer
diameter
(mm)		Total
length
(mm)		Filter
size		WD
(mm)		Depth
of
field
*
(mm)		Maximum
compa-
tible
CCD
FZ-S[]
FZ-SH[]
FH-S[]
FH-S[]X
FH-S[]05R		3Z4S-LE VS-MCA44231 dia.29.0 to
29.2		M27.0
P0.5		403.21680.01/2 inch
196.2420.0
92.7105.0
3Z4S-LE VS-MCA4-F5.65.631 dia.29.0 to
29.2		M27.0
P0.5		403.24560.0
196.21140.0
92.7290.0
3Z4S-LE VS-MCA4-F8831 dia.29.0 to
29.2		M27.0
P0.5		403.26480.0
196.21640.0
92.7415.0
3Z4S-LE VS-MCA6.56.5231 dia.23.1 to
23.4		M27.0
P0.5		656.01840.01/2 inch
209.6204.4
98.051.1
3Z4S-LE VS-MCA6.5-F5.65.631 dia.23.1 to
23.4		M27.0
P0.5		656.04560.0
209.6515.6
98.0131.1
3Z4S-LE VS-MCA6.5-F8831 dia.23.1 to
23.4		M27.0
P0.5		656.06480.0
209.6728.9
98.0188.9
3Z4S-LE VS-MCA1010231 dia.24.2 to
25.5		M27.0
P0.5		504.1460.01/2 inch
94.019.2
59.99.2
3Z4S-LE VS-MCA10-F5.65.631 dia.24.2 to
25.5		M27.0
P0.5		504.11140.0
94.049.6
59.922.8
3Z4S-LE VS-MCA10-F8831 dia.24.2 to
25.5		M27.0
P0.5		504.11640.0
94.070.4
59.932.7
FZ-S[]
FZ-SH[]
FH-S[]
FH-S[]X
FZ-S[]2M
FZ-S[]5M3
FZ-S5M2
FH-S[]05R
FH-S[]X05		3Z4S-LE VS-MCA1515231 dia.27.9 to
32.0		M27.0
P0.5		490.7186.72/3 inch
65.44.8
40.32.3
3Z4S-LE VS-MCA15-F5.65.631 dia.27.9 to
32.0		M27.0
P0.5		490.7515.6
65.413.4
40.36.5
3Z4S-LE VS-MCA15-F8831 dia.27.9 to
32.0		M27.0
P0.5		490.7728.9
65.419.2
40.39.2
3Z4S-LE VS-MCA2020231 dia.24.5 to
32.0		M27.0
P0.5		516.8105.02/3 inch
81.83.2
50.71.5
3Z4S-LE VS-MCA20-F5.65.631 dia.24.5 to
32.0		M27.0
P0.5		516.8290.0
81.89.0
50.73.9
3Z4S-LE VS-MCA20-F8831 dia.24.5 to
32.0		M27.0
P0.5		516.8415.0
81.812.8
50.75.6
3Z4S-LE VS-MCA2525231 dia.27.0 to
38.5		M27.0
P0.5		514.667.22/3 inch
106.63.2
55.61.0
3Z4S-LE VS-MCA25-F5.65.631 dia.27.0 to
38.5		M27.0
P0.5		514.6188.8
106.69.0
55.62.7
3Z4S-LE VS-MCA25-F8831 dia.27.0 to
38.5		M27.0
P0.5		514.6268.8
106.612.8
55.63.8
3Z4S-LE VS-MCA3030231 dia.24.5 to
36.2		M27.0
P0.5		513.553.32/3 inch
213.58.2
80.11.3
3Z4S-LE VS-MCA30-F5.65.631 dia.24.5 to
36.2		M27.0
P0.5		513.5131.1
213.522.8
80.13.2
3Z4S-LE VS-MCA30-F8831 dia.24.5 to
36.2		M27.0
P0.5		513.5188.9
213.532.7
80.14.6
3Z4S-LE VS-MCA3535231 dia.32.0 to
45.7		M27.0
P0.5		163.93.02/3 inch
145.92.2
83.10.7
3Z4S-LE VS-MCA35-F5.65.631 dia.32.0 to
45.7		M27.0
P0.5		163.98.4
145.96.5
83.11.7
3Z4S-LE VS-MCA35-F8831 dia.32.0 to
45.7		M27.0
P0.5		163.912.0
145.99.2
83.12.5
3Z4S-LE VS-MCA5050231 dia.44.0 to
63.4		M27.0
P0.5		633.632.52/3 inch
270.16.0
128.71.3
3Z4S-LE VS-MCA50-F5.65.631 dia.44.0 to
63.4		M27.0
P0.5		633.675.0
270.113.4
128.72.9
3Z4S-LE VS-MCA50-F8831 dia.44.0 to
63.4		M27.0
P0.5		633.6107.5
270.119.2
128.74.1
3Z4S-LE VS-MCA7575231 dia.70.0 to
105.5		M27.0
P0.5		562.916.72/3 inch
404.49.2
153.81.3
3Z4S-LE VS-MCA75-F5.65.631 dia.70.0 to
105.5		M27.0
P0.5		562.928.6
404.413.4
153.82.5
3Z4S-LE VS-MCA75-F8831 dia.70.0 to
105.5		M27.0
P0.5		562.941.2
404.419.2
153.83.6

Note: Vibrations and Shocks Resistant Lenses for 1-inch image sensors are also available. Ask your OMRON representative for details.
* Calculated using a permissible circle of confusion diameter of 0.04 mm.

last update: August 1, 2018


OMRON 3Z4S-LE VS-MCA Series specification

3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Specifications

last update: August 1, 2018

MountingC mount
Ambient temperatureOperating: -5 to 50°C,
Storage: -10 to 60°C (with no icing or condensation)
Ambient humidityOperating: 35% to 80%,
Storage: 35% to 90% (with no condensation)

last update: August 1, 2018


OMRON 3Z4S-LE VS-MCA Series catalog

3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
Vision Accessory Catalog Q198-E1-09
[54080KB] 		Dec 06, 201820181206 Vision Accessory Catalog


OMRON 3Z4S-LE VS-MCA Series dimension

3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Dimensions

last update: August 1, 2018

(Unit: mm)

3Z4S-LE VS-MCA4

3Z4S-LE VS-MCA Series Dimensions 1

3Z4S-LE VS-MCA6.5

3Z4S-LE VS-MCA Series Dimensions 2

3Z4S-LE VS-MCA10

3Z4S-LE VS-MCA Series Dimensions 3

3Z4S-LE VS-MCA15

3Z4S-LE VS-MCA Series Dimensions 4

3Z4S-LE VS-MCA20

3Z4S-LE VS-MCA Series Dimensions 5

3Z4S-LE VS-MCA25

3Z4S-LE VS-MCA Series Dimensions 6

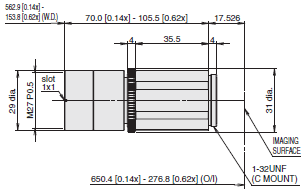

3Z4S-LE VS-MCA30

3Z4S-LE VS-MCA Series Dimensions 7

3Z4S-LE VS-MCA35

3Z4S-LE VS-MCA Series Dimensions 8

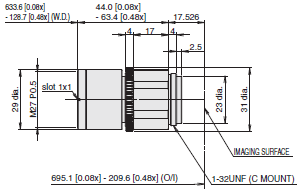

3Z4S-LE VS-MCA50
