• Decodes / second: up to 1000

• Read Range: 51 to 254 mm

• Wide Scan Angle

• IP54 Enclosure

ESP® Easy Setup Program: Single-point software provides quick and easy setup and configuration of all OMRON Microscan readers.

EZ Button: This performs reader setup and configuration with no computer required.

Compact & Lightweight

44.5 mm square by 21.6 mm tall scanner weighs only 57 g for easy mounting onto robotic equipment or into tight spaces.

High Scan Speed

Adjustable scan speed from 300 up to 1000 decodes per second and OMRON Microscan's world-class decode algorithms ensure accurate reading every time.

Wide Scan Angle

The wide scan angle of over 70 degrees and a factory customizable focal point add up to space savings within your system, allowing greater flexibility with positioning.

Visible Indicators

Illuminated LEDs on top of the scanner provide visual confirmation of the scanner performance.

Real-time Controls

The inputs include a trigger signal, a “new master” input, and a programmable input for resetting counters or releasing outputs. The outputs can be configured to activate upon a variety of conditions including matchcode and diagnostic operations.

Application Examples

• Clinical instruments
• Bank ATMs
• Parking kiosks
• Point-of-sale terminals
• Robotics

MS–3: Available Codes

last update: December 3, 2018

Purchase the OMRON Code Readers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON MS-3 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the MS-3 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON MS-3 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NE1A-SCPU Series Safety Network Controller/Features
MY-GS Miniature Power Relays/Features
G3NE Solid State Relays/Features
V640 Series RFID System (Conforms to SEMI standard, Electromagnetic Inductive 134 kHz)/Features
CRT1-[]D16S(-1) / []D32S(-1) / []D16SH(-1) / []D32SH(-1) Digital I/O Slave Units with e-CON Conne...

OMRON MS-3 Series catalog
MS-3 Series Laser Barcode Scanner/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Code Reader Group Catalog Q263-E1-01
[4236KB] Jan 17, 201920190117 Code Reader Group Catalog

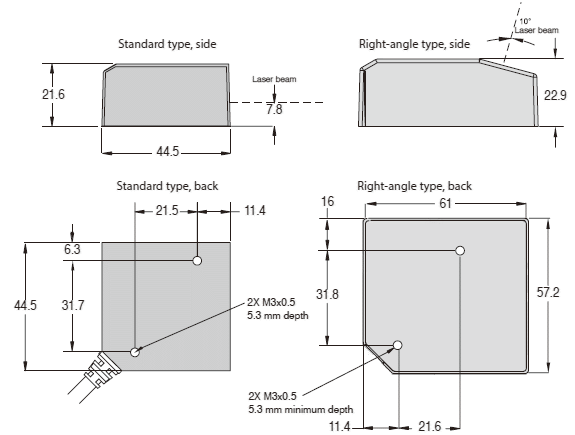

OMRON MS-3 Series dimension
MS-3 Series Laser Barcode Scanner/Dimensions
last update: December 3, 2018

(Unit: mm)

Laser Label Indications
This warning label is attached to the laser Barcode scanner.
Never remove this label or place objects in front of it.

last update: December 3, 2018

OMRON MS-3 Series specification
MS-3 Series Laser Barcode Scanner/Specifications
last update: December 3, 2018

Applicable codes Code 39, Code 128, Interleaved 2 of 5, Codabar, Code 93, UPC / EAN, Pharmacode
Reading
performance Scan mode Single line, fixed raster
Scan rate Adjustable from 300 to 1,000 scans / s, default=500
Scan width angle >70°
Pitch ±50°
Skew ±40°
Label contrast 25% min. at 650 nm
Communications Interface RS-232, RS-422 / 485, USB
Protocols Point-to-Point, Point-to-Point w / RTS / CTS, Point-to-Point w / XON / XOFF,
Point-to-Point w / RTS / CTS & XON / XOFF, Polling Mode D, Multidrop,
User Defined, User Defined Multidrop, Daisy Chain
I / O
specifications Trigger input 3 to 24 V rated (1 mA at 5 VDC)
New Master 3 to 24 V rated (1 mA at 5 VDC)
Outputs (1, 2, 3) 5 V TTL compatible, can sink 10 mA and source 2 mA
Beeper Good read, Match/Mismatch, Noread
On / Off LEDs 1 status, 1 power, 5 read performance (representing percentage of good decodes)
Power requirement 5 VDC±5%, 200 mV p-p max. ripple, 260 mA at 5 VDC (typ.)
Laser light Type Semiconductor visible laser diode (650 nm nominal)
Safety class IEC 60825-1 Class II, 1.0 mW max.
Environmental
specifications Ambient
temperature range Operating: 0 to 50°C, Storage: -40 to 75°C
Ambient
humidity range Up to 90% (with no icing or condensation)
Operating life 40,000 hours at 25°C
Degree of
protection IP54 (category 2)
Weight Standard Approx. 106 g
Right Angle Approx. 136 g
Safety standards FCC, UL / cUL, CE, BSMI

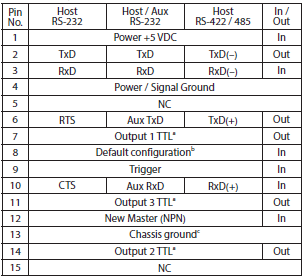

HOST CONNECTOR / PIN ASSIGNMENTS

High Density 15 Pin D-sub Socket Connector

a. Can sink 10 mA and source 2 mA.
b. The default is activated by connecting pin 8 to ground pin 4.
c. Chassis ground: Used to connect chassis body to earth ground only. Not to be used as power or signal return.

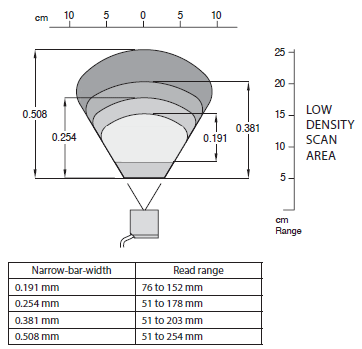

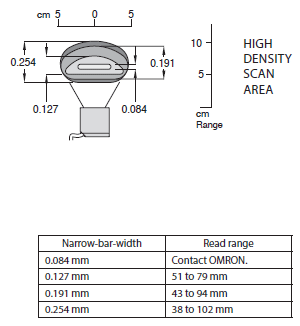

Read Ranges
