OMRON G3NE dimension

last update: November 12, 2012

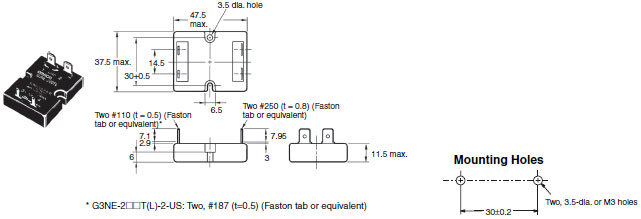

G3NE-205T(L)/210T(L)/220T(L)(-2)-US

Heat Sink

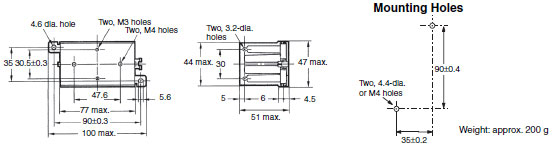

Y92B-N50

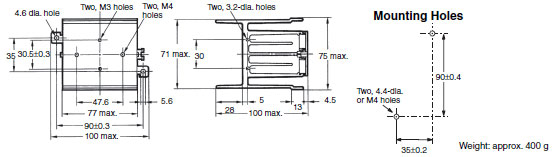

Y92B-N100

last update: November 12, 2012

OMRON G3NE specification

last update: September 24, 2012

Ratings (at an Ambient Temperature of 25°C)

Input

Rated voltage	Operating voltage	Voltage level		Input impedance
		Must operate	Must release	With zero cross function	Without zero cross function
5 VDC	4 to 6 VDC	4 VDC max.	1 VDC min.	250 Ω±20%	300 Ω±20%
12 VDC	9.6 to 14.4 VDC	9.6 VDC max.		600 Ω±20%	800 Ω±20%
24 VDC	19.2 to 28.8 VDC	19.2 VDC max.		1.6 kΩ±20%

Note: Each model has 5-VDC, 12-VDC, and 24-VDC input versions.

Output

Model	Applicable load
	Rated load voltage	Load voltage range	Load current (See note 1.)		Inrush current
			With heat sink	Without heat sink
G3NE-205T(L)(-2)-US	100 to 240 VAC	75 to 264 VAC	0.1 to 5 A at 40 ° C	0.1 to 5 A at 40 ° C	60 A (60 Hz, 1 cycle)
G3NE-210T(L)(-2)-US			0.1 to 10 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	150 A (60 Hz, 1 cycle)
G3NE-220T(L)(-2)-US			0.1 to 20 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	220 A (60 Hz, 1 cycle)

Note: 1. The load current varies depending on the ambient temperature. Refer to Load Current vs. Ambient Temperature
              under Engineering Data for details on Data Sheet.
          2. These values apply when using a dedicated heat sink or a radiation plate of specified size.

Characteristics

Item	G3NE-2[][]T(-2)-US	G3NE-2[][]TL(-2)-US
Operate time	1/2 of load power source cycle + 1 ms max.	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.
Leakage current	2 mA max. (at 100 VAC) 5 mA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance	Destruction: 1,000 m/s2
Ambient temperature	Operating: -30°C to 80°C (with no icing or condensation) Storage: -30°C to 100°C (with no icing or condensation)
Ambient humidity	Operating: 45% to 85%
Certified standards	UL508 File No.E64562/CSA C22.2 (No.0, No.14) File No. LR35535 TÜV R9051064 (VDE0435) (EN60950)
EMC	Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2
Weight	Approx. 37 g

last update: September 24, 2012

OMRON G3NE lineup

last update: April 12, 2017

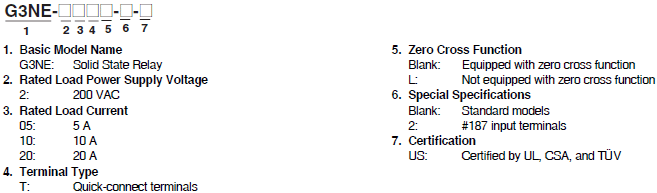

Model Number Legend

List of Models

Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage (See note 1, 2.)	Model
Phototriac	Yes	No	5 A at 100 to 240 VAC	5VDC	G3NE-205T-US DC5 G3NE-205T-2-US DC5
				12VDC	G3NE-205T-US DC12 G3NE-205T-2-US DC12
				24VDC	G3NE-205T-US DC24 G3NE-205T-2-US DC24
			10 A at 100 to 240 VAC	5VDC	G3NE-210T-US DC5 G3NE-210T-2-US DC5
				12VDC	G3NE-210T-US DC12 G3NE-210T-2-US DC12
				24VDC	G3NE-210T-US DC24 G3NE-210T-2-US DC24
			20 A at 100 to 240 VAC	5VDC	G3NE-220T-US DC5 G3NE-220T-2-US DC5
				12VDC	G3NE-220T-US DC12 G3NE-220T-2-US DC12
				24VDC	G3NE-220T-US DC24 G3NE-220T-2-US DC24
	No		5 A at 100 to 240 VAC	5VDC	G3NE-205TL-US DC5 G3NE-205TL-2-US DC5
				12VDC	G3NE-205TL-US DC12 G3NE-205TL-2-US DC12
				24VDC	G3NE-205TL-US DC24 G3NE-205TL-2-US DC24
			10 A at 100 to 240 VAC	5VDC	G3NE-210TL-US DC5 G3NE-210TL-2-US DC5
				12VDC	G3NE-210TL-US DC12 G3NE-210TL-2-US DC12
				24VDC	G3NE-210TL-US DC24 G3NE-210TL-2-US DC24
			20 A at 100 to 240 VAC	5VDC	G3NE-220TL-US DC5 G3NE-220TL-2-US DC5
				12VDC	G3NE-220TL-US DC12 G3NE-220TL-2-US DC12
				24VDC	G3NE-220TL-US DC24 G3NE-220TL-2-US DC24

Note: 1. The rated input voltage depends on the ambient temperature. For details, refer to Load Current vs. Ambient
              Temperature in Engineering Data on Data Sheet.
          2. When ordering, specify the input voltage.
          3. Refer to List of Certified Models for a list of products that comply with safety standards. When ordering a UL,
               CSA, and EN (TÜV) certified model, add "-US" to the model number.

Accessories (Order Separately)

One-touch Mounting Plates

Model	Applicable SSR
R99-12 FOR G3NA	G3NE

Heat Sinks

The following heat sinks are thin and can be DIN-track mounted.
See Dimensions for details.

Model	Applicable SSR
Y92B-N50	G3NE-205T(L)(-2)-US/-210T(L)(-2)-US
Y92B-N100	G3NE-220T(L)(-2)-US

last update: April 12, 2017
