OMRON QX-830 SeriesSensors/ Code Readers / OCR/Code Readers

OMRON QX-830 Series Sensors

QX-830 Series Laser Barcode Scanner/Catalog
QX-830 Series Laser Barcode Scanner/Dimensions
QX-830 Series Laser Barcode Scanner/Specifications
QX-830 Series Laser Barcode Scanner/Lineup
Purchase the OMRON QX-830 Series Code Readers

OMRON QX-830 Series Dimensions

/Images/l_3712-25-284468-198x198.jpg

last update: December 3, 2018

• Scans / second: 300 to 1400

• Read Range: 25 to 762 mm

• Optional Embedded Ethernet TCP / IP & EtherNet / IP

• IP54 Enclosure

ESP®Easy Setup Program: Single-point software solution provides quick and easy setup and configuration of all OMRON Microscan readers.

EZ Button: This performs reader setup and configuration with no computer required.

Visible Indicators: Performance indicators include “good read” green flash and LEDs.

QX Platform: Quick Connect system and X-Mode technology combine to provide simple connectivity, networking, and high performance decoding.

Quick Connect System

• Plug and play setup
• Single or multi-scanner solutions

X-Mode Technology

• Decodes damaged, poorly printed, or misaligned codes
• Ensures high read rates and throughput

High Performance

Aggressive decoding capabilities allow reliable reading of barcodes out to 762 mm, at up to a 254 mm beam width.

Real-time Feedback

Visible LED indicators on the side of the scanner and a “good read” green flash projecting from the front window provide confirmation of the scanner’s performance. The green flash is visible within a complete 360 degree radius from the scanner.

Ethernet Protocols

The QX-830 includes optional embedded Ethernet TCP / IP and EtherNet / IP for high speed communication.

Flexibility

The compact size of the QX-830 allows flexible positioning for a variety of applications.

Application Examples

• Any industrial environment from light to heavy duty
• Conveyor lines
• Packaging and sortation
• Electronics production
• Embedded within machinery

QX–830: Available Codes

last update: December 3, 2018

Purchase the OMRON Code Readers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON QX-830 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the QX-830 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON QX-830 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NJ101-[][][][] NJ-Series NJ101 CPU Units/Features
E2F Resin-case Proximity Sensor/Features
F03-16SF / 16SFC Liquid Leakage Sensing Band/Features
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features
K8DT-VS Single-phase Voltage Relay/Features

OMRON QX-830 Series catalog
QX-830 Series Laser Barcode Scanner/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Code Reader Group Catalog Q263-E1-01
[4236KB] Jan 17, 201920190117 Code Reader Group Catalog

OMRON QX-830 Series dimension

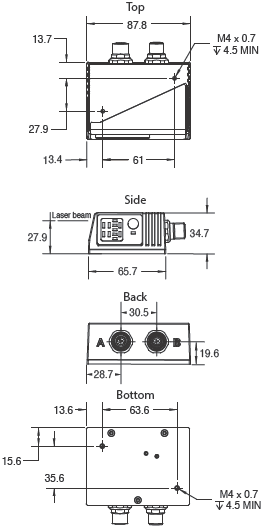

QX-830 Series Laser Barcode Scanner/Dimensions
last update: December 3, 2018

(Unit: mm)

Laser Label Indications
This warning label is attached to the laser Barcode scanner.
Never remove this label or place objects in front of it.

last update: December 3, 2018

OMRON QX-830 Series specification
QX-830 Series Laser Barcode Scanner/Specifications
last update: December 3, 2018

Applicable codes Standard Code 39, Codabar, Code 93, Interleaved 2 of 5, Code 128, PDF417, Micro PDF417, Pharmacode, UPC, GS1 Databar
Application standards UCC / EAN-128, AIAG
Reading
performance Mirror type Rotating, 10-faceted
Optional raster
mirror image 10 raster scan lines over a 2° arc (or 0.500-inch raster height at 8-inch [203-mm] distance)
Scan rate Adjustable from 300 to 1,400 scans / s, default=500
Scan width angle 60° (typ.)
Pitch ±50° max.
Skew ±40° max.
Label contrast 25% min. absolute dark to light differential at 655 nm wavelength
Communications Interface RS-232 / 422 / 485 or Ethernet*
Protocols Point-to-Point, Point-to-Point w / RTS / CTS, Point-to-Point w / XON / XOFF,
Point-to-Point w / RTS / CTS & XON / XOFF, Multidrop, Daisy Chain,
User-Defined Multidrop, Ethernet TCP / IP, EtherNet / IP
I / O
specifications Input 1 / Trigger /
New Master Optoisolated, 4.5 to 28 V rated, (13 mA at 24 VDC) New Master is (-) to signal ground
Outputs (1, 2 & 3) Optoisolated, 1 to 28 V rated, (I_CE <100 mA at 24 VDC, current limited by user)
Power requirement 10 to 28 VDC, 200 mV p-p max. ripple, 180 mA at 24 VDC (typ.)
Laser light Type Laser diode
Output wavelength 655 nm nominal
Beam divergence 0.4 mrad (typ.)
Pulse time 40 to 186 μs
Maximum output 1.75mW
Safety class Visible laser: IEC 60825-1 Class 2
Environmental
specifications Ambient
temperature range Operating: 0 to 50°C, Storage: -40 to 75°C
Ambient
humidity range Up to 90% (with no icing or condensation)
Degree of
protection IP54
Operating life 50,000 hours at 25°C
Weight Approx. 212 g
Dimensions 35 x 65.7 x 87.8 mm (H x D x W)
Safety standards FCC, UL / cUL, CE, CB
Material (Case) Aluminum diecast

* Depends on model. See Ordering Information for details.

PIN ASSIGNMENTS

ETHERNET CONFIGURATION

Read Ranges*

* Ranges based on a Grade A, Code 39 label, at 500 scans per second. Data subject to change.

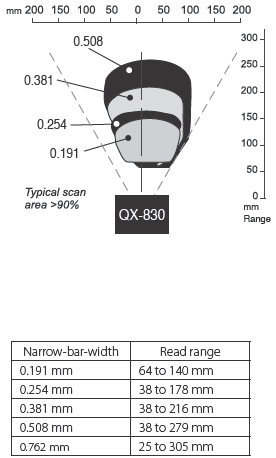

Low Density Scan Area

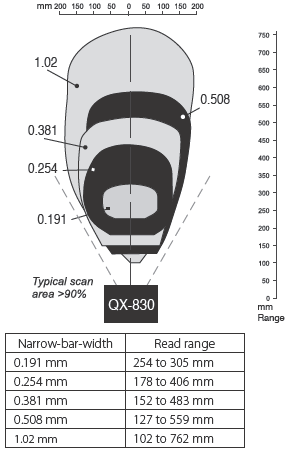

Medium Density Scan Area

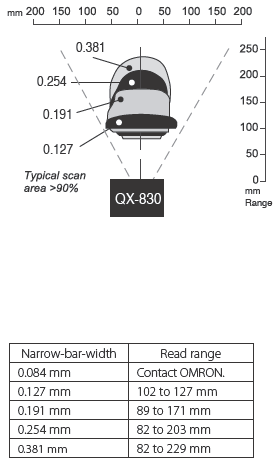

High Density Scan Area

last update: December 3, 2018

OMRON QX-830 Series lineup
QX-830 Series Laser Barcode Scanner/Lineup
last update: January 17, 2019
Laser Barcode Scanners

Scan mode Read range Interface Model
Single Line Low Density Serial *1 FIS-0830-0001G
Middle Density FIS-0830-0002G
High Density FIS-0830-0003G
Raster Line Low Density Serial *1 FIS-0830-0004G
Middle Density FIS-0830-0005G
High Density FIS-0830-0006G
Low Density / Plastic Window FIS-0830-0010G
Single Line Low Density Serial *2 and Ethernet FIS-0830-1001G
Middle Density FIS-0830-1002G
High Density FIS-0830-1003G
Raster Line Low Density Serial *2 and Ethernet FIS-0830-1004G
Middle Density FIS-0830-1005G
High Density FIS-0830-1006G
Low Density / Plastic Window FIS-0830-1010G

*1. Supports RS-232, RS-422, or RS-485.
*2. Supports RS-232.

Accessories

Type Model
QX-1 Interface Device 98-000103-02
QX Cordset, Common, M12 12-pin Socket (Screw-On) to M12 12-pin Plug (Screw-On), 3 m 61-000148-02
QX Cordset, Common, M12 12-pin Socket (Screw-On) to M12 12-pin Plug (Screw-On), 1 m 61-000162-02
QX Cordset, Host, Serial, M12 12-pin Socket (Screw-On) to DB-9 Socket, 1 m 61-000153-02
QX Cordset, Host, Serial, M12 12-pin Socket (Screw-On) to DB-9 Socket, 3 m 61-000164-02
QX Cordset, Host, Serial, M12 12-pin Plug (Screw-On) to DB-9 Socket, 1 m 61-000152-02
QX Cordset, Host, Serial, M12 12-pin Plug (Screw-On) to DB-9 Socket, 3 m 61-000165-02
QX Cordset, Host, Ethernet, M12 8-pin Plug (Screw-On) to RJ45, 1 m 61-000160-03
QX Cordset, M12 12-pin Plug to M12 12-pin Socket to DB-25 Plug Turck Connectors 61-000172-02
QX Cordset, M12 12-pin Plug & M12 12-pin Socket to MS-Connect 210, RS-232, 2 m 61-000158-03
QX Cordset, M12 12-pin Plug (Screw-On) to Flying Leads, 3 m 61-000166-02
QX Cordset, M12 12-pin Plug & Socket to IB-131, RS-232, 2 m 61-000159-03
QX Cordset, M12 12-pin Socket to IB-131, RS-232/RS-485, 2 m 61-000159-04

Power Supplies

Type Model
Power Supply, 100-240 VAC, +24 VDC, M12 12-pin Socket 97-000012-01
Power Supply, 100-240 VAC, +24 VDC, M12 12-Pin Plug 97-000012-04

Note: Do not use the power supplies or power supply cords indicated in this catalog with any other electric or electronic equipment.
When using the QX-830 Series, please use the power supply and power supply cord indicated in this catalog.

Mounting and Connectors

Type Model
Mounting Plate Kit for QX-830 / QX-870 98-500006-01
Right Angle Mirror Kit for QX-830 98-200026-02
Mounting Arm/Adapter Kit for QX-830 / QX-870, 152 mm (6 inches) 98-000016-01
Mounting Arm Extension Kit for all scanners,152 mm (6 inches) 98-000037-01
L-Bracket Kit for QX Series 98-000148-01
Mounting Stand Base Plate Kit 98-000054-01
Trigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131) 20-610024-01

last update: January 17, 2019
