OMRON E52 with Ferrule (Exclusive Models)Control Components/ Temperature Controllers/Input Equipments
OMRON E52 with Ferrule (Exclusive Models) Control Components
- E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Catalog
- E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Specifications
- E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Dimensions
- E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Lineup
- Purchase the OMRON E52 with Ferrule (Exclusive Models) Input Equipments
OMRON E52 with Ferrule (Exclusive Models) Dimensions
/Images/l_3505-25-258920-198x198.jpglast update: April 1, 2016
• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.
• Ideal for the thermal input devices of Temperature Controllers.
• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.
last update: April 1, 2016
Purchase the OMRON Input Equipments Please fill in the following
If you have just landed here, this product OMRON E52 with Ferrule (Exclusive Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 with Ferrule (Exclusive Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 with Ferrule (Exclusive Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
SGE / SCC Safety Edge/Edge Controller/Features
CX-Designer FA Integrated Tool Package CX-One/Features
EE-SPW311 / 411 Long-distance Through-beam Photomicrosensor/Features
CJ2H-CPU6[]-EIP CJ-series CJ2H (Built-in EtherNet/IP) CPU Units/Features
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Features
OMRON E52 with Ferrule (Exclusive Models) catalog
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E52 Data Sheet | - [7536KB] | Feb 08, 201820180208 | E52 Data Sheet |
OMRON E52 with Ferrule (Exclusive Models) specification
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Specificationslast update: April 3, 2017
Exclusive Models (with Ferrule)
Thermocouples for Molding Machines
E52-CA2GVF
| Element type | K (CA) |
|---|---|
| Element diameter | 1.0 mm (single wire) |
| Class | Class 2 (0.75) |
| Protective tubing material | SUS304 |
| Thermal contact | Grounded type |
| Temperature range | 0°C to 350°C |
| Lead wire | Glass-covered stainless steel shielded thermocouple wire with 4 dia. 1/1.0 0°C to 180°C |
Thermocouples with Crimp Terminal
E52-CA1GTF
| Element type | K (CA) |
|---|---|
| Element diameter | 0.65 mm (single wire) |
| Class | Class 2 (0.75) |
| Thermal contact | Grounded type |
| Temperature range | 0°C to 300°C |
| Lead wire | Glass-wool-braided shield with maximum external dimensions of 2.6 x 4.0 1/0.65 0°C to 150°C |
| Terminal shape | Ferrule |
Note: The E52-CA1GTF is also available with double elements.
Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GSF
| Element type | Pt100 |
|---|---|
| Class | Class B |
| Protective tubing material | SUS304 With brass-nickel-plated bracket |
| Conductor type | 3-conductor system |
| Temperature range | -50°C to 250°C |
| Lead wire | Silicone-covered 3-conductor cable and approx. 3.9 dia. 30/0.08 -50°C to 150°C |
Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRF
| Element type | Pt100 |
|---|---|
| Class | Class B |
| Protective tubing material | SUS304 |
| Conductor type | 3-conductor system |
| Temperature range | -50°C to 60°C |
| Lead wire | Vinyl-covered 3-conductor cable with 6.1 dia. 20/0.18 -20°C to 60°C |
Waterproof Platinum Resistance Thermometers
E52-P10GPF
| Element wire | Pt100 |
|---|---|
| Class | Class B |
| Protective tubing material | SUS304 |
| Conductor type | 3-conductor system |
| Temperature range | 0°C to 70°C (underwater) -20°C to 70°C (in the air) |
| Lead wire | Vinyl-covered 3-conductor cable with 6.1 dia. 12/0.18 -25°C to 60°C |
| Resistive pressure | 10 kg/cm2 max. |
Corrosion-resistant Models with Fluororesin-covered Protective Tubing (with Ferrule)
FEP-molded Models (Completely Waterproof)
E52-P5AF-40
| Element type | Pt100 |
|---|---|
| Class | Class B |
| Protective tubing material | Fluororesin (FEP) tube (element / fluororesin mold (FEP)) |
| Conductor type | 3-conductor system |
| Temperature range | -50°C to 180°C |
| Lead wire | Fluororesin (FEP) cover (with outer cover): -50°C to 180°C |
Silicone-covered Lead Wires Models (with Ferrule)
Thermocouples Exposed-lead Models with Screws
E52-CA1DF-40
| Element type | K (CA) |
|---|---|
| Class | Class 2 (0.75) |
| Screw material | SUS304 |
| Thermal contact | Grounded type |
| Temperature range | 0°C to 300°C |
| Lead wire | Silicone-covered (0.1/30): 0°C to 150°C |
| Terminal shape | Ferrule |
Note: Refer to the installation example for the E52-CA1DY.
Thermocouples with Crimp Terminal
E52-CA1GTF-14
| Element type | K (CA) |
|---|---|
| Class | Class 2 (0.75) |
| Thermal contact | Grounded type |
| Temperature range | 0°C to 200°C |
| Lead wire | Silicone-covered: 0°C to 150°C |
| Terminal shape | Ferrule |
last update: April 3, 2017
OMRON E52 with Ferrule (Exclusive Models) dimension
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Dimensionslast update: February 8, 2018
(Unit: mm)
Exclusive Models (with Ferrule)
Thermocouples for Molding Machines

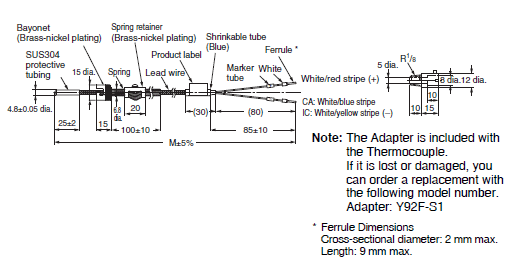

E52-CA2GVF
Thermocouples with Crimp Terminal

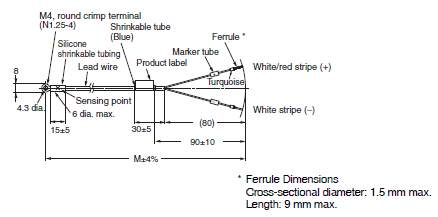

E52-CA1GTF
Platinum Resistance Thermometers for Surface Temperature Measurement

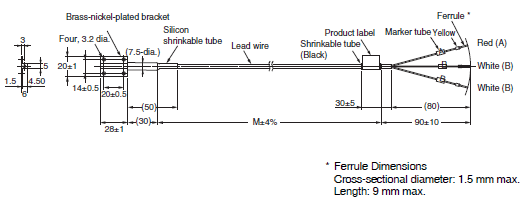

E52-P2GSF
Platinum Resistance Thermometers for Room Temperature Measurement

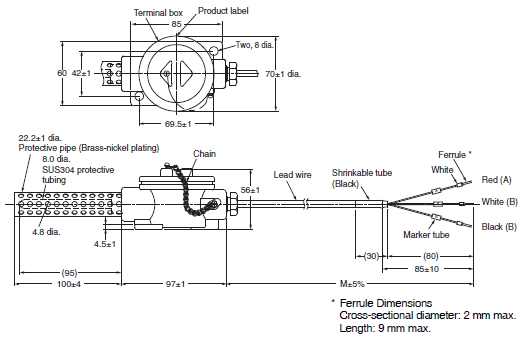

E52-P10GRF
Waterproof Platinum Resistance Thermometers

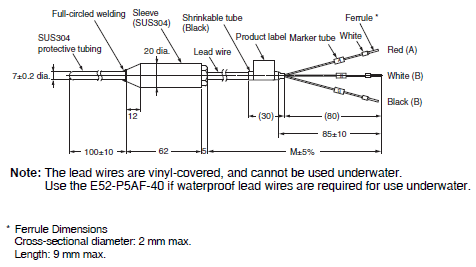

E52-P10GPF
Corrosion-resistant Models with Fluororesin-covered Protective Tubing (with Ferrule)
FEP-molded Models (Completely Waterproof)

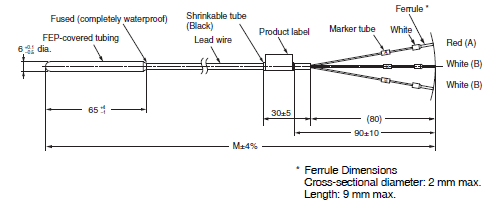

E52-P5AF-40
Silicone-covered Lead Wires Models (with Ferrule)
Thermocouples Exposed-lead Models with Screws
E52-CA1DF-40
Thermocouples with Crimp Terminal

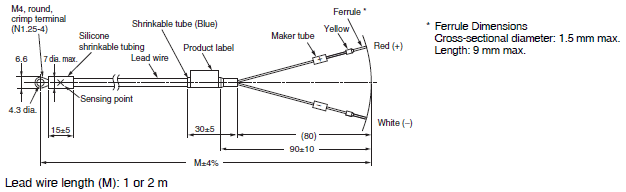

E52-CA1GTF-14
last update: February 8, 2018
OMRON E52 with Ferrule (Exclusive Models) lineup
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Lineuplast update: April 3, 2017
| Classifi- cation | Descrip- tion | Model and appearance | Tempera- ture range (See note 3.) | Element type | Conduc- tor type | Class | Protec- tive tubing material | Terminal type | |
|---|---|---|---|---|---|---|---|---|---|
| Exclusive Models | Bayonet spring for molding machines | E52-CA2GVF |  | 0°C to 350°C | K (CA) | Grounded type | 2 (0.75) | SUS304 | Exposed lead wires |
| Crimping terminals | E52-CA1GTF |  | 0°C to 300°C | --- | |||||
| Used for measuring surface tempera- tures | E52-P2GSF |  | -50°C to 250°C | Pt100 | 3-conduc- tor system | B | SUS304 | ||
| Used for room tempera- ture measure- ment | E52-P10GRF |  | -50°C to 60°C | ||||||
| Waterp- roof model | E52-P10GPF |  | 0°C to 70°C | ||||||
| E52-P5AF-40 |  | -50°C to 180°C | Fluoro- resin tubing | ||||||
| Silicone- covered lead wires | E52-CA1DF-40 |  | 0°C to 300°C | K (CA) | Grounded type | 2 (0.75) | SUS304 | ||
| E52-CA1GTF-14 |  | 0°C to 200°C | --- | ||||||
Note: 1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.
2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.
Exclusive Models (with Ferrule)
Thermocouples for Molding Machines
E52-CA2GVF
| Lead wire length (m) | Element type: K (CA) |
|---|---|
| Model | |
| 1 | E52-CA2GVF 1M |
| 2 | E52-CA2GVF 2M |
Thermocouples with Crimp Terminal
E52-CA1GTF
| Lead wire length (m) | Element type: K (CA) |
|---|---|
| Model | |
| 1 | E52-CA1GTF 1M |
| 2 | E52-CA1GTF 2M |
Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GSF
| Lead wire length (m) | Model |
|---|---|
| 1 | E52-P2GSF 1M |
| 2 | E52-P2GSF 2M |
Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRF
| Lead wire length (m) | Model |
|---|---|
| 2 | E52-P10GRF 2M |
Waterproof Platinum Resistance Thermometers
E52-P10GPF
| Lead wire length (m) | Model |
|---|---|
| 2 | E52-P10GPF 2M |
| 4 | E52-P10GPF 4M |
Corrosion-resistant Models with Fluororesin-covered Protective Tubing (with Ferrule)
FEP-molded Models (Completely Waterproof)
E52-P5AF-40
| Model | Lead wire length (m) |
|---|---|
| E52-P5AF-40 2M | 2 |
| E52-P5AF-40 4M | 4 |
Silicone-covered Lead Wires Models (with Ferrule)
Thermocouples Exposed-lead Models with Screws
E52-CA1DF-40
| Model | Screw pitch | Lead wire length (m) |
|---|---|---|
| E52-CA1DF-40 M6 1M | M6 (P=1.0) | 1 |
| E52-CA1DF-40 M6 2M | M6 (P=1.0) | 2 |
| E52-CA1DF-40 M6 4M | M6 (P=1.0) | 4 |
Thermocouples with Crimp Terminal
E52-CA1GTF-14
| Model | Lead wire length (m) |
|---|---|
| E52-CA1GTF-14 1M | 1 |
| E52-CA1GTF-14 2M | 2 |
last update: April 3, 2017
- NO. E52 with Ferrule (Exclusive Models)
- TYPE:Temperature Controllers Input Equipments
Copyright Statement - DATE:2021-06-08
- Associated products:
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Features E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features
