• Stitching feature to grade barcodes larger than the field of view.
• Ideal for multiple line production and warehouse environments.
• Validates printed barcodes to ISO / IEC, ANSI, GS1, and UDI print quality standards.
• Validates direct part marks (DPM) to ISO, MIL-STD-130, and GS1 standards.
• Software upgrade options include Multi-Sector for verification of multiple barcodes on a label.
• 21 CFR Part 11 compliant-ready
• Supports 15 languages.
• Quality data reporting for auditing purposes.
• Includes NIST-Traceable Calibrated Conformance Standard Test Card for calibrating the system.
ISO/ANSI for 1D
LVS-95XX series barcode verifiers inspect all nine ISO and ANSI parameters for linear (1D) barcodes, have the ability to identify blemishes, and can perform simple human-readable validation.
ISO/ANSI for 2D
The LVS-95XX series verifies 2D codes and reports all parameters as specified in the applicable symbology specification.
Analytical Tools
Equipped with numerous analytical tools to identify and evaluate barcode errors.
Problems are color-coded to make problem solving easy.
Software
LVS-95XX software includes GS1 System Symbol Specification Tables. GS1 tables set standards for barcode data structure and how to maintain the quality of codes during barcode creation. OMRON Microscan offers an online training course on GS1 tables and how these apply to different organizations.
Software Upgrade: EAIV
The Enhanced Application Identifier Verification (EAIV) option verifies that all GS1 Application Identifiers, such as Expiration Date, Global Trade Item Number (GTIN), and Batch Number, embedded in the data structure of a GS1 barcode match the data programmed in the EAIV feature by the user.
User Permission Options
Manage permissions through LVS-95XX software: Passwords are stored in a local database.
All passwords are encrypted, include an expiration date, and count failed password attempts.
Manage permissions through Microsoft Active Directory: User privileges are based on Microsoft authentication and LVS-95XX permissions are assigned based on group membership.
Portability
Connects to the latest Windows OS tablets.
LVS-9580: Available Symbologies
last update: December 3, 2018
Purchase the OMRON Verification Systems Please fill in the following
If you have just landed here, this product OMRON LVS-9580 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the LVS-9580 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON LVS-9580 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
K3SC Interface Converter/Features
E3C-LDA Photoelectric Sensor with Separate Digital Amplifier (Laser-type)/Features
E5CD / E5CD-B Digital Temperature Controller (48 x 48 mm)/Features
XS5, XS6 Industrial Ethernet Cables/Features
CS1W-PDC / PTW / PTR SYSMAC CS-series Process Analog I/O Units/Features
OMRON LVS-9580 Series catalog
LVS-9580 Series Code Verification System/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Code Reader Group Catalog | Q263-E1-01 [4236KB] | Jan 17, 201920190117 | Code Reader Group Catalog |
OMRON LVS-9580 Series specification
LVS-9580 Series Code Verification System/Specificationslast update: December 3, 2018
| Supported standards | Application standards | AIAG / DAMA / JAPIA / Odette |
|---|---|---|
| ALDI | ||
| ISO / IEC TR 29158 | ||
| DHL | ||
| FPMAJ | ||
| French CIP | ||
| GS1 General Specifications | ||
| HDMA Guidelines | ||
| Health Industry Barcode (HIBC) | ||
| IFAH | ||
| ISO / IEC 15415 / 15416 | ||
| Italian Pharmacode | ||
| Japan Codabar | ||
| Laetus Miniature Pharmacode | ||
| Laetus Pharmacode | ||
| Laetus Standard | ||
| MIL-STD-130N Change 1 | ||
| Pharmacy Product Number (PPN) | ||
| Automatic GS1 or ISO | ||
| GS1 (NTIN) | ||
| Miniature Pharmacode | ||
| Postal (EIB, USPS IMB / Code 128, POSTNET, Japan Post) | ||
| PZN-big normal small (German Pharmacode) | ||
| GS1 (NTIN) | Data Matrix for Healthcare | |
| Data Matrix (ECC 200) | ||
| EAN / UPC | ||
| EAN / UPC and Extended Codes | ||
| EAN / UPC with CC | ||
| GS1 DataBar Omnidirectional | ||
| ITF-14 | ||
| GS1 DataBar-14 with CC (formerly RSS-14 with CC) | ||
| UCC / EAN with Supplementals | ||
| UCC / EAN-128 | ||
| UCC / EAN-128 with CC | ||
| ISO conformance standards | ISO / IEC 15415, 15416, 15418 | |
| ISO / IEC 15426-1, 15426-2 | ||
| ISO / IEC TR29158 (DPM Cat 0) / AIM DPM-1-2006 | ||
| All supported ISO/IEC symbology specifications | ||
| Supported symbologies | Linear (1D) symbologies | Codabar |
| Code 128 Code 39 Code 93 | ||
| GS1 DataBar Expanded and Limited | ||
| DataBar | ||
| DataBar Expanded and Limited | ||
| DataBar Omnidirectional | ||
| DataBar Stacked and Truncated | ||
| EAN/JAN-13 | ||
| EAN/JAN-8 | ||
| Enterprise Intelligent Barcode (EIB) 4-State (4SB) | ||
| French CIP | ||
| GS1-128 | ||
| Hanxin Code | ||
| HIBC | ||
| Interleaved 2 of 5 (ITF) | ||
| ITF-14 | ||
| Japan Post | ||
| MaxiCode | ||
| MSI Plessey | ||
| Pharmacode-Italian and Laetus | ||
| PZN 7 and PZN 8 | ||
| UPC-A and UPC-E | ||
| USPS-128 | ||
| USPS Intelligent Mail Barcode (4-State Barcode) | ||
| Two-dimensional (2D) symbologies | Aztec Code | |
| DataBar with CC-A, CC-B, or CC-C | ||
| EAN/JAN-13 with CC-A, CC-B, or CC-C | ||
| EAN/JAN-8 with CC-A, CC-B, or CC-C | ||
| ECC-200 (Data Matrix) | ||
| Enterprise Intelligent Barcode (EIB) Complex Mail Data Marks (CMDM) | ||
| GS1-128 with CC-A, CC-B, or CC-C | ||
| Micro QR Code | ||
| MicroPDF417 | ||
| PDF417 | ||
| QR Code | ||
| UPC-A with CC-A, CC-B, or CC-C | ||
| UPC-E with CC-A, CC-B, or CC-C | ||
| Minimum PC requirements (PC supplied by customer) | • Windows®7 Pro SP1 or Windows®10 Pro • Intel® Core™ i3 or higher • 4 GB RAM • 800 x 600 screen resolution • One USB 2.0 port available per unit | |
| Field of view | Standard (9580-C-3) | 76.19 mm horizontal 57.15 mm vertical |
| DPM (9580-DPM) | 44 x 44 mm | |
| HD (9580-DPM-HD) | 33 x 30 mm | |
| Minimum cell size | Standard (9580-C-3) DPM (9580-DPM) | 1D = 4.0 mils (0.10 mm) 2D = 5.9 mils (0.15 mm) |
| HD (9580-DPM-HD) | 2D = 2.0 mils (0.05 mm) | |
| Camera | 5 million pixels | |
| Object distance: Contact | ||
| Illumination | Red dome (660 nm) | |
| Environmental specifications | Ambient temperature range | Operating: 4 to 46°C, Storage: -20 to 60°C |
| Ambient humidity range | Operating: 20% to 80% (with no icing or condensation), Storage: 20% to 95% (with no icing or condensation) | |
| Communications | USB 2.0 A plug to Mini-B plug cable, 2 m | |
| Power supply | USB powered 5 VDC at 400 mA | |
| Weight | Unpackaged standalone | Approx. 0.64 kg |
| Shipping weight | Approx. 1.81 kg (includes all cables and other items packaged in shipping box) | |
| Dimensions | 215.9 x 139.7 x 120.6 mm (H x D x W) | |
| Calibrated Conformance Test Card (Included with system) | EAN / UPC Calibrated Conformance Standard Test Card | |
| Safety standards | FCC, CE, UL | |
* Contact OMRON for a complete list of supported ECC-200 (Data Matrix) codes.
CC=Composite Components
last update: December 3, 2018
OMRON LVS-9580 Series lineup
LVS-9580 Series Code Verification System/Lineuplast update: December 3, 2018
Code Verification Systems
| Type | Model |
|---|---|
| LVS-9580 Handheld 1D & 2D Barcode Verification | 9580-C-3 |
| LVS-9580 Handheld 1D, 2D & DPM Barcode Verification | 9580-DPM |
| LVS-9580 Handheld 1D, 2D & DPM Barcode Verification, High Resolution | 9580-DPM-HD |
Accessories
| Type | Model |
|---|---|
| EAN / UPC Calibrated Conformance Test Card | 98-CAL020 |
| GS1-128 Calibrated Conformance Test Card | 98-CAL021 |
| Data Matrix Calibrated Conformance Test Card | 98-CAL010 |
| LVS-9510 and LVS-958[] Software Upgrade Option: Multi-Sector Verification | 98-SOF0039 |
| LVS-95[][] Software Upgrade Option: Automatic Login Feature | 98-SOF0056 |
| Software Upgrade Option: EAIV (Enhanced Application Identifier Verification) | 98-SOF0088 |
| LVS-9580 Upgrade (1D / 2D to DPM) | 98-SOF0095 |
| LVS-95[][] IQ-OQ Validation Procedure Guidelines, v. 4.3 and later (includes text cards) | 98-LVS0077 |
| Validation Test Cards (25 test cards) | 98-LVS-VTC |
| LVS-9580 / 9585 Mounting Stand Adapter Bracket for use with AMSCOPE BSS-140 | 98-9000200-01 |
last update: December 3, 2018
OMRON LVS-9580 Series dimension

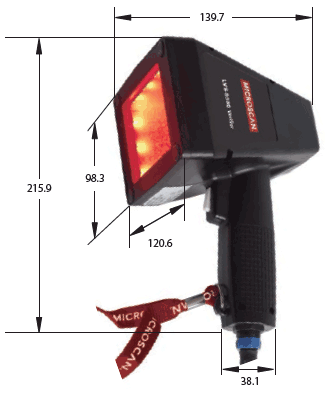

LVS-9580 Series Code Verification System/Dimensionslast update: December 3, 2018
(Unit: mm)
last update: December 3, 2018
