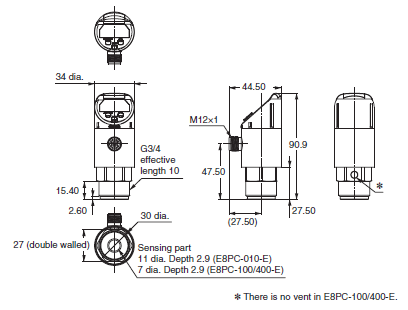

OMRON E8PC Dimensions

/Images/l_3721-25-284597-198x198.jpg

last update: July 2, 2018

Prevents press defects and processing defects due to hydraulic pressure abnormalities

Multi-sensing technology

[Pressure] Uses a piezoelectric element. Since the sensing surface is made of a high-hard ceramics, it withstands high pressure.

[Temp.] Uses a temperature measuring element to measure the liquid temperature transmitted to the piezoelectric element. Uses a unique algorithm to estimate the temperature more accurately.

Pressing machine

Problems

[Press quality defects due to rises in hydraulic oil temperature]

• Rising temperatures reduce the viscosity of the hydraulic oil.
• Hydraulic pressure reduction leads to inconsistent press quality.
• You cannot detect a temperature rise by pressure monitoring alone.

Solution from OMRON

You can use signs of press pressure reduction to prevent the occurrence of product defects

With temperature monitoring, you can detect signs of abnormalities that can cause reductions in hydraulic oil viscosity.
With simultaneous monitoring of temperature and pressure in the same position, you can quantify the optimum ranges for temperature and oil pressure without relying on the experience or skills of maintenance personnel.

Machining center

Problems

[Tool gripping force declines due to hydraulic oil leak]

• Hydraulic oil temperature rises with repeated tool changes.
• Pipe packing deteriorates, resulting in hydraulic oil leak.
• Oil pressure reduction causes reduction in processing quality.
• The hydraulic pressure system is divided into multiple sections, so finding degraded packing locations takes time.

Solution from OMRON

You can use a rise in hydraulic oil temperature to detect signs of hydraulic oil leak

You can monitor hydraulic oil temperature changes to understand how much of a rise in temperature will have an effect on packing degradation.
By mounting sensors on multiple pipes, you can quickly tell from the sensor LED displays what abnormality has occurred, in which pipe.

Notifications of changes in the cooling water or hydraulic oil states are easy to understand

You can see the cause of the abnormality Multi-sensing display [Patent pending]

The sensor judges by monitoring "Flow rate + Temperature" and "Pressure + Temperature". Since data outputs to a PLC by the IO-Link communications is possible, it is easy to perform maintenance before entering an abnormal state. For the display colors, you can set 3 patterns, or if combined with Not lit, a total of 4 patterns.

You can also see the sensor status Self-diagnostic outputs

Self-diagnoses the sensor's own status, and autonomously sends notification when signs of a connection error or a malfunction appears.

Easy to see High luminosity LED display

A high luminosity LED gives good visibility even at the back of equipment or in dark locations.

Easy to understand Display by unit

Converts to physical quantity units for display.

Adjust the angle according to the mounting position

Angle adjustment up to 330°

After fastening to the adapter, you can adjust the angle so that the display is easy to see.

180° reverse display

The display can rotate 180°.

Easy to use in various location

Compact and space-saving

You can even mount in narrow spaces with multiple pipes arrayed.

Direct setting

Button on the body for quick setting. After setting, you can use the key lock function to prevent operation in error.

Highly durable liquid contact part

Batch setting from host devices

During maintenance, the settings must be the same conditions as when the product was initially mounted. If you use the IO-Link function, you can perform batch setting from a host device. You can manage by quantifying the adjustment that is performed by skilled personnel to avoid affecting the manufacturing quality.

Easy-to-clean structure

Structure is easily removable from the piping for periodic inspections, etc., and easily cleaned.

Expanded cable and adapter lineups (sold separately)*

* Use our dedicated adapters. In addition, if there is a possibility of pulsations or vibrations to a Pressure Sensor, we recommend the attachment of a throttle (sold separately).

last update: July 2, 2018

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E8PC Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E8PC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E8PCSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

CS1W-MC Motion control units/Features
E32-L11FP / L1[]FS, E3X-DA[][]TG-S Wet Process Sensor/Features
CS1W-EIP21 CS-series EtherNet/IP Unit/Features
NX-ID / IA / OD / OC / MD NX-series Digital I/O Unit/Features
XW2C-20G6-IO16 Connector-Terminal Block Conversion Unit with Two-tiered I/O Terminal Block with C...

OMRON E8PC specification
E8PC IoT Pressure Sensors/Specifications
last update: September 3, 2018
Sensors

Model PNP(COM2) E8PC-010D-E E8PC-100D-E E8PC-400D-E
PNP(COM3) E8PC-010T-E E8PC-100T-E E8PC-400T-E
NPN E8PC-010-E E8PC-100-E E8PC-400-E
Pressure
monitoring
*1 Rated pressure range -0.1 to 1 MPa 0 to 10 MPa 0 to 40 MPa
Display range -0.20 to 1.10 MPa -0.10 to 11.00 MPa -0.10 to 44.00 MPa
Withstand pressure *2 4 MPa 30 MPa 50 MPa
Burst pressure 8 MPa 60 MPa 80 MPa
Display resolution 0.001 MPa 0.01 MPa 0.01 MPa
Applicable fluid
temperature *3 -20 to +100°C (no icing or condensation)
Pressure response
time *4 Control output: Select 3 to 6000 ms
Analog output: Set value + 2 ms (90% response)
Pressure monitoring
precision ±1.0% of F.S. or less
Pressure repeatability *5 ±0.3% of F.S. or less
Ambient temperature
characteristics *6 ±0.6% of F.S./10°C
Hysteresis Variable
Pressure type Gauge pressure
Temperature
monitoring
*7 Temperature monitoring
rated range -20 to 100°C
Temperature monitoring
precision ±4°C
Temperature repeatability ±1°C
Control output
judgment
(selectable) Standard mode Judge if the measured value is the threshold value or more (or less).
Window mode Judge if the measured value is within the upper and lower limits.
Compatible fluid Gas and fluid not corroding the material of the wetted part (such as water, glycol solution, and oil)
Display method Numerical value indication: 4-digit 7-segment white LED with inverting function
Status indicator: Normal operation (green), status indication (orange), and error (red) The content of status indication is selectable.
Output indicator: OUT1 operation (orange), OUT2 operation (orange)
Unit indication: E8PC-[][][][]: MPa (white), E8PC-[][][][]-E: MPa (white), bar (white), psi (white), °C (white)
IO-Link indicator: Lighting when communications are in progress (green)
Delay setting 1 to 9999 ms
(Select a function from invalid, ON delay, OFF delay, and one-shot.)
Connection method M12, 4-pole connector type
Connecting diameter G3/4 male (Use the optional adapter to convert the diameter) Connection strength 20 N·m
Output ch1
(selectable) Control output Pressure control output (N.O./N.C.)
E8PC-[][][]D/T: PNP
E8PC-[][]: NPN
30 VDC or less, Class 2, max. 100 mA, residual voltage 1 V or less
Output ch2
(selectable) Control output Pressure control output (N.O./N.C.) / temperature control output (N.O./N.C.)
E8PC-[][][]D/T: PNP
E8PC-[][]: NPN
30 VDC or less, Class 2, 100 mA max., residual voltage 1 V or less
Analog current
output *8 Pressure analog output / Temperature analog output
Current output 4 to 20 mA (maximum load resistance 350Ω or less)
(Display value ± 2% of F.S.)
External input One-point teaching, zero point adjustment input (selectable, initial status: invalid)
short-circuit current 1.5 mA or less, input time 20 ms or more
IO-Link IO-Link specification Ver 1.1
Baud rate E8PC-[][][]D: COM2 (38.4kbps)
E8PC-[][][]T: COM3 (230.4Kbps)
Data length PD Size: 6 byte
OD Size: 1 byte (M-sequence type: TYPE_2_V)
Minimum cycle time E8PC-[][][]D (COM2): 3.2 ms
E8PC-[][][]T (COM3): 2.0 ms
Power supply Power supply voltage 10 to 30 VDC (including 10% ripple (p-p)), Class 2
Power consumption 1,200 mW or less
(When power supply voltage is 30 V, current consumption must be 40 mA or less.
When power supply voltage is 10 V, current consumption must be 120 mA or less.)
Protection circuit Power supply reverse connection protection, output short-circuit protection,
and output reverse connection protection
Environment
resistance Ambient temperature
range -20 to 80°C in operation and storage, respectively (no condensation)
Ambient humidity range -35 to 85%RH in operation and storage, respectively (no condensation)
Vibration resistance
(destruction) 1000 VAC, 50/60 Hz, 1 min. between current-carrying parts and case
Shock resistance
(destruction) 10 to 2000 Hz, double amplitude 1.5 mm, 2 hours in X/Y/Z direction each
Impact (endurance) 500 m/s², three times in X/Y/Z direction each
Protective structure IP67
Pollution degree 3
Altitude 2,000 m or less
Installation place Indoor
Material Wetted part Pressure port: SUS304L, diaphragm pressure port: Al2O3 (alumina), O-ring: FKM
Other than wetted part Head: PPSU, display unit: PES, button: PBT, chassis: SUS304L
Weight Approx.190 g
Accessories • Throttle (Model E8PC-YS and E8PC-YS-N), one each
• O-ring x 1 (Model E8PC-010: Model E8PC-YL-1, Model E8PC-100/400: Model E8PC-YL-2)
• Ferrite core x 1 (TDK's Model ZCAT1730-0730A)
• User's manual (Japanese, English, and Chinese), one each
• Compliance sheet
• Index list

*1. The pressure precision is defined based on the values measured in the ordinary temperature environment (approx. 23°C)
      using water at the ordinary temperature (approx. 23°C).
*2. Even instantaneous pressure fluctuation such as water hammer must be within the withstand pressure.
      If instantaneous pressure fluctuation is expected, use the throttle included in the package.
*3. If the pipe temperature exceeds 70°C, do not contact any cables with the pipe.
*4. The maximum actual response time has error of 1 ms when the set response time is 3 to 10 ms, 5 ms when it is
      11 to 100 ms, and +5% when it is 101 ms or more.
*5. The pressure repeatability is the error of the detection point when pressure is applied repeatedly in the ordinary
      temperature environment (approx. 23°C) using water at the ordinary temperature (approx. 23°C) in the rated pressure
      range.
*6. The ambient temperature characteristics are prescribed based on the value measured using oil as applying a pressure
      value of 50% of the maximum rated pressure.
*7. The temperature monitoring precision is prescribed based on the value measured using water.
      Temperature measurements are affected by both of the temperatures, the medium and the piping.
      Temperature measuring elements are installed on the back surface of the piezoelectric element (inside the product) and
      used to measure the temperature. It might take long for the measured value to get stable according to the heat
      transmission speed.
*8. Do not connect CH 2 (pin 2) with the IO-Link master unit in analog current output mode. Otherwise, the unit might fail.

last update: September 3, 2018

OMRON E8PC catalog
E8PC IoT Pressure Sensors/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E8FC/E8PC Series Catalog E472-E1-01
[17485KB] Feb 07, 201920190207 E8FC/E8PC Series Catalog

IO-Link Series Catalog Y229-E1-02
[28505KB] Jul 17, 201820180717 IO-Link Series Catalog

OMRON E8PC lineup
E8PC IoT Pressure Sensors/Lineup
last update: November 1, 2018
Sensors

Appearance Applicable
fluid * Rated
pressure
range Control
output Communication
method IO-Link baud rate Model
Liquid and gas -0.1 to 1 MPa PNP IO-Link
Analog COM2 (38.4 kbps) E8PC-010D-E
COM3 (230.4 kbps) E8PC-010T-E
NPN Analog --- E8PC-010-E
Liquid 0 to 10 MPa PNP IO-Link
Analog COM2 (38.4 kbps) E8PC-100D-E
COM3 (230.4 kbps) E8PC-100T-E
NPN Analog --- E8PC-100-E
0 to 40 MPa PNP IO-Link
Analog COM2 (38.4 kbps) E8PC-400D-E
COM3 (230.4 kbps) E8PC-400T-E
NPN Analog --- E8PC-400-E

Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).
* The applicable fluid is a liquid that do not erode the liquid contact part materials (such as water, glycol solution, and oil).

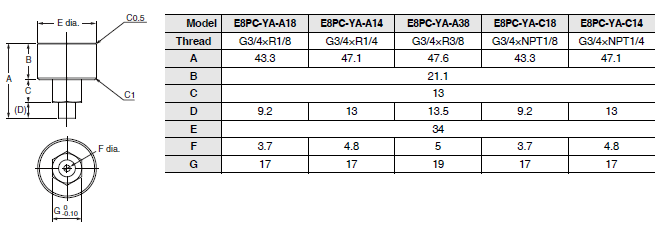

Adapters

It must be selected from the adapters below.

Appearance Type Nominal
diameter B Thread type Materials Model
Nominal
diameter A Nominal
diameter B
R1/8 male 6 A 1/8" R (taper thread) SUS304 E8PC-YA-A18
R1/4 male 8 A 1/4" R (taper thread) SUS304 E8PC-YA-A14
R3/8 male 10 A 3/8" R (taper thread) SUS304 E8PC-YA-A38
G1/4 female 8 A 1/4" G (parallel thread) SUS304 E8PC-YA-B14N
NPT1/8 male 6 A 1/8" NPT (taper thread) SUS304 E8PC-YA-C18
NPT1/2 male 8 A 1/4" NPT (taper thread) SUS304 E8PC-YA-C14

* The nominal diameter of the thread is the size of the part shown below on the adapter.

Cables (Sensor I/O Connectors)

A Cable is not provided with the Sensor. It must be ordered separately.

Type Appearance Cable Model
Socket on one
cable end Straight
2 m XS5F-D421-D80-F
5 m XS5F-D421-G80-F
L-shaped
2 m XS5F-D422-D80-F
5 m XS5F-D422-G80-F
Socket and plug on
cable ends * Straight/straight
2 m XS5W-D421-D81-F
5 m XS5W-D421-G81-F
L-shaped/L-shaped
2 m XS5W-D422-D81-F
5 m XS5W-D422-G81-F

Note: Refer to Sensor I/O Connector/Sensor Controller on your OMRON website for details.
* Straight type/L-shape type combinations are also available.

Throttle

If the excessive pulsation or surge voltage is expected, use a throttle. Install it inside the adapter and use.

Appearance Type Material Model
For a male adapter SUS304 E8PC-YS
For a female adapter SUS304 E8PC-YS-N

O-ring (for replacement)

Appearance Type Model
For E8PC-010[] E8PC-YL-1 *
For E8PC-100[]/-400[] E8PC-YL-2 *
Female for adapter G1/4 E8PC-YL-3

* Provided with the sensor.

last update: November 1, 2018

OMRON E8PC dimension
E8PC IoT Pressure Sensors/Dimensions
last update: July 2, 2018

(Unit: mm)

Sensors
IoT Pressure Sensor
E8PC-[][][]-E

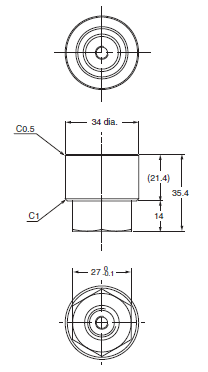

Adapter

E8PC-YA-A[][]
E8PC-YA-C[][]

E8PC-YA-B14N

Throttle
E8PC-YS

E8PC-YS-N

O-ring
E8PC-YL-1

E8PC-YL-2

E8PC-YL-3

Cable

Refer to E8FC Dimensions.

last update: July 2, 2018

NO. E8PC

TYPE:Pressure Sensors / Flow Sensors Copyright Statement Copyright Statement

DATE:2021-06-08

Associated products:
E8FC IoT Flow Sensors/Features E8F2 Digital Pressure Sensor/Features

Model	PNP(COM2)	E8PC-010D-E	E8PC-100D-E	E8PC-400D-E
PNP(COM3)	E8PC-010T-E	E8PC-100T-E	E8PC-400T-E
NPN	E8PC-010-E	E8PC-100-E	E8PC-400-E
Pressure monitoring *1	Rated pressure range	-0.1 to 1 MPa	0 to 10 MPa	0 to 40 MPa
Display range	-0.20 to 1.10 MPa	-0.10 to 11.00 MPa	-0.10 to 44.00 MPa
*Withstand pressure 2**	4 MPa	30 MPa	50 MPa
Burst pressure	8 MPa	60 MPa	80 MPa
Display resolution	0.001 MPa	0.01 MPa	0.01 MPa
Applicable fluid temperature *3	-20 to +100°C (no icing or condensation)
Pressure response time *4	Control output: Select 3 to 6000 ms Analog output: Set value + 2 ms (90% response)
Pressure monitoring precision	±1.0% of F.S. or less
*Pressure repeatability 5**	±0.3% of F.S. or less
Ambient temperature characteristics *6	±0.6% of F.S./10°C
Hysteresis	Variable
Pressure type	Gauge pressure
Temperature monitoring *7	Temperature monitoring rated range	-20 to 100°C
Temperature monitoring precision	±4°C
Temperature repeatability	±1°C
Control output judgment (selectable)	Standard mode	Judge if the measured value is the threshold value or more (or less).
Window mode	Judge if the measured value is within the upper and lower limits.
Compatible fluid	Gas and fluid not corroding the material of the wetted part (such as water, glycol solution, and oil)
Display method	Numerical value indication: 4-digit 7-segment white LED with inverting function Status indicator: Normal operation (green), status indication (orange), and error (red) The content of status indication is selectable. Output indicator: OUT1 operation (orange), OUT2 operation (orange) Unit indication: E8PC-[][][][]: MPa (white), E8PC-[][][][]-E: MPa (white), bar (white), psi (white), °C (white) IO-Link indicator: Lighting when communications are in progress (green)
Delay setting	1 to 9999 ms (Select a function from invalid, ON delay, OFF delay, and one-shot.)
Connection method	M12, 4-pole connector type
Connecting diameter	G3/4 male (Use the optional adapter to convert the diameter) Connection strength 20 N·m
Output ch1 (selectable)	Control output	Pressure control output (N.O./N.C.) E8PC-[][][]D/T: PNP E8PC-[][]: NPN 30 VDC or less, Class 2, max. 100 mA, residual voltage 1 V or less
Output ch2 (selectable)	Control output	Pressure control output (N.O./N.C.) / temperature control output (N.O./N.C.) E8PC-[][][]D/T: PNP E8PC-[][]: NPN 30 VDC or less, Class 2, 100 mA max., residual voltage 1 V or less
Analog current output *8	Pressure analog output / Temperature analog output Current output 4 to 20 mA (maximum load resistance 350Ω or less) (Display value ± 2% of F.S.)
External input	One-point teaching, zero point adjustment input (selectable, initial status: invalid) short-circuit current 1.5 mA or less, input time 20 ms or more
IO-Link	IO-Link specification	Ver 1.1
Baud rate	E8PC-[][][]D: COM2 (38.4kbps) E8PC-[][][]T: COM3 (230.4Kbps)
Data length	PD Size: 6 byte OD Size: 1 byte (M-sequence type: TYPE_2_V)
Minimum cycle time	E8PC-[][][]D (COM2): 3.2 ms E8PC-[][][]T (COM3): 2.0 ms
Power supply	Power supply voltage	10 to 30 VDC (including 10% ripple (p-p)), Class 2
Power consumption	1,200 mW or less (When power supply voltage is 30 V, current consumption must be 40 mA or less. When power supply voltage is 10 V, current consumption must be 120 mA or less.)
Protection circuit	Power supply reverse connection protection, output short-circuit protection, and output reverse connection protection
Environment resistance	Ambient temperature range	-20 to 80°C in operation and storage, respectively (no condensation)
Ambient humidity range	-35 to 85%RH in operation and storage, respectively (no condensation)
Vibration resistance (destruction)	1000 VAC, 50/60 Hz, 1 min. between current-carrying parts and case
Shock resistance (destruction)	10 to 2000 Hz, double amplitude 1.5 mm, 2 hours in X/Y/Z direction each
Impact (endurance)	500 m/s², three times in X/Y/Z direction each
Protective structure	IP67
Pollution degree	3
Altitude	2,000 m or less
Installation place	Indoor
Material	Wetted part	Pressure port: SUS304L, diaphragm pressure port: Al2O3 (alumina), O-ring: FKM
Other than wetted part	Head: PPSU, display unit: PES, button: PBT, chassis: SUS304L
Weight	Approx.190 g
Accessories	• Throttle (Model E8PC-YS and E8PC-YS-N), one each • O-ring x 1 (Model E8PC-010: Model E8PC-YL-1, Model E8PC-100/400: Model E8PC-YL-2) • Ferrite core x 1 (TDK's Model ZCAT1730-0730A) • User's manual (Japanese, English, and Chinese), one each • Compliance sheet • Index list

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E8FC/E8PC Series Catalog	E472-E1-01 [17485KB]	Feb 07, 201920190207	E8FC/E8PC Series Catalog
IO-Link Series Catalog	Y229-E1-02 [28505KB]	Jul 17, 201820180717	IO-Link Series Catalog

Appearance	Applicable fluid *	Rated pressure range	Control output	Communication method	IO-Link baud rate	Model
	Liquid and gas	-0.1 to 1 MPa	PNP	IO-Link Analog	COM2 (38.4 kbps)	E8PC-010D-E
COM3 (230.4 kbps)	E8PC-010T-E
NPN	Analog	---	E8PC-010-E
Liquid	0 to 10 MPa	PNP	IO-Link Analog	COM2 (38.4 kbps)	E8PC-100D-E
COM3 (230.4 kbps)	E8PC-100T-E
NPN	Analog	---	E8PC-100-E
0 to 40 MPa	PNP	IO-Link Analog	COM2 (38.4 kbps)	E8PC-400D-E
COM3 (230.4 kbps)	E8PC-400T-E
NPN	Analog	---	E8PC-400-E

Appearance	Type	Nominal diameter B	Thread type	Materials	Model
Nominal diameter A	Nominal diameter B
	R1/8 male	6 A	1/8"	R (taper thread)	SUS304	E8PC-YA-A18
	R1/4 male	8 A	1/4"	R (taper thread)	SUS304	E8PC-YA-A14
	R3/8 male	10 A	3/8"	R (taper thread)	SUS304	E8PC-YA-A38
	G1/4 female	8 A	1/4"	G (parallel thread)	SUS304	E8PC-YA-B14N
	NPT1/8 male	6 A	1/8"	NPT (taper thread)	SUS304	E8PC-YA-C18
	NPT1/2 male	8 A	1/4"	NPT (taper thread)	SUS304	E8PC-YA-C14

Type	Appearance	Cable	Model
Socket on one cable end	Straight	2 m	XS5F-D421-D80-F
5 m	XS5F-D421-G80-F
L-shaped	2 m	XS5F-D422-D80-F
5 m	XS5F-D422-G80-F
Socket and plug on cable ends *	Straight/straight	2 m	XS5W-D421-D81-F
5 m	XS5W-D421-G81-F
L-shaped/L-shaped	2 m	XS5W-D422-D81-F
5 m	XS5W-D422-G81-F
