OMRON G6D-F4B / G3DZ-F4B Relays
OMRON G6D-F4B / G3DZ-F4B Dimensions
/Images/l_898-25-136372-198x198.jpglast update: October 8, 2013
• Almost the same size as PYF Socket: 31 x 35 x 68 mm (W x H x D)
• Each terminal circuit (with coil or contact) is independent from one another.
• Short Bar ensures easy connection of common and adjacent terminals.
• Provided with a terminal cover that prevents electric-shock accidents.
• Relay and MOS FET relay models are available.
• LED operation indicator.
• Built-in diode absorbs coil surge.
• Mounts either on DIN track or screws.
• Tool for easy mounting or removal of Relays provided.
• UL, CSA, and VDE certification for standard models (VDE: G6D-F4B only).
last update: October 8, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON G6D-F4B / G3DZ-F4B Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G6D-F4B / G3DZ-F4B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G6D-F4B / G3DZ-F4BRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
J7MN Motor Protection Circuit Breaker (MPCB)/Features
SHL Enclosed Switch/Features
K3HB-R Rotary Pulse Indicator/Features
DCN4-[][]4D Flat Cable Connector/Features
Cobra 500 SCARA Robots/Features
OMRON G6D-F4B / G3DZ-F4B specification
G6D-F4B / G3DZ-F4B Terminal Relay/Specificationslast update: October 08, 2013
Ratings
Coil Ratings (per G6D Relay)
| Rated voltage | Rated current | Coil resistance | Must operate voltage | Must release voltage | Max. voltage | Power consumption |
|---|---|---|---|---|---|---|
| 12 VDC | 18.7 mA | 720 Ω | 70% max. (see note 1) | 10% min. | 1.3 | Approx. 200 mW |
| 24 VDC | 10.5 mA | 2,880 Ω |
Note: 1. The must operate voltage is 75% or less of the rated voltage if the Relay is mounted upside down.
2. Rated current and coil resistance were measured at a coil temperature of 23°C with a tolerance of ±10%.
3. Operating characteristics were measured at a coil temperature of 23°C.
4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating power supply. There is no continuous allowance.
5. The rated current includes the terminal’s LED current.
Contact Ratings (per G6D Relay)
| Item | Resistive load (cosφ = 1) |
|---|---|
| Rated load | 3 A at 250 VAC, 3 A at 30 VDC |
| Rated carry current | 5 A |
| Max. switching voltage | 250 VAC, 30 VDC |
| Max. switching current | 5 A |
| Max. permissible capacity (reference value) | 1,250 VA, 150 W |
| Error rate (reference value) (see note) | 5 VDC, 10 mA |
Note: This value is for a switching frequency of 120 times per minute.
Power MOS FET Relay Specifications
Input (per G3DZ Power MOS FET Relay)
| Rated voltage | Operating voltage | Must operate voltage level | Must release voltage level | Input impedance | Rated current |
|---|---|---|---|---|---|
| 12 VDC | 9.6 to 14.4 VDC | 9.6 VDC max. | 1 VDC min. | 2 kΩ±20% | 8.0 mA±20% |
| 24 VDC | 19.2 to 28.8 VDC | 19.2 VDC max. | 4 kΩ±20% | 8.2 mA±20% |
Note: The rated current includes the terminal’s LED current.
Output (per G3DZ Power MOS FET Relay)
| Load voltage | Load current | Inrush current |
|---|---|---|
| 3 to 264 VAC 3 to 125 VDC | 100 μ to 0.3 A | 6 A (10 ms) |
Note: There is no output polarity for the G3DZ.
Characteristics
| Item | G6D-F4B |
|---|---|
| Relay output | |
| Contact resistance (see note 2) | 100 mΩ max. |
| Must operate time (see note 3) | 10 ms max. |
| Release time (see note 3) | 10 ms max. |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min between coil and contacts. |
| 1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity | |
| 750 VAC, 50/60 Hz for 1 min between contacts of same polarity | |
| Impulse withstand voltage (between coil and contacts) | 4,000 V (1.2 × 50 μs) |
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Shock resistance | Destruction: 500 m/s2 Malfunction: 100 m/s2 |
| Endurance | Mechanical: 20,000,000 operations min. (at 18,000 operations/hr) Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load) 100,000 operations min. (3 A at 30 VDC, resistive load) (at 1,800 operations /hr) |
| Ambient temperature | Operating: -25°C to 55°C (with no icing) |
| Ambient humidity | Operating: 45% to 85% |
| Weight | Approx. 65 g |
Note: 1. The above values are initial values.
2. Measurement condition: 1 A at 5 VDC
3. Ambient temperature condition: 23°C
| Item | G3DZ-F4B |
|---|---|
| Power MOS FET relay output | |
| Must operate time | 10 ms max. |
| Release time | 15 ms max. |
| Output ON-resistance | 2.4 Ω max. |
| Leakage current at OFF state | 10 μA max. (at 125 VDC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min between input and output terminals |
| 1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity | |
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Shock resistance | Destruction: 500 m/s2 |
| Ambient temperature | Operating: -25°C to 55°C (with no icing) |
| Ambient humidity | Operating: 45% to 85% |
| Weight | Approx. 65 g |
last update: October 08, 2013
OMRON G6D-F4B / G3DZ-F4B catalog
G6D-F4B / G3DZ-F4B Terminal Relay/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G6D-F4B, G3DZ-F4B Data Sheet | - [540KB] | Sep 06, 201720170906 | G6D-F4B, G3DZ-F4B Data Sheet |
OMRON G6D-F4B / G3DZ-F4B dimension
G6D-F4B / G3DZ-F4B Terminal Relay/Dimensionslast update: September 6, 2017
(Unit: mm)
Note: All units are in millimeters unless otherwise indicated.

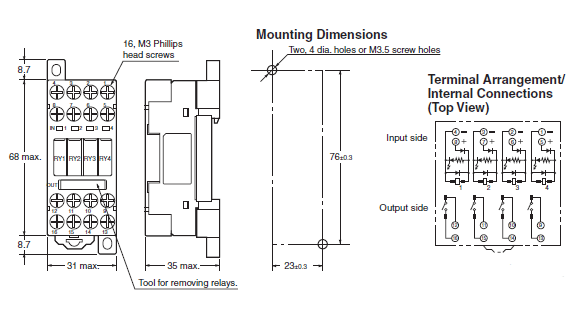

G6D-F4B
G3DZ-F4B
Note1 : Make sure that the polarity of the input terminal is correct.
Note2 : There is no output polarity for the G6D-F4B and G3DZ-F4B.
Accessories (Order Separately)

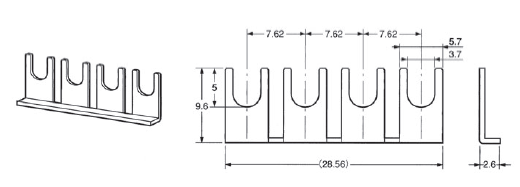

G6D-4-SB Short Bar
last update: September 6, 2017
OMRON G6D-F4B / G3DZ-F4B lineup
G6D-F4B / G3DZ-F4B Terminal Relay/Lineuplast update: October 13, 2015
When your order, specify the rated voltage.
List of Models
| Output | Contact configuration | Model | Rated voltage |
|---|---|---|---|
| Relay output | SPST-NO × 4 | G6D-F4B | 12 VDC |
| 24 VDC | |||
| Power MOS FET relay output | G3DZ-F4B | 12 VDC | |
| 24 VDC |
Note: When ordering add the rated coil voltage to the model number.
Accessories (Order Separately)
G6D-4-SB Short Bar
| Applicable model | Model |
|---|---|
| G6D-F4B | G6D-4-SB |
| G3DZ-F4B |
Relay Mounting Products
| Name | Model |
|---|---|
| Mounting track | PFP-100N |
| PFP-50N | |
| PFP-100N2 | |
| End plate | PFP-M |
| Spacer | PFP-S |
Short Bar
| Applicable Terminal Relay | Model |
|---|---|
| G6D-F4B | G6D-4-SB |
| G3DZ-F4B |
Replacement Relays
| Applicable Terminal Relay | Model | Rated voltage |
|---|---|---|
| G6D-F4B | G6D-1A-ASI | 12 VDC |
| 24 VDC | ||
| G3DZ-F4B | G3DZ-2R6PL | 12 VDC |
| 24 VDC |
Note: Error rate (P level) for the G6D-1A-ASI is 5 V at 10 mA and that for the G6D-1A-AP is 5 V at 1 mA.
last update: October 13, 2015
