OMRON DST1 SeriesSafety Components/ Safety Controllers/NE1A/NE0A-series Safety Network Controllers
OMRON DST1 Series Safety Components
OMRON DST1 Series Dimensions
/Images/l_1626-25-118687-198x198.jpglast update: December 19, 2013
• Lineup includes four models to accommodate various I/O types and number of I/O points.
• Monitor the safety system from Standard Controllers across the network.
• EN954-1 (Cat.4), ISO13849-1 (PLe), and IEC 61508 SIL3 certification.
• The DST1-XD0808SL-1 also supports logic operation functions for high-speed processing in applications requiring partial stopping of the safety system.
last update: December 19, 2013
Purchase the OMRON NE1A/NE0A-series Safety Network Controllers Please fill in the following
If you have just landed here, this product OMRON DST1 Series Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the DST1 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON DST1 SeriesSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
EST2-2C-MV4 CX-Thermo Support Software Ver. 4.[]/Features
E2C / E2C-H Separate Amplifier Proximity Sensor with Adjustment Potentiometer/Features
F3SP-B1P Control Unit/Features
H3AM Mechatronic Analog Timer/Features
GRT1-PRT SmartSlice/Features
OMRON DST1 Series lineup
DST1 Series Safety I/O Terminals/Lineuplast update: May 23, 2013
| Name | No. of I/O points | Model |
|---|---|---|
| Safety I/O Terminals | Safety inputs: 12, test outputs: 4 | DST1-ID12SL-1 |
| Safety inputs: 8, safety outputs (semiconductor): 8, test outputs: 4 | DST1-MD16SL-1 | |
| DST1-XD0808SL-1 * | ||
| Safety inputs: 4, safety outputs (relay): 4, test outputs: 4 | DST1-MRD08SL-1 |
Note: The standard DS1T Safety I/O Terminals are equipped with spring-cage terminal blocks, but screw terminal blocks
are available if desired, e.g., to replace previous terminals. Refer to DeviceNet Safety Accessories.
* Use the Network Configurator Ver. 2.0 or later to make DST1-XD0808SL-1 settings.
Accessories
Terminal Blocks for the DST1
| Appearance | Specification | Applicable Safety I/O Terminals | Model | Remarks |
|---|---|---|---|---|
 | Screw terminal blocks (10 pins) | DST1-ID12SL-1 DST1-MD16SL-1 DST1-XD0808SL-1 DST1-MRD08SL-1 | Y9S-10T1B-04B | A set including four screw terminal blocks (black), six code marks to prevent incorrect insertion, one set of terminal labels *, and code mark instructions |
 | Spring-cage terminal blocks (10 pins) | Y9S-10C1B-04B | A set including four spring-cage terminal blocks (black), six code marks to prevent incorrect insertion, one set of terminal labels *, and code mark instructions |
Note: The standard DS1T Safety I/O Terminals are equipped with spring-cage terminal blocks. Screw terminal blocks
can be ordered if desired, e.g., to replace previous terminals.
* The set of terminal labels is one sheet containing four sets of labels required for one Terminal Block, i.e., [1, 2 ...10],
[11, 12 ... 20], [21, 22 ... 30] and [31, 32 ... 40].
last update: May 23, 2013
OMRON DST1 Series catalog
DST1 Series Safety I/O Terminals/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 DST1 Series Data Sheet | - [544KB] | Nov 27, 201320131127 | DST1 Series Data Sheet |
| DeviceNet Safety (Accessories) Data Sheet | - [1306KB] | Sep 21, 201220120921 | DeviceNet Safety (Accessories) Data Sheet |
OMRON DST1 Series dimension

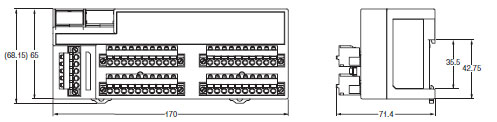

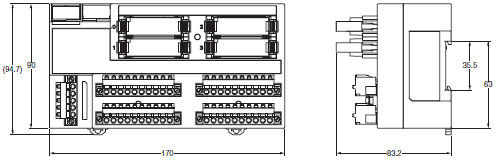

DST1 Series Safety I/O Terminals/Dimensionslast update: May 23, 2013
(Unit: mm)
DST1-ID12SL-1
DST1-MD16SL-1
DST1-XD0808SL-1
DST1-MRD08SL-1
last update: May 23, 2013
OMRON DST1 Series specification
DST1 Series Safety I/O Terminals/Specificationslast update: December 4, 2013
Certified Standards
| Certification body | Standard |
|---|---|
| TÜV Rheinland | NFPA 79-2012 EN ISO 13849-1:2008 IEC61131-2: 2007 EN ISO13849-2: 2012 EN61000-6-4: 2007 EN61000-6-2: 2005 EN60204-1: 2006 ISO 13850:2006 (EN418:1992) ANSI RIA15.06-1999 ANSI B11.19-2010 |
| UL | UL508 ANSI/ISA 12.12.01 (excluding the DST1-MRD08SL-1) UL1998 NFPA79 IEC61508 CSA22.2 No.142 CSA22.2 No.213 (excluding the DST1-MRD08SL-1) |
Specifications
| Model | DST1-ID12SL-1 | DST1-MD16SL-1 | DST1-MRD08SL-1 | DST1-XD0808SL-1 | |
|---|---|---|---|---|---|
| Communications power supply voltage | 11 to 25 VDC supplied via communications connector | ||||
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | ||||
| Current consumption | Communications power supply | 24 VDC, 100 mA | 24 VDC, 110 mA | 24 VDC, 100 mA | 24 VDC, 110 mA |
| I/O power supply * | 24 VDC, 70 mA | 24 VDC, 50 mA (Input) 130 mA (Output) | 24 VDC, 80 mA (Input) 130 mA (Output) | 24 VDC, 50 mA (Input) 130 mA (Output) | |
| Overvoltage category | II | ||||
| Noise immunity | Conforms to IEC61131-2. | ||||
| Vibration resistance | 10 to 57 Hz: 0.35-mm single amplitude, 57 to 150 Hz: 50 m/s2 | ||||
| Shock resistance | 150 m/s2, 11 ms | 100 m/s2, 11 ms | 150 m/s2, 11 ms | ||
| Mounting method | 35-mm DIN Track | ||||
| Ambient operating temperature | -10 to 55°C | ||||
| Ambient operating humidity | 10% to 95% (with no condensation) | 10% to 85% (with no condensation) | 10% to 95% (with no condensation) | ||
| Ambient storage temperature | -40 to 70°C | ||||
| Degree of protection | IP20 | ||||
| Weight | 420 g | 600 g | 420 g | ||
* Not including power consumption for external devices.
Safety Input Specifications
(Common with the DST1 Series)
| Input type | Sinking inputs (PNP) |
|---|---|
| ON voltage | 11 VDC min. |
| OFF voltage | 5 VDC max. |
| OFF current | 1 mA max. |
| Input current | 6 mA |
Safety Output Specifications (Semiconductor output)
(Common with the DST1-MD16SL-1/XD0808SL-1)
| Output type | Sourcing outputs (PNP) |
|---|---|
| Rated output current | 0.5 A max./output |
| ON residual voltage | 1.2 V max. |
| Leakage current | 0.1 mA max. |
Test Output Specifications
(Common with the DST1 Series)
| Output type | Sourcing outputs (PNP) |
|---|---|
| Rated output current | 0.7 A max./output |
| ON residual voltage | 1.2 V max. |
| Leakage current | 0.1 mA max. |
Safety Output Specifications (Relay Output)
(DST1-MRD08SL-1)
| Applicable relays | G7SA-2A2B, EN50205 Class A | |
|---|---|---|
| Failure rate P level * (Reference value) | 5 VDC, 1 mA | |
| Rated load (resistive) | 2 A at 240 VAC, 2 A at 30 VDC | |
| Durability | Mechanical | 5,000,000 operations min. (at 7,200 operations/h) |
| Electrical | 100,000 operations min. (at 1,800 operations/h with a resistive load) | |
* This value is equivalent to 300 operations/minute.
CIP Safety on DeviceNet Communications
| Safety Slave communications | Max. 4 connections (Max. 2 connections for the DST1-XD0808SL-1) |
|---|
DeviceNet Slave Communications
(Common with the DST1 Series)
| Standard Slave communications | Max. 2 connections |
|---|
last update: December 4, 2013
