OMRON S8VK-WA lineup

last update: December 3, 2018

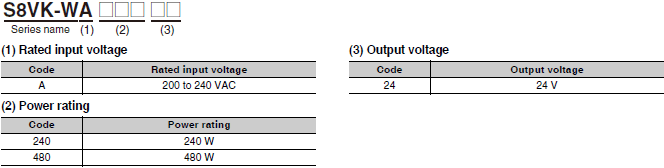

Model Number Structure

Model Number Legend

Not all combinations are possible. Refer to List of Models in Ordering Information, below.

Ordering Information

List of Models

Power rating	Rated input voltage	Rated output voltage	Rated output current	Maximum boost current	Model
240 W	Three-phase/single-phase 200 to 240 VAC (Allowable range: Three-phase/single-phase 170 to 264 VAC, 240 to 350 VDC)	24 V	10 A	15 A	S8VK-WA24024
480 W		24 V	20 A	30 A	S8VK-WA48024

Mounting Brackets (Order Separately)

Product name	Model
Front Mounting Bracket (for 240 W)	S82Y-VKW20F
Front Mounting Bracket (for 480 W)	S82Y-VKW40F

DIN Rail Mounting Parts (Order Separately)

Part name	Model
Support Rail (Aluminum)	PFP-100N
	PFP-50N
	PFP-100N2
End Plate	PFP-M

last update: December 3, 2018

OMRON S8VK-WA dimension

last update: December 3, 2018

(Unit: mm)

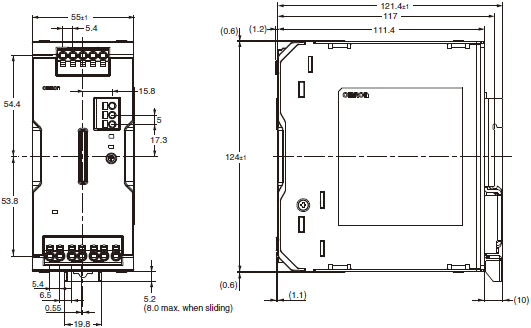

S8VK-WA24024

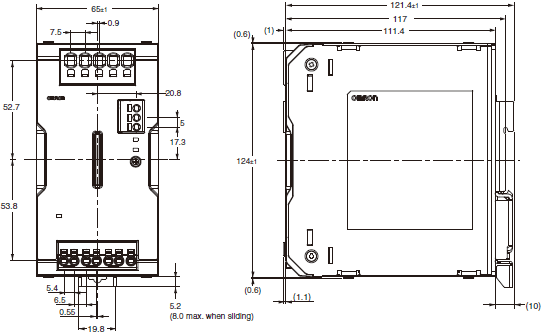

S8VK-WA48024

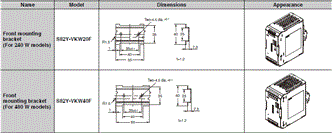

Mounting Brackets (Order Separately)

Note: The front mounting bracket can be used for front, side-by-side mounting as well.

DIN Rail Mounting (Order Separately)

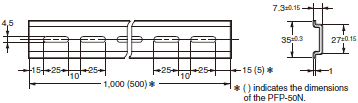

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

PFP-100N2

End Plate

PFP-M

Note: 1. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
             filings may result from aluminum abrasion.
         2. If the Unit may be subjected to sliding to either side, attach an End Plate (PFP-M) on each side of the Unit.

last update: December 3, 2018

OMRON S8VK-WA specification

last update: December 3, 2018

Ratings, Characteristics, and Functions

Power rating			240 W	480 W
Item Output voltage			24 V	24 V
Efficiency *1		Three-phase 200 VAC input	93% typ.	94% typ.
		Single-phase 200 VAC input	92% typ.	93% typ.
		Three-phase 230 VAC input	93% typ.	94% typ.
		Single-phase 230 VAC input	93% typ.	94% typ.
Input con- ditions	Input voltage range *2		Three-phase/single-phase 170 to 264 VAC, 265 to 300 VAC (1 second) 240 to 350 VDC
	Frequency *2		50/60 Hz (47 to 63 Hz)
	Input current *1	Three-phase 200 VAC input	0.80 A typ.	1.6 A typ.
		Single-phase 200 VAC input	1.4 A typ.	2.6 A typ.
		Three-phase 230 VAC input	0.70 A typ.	1.4 A typ.
		Single-phase 230 VAC input	1.2 A typ.	2.3 A typ.
	Power factor		0.9 min.
	Leakage current *3	Three-phase 200 VAC input	1 mA max.
		Three-phase 230 VAC input	1 mA max.
	Inrush current *4 (for a cold start at 25°C)	Three-phase 200 VAC input	13 A typ.	13 A typ.
		Three-phase 230 VAC input	15 A typ.	15 A typ.
Output character- istics	Rated output current		10 A	20 A
	Power Boost Function		15 A	30 A
	Voltage adjustment range *5		24 to 29.5 V (with V.ADJ)
	Ripple noise voltage *6	Three-phase 200 to 240 VAC input	50 mVp-p max. at 20 MHz of bandwidth	120 mVp-p max. at 20 MHz of bandwidth
	Input variation influence *7		0.5% max.
	Load variation influence *8		1.5% max.
	Temperature variation influence	200 to 240 VAC input	0.05%/°C max.
	Startup time *9	Three-phase 200 VAC input	1,000 ms max.
		Three-phase 230 VAC input	1,000 ms max.
	Output hold time *9	Three-phase 200 VAC input	35 ms typ.	30 ms typ.
		Three-phase 230 VAC input	35 ms typ.	30 ms typ.
Additional functions	Overload protection		Yes, automatic reset, intermittent operation type Refer to Overload Protection below.
	Overvoltage protection		Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again), Refer to Overvoltage Protection below.
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on Data sheet.
	INPUT OK Indicator		Yes (LED: Green)
	DC OK Indicator		Yes (LED: Green)
	Iout > 100% Indicator		Yes (LED: Yellow)
	DC OK Signal Output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
	Iout > 100% signal output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and all output terminals), cutoff current 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 20 mA
			1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE terminals), cutoff current 25 mA
			0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff current 10 mA
	Insulation resistance		100 MΩ min. (between all output terminals, signal output terminals and all input terminals / PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature *10		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data on Data sheet.) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	Vibration resistance		10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		294 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF *11		290,000 hrs typ.	230,000 hrs typ.
	Expected life *12		10 years min.
Construc- tion	Weight		800 g max.	1050 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	EMI	Conducted emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B (three-phase) Conforms to EN 61204-3 Class A, EN 55011 Class A (single-phase)
		Radiated emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B (three-phase) Conforms to EN 61204-3 Class A, EN 55011 Class A (single-phase)
	EMS		Conforms to EN 61204-3 high severity levels
	Safety standards		UL 508, UL121201 (Listing) CSA C22.2 No.107.1, CSA C22.2 No.213 (cUL) UL 62368-1 (Recognition) OVC II (≤ 3000 m) Pol2 CSA C22.2 No.62368-1 (cUR) OVC II (≤ 3000 m) Pol2 EN 62477-1 OVC III (≤ 2000 m) OVC II (2000 m < and ≤ 3000 m) Pol2 EN 50178 OVC III (≤ 2000 m) OVC II (2000 m < and ≤ 3000 m) Pol2 EN 62368-1 OVC II (≤ 3000 m) Pol2 EAC (TR CU 004 / 2011, TR CU 020 / 2011) RCM (EN61000-6-4) Conforms to PELV (EN/IEC 60204-1) Conforms to EN/IEC 61558-2-16
	SEMI		Conforms to SEMI F47-0706 (three-phase / single-phase 200 to 240 VAC input)

*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise
      in the internal temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not
      connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase,
      possibly causing smoking or burning.
*3. The value is determined according to the Electrical Appliances and Material Safety Act.
*4. Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on below.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the voltage adjustment range.
      When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not
      damaged.
*6. The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient
     operating temperature is 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable
     input voltage range at the rated output voltage and rated output current.
*8. 200 to 240 VAC input, in the range of 0 A to the rated output current.
*9. This is the value when both rated output voltage and rated output current are satisfied and at room temperature
      (25°C). Refer to Inrush Current, Startup Time, and Output Hold Time on below for details.
*10. At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
*11. MTBF is calculated according to JEITA RCR-9102.
*12. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Data Sheet for
       details.

Standard Compliance

• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).
• EN/IEC 61558-2-16
The S8VK-WA was designed based on EN/IEC 61558-2-16.
Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for product that use a transformer that conforms to EN/IEC 61558-2-16.
• Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN 50178, EN/IEC62477-1, EN/IEC 61558-2-16. Safety standard compliance is achievable by connecting a UL-certified fuse as specified below to the (L1/+) side.
For a DC power input, connect (L1/+) side to (+), and (L3/-) side to (-).
To select a UL certified fuse, refer to Recommended circuit breakers and fuses on Data Sheet.

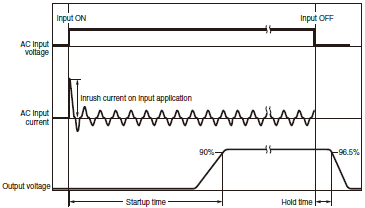

Inrush Current, Startup Time, and Output Hold Time

Note: Twice the normal inrush current will flow during parallel operation or for backup operation. Therefore, check the fusing
         characteristics of fuses and operating characteristics of breakers making sure that the external fuses will not burn out
         and the circuit breakers will not be activated by the inrush current.

Overload Protection

The product is automatically protected from short-circuit current and overcurrent damages when the load current is in the range of 151 to 175% of the rated current.
When the output current falls within the rated range, the overload protection function is automatically cleared.

Note: 1. Internal parts may occasionally deteriorate or be damaged if a short-circuited or overcurrent state continues during
             operation. Be sure to check that the Iout > 100% indicator is not lit or the Iout > 100% signal output is turned OFF
             before using.
         2. Internal parts may possibly deteriorate or be damaged if the Power Supply is used for applications with inrush
             current or overloading at the load end. Do not use the Power Supply for such applications.

Overvoltage Protection

Overvoltage will be detected to prevent the load from being subjected to excessive voltage when the feedback circuit in the Power Supply fails, etc.
When an excessive voltage that is approximately 130% of the rated output voltage or more is output, the output voltage is cut OFF, preventing damage to the load due to overvoltage.
Reset the input power by turning it OFF for at least three minutes and then turning it back ON again.
Note: Do not turn ON the power again until the cause of the overvoltage has been removed.

INPUT OK Indicator

The INPUT OK indicator will light when the input voltage exceeds the lower limit value of the permissible range.
Note: The voltage may be applied even if the indicator does not light.
         Be sure to check the input voltage when performing wiring.

DC OK Indicator/Signal Output

The DC OK indicator will light when the output voltage is more than 90% of the rated output voltage, and the internal MOS FET relay is conducted (turned ON).
Note: 1. The output voltage may be generated even if the indicator does not light. Be sure to check the output voltage when
             connecting to the load.
         2. This function monitors the voltage at the power output terminals.
             To check the voltage accurately, measure the voltage at the load end.
         3. If the output voltage is set to less than 90% of the rated output voltage, the indicator may go off and the signal
            output may be turned OFF.

Iout > 100% Indicator/Signal Output

The Iout > 100% indicator lights up when the output current exceeds the rated output current, and the internal MOS FET relay is conducted (turned ON).
Note: 1. The Iout > 100% Indicator may light up, and the Iout > 100% Signal Output may turn ON during peak current
            operation, however, the Power Supply can be used as long as the operating conditions specified in Peak current
            (Data Sheet) are satisfied.
         2. Even when the operating conditions for parallel operation are satisfied, the Iout>100% Indicator / Signal Output
             may operate, so do not use the Iout>100% Indicator / Signal Output.
         3. During a short-circuit, the indicator will operate intermittently due to the overload protection function. When this
             happens, the indicator will blink in accordance with the intermittent operation, and the Iout > 100% signal output
             will repeated turn ON and OFF.
            The shortest ON time of the Iout > 100% signal output during intermittent operation is 5 ms.

Specifications of the Signal Output Terminals (between DC OK Signal Output Terminal and COM Terminal, and between Iout > 100% Signal Output Terminal and COM Terminal)

Since the Signal Output is composed of the MOS FET relay, it does not have any polarity.
30 VDC max., 50 mA max.
Residual voltage when the function is ON: 2 V max.
Leakage current when the function is OFF: 0.1 mA max.
Note: 1. Internal current control circuits are not provided internally for output signals. Do not allow the output current to
             exceed 50 mA.
         2. After completing wiring, confirm that the circuits operate correctly.

Identification of error locations at the input, product, and load side by the Indicator or Signal Output, and troubleshooting for the same (Maintenance point indicator)

Error locations at the input, product, and load side can be identified by the INPUT OK, DC OK, Iout > 100% Indicator / Signal Output.

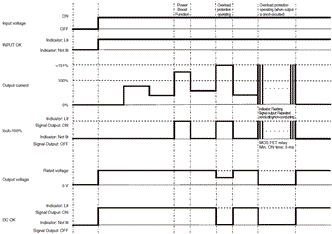

Time chart (Operation of the Indicator/Signal Output according to the product status)
