• Four kinds of 45-mm wide Units are available:
A 3-pole model, a 5-pole model, and models with 3 poles and 2 OFF-delay poles, as well as a Two-hand Controller.
Also available are 17.5-mm wide Expansion Units with 3 poles and 3 OFF-delay poles.
• Simple expansion connection.
• OFF-delay models have 15-step OFF-delay settings.
• Conforms to EN ISO13849-1 (PLe/Safety Category 4).
• Both DIN track mounting and screw mounting are possible.
last update: November 6, 2012
Purchase the OMRON Safety Relay Units Please fill in the following
If you have just landed here, this product OMRON G9SA Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G9SA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G9SASafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NA Series Programmable Terminal/Features
NJ101-[][][][] NJ-Series NJ101 CPU Units/Features
CJ1G-CPU4[]P CJ Series Loop CPU Unit/Features
CJ2 CJ2 Overview/Features
M7E (80 / 120 / 200 mm) Digital Display (80/120/200 mm)/Features
OMRON G9SA lineup
G9SA Safety Relay Unit/Lineuplast update: March 11, 2019
Specify the power supply voltage when ordering.
G9SA Master Units
Emergency-stop Units
| Main contacts | Auxiliary contact | Number of input channels | Rated voltage | Model |
|---|---|---|---|---|
| 3PST-NO | SPST-NC | 1 channel or 2 channels possible | 24 VAC/VDC | G9SA-301 |
| 100 to 240 VAC | ||||
| 5PST-NO | 24 VAC/VDC | G9SA-501 | ||
| 100 to 240 VAC |
Emergency-stop OFF-delay Units
| Main contacts | OFF-delay contacts | Auxiliary contact | Number of input channels | OFF-delay time | Rated voltage | Model |
|---|---|---|---|---|---|---|
| 3PST-NO | DPST-NO | SPST-NC | 1 channel or 2 channels possible | 7.5 s | 24 VAC/VDC | G9SA-321-T075 |
| 100 to 240 VAC | ||||||
| 15 s | 24 VAC/VDC | G9SA-321-T15 | ||||
| 100 to 240 VAC | ||||||
| 30 s | 24 VAC/VDC | G9SA-321-T30 | ||||
| 100 to 240 VAC |
Note: Set to maximum values in the factory.
* The following 15-step OFF-delay time settings are available:
T075: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5 s
T15: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 s
T30: 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, and 30 s
Two-hand Controller
| Main contacts | Auxiliary contact | Number of input channels | Rated voltage | Model |
|---|---|---|---|---|
| 3PST-NO | SPST-NC | 2 channels | 24 VAC/VDC | G9SA-TH301 |
| 100 to 240 VAC |
Expansion Unit
Expansion Unit
The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
| Main contacts | Auxiliary contact | Model |
|---|---|---|
| 3PST-NO | SPST-NC | G9SA-EX301 |
Expansion Units with OFF-delay Outputs
The Expansion Unit connects to a G9SA-301, G9SA-501 or G9SA-321.
| Main contact form | Auxiliary contact | OFF-delay time | Model |
|---|---|---|---|
| 3PST-NO | SPST-NC | 7.5 s | G9SA-EX031-T075 |
| 15 s | G9SA-EX031-T15 | ||
| 30 s | G9SA-EX031-T30 |
Note: Set to maximum values in the factory.
* The following 15-step OFF-delay time settings are available:
T075: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5 s
T15: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 s
T30: 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, and 30 s
last update: March 11, 2019
OMRON G9SA catalog
G9SA Safety Relay Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G9SA Data Sheet | - [1487KB] | Mar 11, 201920190311 | G9SA Data Sheet |
| G9SA-P Data Sheet | F106-E1-01 [1320KB] | Mar 11, 201920190311 | G9SA-P Data Sheet |
OMRON G9SA dimension
G9SA Safety Relay Unit/Dimensionslast update: August 3, 2015
(Unit: mm)

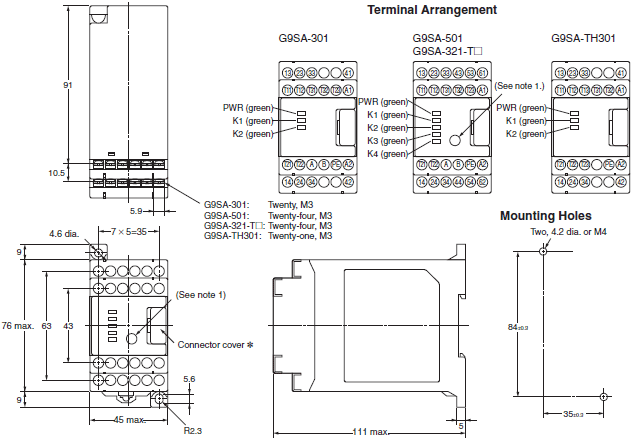

G9SA-301G9SA-501G9SA-321-T[]G9SA-TH301
Note 1: The OFF-delay time setting switch is found on the G9SA-321-T[] only.
2: The K1 to K4 indicators light when the NO contacts of internal relays K1 to K4 close.
* Do not remove unless an Expansion Unit is being used.

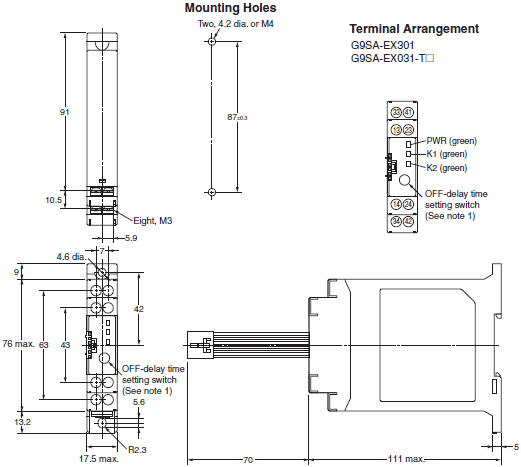

G9SA-EX301G9SA-EX031-T[]
Note 1: The OFF-delay time setting switch is found on the G9SA-EX031-T[] only.
2: The K1 and K2 indicators light when the NO contacts of internal relays K1 and K2 close.
last update: August 3, 2015
OMRON G9SA specification
G9SA Safety Relay Unit/Specificationslast update: November 6, 2012
Ratings
Power Input
| Model | G9SA-301/TH301 | G9SA-501 | G9SA-321-T[] |
|---|---|---|---|
| Power supply voltage | 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC 100 to 240 VAC: 100 to 240 VAC, 50/60 Hz | ||
| Operating voltage range | 85% to 110% of rated power supply voltage | ||
| Power consumption* | 24 VAC/VDC: 1.8 VA/1.7 W max. 100 to 240 VAC: 9 VA max. | 24 VAC/VDC: 2.8 VA/2.6 W max. 100 to 240 VAC: 11 VA max. | 24 VAC/VDC: 3.5 VA/3.3 W max. 100 to 240 VAC: 12.5 VA max. |
* When an Expansion Unit is connected, the power consumption is increased by 2 VA/2 W max.
Inputs
| Model | G9SA-301/321-T[]/TH301 | G9SA-501 |
|---|---|---|
| Input current * | 40 mA max. | 60 mA max |
* When an Expansion Unit is connected, the input current is increased by 30 mA max.
Contacts
| Model Load | G9SA-301/501/321-T[]/TH301/EX301/EX031-T[] |
|---|---|
| Resistive load | |
| Rated load | 250 VAC, 5 A 30 VDC, 5 A |
| Rated carry current | 5 A |
Characteristics
| Model | G9SA-301/TH301 | G9SA-501/321-T[] | G9SA-EX301/EX031-T[] | |
|---|---|---|---|---|
| Contact resistance *1 | 100 mΩ | |||
| Operating time *2 | 30 ms max. | |||
| Response time *3 | 10 ms max. | |||
| Insulation resistance *4 | 100 MΩ min. (at 500 VDC) | |||
| Dielectric strength | Between different outputs | 2,500 VAC, 50/60 Hz for 1 min | ||
| Between inputs and outputs | ||||
| Between power inputs and outputs | ||||
| Between power inputs and other inputs (only for 100 to 240-V models) | ||||
| Vibration resistance | 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | |||
| Shock resistance | Destruction | 300 m/s2 | ||
| Malfunction | 100 m/s2 | |||
| Durability *5 | Mechanical | 5,000,000 operations min. (at approx. 7,200 operations/hr) | ||
| Electrical | 100,000 operations min. (at approx. 1,800 operations/hr) | |||
| Failure rate (P Level) (reference value) | 5 VDC, 1 mA | |||
| Ambient operating temperature | -25 to 55°C (with no icing or condensation) | |||
| Ambient operating humidity | 35% to 85% | |||
| Terminal tightening torque | 0.98 Nm | |||
| Weight *6 | Approx. 210 g | Approx. 270 g | Approx. 130 g | |
*1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.
*2. Not Including bounce time.
*3. The response time is the time it takes for the main contact to open after the input is turned OFF. Includes bounce time.
*4. The insulation resistance was measured with 500 VDC at the same places that the dielectric strength was checked.
*5. The durability is for an ambient temperature of 15 to 35℃ and an ambient humidity of 25% to 75%.
*6. Weight shown is for 24-VAC/VDC type. For 100 to 240-VAC type, add approximately 20 g.
last update: November 6, 2012
