last update: December 19, 2013

• Single-color (red or green) and three-color (red, green, or orange selectable) displays with a character height of 80, 120, or 200 mm are available for a variety of applications and locations.

• Thin design with a 39.5-mm depth for the 120-mm model is perfect for saving space in equipment and devices.

• Decimal display including negative sign (−) display with signal codes is possible.

last update: December 19, 2013

Purchase the OMRON Single digit Type Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON M7E (80 / 120 / 200 mm) Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the M7E (80 / 120 / 200 mm) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON M7E (80 / 120 / 200 mm)Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4E-[]N Small Sealed Switch/Features
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features
GRT1-PRT SmartSlice/Features
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Features
XW2B (Standard-type) Standard-type Connector-Terminal Block Conversion Units/Features

OMRON M7E (80 / 120 / 200 mm) catalog
M7E (80 / 120 / 200 mm) Digital Display (80/120/200 mm)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

M7E (80/120/200 mm) Data Sheet -
[2221KB] Apr 03, 201720170403 M7E (80/120/200 mm) Data Sheet

M7E Options Data Sheet -
[600KB] Apr 03, 201720170403 M7E Options Data Sheet

OMRON M7E (80 / 120 / 200 mm) lineup
M7E (80 / 120 / 200 mm) Digital Display (80/120/200 mm)/Lineup
last update: April 3, 2017
Models with 80 mm-high Characters

Display contents Type Logic
input Display
color Model
Decimal Front mounting Negative Red M7E-08DRN2
Green M7E-08DGN2
Hexadecimal Front mounting Red M7E-08HRN2
Green M7E-08HGN2

Models with 120 mm-high Characters

Display
contents Type Logic
input Display
color Model
Decimal Rear mounting Negative Red M7E-12DRN1
Green M7E-12DGN1
Red/green/orange M7E-12DKN1
Front mounting Red M7E-12DRN2
Green M7E-12DGN2 M7E-12DRN2
Red/green/orange M7E-12DKN2
Hexadecimal Rear mounting Red M7E-12HRN1
Green M7E-12HGN1
Red/green/orange M7E-12HKN1
Front mounting Red M7E-12HRN2
Green M7E-12HGN2
Red/green/orange M7E-12HKN2

Models with 200 mm-high Characters

Display
contents Type Logic
input Display
color Model
Decimal Rear mounting Negative Red M7E-20DRN1
Green M7E-20DGN1
Red/green/orange M7E-20DKN1
Hexadecimal Rear mounting Red M7E-20HRN1
Green M7E-20HGN1
Red/green/orange M7E-20HKN1

Accessories (Order Separately)
Harness Connector

Dimensions Model
70 mm M7E-WH0111A
500 mm M7E-WH0511A
1,000 mm M7E-WH1011A

Cable with Connectors (1 to 1)

L Dimension Model
1,000 mm XW2Z-R100C
1,500 mm XW2Z-R150C
2,000 mm XW2Z-R200C
3,000 mm XW2Z-R300C
5,000 mm XW2Z-R500C

Cable with Crimp-style Terminals

L Dimension Model
1,000 mm XW2Z-RY100C
1,500 mm XW2Z-RY150C
2,000 mm XW2Z-RY200C
3,000 mm XW2Z-RY300C
5,000 mm XW2Z-RY500C

Cable with Connectors (1 to 2)

L Dimension Model (for output)
A B Model
1,000 750 XW2Z-RO100C-75
1,500 1,250 XW2Z-RO150C-125
2,000 1,750 XW2Z-RO200C-175
3,000 2,750 XW2Z-RO300C-275
5,000 4,750 XW2Z-RO500C-475

last update: April 3, 2017

OMRON M7E (80 / 120 / 200 mm) dimension
M7E (80 / 120 / 200 mm) Digital Display (80/120/200 mm)/Dimensions
last update: November 12, 2012

Note: Tolerance is ±0.4 mm unless otherwise specified.

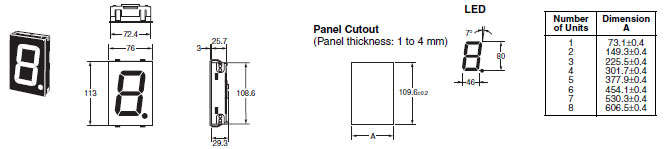

M7E-08[][]N2

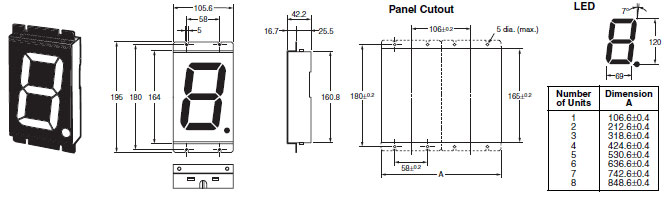

M7E-12[][]N2

M7E-12[][]N1

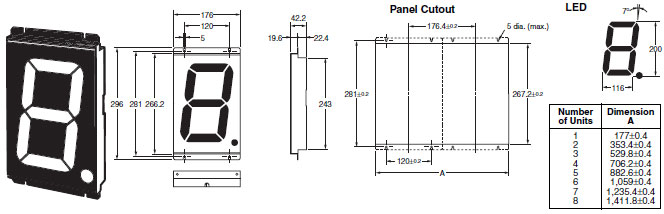

M7E-20[][]N1

last update: November 12, 2012

OMRON M7E (80 / 120 / 200 mm) specification
M7E (80 / 120 / 200 mm) Digital Display (80/120/200 mm)/Specifications
last update: October 10, 2012
Ratings

Rated power supply 24 VDC

Allowable voltage fluctuation range 90% to 110% of rated voltage

Current consumption
(per display) M7E-08 (at 24 VDC)
Red LED: 120 mA max.
Green LED: 160 mA max.

M7E-12 (at 24 VDC)
Red LED: 200 mA max.
Green LED: 330 mA max.
Red/Green LED (orange: lit): 330 mA max.

M7E-20 (at 24 VDC)
Red LED: 420 mA max.
Green LED: 500 mA max.
Red/Green LED (orange: lit): 500 mA max.

Input level Negative logic Standard High: 4 V to power supply voltage
Low: 0 to 1.5 V

Ambient temperature Operating: -10 to 55°C (with no icing)
Storage: -25 to 70°C (with no icing)

Ambient humidity Operating: 35% to 85% (with no condensation)

Characteristics

Insulation resistance 100 MΩ min. (at 500 VDC) between each terminal and mounting panel

Dielectric strength 500 VAC, 50/60 Hz for 1 min between each terminal and mounting panel

Noise immunity
(See note.) Power terminal: ±500 V
Input terminals: ±500 V (normal mode), ±1,500 V (common mode)

Vibration resistance Destruction: 10 to 55 Hz, 0.75-mm double amplitude

Shock resistance Destruction: 300 m/s²

Degree of protection IEC IP40 (portion on panel surface)

Note: 1. Initial values
2. Impulse conditions:
Rise time: 1 ns +10% max.
Pulse width: 100 ns, 1 μs
Polarity: Positive, negative, asynchronous to power frequency, 100 Hz repeat frequency.

last update: October 10, 2012
