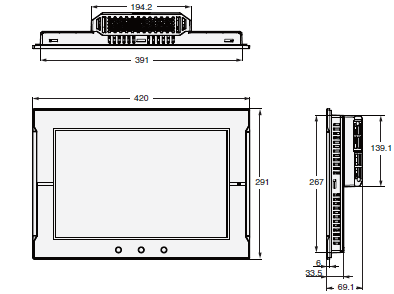

OMRON NA Series Dimensions
/Images/l_3405-25-228230-198x198.jpglast update: October 5, 2018
Sysmac - the family that matches every requirement
As part of the Sysmac automation platform, Omron NA HMI transforms machine data into information, shows information and controls devices based on requirements at FA manufacturing sites.
The NA Series enables faster, more efficient control and monitoring.
With a widescreen displaying 16,770,000 colors, the HMI that is dynamic, intuitive and predictive makes industrial machines more attractive and competitive.
• Proactive operator/ machine relationship
• Design based on real applications and customer requirements
• Future-proof, scalable platform
• Allows quick reaction
Integrating your world
The Sysmac Studio is the centerpiece of the Sysmac platform, bringing together all areas of automation including: logic, motion, vision, safety and visualization.
The NA Series can be programmed alongside the other devices in one integrated project, which speeds up development.
ONE Tag Database
• Share NJ/NX/NY Controller Variables (Tags) in the machine interface application.
• Variables shared with controller reduce the time and complexity of programming.
• Define/use NA data structures in the machine interface application
ONE Learning, ONE Project
• Program your controller and safety systems
• Simultaneously program the NA Series as device in Sysmac Studio
• Program your whole machine in one project
• Work in a familiar way on all devices
Editors in ONE [NEW]
• Display both controller and HMI editors on one screen for quick design.
Safe and secure
• Configure individual users with multi access levels
SIMPLE
• Clearly and quickly define the View
• Quickly change properties, animations, events and actions
• Powerful page editor to group objects
• Rotate, and resize - all with a simple click
BUT STILL FLEXIBLE
• Write your Visual Basic Script
• Extend the possibilities with Visual Basic
Test it in ONE [NEW]
• Integrated testing through simulation of programs on controller and HMI at the same time.
Checking your device operation at the same time makes debugging quicker and easier.
• Quickly test your device operations via the Simulator.
Features for speed
• Structured programming (through One software)
• Network device insight
• Vision setup
• Machine Controller troubleshooting
Insight & security maximised ...
The NA series has full security and authentication features that keep your valuable assets secure at all times.
And if something unexpected does happen, in your machine you will be able to solve the problem quickly and prevent a reoccurrence.
Remote access
• You can view and operate the HMI installed at production sites from your tablet using Ethernet or WiFi.
• The access of remote devices can be managed and limited. This helps prevent accidental operation and information
leakage, while securing accessibility.
Increased security
The NA Series can be configured to specific staff, with multi access levels with password protection.
This ensures authorised people interact with the machine.
Protecting your assets
• Your project can be passwordprotected along with other applications (Control and Safety).
• Transferring data can be protected (disable overwrite or theft).
... downtime minimised
You can present a machine view that is understandable at a glance. The NA Series brings everything together through rich media including PDF, video, and data to provide an intuitive and proactive machine management tool.
Show your manual in a movie
Imagine actually showing how to perform certain procedures. With the NA Series you have a trained engineer at the operator’s side, 24x7.
Show PDFs *
You can use whatever visual assets you already have to illustrate how to do things.
* Version 1.5 or higher of pdf file is not supported.
Check the controller
The troubleshooter allows you to monitor and release the NJ/NX/NY Controller errors/events as well as the user-defined errors/events.
Simple, but Flexible!
The NA Series gives the user the ability to design using IAGs (Intelligent Application Gadgets). IAGs simplify and accelerate the development process through structuring the project and enhancing reuse. From simple graphics to complex objects, you can make your own collections and share them between projects, like a Function Block.
Step 1: Machine Parts, the Visual
Using standard controls, or graphics from the machine parts collection, design your own IAG.
Add interface properties and methods to bring the object to life when reused.
Step 2: Extensible with Visual Basic
As well as many graphic IAGs, it is also possible to embed code within an IAG. The code can extend the possibilities of the gadget such as providing special device communication. Thanks to Visual Basic the standard functionality of the NA can be extended as required.
Step 3: Publish and Share
When the IAG is built and tested (using simulation) it can be published and the collection file distributed to be used again and again. Omron will release further IAG collections to extend the functionality of the NA Series.
A range of options that covers every need
Very stylish, very functional
2 Ethernet ports and SD Card slot
(1) USB slave (Tool port)
(2) 2x USB
(3) 1 Serial *
(4) 2 Ethernet ports, one for factory one for office network
(5) SD Card slot
(6) 24V DC
* The serial port is for future expansion.
System configuration
• High speed communications network
• Broad choice of connection possibilities
• USB cable detachable without changing the hardware
• Water and dust proof design
SHOW your machine
Greater visualization
More than 16 million display colors (24-bit full color)
High-resolution bitmap graphics* and 67 different types of fonts can be used to create intuitive and good-looking screens. In addition, DXF files are supported to display CAD data. Even if the drawing is enlarged or reduced in size, it never loses quality.
*Contact your Omron representative to obtain Cool Objects.
Indirect reference of text strings
A text string that is displayed on a label object (1 line) or a text box object (1 or more lines) can be switched by indirect reference. The machine operating status and alarm details can be easily displayed.
Tab control
A part of the screen can be used like a notepad.
Up to 64 tab pages for a Tab Control object can be created, and up to 10 Tab Control objects can be placed on a screen.
Change a tab page instead of a screen to monitor/change various data.
Setting, sorting, and filtering alarms
Alarms can be set easily, reducing time and effort required for creating alarm screens.
You can “sort” alarms by the preset item and “filter” by any keyword.
The error location can be quickly identified from a large number of alarms.
Scaling
Scaling can be set for Data Display/Data Edit objects and global variables.
Values of variables can be converted by specifying conversion expressions, which makes it easy to show data in the controller.
Broken-line graphs
Data of variables and multidimensional arrays in the controller can be displayed as broken-line graphs. Broken-line graphs can also be created from the data in the CSV files saved in the SD card inserted in the NJ/NX/NY Controller by using subroutines (Visual Basic). You can specify the display range of large array data, such as operation log, by setting the offset value.
OPERATE your machine
Comfortable to use
Supporting Asian languages
An Asian language - Japanese, simplified Chinese, traditional Chinese, or Korean - can be selected to use in the keypad of the NA Series.
The keypad language changes automatically when the language is changed in the language settings.
Local languages can be used to input the names of products when new recipes of the food packaging machine are added.
Executing a subroutine with multiple threads
Some subroutines require time due to repeated processing or waiting time.
Even such a subroutine can be executed during screen update, without affecting operability and visibility.
Page jump from user alarm
The page to switch can be specified in each alarm setting.
When an alarm occurs, you can check the troubleshooter screen by selecting the displayed alarm.
Customizing keypads and resizing objects
You can change the keypad size, choose only the keys you need, and customize the keys to execute specified actions.
Create your own keypad suitable for your applications.
The size of the Check Box, Slider, and Radio Button objects can also be changed. You can greatly improve the usability of your machine by enlarging these objects in size.
Dynamically changing upper/lower limit value
The upper and lower limit values can be dynamically changed by setting variables as maximum and minimum values of a Data Edit object. It is possible to restrict input according to the status of the machine.
Specifying a page number
By assigning any number to the page, you can easily switch pages from the PLC.
The previously required subroutine is no longer needed for this operation. This feature is particularly helpful when you use the CJ PLC in which pages are frequently specified by number.*
* This function is also supported in the NJ/NX/NY Series.
Usability
Simple screen design
Displaying editors on one screen [NEW]
The NA HMI Editor and NJ/NX/NY Controller Editor can be displayed on one screen.
This eliminates the need to switch between screens, making the design easier and faster.
Adding an object by drag & drop [NEW]
Just drag a variable from the Ladder Editor in the NA Page Editor to add an object. The variable is automatically set in the property of the added object.*
This eliminates the need to create and allocate HMI variables, which facilitates design work.
* When an input is selected, a Button object is added automatically.
When an output is selected, a Lamp object is added automatically.
Importing external device variables
External device variables can be imported from an XLSX or CXT file.
The CJ variable files and Excel files containing edited variables can be imported. Imported variables facilitate programming including external device settings.
Text editing
You can edit a label either directly on the Page Editor or in its properties. Editing in the object properties is recommended to edit the ON and OFF labels and change the font attributes at the same time.
Data input order
The data input order can be set.
When numeric values are entered consecutively, the focus automatically moves to the next Data Edit object by touching the Enter key.
Input errors and input time can be minimized.
Changing type of button
The type of the Buttons including Set and Momentary can be changed easily in the properties whenever you want, even during or after designing the Button.
Buttons with the lamp function
You can easily create Buttons with the lamp function.
Reusable image data [NEW]
You can check the image that is actually used in the program while selecting it, allowing you to select the correct image quickly.
Property localization (Japanese only)
The names of properties can be displayed in English or Japanese.
Easy to add variables
When adding variables in the properties, they can be also added to the variable table at the same time.
This greatly saves your time and effort for adding variables to the variable table that was previously required each time.
Creating duplicate objects
Based on one object, you can create multiple copies with the same appearance and settings by specifying an offset value for an array variable.
This makes screen creation faster and easier.
Editing subroutines
You can open the code editor (a page to edit subroutines) with just one click.
NA screen capture
The screens displayed on the NA Series can be captured and saved in the SD card inserted in the NA Series or the USB memory connected to the NA Series.
• When a screen of the NA Series is required to create a machine operation manual
• When the current screen is required to save as proof of a trouble
Supported format: PNG
Usability
Simple debugging
Integrated Simulator [NEW]
The NJ/NX/NY Controller Simulator and NA HMI Simulator can be displayed on one screen. You can quickly debug the controller program and the HMI application at the same time.
Cross references [NEW]
The same GUI for the cross reference function as the NJ/NX/NY Controller can be used.
When a variable is clicked in the global variable table, a list of the locations where the variable is used is displayed in the Cross Reference Tab Page.
By clicking the location, you can access the object, subroutine, or ladder program where the variable is used across the entire project. This makes screen design and debugging quicker and easier.
Search and Replace
You can search and replace text strings in all subroutines (Visual Basic), objects, and variables within a project.
It is quick and easy to edit and debug variable names and switch labels.
Watch Tab Page
The same GUI as the NJ/NX/NY Controller is used. Register the variable to monitor/change and then change its value on the Watch Tab Page to easily debug screens with the NA Simulator without the physical HMI.
(Broken-line Graph and Trend Graph objects cannot be used for simulations.)
Displaying object status
The ON/OFF status of the object placed on the Page Editor can be switched.
You can check the ON/OFF status of a Lamp or other object without starting the Simulator.
Not only the ON/OFF status of a Bit Lamp object but also all status of a Data Lamp object can be checked.
last update: October 5, 2018
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON NA Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NA Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NA SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
KS1 Ionizer (Air Push Type)/Features
3Z4S-LE SV-V Series Lens for C-mount Cameras/Features
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Features
H3CR-F Solid-state Timer/Features
H5S Digital Time Switch/Features
OMRON NA Series specification
NA Series Programmable Terminal/Specificationslast update: April 2, 2018
Performance Specifications
NA5-[]W and NA5-[]U have the same specifications and performance characteristics of hardware and software.
Display
| Item | Specification | ||||
|---|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | ||
| Display panel *1 | Display device | TFT LCD | |||
| Screen size | 15.4 inches | 12.1 inches | 9.0 inches | 7.0 inches | |
| Resolution | 1,280 × 800 dots (horizontal ✕ vertical) | 800 × 480 dots (horizontal ✕ vertical) | |||
| Colors | 16,770,000 colors (24 bit full colors) | ||||
| Effective display area | 331 × 207 mm (horizontal ✕ vertical) | 261 × 163 mm (horizontal ✕ vertical) | 197 × 118 mm (horizontal ✕ vertical) | 152 × 91 mm (horizontal ✕ vertical) | |
| View angles | Left: 60°, Right: 60°, Top: 60°, Bottom: 60° | ||||
| Backlight *2 | Life | 50,000 hours min. *3 | |||
| Brightness adjustment | 200 levels | ||||
| Front panel indicators *4 | RUN | Lit green: Normal operation Lit red: Error | |||
*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and
dark pixels fall within the following standard ranges.
| Model | Standard range |
|---|---|
| NA5-15W[][][][] NA5-12W[][][][] NA5-9W[][][][] NA5-7W[][][][] | Number of light and dark pixels: 10 or less. (There must not be 3 consecutive light/dark pixels.) |
*2. The backlight can be replaced at an OMRON maintenance base.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy
is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.
Operation
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Touch panel | Method: Analog resistive membrane type | |||
| Resolution: 16,384 ✕ 16,384 | ||||
| Life: 1,000,000 operations | ||||
| Function keys * | 3 inputs (capacitance inputs) | |||
* Each function key has blue indicator. The brightness of the function key indicators is also adjustable when you adjust
the brightness of the backlight.
Data Capacity
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| User data capacity | 256 MB | |||
External Interfaces
| Item | Specifications (Same for all models.) | |
|---|---|---|
| Ethernet ports | Applications | Port 1: Connecting to anything other than the Sysmac Studio, e.g., device connections and VNC clients Port 2: Connecting to the Sysmac Studio in addition to the applications of port 1. |
| Number of ports | 2 ports | |
| Compliant standards | IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3ab (1000Base-T) | |
| Transmission media | Shielded twisted-pair (STP) cable: Category 5, 5e, or higher | |
| Transmission distance | 100 m | |
| Connector | RJ-45 8P8C modular connector | |
| USB host ports | Applications | USB Memory Device, keyboard, or mouse |
| Number of ports | 2 ports | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-A connector | |
| USB slave port | Applications | Sysmac Studio connection |
| Number of ports | 1 port | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-B connector | |
| Serial port * | Applications | Device Connection |
| Number of ports | 1 port | |
| Compliant standards | RS-232C | |
| Transmission distance | 15 m max. | |
| Connector | D-DUB 9-pin female connector | |
| SD Memory Card slot | Applications | To transfer or store the project or to store log data. |
| Number of slots | 1 slot | |
| Compliant standards | SD/SDHC | |
| Expansion Unit connector * | Applications | Expansion Unit (Connector not included with product lot No. 01818 or later.) |
| Quantity | 1 | |
* The serial port and Expansion Unit connector are for future expansion.
General Specifications
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Rated supply voltage | 24 VDC | |||
| Allowable power supply voltage range | 19.2 to 28.8 VDC (24 VDC ±20%) | |||
| Allowable momentary power interruption time | Operation for momentary power interruption is not specified. | |||
| Power consumption | 47 W max. | 45 W max. | 40 W max. | 35 W max. |
| Ambient operating temperature | 0 to 50°C *1 *2 | |||
| Ambient storage temperature | -20 to +60°C *3 | |||
| Ambient operating humidity | 10 to 90% *2 Must be no condensation. | |||
| Atmosphere | Must be free from corrosive gases. | |||
| Pollution degree | 2 or less: JIS B 3502, IEC 61131-2 | |||
| Noise immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | |||
| Vibration resistance (during operation) | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 100 minutes each in X, Y, and Z directions (Time coefficient of 10 minutes ✕ coefficient factor of 10 = total time of 100 min.) | |||
| Shock resistance (during operation) | Conforms to IEC 60028-2-27. 147 m/s2 3 times each in X, Y, and Z directions | |||
| Dimensions | 420 ✕ 291 ✕ 69 mm (W ✕ H ✕ D) | 340 ✕ 244 ✕ 69 mm (W ✕ H ✕ D) | 290 ✕ 190 ✕ 69 mm (W ✕ H ✕ D) | 236 ✕ 165 ✕ 69 mm (W ✕ H ✕ D) |
| Panel cutout dimensions | 392 +1,0 ✕ 268 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 | 310 +1,0 ✕ 221 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 | 261 +1,0 ✕ 166 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 | 197 +0.5,0 ✕ 141 +0.5,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 |
| Weight | 3.2 kg max. | 2.3 kg max. | 1.7 kg max. | 1.3 kg max. |
| Degree of protection | Front-panel controls: IP65 oil-proof type, UL Type 4X (at initial state) To reinstall the NA Unit in a panel, contact your OMRON representative for replacement of the rubber packing. | |||
| Battery life | Battery life: 5 years at 25°C The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) | |||
| International standards *5 | UL 508/CSA standard C22.2 No.142 *6 EMC Directive (2004/108/EC) EN 61131-2: 2007 Shipbuilding standards LR, DNV, and NK IP65 oil-proof, UL Type 4X *7 (front panel only) ANSI 12.12.01 Class 1 Division 2/CSA standard C22.2 No. 213-M1987 (R2013) RoHS Directive (2002/95/EC) KC Standards KN 61000-6-2: 2012-06 for EMS and KN 61000-6-4: 2012-06 for EMI RCM | |||
*1. The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
• The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.

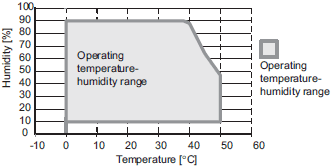

*2. Use the Programmable Terminal within the following temperature and humidity ranges.

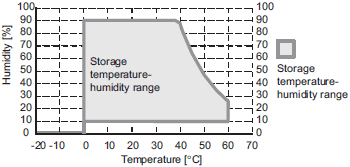

*3. Store the Programmable Terminal within the following temperature and humidity ranges.
*4. When the NA-[]WATW01 High-pressure Waterproof Attachment is used, the panel thickness is between 1.6 to 4.5 mm.
*5. Check with your OMRON representative or refer to the following OMRON website for the latest information on the
applicable standards for each model: www.ia.omron.com.
*6. Use power supply Class 2 to conform to UL Standards.
*7. Use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately) to conform to UL Type 4X.
Version Information
NA series and Programming Devices
| NA series | Corresponding unit versions/version | ||
|---|---|---|---|
| Model | NA system version | NJ/NX/NY-series Controller NX1P2-[][][][] NJ501-[][][][] NY512-[][][][] NJ301-[][][][] NY532-[][][][] NJ101-[][][][] NX701-[][][][] | Sysmac studio |
| NA5-15W NA5-12W NA5-9W NA5-7W | 1.07 or later | NX1P2: 1.13 or later | 1.17 or higher |
| 1.06 or later | NY512: 1.12 or later NY532: 1.12 or later | 1.17 or higher | |
| 1.02 or later | NX701: 1.10 or later NJ101: 1.10 or later | 1.13 or higher | |
| 1.01 or later | NJ501: 1.01 or later NJ501 Database Connection: 1.05 or later NJ301: 1.01 or later | 1.11 or higher | |
Supported Devices
| Manufacturer | Models | Connection method | Communications driver |
|---|---|---|---|
| OMRON | NX1P2-[][][][] NJ501-[][][][] NY512-[][][][] NJ301-[][][][] NY532-[][][][] NJ101-[][][][] NX701-[][][][] | Built-in EtherNet/IP port | Ethernet |
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 | Built-in EtherNet/IP port | CIP Ethernet | |
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 | CJ1W-EIP21 | ||
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 | Built-in EtherNet/IP port | FINS Ethernet | |
| CJ1H-CPU65H/66H/67H CJ1H-CPU65H/66H/67H-R CJ1G-CPU42H/43H/44H/45H CJ1M-CPU11/12/13/21/22/23 CJ2H-CPU64/65/66/67/68(-EIP) CJ2M-CPU11/12/13/14/15 CJ2M-CPU31/32/33/34/35 | CJ1W-ETN21 CJ1W-EIP21 |
last update: April 2, 2018
OMRON NA Series catalog
NA Series Programmable Terminal/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 NA Series Catalog | V413-E1-08 [8172KB] | Jan 21, 201920190121 | NA Series Catalog |
| NA Series Feature of troubleshooter for NJ/NX | V414-E1-01 [249KB] | Jan 06, 201620160106 | NA Series Feature of troubleshooter for NJ/NX |
OMRON NA Series dimension
NA Series Programmable Terminal/Dimensionslast update: December 1, 2015
(Unit: mm)

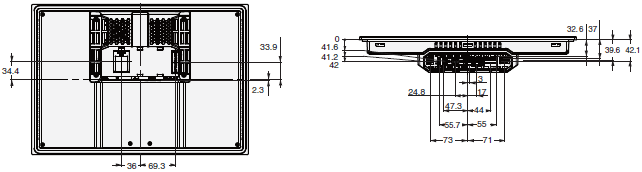

NA5-15W101S/-15W101B
Cable Connection Dimensions

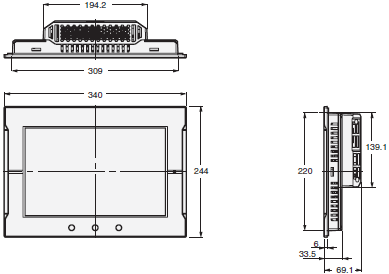

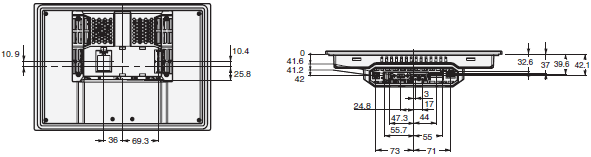

NA5-12W101S/-12W101B
Cable Connection Dimensions

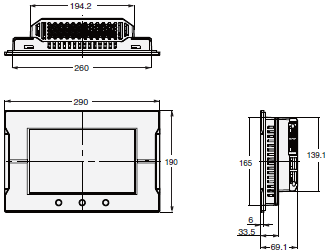

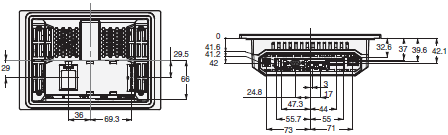

NA5-9W001S/-9W001B
Cable Connection Dimensions

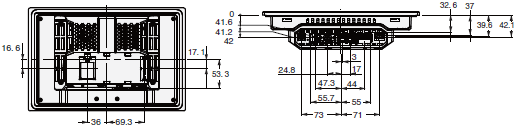

NA5-7W001S/-7W001B
Cable Connection Dimensions
last update: December 1, 2015
OMRON NA Series lineup
NA Series Programmable Terminal/Lineuplast update: January 21, 2019
NA5-[]W
| Product name | Specifications | Model |
|---|---|---|
| NA5-15W | 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 ✕ 800 dots, Frame color: Silver | NA5-15W101S |
| 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 ✕ 800 dots, Frame color: Black | NA5-15W101B | |
| NA5-12W | 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 ✕ 800 dots, Frame color: Silver | NA5-12W101S |
| 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 ✕ 800 dots, Frame color: Black | NA5-12W101B | |
| NA5-9W | 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 ✕ 480 dots, Frame color: Silver | NA5-9W001S |
| 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 ✕ 480 dots, Frame color: Black | NA5-9W001B | |
| NA5-7W | 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 ✕ 480 dots, Frame color: Silver | NA5-7W001S |
| 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 ✕ 480 dots, Frame color: Black | NA5-7W001B | |
| High-pressure Waterproof Attachment for NA5-[]W | This metal frame is for high-pressure waterproofing. Install it to conform to UL Type 4X standards. UL Type 4X is the rating for high-pressure wash-down applications with a flow rate of 246 liter/min. This attachment can be used for the NA5-[]W, but not for the NA5-[]U. | NA-15WATW01 |
| NA-12WATW01 | ||
| NA-9WATW01 | ||
| NA-7WATW01 |
Note: The NA5-[]U is also available. Contact your OMRON representative for details.
Options
| Product name | Specifications | Model |
|---|---|---|
| SD memory card | 2 GB | HMC-SD291 |
| 4 GB | HMC-SD491 | |
| USB Memory | 2 GB | FZ-MEM2G |
| 8 GB | FZ-MEM8G | |
| Replacement Battery | Battery life: 5 years (at 25°C). This Battery is provided as an accessory. | CJ1W-BAT01 |
| Anti-reflection Sheets | For the NA5-15W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. | NA-15WKBA04 |
| For the NA5-12W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. | NA-12WKBA04 | |
| For the NA5-9W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. | NA-9WKBA04 | |
| For the NA5-7W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. | NA-7WKBA04 |
Automation Software
| Product name | Specifications | Number of licenses | Media | Model |
|---|---|---|---|---|
| Sysmac Studio Standard Edition Ver.1.[][] | The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX Series, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows XP (Service Pack 3 or higher, 32-bit version)/ Windows Vista (32-bit version)/ Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) | - (Media only) | DVD | SYSMAC-SE200D |
| 1 license | - | SYSMAC-SE201L | ||
| 3 licenses | SYSMAC-SE203L | |||
| 10 licenses | SYSMAC-SE210L | |||
| 30 licenses | SYSMAC-SE230L | |||
| 50 licenses | SYSMAC-SE250L |
Note: Site licenses are available for users who will run Sysmac Studio on multiple computers. Ask your OMRON sales
representative for details.
USB Cable
| Product name | Specifications |
|---|---|
| USB Cable | Use commercially available USB cable. Specifications: USB 2.0 cable (A connector - B connector), 5.0 m max. |
Recommended Network Devices
Industrial Switching Hubs
| Product name | Specifications | Model | ||||
|---|---|---|---|---|---|---|
| Functions | No. of ports | Failure detection | Accessories | Current consump- tion (A) | ||
| Industrial Switching Hubs | Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | Power supply connector | 0.22 | W4S1-03B |
| 5 | No | 0.22 | W4S1-05B | |||
| 5 | Yes | • Power supply connector • Connector for informing error | 0.22 | W4S1-05C | ||
Recommended Ethernet Communications Cables
Use STP (shielded twisted-pair) cable of category 5 or higher
| Product name | Recommended manufacturer | Model | |
|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG24, 4-pair Cable | Cables | Hitachi Metals, Ltd | NETSTAR-C5E SAB 0.5 ✕ 4P CP |
| Kuramo Electric Co. | KETH-SB | ||
| SWCC Showa Cable Systems Co. | FAE-5004 | ||
| RJ45 Connectors | Panduit Corporation | MPS588 | |
| Wire Gauge and Number of Pairs: 0.5 mm, 4-pair Cable | Cables | Fujikura Ltd. | F-LINK-E 0.5mm ✕ 4P |
| RJ45 Connectors | Panduit Corporation | MPS588 | |
Note: We recommend you to use above cable and RJ45 Connectors together.
last update: January 21, 2019
- NO. NA Series
- TYPE:Programmable Terminals Copyright Statement Copyright Statement
- DATE:2021-06-17
- Associated products:
CS1W-CIF31 USB-Serial Conversion Cable/Features NB Series Programmable Terminals/Features
