OMRON EE-SX77 / SX87 Dimensions
/Images/l_435-25-118810-198x198.jpglast update: November 4, 2015
• Compact, thin profile enables dense mounting.
• Indicator is visible from both sides.
• Wide operating voltage range: 5 to 24 VDC
last update: November 4, 2015
Purchase the OMRON Slot-type Please fill in the following
If you have just landed here, this product OMRON EE-SX77 / SX87 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SX77 / SX87 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SX77 / SX87Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3ZM-C Oil-resistant, Robust, Compact Photoelectric Sensor/Features
E3S-A Built-in Amplifier Photoelectric Sensor (Medium Size)/Features
E5EC-800 Digital Temperature Controller (Simple Type) (48 × 96 mm)/Features
H5S Digital Time Switch/Features
CJ1W-CLK CJ-series Controller Link Units/Features
OMRON EE-SX77 / SX87 specification
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Specificationslast update: September 24, 2012
| Type | Standard | L-shaped | T-shaped |
|---|---|---|---|
| NPN models | EE-SX770/EE-SX870 EE-SX770A/EE-SX870A | EE-SX771/EE-SX871 EE-SX771A/EE-SX871A | EE-SX772/EE-SX872 EE-SX772A/EE-SX872A |
| PNP models | EE-SX770P/EE-SX870P EE-SX770R/EE-SX870R | EE-SX771P/EE-SX871P EE-SX771R/EE-SX871R | EE-SX772P/EE-SX872P EE-SX772R/EE-SX872R |
| Sensing distance | 5 mm (slot width) | ||
| Sensing object | Opaque: 2 × 0.8 mm min. | ||
| Differential distance | 0.025 mm | ||
| Light source | GaAs infrared LED with a peak wavelength of 940 nm | ||
| Indicator | Light indicator (red) (turns ON when light is interrupted for models with A or R suffix) | ||
| Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. | ||
| Current consumption | 35 mA max. (NPN models), 30 mA max. (PNP models) | ||
| Control output | NPN open collector: 5 to 24 VDC, 100 mA max. 100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. OFF current (leakage current): 0.5 mA max. PNP open collector: 5 to 24 VDC, 50 mA max. 50 mA load current with a residual voltage of 1.3 V max. OFF current (leakage current): 0.5 mA max. | ||
| Response frequency * | 1 kHz min. (3 kHz average) | ||
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver | ||
| Ambient temperature range | Operating: - 25 to +55 ° C Storage: - 30 to +80 ° C (with no icing) | ||
| Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% (with no condensation) | ||
| Vibration resistance | Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2) 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions | ||
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | ||
| Degree of protection | IEC60529 IP60 | ||
| Connecting method | Pre-wired (standard cable length: 2 m) | ||
| Weight (packaged) | Approx. 20 g | ||
| Material | Case: Polybutylene phthalate (PBT) | ||
* The response frequency was measured by detecting the following rotating disk.
last update: September 24, 2012
OMRON EE-SX77 / SX87 catalog
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 EE-SX77/SX87 Data Sheet | - [649KB] | Nov 04, 201520151104 | EE-SX77/SX87 Data Sheet |
OMRON EE-SX77 / SX87 lineup
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Lineuplast update: September 23, 2012
Pre-wired Models
| Appearance | Sensing method | Cable length | Sensing distance | Output configu- ration | Indicator mode | Model | |
|---|---|---|---|---|---|---|---|
| NPN output | PNP output | ||||||
Standard | Through- beam type (with slot) | 2 m | 5 mm (slot width) (Infrared light) | Dark-ON | Incident light | EE-SX770 2M | EE-SX770P 2M |
| No incident light | EE-SX770A 2M | EE-SX770R 2M | |||||
| Light-ON | Incident light | EE-SX870 2M | EE-SX870P 2M | ||||
| No incident light | EE-SX870A 2M | EE-SX870R 2M | |||||
L-shaped | Dark-ON | Incident light | EE-SX771 2M | EE-SX771P 2M | |||
| No incident light | EE-SX771A 2M | EE-SX771R 2M | |||||
| Light-ON | Incident light | EE-SX871 2M | EE-SX871P 2M | ||||
| No incident light | EE-SX871A 2M | EE-SX871R 2M | |||||
T-shaped | Dark-ON | Incident light | EE-SX772 2M | EE-SX772P 2M | |||
| No incident light | EE-SX772A 2M | EE-SX772R 2M | |||||
| Light-ON | Incident light | EE-SX872 2M | EE-SX872P 2M | ||||
| No incident light | EE-SX872A 2M | EE-SX872R 2M | |||||
last update: September 23, 2012
OMRON EE-SX77 / SX87 dimension
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Dimensionslast update: October 12, 2012
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

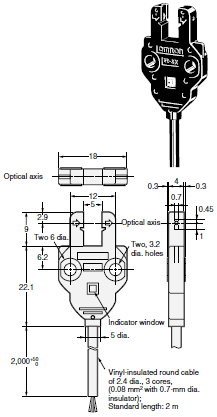

Standard
EE-SX770/770P
EE-SX870/870P
EE-SX770A/770R
EE-SX870A/870R

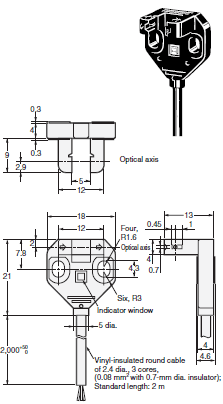

L-shaped
EE-SX771/771P
EE-SX871/871P
EE-SX771A/771R
EE-SX871A/871R

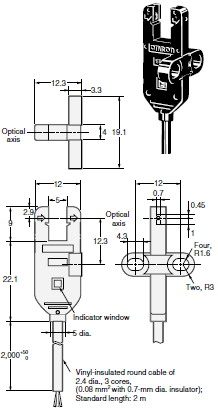

T-shaped
EE-SX772/772P
EE-SX872/872P
EE-SX772A/772R
EE-SX872A/872R
last update: October 12, 2012
