OMRON ZN-THX21-S dimension

last update: May 09, 2013

Tolerance class IT16 applies to the dimensions unless otherwise specified.

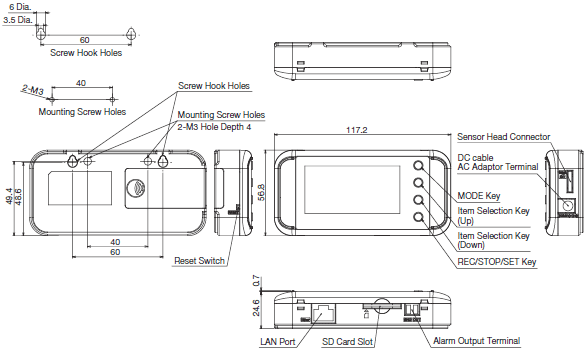

ZN-THX21-SA

ZN-THS11-S

ZN-THS17-S

ZN9-ACP01-S

last update: May 09, 2013

OMRON ZN-THX21-S specification

last update: February 1, 2019

Sensor head

Model		ZN-THS11-S (Sensor head: 1.5 m type)	ZN-THS17-S (Sensor head: Anchored type)
Temperature	Measurement range	-25 to +60°C	0 to 60°C
	Measurement precision	±0.3°C (at 25°C)
	Resolution	0.1°C
Relative humidity	Zero point	0% to 99%	20% to 85%
	Span	±2.5% (at 25°C, 10 to 85%)
	Resolution	0.1%
Weight (packaged)		Approx. 300 g
Accessories		Instruction sheet Mounting screw (M3 x 8) x 1	Instruction sheet Mounting screw (M3 x 8) x 1 Caps to secure cable

• As performance may deteriorate through the adhesion of impurities or contaminants in the environment on the sensor
    surface, calibration is recommended once a year.
• When ZN-THS1 -S is exposed over a long period of time at a high humidity of 80% or higher, the humidity
    measurement value may be offset.
    In that case, expose the product at room temperature and humidity for 24 hours prior to use.
• When ZN-THS1[][]-S is transferred rapidly between the places where temperature difference is large, condensation
    may occur on the sensor surface.
    In that case, the ZN-THS1[][]-S may not work properly.
    When the product becomes wet due to condensation, allow the product to dry in dry, room temperature environment
      before use.
• When using the ZN-THS1[][]-S under conditions with temperature of -20°C or less or with humidity of 90% or more,
     acceleration of sensor deterioration may occur.
• To avoid deterioration of sensor, avoid storing the product under high temperature and high humidity for a long period
     of time.
• Please don’t use the product in the environment to which organic chemistry material disperses.

Station

Model	ZN-THX21-SA
Sensor that can be connected	Thermo-Humidity Sensor Head (ZN-THS[][]-S)
Display	LCD 7-segment 5-digit 2-step display, auxiliary information indicator display
Measurement interval	10 s, 20 s, 30 s, 1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 1 h
Calculation function	Instantaneous value, maximum value, minimum value, average value
Operating mode	Network connection mode, sleep mode *1 air particle sensor (ZN-PD[][]-S[]) connection mode *2
Recording mode	Continue *3, ring *4
Alarm signal output	Output to photocoupler (External power supply: 12 to 24 VDC, Load current: Max. 45 mA) Alarm hold setting is possible. *5
Communications interface	Ethernet (10BASE-T, 100BASE-TX)
Communications protocol	Socket (TCP), original protocol
Internal storage device	Internal memory: Approx. 8,500 data items *6
External storage device	SD card (measured value saving/set value saving and reading), Recommended SD card: HMC-SD291 (2GB) and HMC-SD491 (4GB) (manufactured by OMRON) ∗7
Power supply voltage	DC input: 24 VDC ±10% Battery: 2 AAA batteries *8
Battery life *9	Approx. 1 year *9 (sleep mode) Approx. 2 hours *9 (Network connection mode, air particle sensor (ZN-PD[][]-SA) connection mode) Measurement interval of 10 minutes (with 2 AAA nickel metal hydride batteries, with SD card not inserted)
Operating temperature range	0 to 60°C
Operating humidity range	20% to 85% (no condensation)
Weight (packaged)	Approx. 500 g
Accessories	Instruction Sheet, Startup Guide, DC cable (straight type), Ferrite core, Alarm output connector ∗10

*1 Power saving mode. The indicator is always OFF in default setting. (Turns ON with button operation.)
      Network communications with host devices cannot be made.
*2 This mode makes one-to-one network connection with Air Particle Sensor (ZN-PD[][]-S[]) and enables logging of the
      particle count value and thermal data simultaneously to the SD card.
      Network communications with host devices cannot be made.
*3 Automatically writes data to the SD card when reaching the upper limit of the internal memory and keeps recording
      until the capacity limit of the SD card. If the SD card is not inserted when the internal memory reaches the upper
      limit, recording stops. (Data can be output to the SD card by pressing the button after inserting the SD card.)
*4 This mode always records the latest measured values for the upper limit of the internal memory. (When the
      measured values exceed the upper limit of the internal memory, the data items will be deleted beginning with the
      oldest data item.)
*5 An alarm is shown when exceeding the upper limit value or lower limit value that has been set in threshold setting
      mode.
*6 Air particle sensor connection mode is excluded.
*7 If you use an SD card from another manufacturer, be sure to use an industrial SD card (with SLC-type flash memory)
      with high reliability and endurance. Please use an SD/SDHC Class 4 or higher card. (SDXC cards cannot be used.)
     Please note that you must confirm the operation of the SD card from another manufacturer yourself.
*8 Nickel hydride battery and alkaline battery can be used. Manganese batteries cannot be used.
*9 Battery life differs depending on measurement environment, sampling, operating mode, battery type or performance.
*10 The connector is type XW4B-02B1-H1, made by OMRON.

last update: February 1, 2019

OMRON ZN-THX21-S lineup

last update: June 1, 2018

Main unit

Appearance	Item	Model
	Sensor head 1.5 m type	ZN-THS11-S
		ZN-THS11C-S *
	Sensor head Anchored type	ZN-THS17-S
		ZN-THS17C-S *
	Station	ZN-THX21-SA

* Please choose this form when you buy with the calibration certificate.
    Contents of Certificate of Calibration Set: Calibration Certificate, Inspection Result, and Traceability Chart

Accessories (Order separately)

Appearance	Item		Model
	Mounting Magnet *1		ZN9-EM01-S
	DC cable (2 m) (ZN9-ED01-S comes with ZN-THX21-SA)	Straight type	ZN9-ED01-S
		Right angle type	ZN9-ED02-S
	AC Adaptor for ZN-[][]X-SA Power supply voltage: 100 to 240 VAC/50 to 60 Hz Operating temperature range: 0 to 40°C	PSE, CE, UL STD/ A-type plug	ZN9-ACP01-S
	Environmental Visualization Software Wave Inspire ES *2 *3 *4		ZN-SW11-S

*1 When the magnet is used, the vibration resistance becomes 55 Hz or less. (Two logger installation screws are
      attached.)
*2 System requirements OS: Microsoft Windows 7 (32 bit/64 bit)/Microsoft Windows 10 (32 bit/64 bit)
      CPU: compatible Intel processors, 1 GHz or higher. Memory: 1 GB or more (2 GB or more recommended)
*3 The compliant version is Ver. 2.2.1 or later
*4 The maximum number of connectable sensors is 95.
      (When one PC is connected with a leased line network . The sampling period is set to 10 minutes.)
      The number of possible sensor connections changes by a sampling period, connected number of PC or PLC, and
      the network load situation.

Calibration service

Subject to calibration	Content	Model
Sensor head 1.5 m type	Calibration Certificate, Inspection Result Traceability chart	ZN-THS11-CAL
Sensor head Anchored type	Calibration Certificate, Inspection Result Traceability chart	ZN-THS17-CAL

* If a Certificate of Calibration is required after you purchase the sensor head, use the above model number to order
    one.
* As the sensor head and station are digitally connected, only the sensor head is subject to calibration.
* It is necessary to ship the product back to OMRON in Japan.
∗ The calibration service does not include repairs or adjustments.

last update: June 1, 2018
