OMRON V400-R2Sensors/ Code Readers / OCR/Code Readers
OMRON V400-R2 Sensors
OMRON V400-R2 Dimensions
/Images/l_3174-25-164346-198x198.jpglast update: April 21, 2016
The Ultra-small Multi-code Reader That Can Handle Speed
Multi Code Reader
V400-R2 Series
Improves Machine Takt Time with the Fastest Reading in the Class: Reads Moving Objects at Up to 500 m/min*
It is not just the size that makes this Reader easy to build into equipment. It enables stable reading of moving objects on high-speed lines. Build it into equipment to read moving objects, which is achieved with a new algorithm.
* Performance may depend on the code that is read and the printing conditions.
Stable Reading of Imperfect Codes
The V400-R2 with its new algorithm is adept even the most imperfect codes. Even for codes that were previously difficult to read, you can change the exposure time and gain to achieve the optimum settings to enable reading.
Distance Variations
There are two models in the lineup to let you select the field of view or installation distance that is best for the equipment type. Both models are the same size, so additional design work is not necessary to change the model.
Reading Test Switch Provided
We achieved an operation that is simple enough for essentially anyone. Just press the Scan button on the Reader to perform a read test. The results are provided with the Read OK indicator and buzzer.
Aiming [Positioning Function]
A guide light lets you easily find the ideal installation position. You can easily and quickly position the codes with the aiming function.
Body Resists Environments to IP65
IP65 protection is provided because that is generally the level that is required to build devices into equipment.
That enables reliable application in harsh environments subject to water and mist.
Verification with Master Data
You can verify character strings to see if they match preset master data without a special device.
GS1-Databar (RSS) Supported
The data-rich GS1-Databar (RSS code) Bar Codes can also be read. This enables reliable applications in the pharmaceutical industry, where GS1-Databar (RSS code) Bar Codes are becoming popular.
last update: April 21, 2016
Purchase the OMRON Code Readers Please fill in the following
If you have just landed here, this product OMRON V400-R2 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the V400-R2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON V400-R2Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Features
G9SX-LM Low-speed Monitoring Unit/Features
G3H / G3HD Solid State Relays G3[]-VD/Features
E5AN-HT, E5EN-HT Programmable Temperature Controller (Digital Controller) (96 x 96 mm and 48 x 96...
ZN-THS-S / THX11-S Precision Thermo-Humidity Logger/Features
OMRON V400-R2 lineup
V400-R2 Multi Code Reader/Lineuplast update: April 25, 2013
| Type | Model | |
|---|---|---|
| Multi Code Reader | Working distance 65 mm | V400-R2CF65 |
| Working distance 125 mm | V400-R2CF125 | |
| OMRON PLC connecting cable | D-sub 9-pin, 0.8 M | V509-W011 |
| D-sub 9-pin, 5 M | V509-W016 | |
| PC/AT Connecting cable | D-sub 9-pin, 0.8 M | V509-W011D |
| D-sub 9-pin, 5 M | V509-W016D | |
last update: April 25, 2013
OMRON V400-R2 specification
V400-R2 Multi Code Reader/Specificationslast update: June 29, 2015
Ratings and Performance
| Model | V400-R2CF65 | V400-R2CF125 | |
|---|---|---|---|
| Direction of view | Front view | ||
| Applicable codes *1 | Bar code | WPC (JAN/EAN/UPC), Codabar (NW-7), ITF, Industrial 2 of 5 (STF), Code39, Code93, Code128, GS1-128 (EAN-128), GS1-Databar (RSS-14), GS1-Databar Limited (RSS Limited), GS1-Databar Expanded (RSS Expanded), GS1-Databar Composite (RSS Composite) | |
| Number of reading digits | QR code, DataMatrix (ECC200), MicroQR code, PDF417, MicroPDF417, AztecCode, MaxiCode, Codablock-F | ||
| Reading performance *2 | Number of reading digits | No upper limit (depends on bar width and reading distance) | |
| Light source | Two red LEDs (wave length: 617 nm) | ||
| Aiming light | One green LED (wave length: 528 nm) | ||
| Minimum resolution | Bar code: 0.076 mm 2D code: 0.127 mm | Bar code: 0.127 mm 2D code: 0.212 mm | |
| Image capture device | Monochrome CMOS | ||
| Effective number of pixels | 754 × 480 pixels | ||
| Working distance (WD) | 65 mm | 125 mm | |

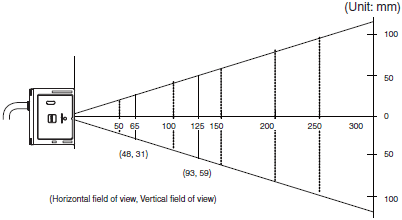

| Field of view | Approximately 48 × 31 (for WD = 65 mm) | Approximately 93 × 59 (for WD = 125 mm) | |

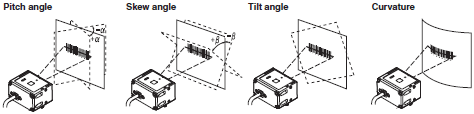

| Pitch angle (α) | ±50º | ||
| Skew angle (β) | ±50º | ||
| Tilt angle (γ) | ±180º | ||
| Reading of bar codes on curved surfaces (R) | R 20 mm (UPC 12 line) | ||
| Interface | Communication specification | RS-232C | |
| OK/NG outputs | NPN open collector output (cable work required) | ||
| Function setting method | Menu sheet reading, Sending commands from upper equipment, or SCAN button (only when executing code condition teaching) | ||
| Functional specifications | Reading trigger | External trigger (Transistor input) Trigger by command (RS-232C) Trigger a test reading by pressing the SCAN button on the product | |
| OK/NG signals | • When the label is not registered OK signal: ON when reading is successful NG signal: Not used • When the label is registered OK signal: ON when reading result matches registered label NG signal: ON when reading result does not match registered label | ||
| Indication LED | • When reading Read confirmation LED (green) illuminates when reading is successful. • When teaching Read confirmation LED (green) blinks during execution. When teaching is successful, read confirmation LED (green) illuminates and buzzer sounds. When teaching fails, read confirmation LED (red) illuminates and BAD buzzer sounds. *3 | ||
| Buzzer | Notifies a successful reading with a buzzer sound (Muting available) | ||
| Power supply specification | Power voltage | 4.5 to 5.5 VDC | |
| Consumption current | During operation: 265 mA or less; during standby: 70 mA or less | ||
| Environmental specifications | Ambient temperature range | At operation: 0 to + 45ºC; At storage: -10 to + 60ºC | |
| Ambient humidity range | At operation and storage: 20 to 85% RH (with no icing or condensation) | ||
| Ambient atmosphere | No corrosive gases | ||
| Ambient light | Fluorescent lamp: 10,000 lx or less, Sunlight: 100,000 lx or less | ||
| Vibration resistance | 10 to 150 Hz, half amplitude 0.35 mm, 3 directions (X/Y/Z), 8 minutes each 10 times | ||
| Degree of protection | IP65 (IEC60529) | ||
| Weight | Main unit only | Approximately 90 g | |
| Including accessories | Approximately 200 g (including mounting bracket and screws) | ||
| Packaged weight | Approximately 280 g (including packing carton) | ||
| Dimensions | Main unit | Approximately 41 (W) × 33 (D) × 24 (H) mm | |
| Packing carton | Approximately 240 (W) × 110 (D) × 40 (H) mm | ||
| Input/output connector | Round DIN connector | ||
| Code length | Approximately 1.5 m | ||
| Minimum bending radius of cord | Approximately 23 mm | ||
| Accessories | Operation manual, menu sheet, mounting bracket, M2 × 6 screws (two), M5 ×10 screws (two) | ||
| Material, Color | Case | PC, PET, black | |
| Reading window | PMMA, transparent | ||
| Cable | Polyvinyl chloride (PVC), black | ||
| Mounting bracket | SUS304, silver | ||
*1. These are the code types supported based on Omron’s read capability validation standard. It is recommended that the customer do its own validation in its actual work environment.
*2. Unless otherwise specified, the reading performance is defined with angle α = 0º, β = +15º, γ = 0º, R = ∞; illuminance:100 to 2001x, reading rate: 90% or more.
*3. The BAD buzzer is two low-pitched buzz sounds.
•QR code is the registered trademark of DENSO WAVE.
Reading range performance (typical example)
Explained with examples of following conditions:
•Contrast: MRD 63% (PCS = 0.9)
•Installation condition:
Pitch angle α = 0°, skew angle β = 15°
Tilt angle γ = 0°, curvature R = ∞
•Reading rate: 90% or more in 10 tries
V400-R2CF125
2D code (typical example)
| Code types | Resolution | Reading distance | Field-of-view size at reading distance |
|---|---|---|---|
| QR Code | 0.212 | 95 to 115 | 70×44 to 85×54 |
| 0.381 | 60 to 185 | 44×28 to 137×87 | |
| Data Matrix | 0.254 | 80 to 145 | 59×38 to 107×68 |
| PDF417 | 0.169 | 85 to 130 | 63×40 to 96×61 |
| 0.254 | 65 to 180 | 48×30 to 133×85 |
Bar code (typical example)
| Code types | Resolution | Reading distance | Field-of-view size at reading distance |
|---|---|---|---|
| Code39 | 0.127 | 90 to 125 | 66×42 to 93×59 |
| 0.254 | 70 to 190 | 52×33 to 141×89 | |
| 0.508 | 65 to 235 | 48×30 to 174×110 | |
| Code128 | 0.2 | 80 to 160 | 59×38 to 118×75 |
| UPC | 0.33 | 55 to 185 | 40×25 to 137×87 |
V400-R2CF65
2D code (typical example)
| Code types | Resolution | Reading distance | Field-of-view size at reading distance |
|---|---|---|---|
| QR Code | 0.169 | 70 to 80 | 51×33 to 59×38 |
| 0.381 | 45 to 110 | 33×21 to 81×52 | |
| Data Matrix | 0.212 | 65 to 90 | 48×31 to 66×42 |
| PDF417 | 0.127 | 65 to 80 | 48×31 to 59×38 |
| 0.254 | 65 to 110 | 48×31 to 81×52 |
Bar code (typical example)
| Code types | Resolution | Reading distance | Field-of-view size at reading distance |
|---|---|---|---|
| Code39 | 0.127 | 65 to 85 | 48×31 to 62×40 |
| 0.254 | 60 to 110 | 44×28 to 81×52 | |
| Code128 | 0.18 | 55 to 100 | 40×26 to 74×47 |
| UPC | 0.33 | 60 to 125 | 44×28 to 92×58 |
last update: June 29, 2015
OMRON V400-R2 catalog
V400-R2 Multi Code Reader/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Code Reader/OCR Catalog | Q195-E1-01 [13331KB] | Apr 21, 201620160421 | Code Reader/OCR Catalog |
OMRON V400-R2 dimension
V400-R2 Multi Code Reader/Dimensionslast update: April 25, 2013
Multi Code Reader
V400-R2CF65/R2CF125
last update: April 25, 2013
