• Flat Sensor with excellent space efficiency. (Model with built-in Amplifier is only 10 mm thick.)

• Direct mounting onto a metallic surface is possible.

last update: April 21, 2017

Purchase the OMRON Capacitive Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E2K-F Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2K-F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2K-FSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NX102-[][][][] NX-Series NX1 CPU Units/Features
FZ-LES Series Lens for FZ-series Small Cameras/Features
K8AK-LS Conductive Level Controller/Features
G3FM Solid State Relays/Features
H3DT-A Power ON-delay Timer/Features

OMRON E2K-F specification
E2K-F Flat Proximity Sensor/Specifications
last update: September 24, 2012

Model E2K-F10MC[]-A E2K-F10MC[]

Sensing distance 10 mm (Sensing distance adjustable range: 4 to
10 mm) 10 mm ±10%

Set distance 0 to 7.5 mm *

Differential travel 15% max. of sensing distance

Detectable object Conductors and dielectrics

Standard sensing object Grounded metal plate: 50 × 50 × 1 mm

Response frequency 100 Hz

Power supply voltage
(operating voltage range) 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.

Current consumption 10 mA max. at 24 VDC

Control
output Load current NPN open collector, 100 mA max. (at 30 VDC)

Residual voltage 1.5 V max. (Load current: 100 mA, Cable length: 2 m)

Indicators Detection indicator (red)

Number of turns of
sensitivity adjustment 12 turns -

Operation mode (with
sensing object approaching) NO (Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.)

Protection circuits Reverse polarity protection, Surge suppressor

Ambient temperature range Operating/Storage: -10 to 55°C (with no icing or condensation)

Ambient humidity range Operating/Storage: 35% to 95% Operating/Storage: 35% to 95%

Temperature influence ±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C

Voltage influence ±2.5% max. of sensing distance at rated voltage at rated voltage ±10%

Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 500 m/s² 3 times each in X, Y, and Z directions

Degree of protection IP64 (IEC) IP66 (IEC)

Connection method Pre-wired Models (Standard cable length: 2 m)

Weight (packed state) Approx. 35 g

Materials Case Heat-resistant ABS

Sensing surface

Accessories Instruction manual

* The value for the E2K-F10MC[]-A is when it is adjusted to 10 mm.

last update: September 24, 2012

OMRON E2K-F catalog
E2K-F Flat Proximity Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E2K-F Data Sheet -
[643KB] Nov 01, 201820181101 E2K-F Data Sheet

OMRON E2K-F lineup
E2K-F Flat Proximity Sensor/Lineup
last update: November 1, 2018
Sensors

Appearance Sensing distance
(Adjustable range) Output configuration Model/Operation mode
NO NC
Flat Unshielded
10 mm DC 3-wire
NPN E2K-F10MC1 2M E2K-F10MC2 2M
10 mm
(4 to 10 mm) E2K-F10MC1-A 2M E2K-F10MC2-A 2M

last update: November 1, 2018

OMRON E2K-F dimension

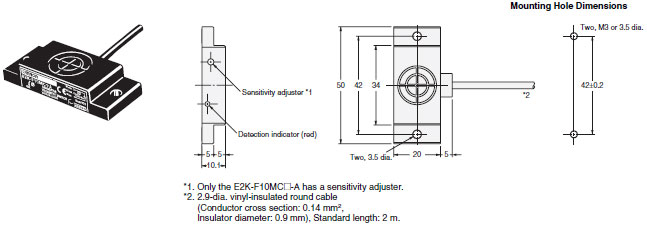

E2K-F Flat Proximity Sensor/Dimensions
last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

E2K-F

last update: November 12, 2012

NO. E2K-F

TYPE:Proximity Sensors Capacitive Copyright Statement

DATE:2021-06-17

Associated products:
E2K-X Cylindrical Proximity Sensor/Features E2K-L Liquid Level Sensor/Features

Model	E2K-F10MC[]-A	E2K-F10MC[]
Sensing distance	10 mm (Sensing distance adjustable range: 4 to 10 mm)	10 mm ±10%
Set distance	0 to 7.5 mm *
Differential travel	15% max. of sensing distance
Detectable object	Conductors and dielectrics
Standard sensing object	Grounded metal plate: 50 × 50 × 1 mm
Response frequency	100 Hz
Power supply voltage (operating voltage range)	12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption	10 mA max. at 24 VDC
Control output	Load current	NPN open collector, 100 mA max. (at 30 VDC)
Residual voltage	1.5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators	Detection indicator (red)
Number of turns of sensitivity adjustment	12 turns	-
Operation mode (with sensing object approaching)	NO (Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.)
Protection circuits	Reverse polarity protection, Surge suppressor
Ambient temperature range	Operating/Storage: -10 to 55°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95%	Operating/Storage: 35% to 95%
Temperature influence	±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C
Voltage influence	±2.5% max. of sensing distance at rated voltage at rated voltage ±10%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IP64 (IEC)	IP66 (IEC)
Connection method	Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)	Approx. 35 g
Materials	Case	Heat-resistant ABS
Sensing surface
Accessories	Instruction manual

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E2K-F Data Sheet	- [643KB]	Nov 01, 201820181101	E2K-F Data Sheet

Appearance	Sensing distance (Adjustable range)	Output configuration	Model/Operation mode
NO	NC
Flat Unshielded	10 mm	DC 3-wire NPN	E2K-F10MC1 2M	E2K-F10MC2 2M
10 mm (4 to 10 mm)	E2K-F10MC1-A 2M	E2K-F10MC2-A 2M
