OMRON FZ-LES SeriesSensors/ Vision Sensors / Machine Vision Systems/Lens
OMRON FZ-LES Series Sensors
OMRON FZ-LES Series Dimensions
/Images/l_3284-25-185954-198x198.jpglast update: January 14, 2014
Product lineup includes two types of small camera lenses, a pen type with a 12-mm diameter and a flat type with a 17-mm thickness.
last update: January 14, 2014
Purchase the OMRON Lens Please fill in the following
If you have just landed here, this product OMRON FZ-LES Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the FZ-LES Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON FZ-LES SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
EE-SX47 / SX67 Slot-type Photomicrosensor with connector or pre-wired models (Non-modulated)*1/Fe...
EE-SPZ-A Retroreflective Photomicrosensor with Lens/Features
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Features
E5CD / E5CD-B Digital Temperature Controller (48 x 48 mm)/Features
ES2-HB-N / THB-N Humidity Sensor, Temperature/Humidity Sensor/Features

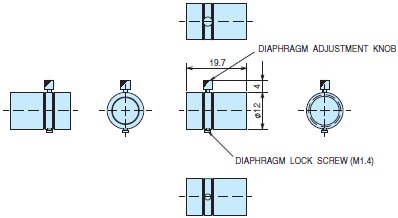

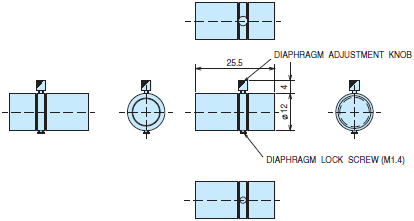

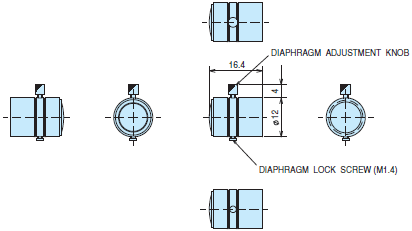

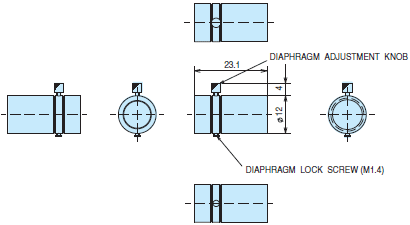

OMRON FZ-LES Series dimension
FZ-LES Series Lens for FZ-series Small Cameras/Dimensionslast update: January 14, 2014
FZ-LES3
FZ-LES6
FZ-LES16
FZ-LES30
last update: January 14, 2014
OMRON FZ-LES Series catalog
FZ-LES Series Lens for FZ-series Small Cameras/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Vision Accessory Catalog | Q198-E1-09 [54080KB] | Dec 06, 201820181206 | Vision Accessory Catalog |
OMRON FZ-LES Series lineup
FZ-LES Series Lens for FZ-series Small Cameras/Lineuplast update: April 01, 2014
| Recommended cameras | Model | Focal length (mm) | Aperture (F No.) |
|---|---|---|---|
| FZ-SF[] FZ-SP[] | FZ-LES3 | 3 | 2.0 to 16 |
| FZ-LES6 | 6 | 2.0 to 16 | |
| FZ-LES16 | 16 | 3.4 to 16 | |
| FZ-LES30 | 30 | 3.4 to 16 |
last update: April 01, 2014
OMRON FZ-LES Series specification
FZ-LES Series Lens for FZ-series Small Cameras/Specificationslast update: June 04, 2015
| Ambient temperature | Operating: -10 to 50°C, Storage: -20 to 70°C (with no icing or condensation) |
|---|---|
| Ambient humidity | Operating: 0% to 90%, Storage: 0% to 70% (with no condensation) |
last update: June 04, 2015
- NO. FZ-LES Series
- TYPE:Vision Sensors / Machine Vision Systems Lens
