Transmit Multiple Switch Signals and Power to without Contact
By connecting the B7AP Power Coupler between the B7A Input Unit and B7A Output Unit, it is possible to transmit multiple switch signals without contact from input devices to controllers. When using the B7AP Power Coupler in this way, it is possible to transmit power via electromagnetic coupling, so a power supply for the Input Unit is not necessary.
Total Transmission Distance Up to 100 m
The transmission distance between Power Couplers without contact is 8±1.5 mm. The maximum transmission distance between the B7A Input Unit and B7A Output Unit is 100 m (when transmitting power or signals).
Equipped with a Verification LED for Easy Settings
The B7AP-M1 is equipped with an operation indicator that lights the usable range during Coupler setup, allowing for easy setup.
Transmission Also Possible When Separated by a Non-metallic Object
Switch signals and power can be transmitted even when there is plastic, glass, wooden, or other non-metallic objects between the Couplers (B7AP-S1/-M1).
Usable in a Variety of Environments with IP67 Environmental Resistance
The Couplers have IP67 degree of protection, which allows them to be used in harsh environments that may expose them to dust from glass, plastic or paper, or exposure to water. The Couplers can be used in a wide range of applications.
Select Transmission Method Based on Application Conditions
When transmitting power and transmission signals, a maximum of 10 points can be input simultaneously to the B7A Input Unit. (B7A Input Unit: Input Current 3.8 mA × 10 points = 38 mA)
When transmitting only signals, a maximum of 16 points can be input to the B7A Input Unit.
last update: December 19, 2013
Purchase the OMRON Others Please fill in the following
If you have just landed here, this product OMRON B7AP Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the B7AP We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON B7APSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NJ101-[][][][] NJ-Series NJ101 CPU Units/Features
F03-16SF / 16SFC Liquid Leakage Sensing Band/Features
F3SP-B1P Control Unit/Features
CJ1W-AD / DA / MAD CJ-Series Analog I/O Unit/Features
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Features
OMRON B7AP specification
B7AP Power Couplers/Specificationslast update: September 24, 2012
Stationary Unit Transmission Specifications
| Model | B7AP-S1 | |
|---|---|---|
| Transmission method | Unidirectional, time-division multiplex | |
| Transmission distance | Between Couplers | Between B7AP-S1 and -M1: 8 ± 1.5 mm |
| Between Input Unit and Output Unit | Between B7A Input and Output Units: 100 m max. *1 | |
| Transmission delay time | Standard: 19.2 ms, Maximum: 31 ms | |
| Minimum Coupler interfacing time | 0.3 s *2 | |
| Minimum distance between Power Couplers mounted in parallel | 60 mm min. | |
*1. The value is for when a power supply is provided only for the B7AP-S1.
*2. Minimum Coupler interfacing time is the minimum time required for signal and power transmission between the
Power Couplers.
Moving Unit Specifications
| Model | B7AP-M1 |
|---|---|
| Power supply | 12 VDC ± 10%, 38 mA |
Note: Use the Moving Unit so that the total current consumption of all input devices is 38 mA max.
Specifications
| Model | B7AP-S1 | B7AP-M1 |
|---|---|---|
| Power supply voltage (operating voltage range) | 24 VDC ±10, ripple (p-p): 10% max | --- |
| Current consumption | 300 mA | --- |
| Insulation resistance | 100 MΩ min. (at 500 VDC) between each lead wire and external parts | |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between each lead wire and external parts | |
| Noise immunity | Noise level: ± 1.5 kV, pulse width: 100 ns/1 μs | |
| Ambient temperature | Operating: - 10 to 55 ° C Storage: - 25 to 65 ° C (with no icing or condensation) | |
| Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) | |
| Vibration resistance (destruction) | 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions | |
| Shock resistance (destruction) | 500 m/s2 each in X, Y, and Z directions | |
| Degree of protection | IEC IP67 | |
| Nut tightening strength | 39 Nm | |
| Connection method | Pre-wired Models (Standard cable length: 2 m) | |
| Cable tensile strength: 49 N | ||
| Weight (packed state) | Approx. 300 g | Approx. 230 g |
last update: September 24, 2012
OMRON B7AP catalog
B7AP Power Couplers/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 B7AP Data Sheet | - [787KB] | Jul 13, 201120110713 | B7AP Data Sheet |
OMRON B7AP dimension

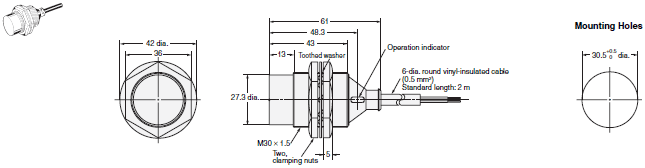

B7AP Power Couplers/Dimensionslast update: November 12, 2012
