OMRON F3SP-B1P dimension

last update: January 15, 2019

(Unit: mm)

Main Unit

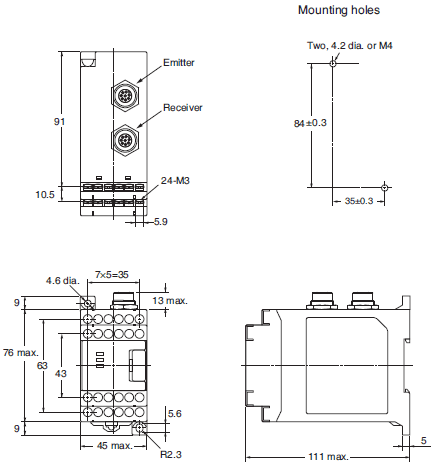

Control Unit (F3SP-B1P)

Accessories (Sold separately)

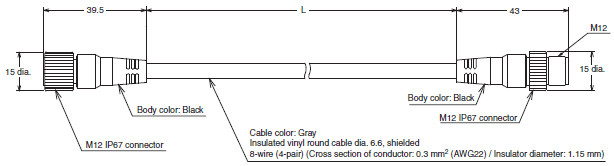

Double-Ended Cable for Emitter (F39-JD[]B-L, sold separately)

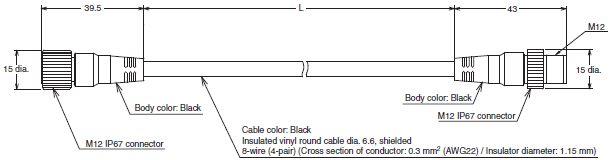

Double-Ended Cable for Receiver (F39-JD[]B-D, sold separately)

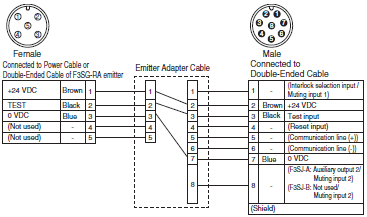

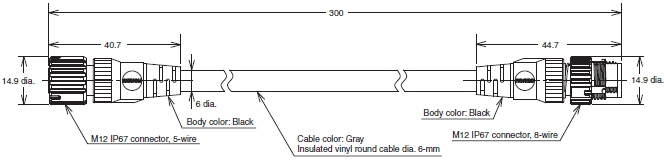

Emitter Adapter Cable (F39-JGR3M-B58-L, sold separately)

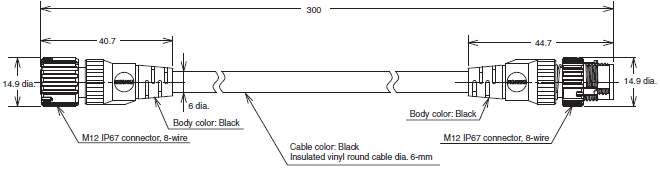

Receiver Adapter Cable (F39-JGR3M-B88-D, sold separately)

last update: January 15, 2019

OMRON F3SP-B1P lineup

last update: January 15, 2019

Main Unit

Control Unit

Appearance	Main contacts	Auxiliary contact	Light curtain auxiliary output*	Model
	3PST-NO	SPST-NC	1PNP	F3SP-B1P

* Light curtain auxiliary output (PNP transistor output) cannot be used with the F3SR-B Series. Refer to Application Examples on Data Sheet and following for details.

Accessories (Sold separately)

Connecting Cable

Double-Ended Cable (2 cables per set, one for emitter and one for receiver)

Appearance	Cable length	Specifications	Model
	3 m		F39-JD3B
	7 m		F39-JD7B
	10 m		F39-JD10B

Adapter Cable

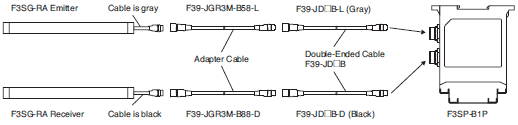

For connection with F3SG-RA Series

Appearance	Type	Cable length	Specifications	Model
	For emitter M12 connector	0.3 m		F39-JGR3M-B58-L
	For receiver M12 connector	0.3 m		F39-JGR3M-B88-D

Note: Use the F39-JD[]B Double-Ended Cables to connect with the F3SG-RA Series.

last update: January 15, 2019

OMRON F3SP-B1P specification

last update: January 15, 2019

Rating

Input	Rated power consumption		24 VDC
	Operating voltage range		-15% to +10% of rated supply voltage
	Rated supply voltage		1.7 W max. (Exclude sensor power)
Output	UL Listed	Rated load	250 VAC 5 A cosφ=1 30 VDC 5A L/R=0ms
		Rated carry current	5 A
		Max. switching voltage	250 VAC 125 VDC
		Max. switching capacity	AC: 1,250 VA DC: 150 W
	EU Directive	Rated load	25 VAC 5 A cosφ=1 30 VDC 5 A L/R=0 ms
		Rated carry current	5 A
		Max. switching voltage	25 VAC 60 VDC
		Max. switching capacity	AC: 125 VA DC: 150 W
		Conditional short-circuit current	1,000 A
		Short circuit protective device	Use 5 A fast acting fuse in accordance with IEC 60127

Characteristics

Operation time	100 ms max. (exclude sensor response time)
Response time	10 ms max. (exclude sensor response time)
Vibration resistance	10 to 55 Hz 0.35 mm single amplitude (0.7 mm double amplitude)
Shock resistance	Destruction: 300 m/s2 Malfunction: 100 m/s2
Ambient temperature	-10 to 55°C
Ambient humidity	35 to 85% RH

Protection class

Terminals	IP20
Enclosure	IP40

Pollution degree

External	3
Internal	2

Isolation specification

Insulation resistance	Between inputs and outputs	100 MΩ min. (by 500 VDC Megger)
	Between different poles of output
Dielectric strength	Between inputs and outputs	2,500 VAC 1 minute
	Between different poles of output

Life expectancy

Electrical endurance	100,000 operations min. Rated load Switching frequency 1,800 operations/h
Mechanical endurance	5,000,000 operations min. Switching frequency 18,000 operations/h

last update: January 15, 2019
