OMRON D5C dimension

last update: January 24, 2013

DC Models

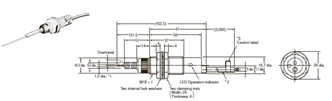

Coil Spring
D5C-1DS0

*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the
       free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.2 mm².
*3. Use after removing the caution label.

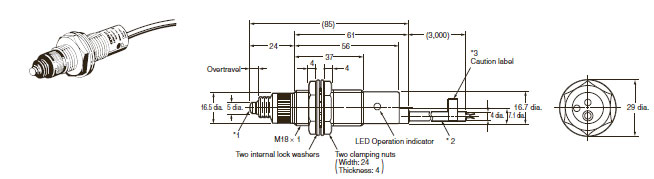

Plunger
D5C-1DP0

*1. The overtravel of the stainless steel plunger is within 3.5 mm.
       Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.2 mm².
*3. Use after removing the caution label.

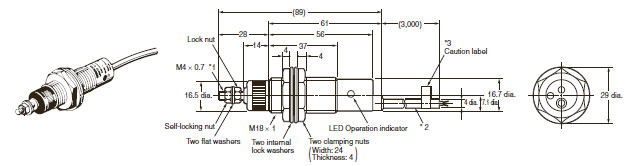

Free-attachment
D5C-1DA0

*1. Limit the total length of actuator wire to 1 m or less.
       When mounting the Switch to a metal plate, do not exceed an area of 200 cm².
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.2 mm².
*3. Use after removing the caution label.

AC Models

Coil Spring
D5C-1AS0

*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the
       free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.3 mm².
*3. Use after removing the caution label.

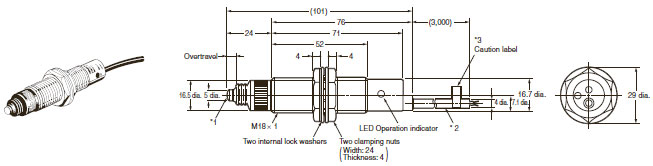

Plunger
D5C-1AP0

*1. The overtravel of the stainless steel plunger is within 3.5 mm.
       Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.3 mm².
*3. Use after removing the caution label.

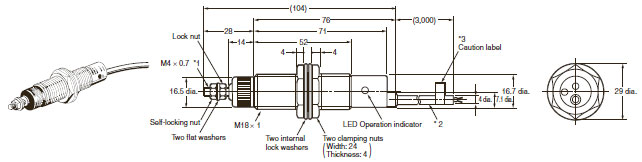

Free-attachment
D5C-1AA0

*1. Limit the total length of actuator wire to 1 m or less.
       When mounting the Switch to a metal plate, do not exceed an area of 200 cm².
*2. Vinyl insulated round cable (oil- and shock-resistant type)
       4 dia., three conductors × 0.3 mm².
*3. Use after removing the caution label.

last update: January 24, 2013

OMRON D5C specification

last update: January 24, 2013

Ratings and Specifications

Type		DC	AC
Model		D5C-1D[]0	D5C-1A[]0
Degree of protection		Equivalent to IP67
Mechanical durability		10,000,000 operations min. (at rated overtravel value)
Supply voltage (operating voltage)		12 to 24 VDC (10 to 30 VDC), (ripple: 10% max.)	100 to 240 VAC (45 to 264 VAC), 50/60 Hz
Rated frequency		---	50/60 Hz
Sensitivity setting range		30 to 100 pF
Current consumption		17 mA max.	---
Leakage current	Circuit	---	2 mA max.
	Antenna	1 mA max.	1 mA max.
Response time		2 ms max.	8 ms max.
Output current		200 mA max. (resistive load)
Insulation resistance		50 MΩ min. (at 500 VDC) between lead wires and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and non- current-carrying metal parts	2,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and non- current-carrying metal parts
Rated insulation voltage (Ui)		1,000 VAC
Pollution degree (operating environment)		3 (IEC947-5-1)
Protection against electric shock		Class II
Proof tracking index (PTI)		175
Switch category		D (IEC335)
Vibration resistance		10 to 55 Hz, 1.5-mm double amplitude
Shock resistance		1,000 m/s2 max.
Ambient temperature		Operating: -25°C to +70°C (with no icing)
Ambient humidity		35% to 95% RH
Weight		Approx. 110 g (in case of D5C-1DS0)	Approx. 120 g (in case of D5C-1AS0)

last update: January 24, 2013

OMRON D5C catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D5C Data Sheet	- [553KB]	Jan 08, 201320130108	D5C Data Sheet

OMRON D5C lineup

last update: January 24, 2013

Features		·Usable by bending tip of antenna. ·Overtravel of 20 mm max.	·Ideal for high-accuracy position control. ·Overtravel of 3.5 mm max.	·Any actuator can be attached.
Actuator		Coil spring	Plunger	Free-attachment
Item		Model	Model	Model
Supply voltage (Power supply)	DC	D5C-1DS0	D5C-1DP0	D5C-1DA0
	AC	D5C-1AS0	D5C-1AP0	D5C-1AA0
Antenna only		D5C-00S0	D5C-00P0	D5C-00A0

Note: The lead wire is 3 m.
