OMRON PH-1 / -2Switches/ Level Switches/Electrode Holders / Electrodes
OMRON PH-1 / -2 Switches
OMRON PH-1 / -2 Dimensions
/Images/l_258-25-119003-198x198.jpglast update: December 19, 2013
• Applicable in locations where space is limited between the water tank and ceiling.
• The PH-1 is used for applications where wastewater and scum accumulates, such as for a deep well pump. The PH-2 is used for applications where the distance to the water surface is long.
last update: December 19, 2013
Purchase the OMRON Electrode Holders / Electrodes Please fill in the following
If you have just landed here, this product OMRON PH-1 / -2 Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the PH-1 / -2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON PH-1 / -2Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
E2ER / E2ERZ Oil-resistant Proximity Sensors/Features
A3P Lighted Pushbutton Switches/Features
H7E[]-N Self-powered Totalizer/Features
CJ1W-SRM21 CJ-series CompoBus/S Master Unit/Features

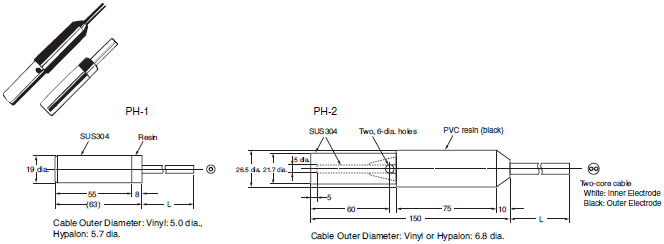

OMRON PH-1 / -2 dimension
PH-1 / -2 Underwater Electrode/Dimensionslast update: September 24, 2012
Underwater Electrodes
PH-1, PH-2
last update: September 24, 2012
OMRON PH-1 / -2 catalog
PH-1 / -2 Underwater Electrode/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 PH-1/-2 Data Sheet | - [191KB] | Mar 23, 201520150323 | PH-1/-2 Data Sheet |
| Safety Precautions for Electrodes and Electrode Holders | - [206KB] | Mar 01, 201820180301 | Safety Precautions for Electrodes and Electrode Holders |
OMRON PH-1 / -2 specification
PH-1 / -2 Underwater Electrode/Specificationslast update: April 01, 2015
Underwater Electrodes
| Model | PH-1 | PH-2 |
|---|---|---|
| Cable length | 100 m max. (See note 1.) | |
| Operating temperature | Vinyl cable: -10 to 60°C Hypalon cable: -30 to 70°C | Vinyl cable: -10 to 60°C Hypalon cable: -30 to 70°C |
Note: 1. PH-1 and PH-2 Cables are available in lengths of 1, 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90 or 100 m.
2. The PH-1 and PH-2 are vinyl cables unless specified otherwise.
3. "ビニソフト" is printed in Japanese on the actual vinyl cable.
4. Hypalon is a registered trademark of Mitsui Chemicals, Inc.
Weight
| Electrode + 1 m cable | Cable (per meter) | ||
|---|---|---|---|
| PH-1 | Vinyl cable | Approx. 140 g | Approx. 40 g |
| Hypalon cable | Approx. 140 g | Approx. 40 g | |
| PH-2 | Vinyl cable | Approx. 230 g | Approx. 60 g |
| Hypalon cable | Approx. 230 g | Approx. 60 g | |
last update: April 01, 2015
OMRON PH-1 / -2 lineup
PH-1 / -2 Underwater Electrode/Lineuplast update: October 11, 2012
Underwater Electrodes
PH-1 (single pole)
| Length |
|---|
| 1M |
| 5M |
| 10M |
| 15M |
| 20M |
| 30M |
| 40M |
| 50M |
| 60M |
| 70M |
| 80M |
| 90M |
| 100M |
PH-2 (double pole)
| Length |
|---|
| 1M |
| 5M |
| 10M |
| 15M |
| 20M |
| 30M |
| 40M |
| 50M |
| 60M |
| 70M |
| 80M |
| 90M |
| 100M |
Note:Note:
Note:Specify the cable length for PH-1 and PH-2 from the list above.
Note:The cables can be cut.
last update: October 11, 2012
- NO. PH-1 / -2
- TYPE:Level Switches Electrode Holders / Electrodes
Copyright Statement - DATE:2021-06-12
