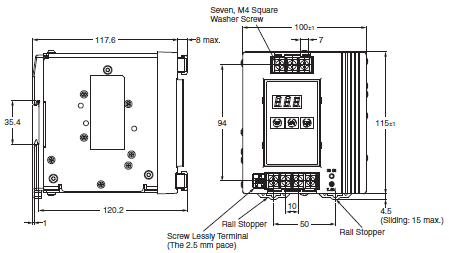

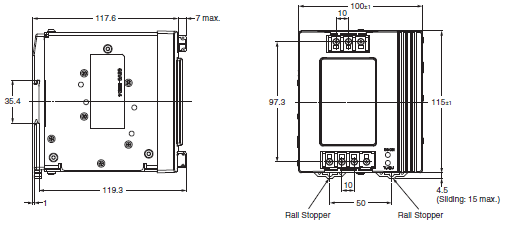

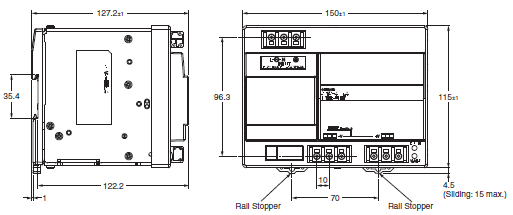

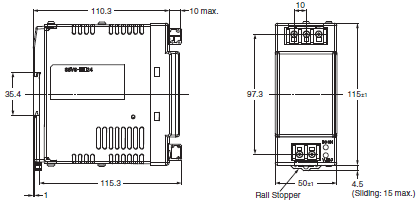

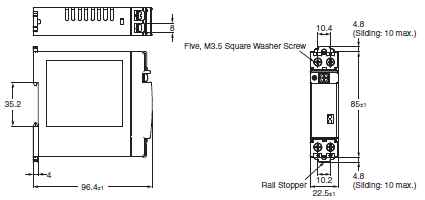

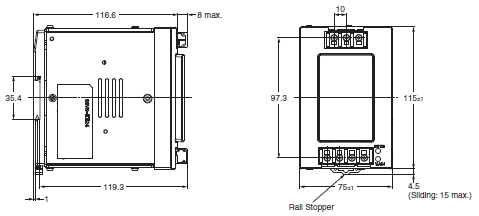

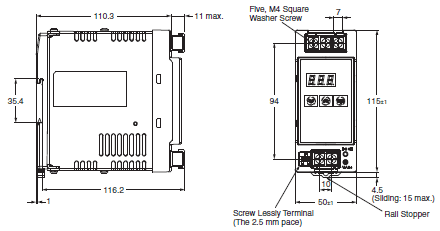

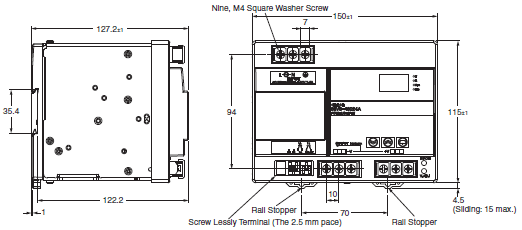

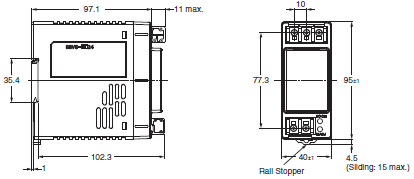

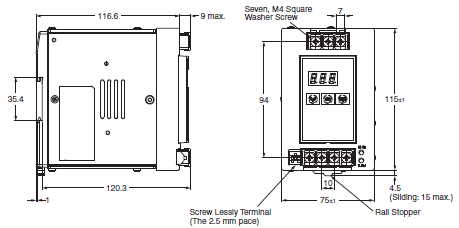

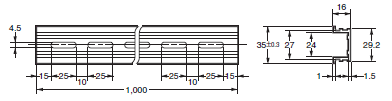

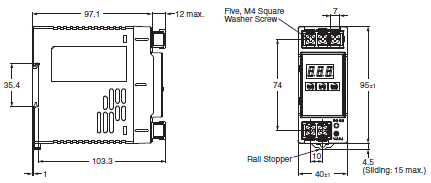

OMRON S8VS Dimensions

/Images/l_807-25-119020-198x198.jpg

last update: April 2, 2018

• Status displayed on 3-digit, 7-segment display. *

• Signal output notifications at 90 W or more. *

• Conformity to various safety standards for global usability.

• Varied coverage with 3-year warranty.

* Models with indication monitor

last update: April 2, 2018

Purchase the OMRON Switch mode power supplies Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON S8VS Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VS We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VSPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

MS-3 Series Laser Barcode Scanner/Features
A7CN / A7CN-L Thumbwheel Switch/Features
NY5[][]-1 Industrial PC Platform NY-series IPC Machine Controller/Features
NJ501-[][][][] NJ-Series NJ501 CPU Units/Features
3Z4S-LE SV-V Series Lens for C-mount Cameras/Features

OMRON S8VS catalog
S8VS Switch Mode Power Supply (15/30/60/90/120/180/240/480-W Models)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

S8VS Data Sheet T026-E1-09
[5291KB] Apr 02, 201820180402 S8VS Data Sheet

OMRON S8VS specification
S8VS Switch Mode Power Supply (15/30/60/90/120/180/240/480-W Models)/Specifications
last update: April 2, 2018
Ratings/Characteristics

Power ratings 15 W 30 W
Output voltage 5 V 12 V 24 V 5 V 12 V 24 V
Efficiency With 100-VAC input 74% typical 79% typical 83% typical 74% typical 81% typical 85% typical
With 200-VAC input 73% typical 78% typical 80% typical 74% typical 80% typical 86% typical
Input Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC, 80 to 370 VDC *5)
Frequency *1 50/60 Hz (47 to 450 Hz)
Current With 100-VAC input 0.45 A max., 0.34 A typical 0.9 A max., 0.66 A typical
With 200-VAC input 0.25 A max., 0.22 A typical 0.6 A max., 0.4 A typical
Power factor ---
Harmonic current regulation Conforms to EN61000-3-2
Leakage
current With 100-VAC input 0.5 mA max.
With 200-VAC input 1.0 mA max.
Inrush
current
*2 With 100-VAC input 17.5 A max., 14 A typical
With 200-VAC input 35 A max., 28 A typical
Output Voltage adjustment range *3 - 10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O) 60 mV max. 70 mV max. 60 mV max. 60 mV max. 90 mV max. 150 mV max.
Input variation influence 0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence
(rated input voltage) 2.0% max. (5 V), 1.5% max. (12 V, 24 V), (with rated input, 0 to 100% load)
Temperature variation influence 0.05%/°C max.
Startup time
(at rated I/O) *2 With 100-VAC input 580 ms typical 530 ms typical 600 ms typical 500 ms typical 560 ms typical 560 ms typical
With 200-VAC input 340 ms typical 360 ms typical 400 ms typical 360 ms typical 380 ms typical 400 ms typical
Output hold time
(at rated I/O) *2 With 100-VAC input 39 ms typical 27 ms typical 28 ms typical 31 ms typical 22 ms typical 31 ms typical
With 200-VAC input 187 ms typical 134 ms typical 134 ms typical 174 ms typical 123 ms typical 140 ms typical
Additional
functions Overload protection *2 The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Overvoltage protection *2 Yes *4
Output voltage indication No
Output current indication No
Peak-hold current indication No
Maintenance forecast monitor indication No
Maintenance forecast monitor output No
Total run time monitor indication No
Total run time monitor output No
Undervoltage alarm indication Yes (color: red)
Undervoltage alarm output No
Parallel operation No (However, backup operation is possible. An external diode is required.)
Series operation Models with 24-V output: Possible for up to 2 Power Supplies (with external diode)
Models with 5- or 12-V output: Not possible
Other Operating ambient temperature Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature - 25 to 65°C
Operating ambient humidity 25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA)
1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA)
Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance 150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator Yes (color: green)
EMI Conducted Emissions Conforms to EN55011 Group1 Class B and based on FCC Class A
Radiated Emissions Conforms to EN55011 Group1 Class B
EMS Conforms to EN61204-3 high severity levels
Approved standards UL508 (Listing, Class2 Output: Per 1310)
UL60950-1, UL63268-1
CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223)
CSA C22.2 No.60950-1 (cUR)
EN50178, EN60950-1, EN62368-1
EAC mark, RCM mark
SEMI F47-0706 (With 200-VAC input)
Weight 160 g max. 180 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Data Sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be
sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Power ratings 60 W
Type Standard Maintenance forecast
monitor Total run time
monitor
Efficiency With 100-VAC input 84% typical 83% typical
With 200-VAC input 83% typical 85% typical
Input Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
Frequency *1 50/60 Hz (47 to 450 Hz)
Current With 100-VAC input 1.7 A max., 1.3 A typical 1.7 A max., 1.3 A typical
With 200-VAC input 1.0 A max., 0.68 A typical 1.0 A max., 0.78 A typical
Power factor ---
Harmonic current regulation Conforms to EN61000-3-2
Leakage current With 100-VAC input 0.5 mA max.
With 200-VAC input 1.0 mA max.
Inrush current *2 With 100-VAC input 17.5 A max., 14 A typical
With 200-VAC input 35 A max., 28 A typical
Output Voltage adjustment range *3 -10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
Ripple noise voltage (at rated I/O) 70 mV max. 90 mV max.
Input variation influence 0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage) 1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence 0.05%/°C max.
Startup time
(at rated I/O) *2 With 100-VAC input 620 ms typical 460 ms typical
With 200-VAC input 400 ms typical 290 ms typical
Output hold time
(at rated I/O) *2 With 100-VAC input 34 ms typical 33 ms typical
With 200-VAC input 158 ms typical 154 ms typical
Additional
functions Overload protection *2 105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]),
inverted L voltage drop, intermittent, automatic reset
Overvoltage protection *2, *4 Yes
Output voltage indication *5 No Yes (selectable) *6
Output current indication *5 No Yes (selectable) *7
Peak-hold current indication *5 No Yes (selectable) *8
Maintenance forecast monitor indication *5 No Yes (selectable) No
Maintenance forecast monitor output No
Total run time monitor indication *5 No Yes (selectable)
Total run time monitor output *5 No
Undervoltage alarm indication *5 No Yes (selectable)
Undervoltage alarm output terminals No
Parallel operation No (However, backup operation is possible. An external diode is required.)
Series operation Yes for up to 2 Power Supplies (with external diode)
Other Operating ambient temperature Refer to the derating curve in . (with no icing or condensation)
Storage temperature -25 to 65°C
Operating ambient humidity 25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA)
1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection
current for models with indication monitor: 20 mA)
500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance 100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicator Yes (color: green)
EMI Conducted
Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A,
Conforms to EN55011 Group1 Class B *11
Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
Radiated
Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11
Standard models: Conforms to EN55011 Group1 Class B
EMS Conforms to EN61204-3 high severity levels
Approved standards *11 Standard model:
UL 508 (Listing; Class 2 Output: Per UL1310)
UL 60950-1 (Recognition), UL63268-1
CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223)
CSA C22.2 No.60950-1 (cUR)
EN 50178, EN 60950-1, EN62368-1
EAC mark, RCM mark
With indication monitor:
UL508 (Listing, Class2 Output: Per 1310)
UL60950-1 (Recognition)
CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223)
CSA C22.2 No.60950-1 (cUR)
EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1)
EAC mark, RCM mark, KOSHA S Mark *10
SEMI *11 F47-0706 (With 200-VAC input)
Weight 330 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Power ratings 90 W
Type Standard Maintenance forecast
monitor Total run time
monitor
Efficiency With 100-VAC input 83% typical 83% typical
With 200-VAC input 84% typical 85% typical
Input Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
Frequency *1 50/60 Hz (47 to 450 Hz)
Current With 100-VAC input 2.3 A max., 1.9 A typical 2.3 A max., 1.9 A typical
With 200-VAC input 1.4 A max., 1.0 A typical 1.4 A max., 1.2 A typical
Power factor ---
Harmonic current regulation Conforms to EN61000-3-2
Leakage current With 100-VAC input 0.5 mA max.
With 200-VAC input 1.0 mA max.
Inrush current *2 With 100-VAC input 17.5 A max., 14 A typical
With 200-VAC input 35 A max., 28 A typical
Output Voltage adjustment range *3 -10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
Ripple noise voltage (at rated I/O) 250 mV max. 150 mV max.
Input variation influence 0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage) 1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence 0.05%/°C max.
Startup time
(at rated I/O) *2 With 100-VAC input 460 ms typical 660 ms typical
With 200-VAC input 300 ms typical 420 ms typical
Output hold time
(at rated I/O) *2 With 100-VAC input 28 ms typical 28 ms typical
With 200-VAC input 132 ms typical 136 ms typical
Additional
functions Overload protection *2 105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]),
inverted L voltage drop, intermittent, automatic reset
Overvoltage protection *2, *4 Yes
Output voltage indication *5 No Yes (selectable) *6
Output current indication *5 No Yes (selectable) *7
Peak-hold current indication *5 No Yes (selectable) *8
Maintenance forecast monitor indication *5 No Yes (selectable) No
Maintenance forecast monitor output No Yes (transistor output), 30 VDC max., 50 mA max. *9 No
Total run time monitor indication *5 No Yes (selectable)
Total run time monitor output *5 No Yes (transistor output),
30 VDC max., 50 mA max. *9
Undervoltage alarm indication *5 No Yes (selectable)
Undervoltage alarm output terminals No Yes (transistor output), 30 VDC max., 50 mA max. *9
Parallel operation No (However, backup operation is possible. An external diode is required.)
Series operation Yes for up to 2 Power Supplies (with external diode)
Other Operating ambient temperature Refer to the derating curve in . (with no icing or condensation)
Storage temperature -25 to 65°C
Operating ambient humidity 25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA)
1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for
standard models: 30 mA, detection current for models with indication monitor: 20 mA)
500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance 100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicator Yes (color: green)
EMI Conducted
Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A,
Conforms to EN55011 Group1 Class B *11
Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
Radiated
Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1
Class B *11
Standard models: Conforms to EN55011 Group1 Class B
EMS Conforms to EN61204-3 high severity levels
Approved standards *11 Standard model:
UL 508 (Listing)
(S8VS-09024S-[] only): UL508 (Listing, Class2 Output: Per 1310)
UL 60950-1 (Recognition), UL63268-1
CSA C22.2 No.107.1 (cUL)
(S8VS-09024S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223)
CSA C22.2 No.60950-1 (cUR)
EN 50178, EN 60950-1, EN62368-1
EAC mark, RCM mark
With indication monitor:
UL508 (Listing)
(S8VS-09024[][]S-[] only): UL508 (Listing, Class2 Output: Per 1310)
UL60950-1 (Recognition)
CSA C22.2 No.107.1
(S8VS-09024[][]S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223)
CSA C22.2 No.60950-1 (cUR)
EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1)
EAC mark, RCM mark, KOSHA S Mark *10
SEMI *11 F47-0706 (With 200-VAC input)
Weight 490 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Power ratings 120 W 180 W
Type Standard Maintenance
forecast monitor Total run time
monitor Standard Maintenance
forecast monitor Total run time
monitor
Efficiency With 100-VAC input 84% typical 83% typical 85% typical 85% typical
With 200-VAC input 87% typical 85% typical 88% typical 87% typical
Input Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
Frequency *1 50/60 Hz (47 to 63 Hz)
Current With 100-VAC input 1.9 A max., 1.5 A typical 2.9 A max., 2.2 A typical
With 200-VAC input 1.1 A max.,
0.71 A typical 1.1 A max., 0.72 A typical 1.6 A max., 1.1 A typical
Power factor 0.9 min.
Harmonic current regulation Conforms to EN61000-3-2
Leakage current With 100-VAC input 0.5 mA max.
With 200-VAC input 1.0 mA max.
Inrush current
*2 With 100-VAC input 17.5 A max., 14 A typical
With 200-VAC input 35 A max., 28 A typical
Output Voltage adjustment range *3 - 10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O) 60 mV max. 130 mV max. 50 mV max. 180 mV max.
Input variation influence 0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage) 1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence 0.05%/°C max.
Startup time
(at rated I/O) *2 With 100-VAC input 550 ms typical 650 ms typical 570 ms typical 580 ms typical
With 200-VAC input 400 ms typical 520 ms typical 470 ms typical 490 ms typical
Output hold time
(at rated I/O) *2 With 100-VAC input 52 ms typical 56 ms typical 58 ms typical 70 ms typical
With 200-VAC input 54 ms typical 56 ms typical 62 ms typical 70 ms typical
Additional
functions Overload protection *2 105% to 160% of rated load current, inverted L voltage drop, automatic reset
Overvoltage protection *2, *4 Yes
Output voltage indication *5 No Yes (selectable) *6 No Yes (selectable) *6
Output current indication *5 No Yes (selectable) *7 No Yes (selectable) *7
Peak-hold current indication *5 No Yes (selectable) *8 No Yes (selectable) *8
Maintenance forecast monitor indication *5 No Yes (selectable) No No Yes (selectable) No
Maintenance forecast monitor output No Yes (transistor
output), 30 VDC
max., 50 mA max.
*9 No No Yes (transistor
output), 30 VDC
max., 50 mA max.
*9 No
Total run time monitor indication *5 No Yes (selectable) No Yes (selectable)
Total run time monitor output *5 No Yes
(transistor
output), 30
VDC max., 50
mA max. *9 No Yes (transistor
output), 30 VDC
max., 50 mA max.
*9
Undervoltage alarm indication *5 No Yes (selectable) No Yes (selectable)
Undervoltage alarm output terminals No Yes (transistor output),
30 VDC max., 50 mA max. *9 No Yes (transistor output),
30 VDC max., 50 mA max. *9
Parallel operation No (However, backup operation is possible. An external diode is required.)
Series operation Yes for up to 2 Power Supplies (with external diode)
Other Operating ambient temperature Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature - 25 to 65°C
Operating ambient humidity 25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection
current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA)
1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection
current for standard models: 30 mA, detection current for models with indication
monitor: 20 mA
500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20
mA)
Insulation resistance 100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at
500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z
directions
Shock resistance 150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator Yes (color: green)
EMI Conducted Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A and based
on FCC Class A, Conforms to EN55011 Group1 Class B *11
Standard models: Conforms to EN55011 Group1 Class B and based on FCC
Class A
Radiated Emissions Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to
EN55011 Group1 Class B *11
Standard models: Conforms to EN55011 Group1 Class B
EMS Conforms to EN61204-3 high severity levels
Approved standards *11 UL 508 (Listing),
UL 60950-1 (Recognition),
CSA C22.2 No. 107.1 (cUL),
CSA C22.2 No. 60950-1 (cUR),
EN 50178 (= VDE 0160), EN 60950-1 (= VDE 0805 Teil 1)
EAC mark, RCM mark, KOSHA S Mark *10
SEMI *11 F47-0706 (200-VAC input)
Weight 550 g max. 850 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Power ratings 240 W 480 W
Item Type Standard Maintenance
forecast monitor Total run time
monitor Standard Maintenance
forecast monitor Total run time
monitor
Efficiency With 100-VAC input 85% typical 85% typical
With 200-VAC input 88% typical 89% typical
Input Voltage *1 100 to 240 VAC (allowable range: 85 to
264 VAC or 80 to 370 VDC *11) 100 to 240 VAC (allowable range: 85 to
264 VAC)
Frequency *1 50/60 Hz (47 to 63 Hz)
Current With 100-VAC input 3.8 A max., 2.9 A typical 7.4 A max., 5.8 A typical
With 200-VAC input 2.0 A max., 1.5 A typical 3.9 A max., 2.8 A typical
Power factor 0.9 min. 0.95 min.
Harmonic current regulation Conforms to EN61000-3-2
Leakage current With 100-VAC input 0.5 mA max.
With 200-VAC input 1.0 mA max.
Inrush current
*2 With 100-VAC input 17.5 A max., 14 A typical
With 200-VAC input 35 A max., 28 A typical
Output Voltage adjustment range *3 - 10% to 15% (with V.ADJ) -10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O) 140 mV max. 160 mV max. 310 mV max.
Input variation influence 0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence
(rated input voltage) 1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence 0.05%/°C max.
Startup time
(at rated I/O) *2 With 100-VAC input 540 ms typical 510 ms typical 460 ms typical
With 200-VAC input 230 ms typical 510 ms typical 340 ms typical
Output hold time
(at rated I/O) *2 With 100-VAC input 64 ms typical 46 ms typical 37 ms typical
With 200-VAC input 64 ms typical 46 ms typical 41 ms typical
Additional
functions Overload protection *2 105% to 160% of rated load current, inverted L voltage drop, automatic reset
Overvoltage protection *2, *4 Yes
Output voltage indication *5 No Yes (selectable) *6 No Yes (selectable) *6
Output current indication *5 No Yes (selectable) *7 No Yes (selectable) *7
Peak-hold current indication *5 No Yes (selectable) *8 No Yes (selectable) *8
Maintenance forecast monitor indication *5 No Yes (selectable) No Yes (selectable) No
Maintenance forecast monitor output No Yes
(transistor output),
30 VDC max., 50 mA
max. *9 No Yes
(transistor output),
30 VDC max., 50 mA
max. No
Total run time monitor indication *5 No Yes (selectable) No Yes
(selectable)
Total run time monitor output *5 No Yes
(transistor output),
30 VDC max., 50 mA
max. *9 No Yes
(transistor output),
30 VDC max., 50 mA
max. *9
Undervoltage alarm indication *5 No Yes (selectable) No Yes (selectable)
Undervoltage alarm output terminals No Yes (transistor output),
30 VDC max., 50 mA max. *9 No Yes (transistor output),
30 VDC max., 50 mA max. *9
Parallel operation No (However, backup operation is possible. An external diode is required.)
Series operation Yes for up to 2 Power Supplies (with external diode)
Other Operating ambient
temperature Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature - 25 to 65°C
Operating ambient
humidity 25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection
current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA)
1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection
current for standard 240-W and 480-W models: 30 mA, detection current for 240-W
models with indication monitor: 20 mA)
500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance 100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500
VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z
directions: 240 W
10 to 150 Hz, 0.35-mm single amplitude (3 G max.) for 80 min each in X, Y, and Z
directions: 480 W
Shock resistance 150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator Yes (color: green)
EMI Conducted
Emissions Models with indication monitor: Conforms to EN55011 Group1
Class A and based on FCC Class A, Conforms to EN55011
Group1 Class B *11
Standard models: Conforms to EN55011 Group1 Class B and
based on FCC Class A Conforms to EN55011 Group1 Class A and based on FCC
Class A
Conforms to EN55011 Group1 Class B *11
Radiated Emissions Models with indication monitor: Conforms to EN55011 Group1
Class A, Conforms to EN55011 Group1 Class B *11
Standard models: Conforms to EN55011 Group1 Class B Conforms to EN55011 Group1 Class A
Conforms to EN55011 Group1 Class B *11
EMS Conforms to EN61204-3 high severity levels
Approved standards *11 UL 508 (Listing),
UL 60950-1 (Recognition),
CSA C22.2 No.107.1 (cUL),
CSA C22.2 No. 60950-1 (cUR),
EN 50178 (=VDE 0160), EN 60950-1 (=VDE 0805 Teil 1)
EAC mark, RCM mark, KOSHA S Mark *10
SEMI *11 F47-0706 (200-VAC input)
Weight 1,150 g max. 1,700 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

last update: April 2, 2018

OMRON S8VS lineup
S8VS Switch Mode Power Supply (15/30/60/90/120/180/240/480-W Models)/Lineup
last update: April 2, 2018

Note: For details on normal stock models, contact your nearest OMRON representative.

Models without Indication Monitor (Standard Models)

Power
ratings Input voltage Output
voltage Output current UL Class 2
Output
standards Model number
(screw terminal
block) Model number
(screwless
terminal block)
15 W 100 to 240 VAC
(allowable range:
85 to 264 VAC or
80 to 370 VDC *3) 5 V 2.0 A Yes S8VS-01505 *1 ---
12 V 1.2 A Yes S8VS-01512
24 V 0.65 A Yes S8VS-01524
30 W 5 V 4.0 A Yes S8VS-03005 *2
12 V 2.5 A Yes S8VS-03012
24 V 1.3 A Yes S8VS-03024
60 W 24 V 2.5 A Yes S8VS-06024 S8VS-06024-F
90 W 3.75 A --- S8VS-09024 S8VS-09024-F
Yes S8VS-09024S S8VS-09024S-F
120 W 5 A --- S8VS-12024 S8VS-12024-F
180 W 7.5 A --- S8VS-18024 S8VS-18024-F
240 W 10 A --- S8VS-24024 S8VS-24024-F
480 W 100 to 240 VAC 20 A
Peak current 30 A
(200 VAC) --- S8VS-48024 S8VS-48024-F

*1. The output capacity of the S8VS-01505 is 10 W.
*2. The output capacity of the S8VS-03005 is 20 W.
*3. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Models with Indication Monitor (Maintenance Forecast Monitor)

Power
ratings Input
voltage Output
voltage Output
current Alarm
output
*2 UL Class 2
Output
standards Model number
(screw terminal
lock) Model number
(screwless
terminal block)
60 W 100 to 240
VAC
(allowable
range: 85 to
264 VAC or
80 to 370
VDC *1) 24 V 2.5 A --- Yes S8VS-06024A S8VS-06024A-F
90 W 3.75 A Sinking --- S8VS-09024A S8VS-09024A-F
Sinking Yes S8VS-09024AS S8VS-09024AS-F
Sourcing --- S8VS-09024AP S8VS-09024AP-F
Sourcing Yes S8VS-09024APS S8VS-09024APS-F
120 W 5 A Sinking --- S8VS-12024A S8VS-12024A-F
Sourcing --- S8VS-12024AP S8VS-12024AP-F
180 W 7.5 A Sinking --- S8VS-18024A S8VS-18024A-F
Sourcing --- S8VS-18024AP S8VS-18024AP-F
240 W 10 A Sinking --- S8VS-24024A S8VS-24024A-F
Sourcing --- S8VS-24024AP S8VS-24024AP-F
480 W 100 to 240
VAC 20 A
Peak current
30 A (200 VAC) Sinking/
sourcing --- S8VS-48024A S8VS-48024A-F

*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column,"sinking" indicates an emitter COM and "sourcing" indicates a collector COM.

Models with Indication Monitor (Total Run Time Monitor)

Power
ratings Input
voltage Output
voltage Output
current Alarm
output
*2 UL Class 2
Output
standards Model number
(screw terminal
block) Model number
(screwless
terminal block)
60 W 100 to 240
VAC
(allowable
range: 85 to
264 VAC or
80 to 370
VDC) *1 24 V 2.5 A --- Yes S8VS-06024B S8VS-06024B-F
90 W 3.75 A --- --- S8VS-09024BE S8VS-09024BE-F
--- Yes S8VS-09024BES S8VS-09024BES-F
Sinking --- S8VS-09024B S8VS-09024B-F
Sinking Yes S8VS-09024BS S8VS-09024BS-F
Sourcing --- S8VS-09024BP S8VS-09024BP-F
Sourcing Yes S8VS-09024BPS S8VS-09024BPS-F
120 W 5 A --- --- S8VS-12024BE S8VS-12024BE-F
Sinking --- S8VS-12024B S8VS-12024B-F
Sourcing --- S8VS-12024BP S8VS-12024BP-F
180 W 7.5 A --- --- S8VS-18024BE S8VS-18024BE-F
Sinking --- S8VS-18024B S8VS-18024B-F
Sourcing --- S8VS-18024BP S8VS-18024BP-F
240 W 10 A --- --- S8VS-24024BE S8VS-24024BE-F
Sinking --- S8VS-24024B S8VS-24024B-F
Sourcing --- S8VS-24024BP S8VS-24024BP-F
480 W 100 to 240
VAC 20 A
Peak current
30 A (200 VAC) Sinking/
sourcing --- S8VS-48024B S8VS-48024B-F

*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column, "sinking" indicates an emitter COM and "sourcing" indicates a collector COM.
Note: Refer to Data Sheet for the options that available.

Terminal Block Cover (Order Separately)

S8VS Input side Output side
15W S82Y-VS-C2P-S
30W S82Y-VS-C2P-S
60W S82Y-VS-C3P S82Y-VS-C2P-M
90W S82Y-VS-C3P S82Y-VS-C2P-M
120W S82Y-VS-C3P S82Y-VS-C2P-M
180W S82Y-VS-C3P S82Y-VS-C4P
240W S82Y-VS-C3P S82Y-VS-C4P
480W S82Y-VS-C3P

Note: Terminal block cover attaches to the body. Please order from the loss time.

Mounting Brackets

Name Model
Side-mounting Bracket (for 15- and 30-W models) S82Y-VS30P
Side-mounting Bracket (for 60-, 90-, and 120-W models) S82Y-VS10S
Side-mounting Bracket (for 180-W models) S82Y-VS15S
Side-mounting Bracket (for 240-W models) S82Y-VS20S
Front-mounting Bracket (for 60-, 90-, 120-, 180-, and 240-W models) * S82Y-VS10F

Note: Brackets cannot be used for 480-W models.
* Two required to mount a 240-W model.

Recommended Noise Filter

Noise filter
S8V-NF

For more information, refer to S8V-NF Noise Filter Data Sheet (Cat. No. T212-E1).

last update: April 2, 2018

OMRON S8VS dimension
S8VS Switch Mode Power Supply (15/30/60/90/120/180/240/480-W Models)/Dimensions
last update: July 01, 2016
Power Supplies with Screw Terminal Blocks

S8VS-015[][] (15 W)
S8VS-030[][] (30 W)

S8VS-06024 (60 W)
S8VS-06024A (60 W)
S8VS-06024B (60 W)

S8VS-09024 (90 W)/S8VS-09024S (90 W)/S8VS-12024 (120 W)
S8VS-09024A[] (90 W)/S8VS-09024A[]S (90 W)/S8VS-12024A[] (120 W)
S8VS-09024B[] (90 W)/S8VS-09024B[]S (90 W)/S8VS-12024B[] (120 W)
S8VS-09024BE (90 W)/S8VS-09024BES (90 W)/S8VS-12024BE (120 W)

S8VS-18024 (180 W)
S8VS-18024A[] (180 W)
S8VS-18024B[] (180 W)
S8VS-18024BE (180 W)

S8VS-24024 (240 W)
S8VS-24024A[] (240 W)
S8VS-24024B[] (240 W)
S8VS-24024BE (240 W)

S8VS-48024 (480 W)
S8VS-48024A (480 W)
S8VS-48024B (480 W)

Power Supplies with Screwless Terminal Blocks

S8VS-06024-F (60 W)
S8VS-06024A-F (60 W)
S8VS-06024B-F (60 W)

S8VS-09024-F (90 W)/S8VS-09024S-F (90 W)/S8VS-12024-F (120 W)
S8VS-09024A[]-F (90 W)/S8VS-09024A[]S-F (90 W )/S8VS-12024A[]-F (120 W)
S8VS-09024B[]-F (90 W)/S8VS-09024B[]S-F (90 W)/S8VS-12024B[]-F (120 W)
S8VS-09024BE-F (90 W)/S8VS-09024BES-F (90 W)/S8VS-12024BE-F (120 W)

S8VS-18024-F (180 W)
S8VS-18024A[]-F (180 W)
S8VS-18024B[]-F (180 W)
S8VS-18024BE-F (180 W)

S8VS-24024-F (240 W)
S8VS-24024A[]-F (240 W)
S8VS-24024B[]-F (240 W)
S8VS-24024BE-F (240 W)

S8VS-48024-F (480 W)
S8VS-48024A-F (480 W)
S8VS-48024B-F (480 W)

DIN Rail (Order Separately)
Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
filings may result from aluminum abrasion.

Mounting Brackets

last update: July 01, 2016

NO. S8VS

TYPE:Power Supplies Switch mode power supplies Copyright Statement

DATE:2021-06-08

Associated products:
S8VK-R Redundancy Unit/Features S8JX Switch Mode Power Supply (15/35/50/100/150/300/600-W Models)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
S8VS Data Sheet	T026-E1-09 [5291KB]	Apr 02, 201820180402	S8VS Data Sheet

Power ratings	15 W	30 W
Output voltage	5 V	12 V	24 V	5 V	12 V	24 V
Efficiency	With 100-VAC input	74% typical	79% typical	83% typical	74% typical	81% typical	85% typical
With 200-VAC input	73% typical	78% typical	80% typical	74% typical	80% typical	86% typical
Input	*Voltage 1**	100 to 240 VAC (allowable range: 85 to 264 VAC, 80 to 370 VDC *5)
*Frequency 1**	50/60 Hz (47 to 450 Hz)
Current	With 100-VAC input	0.45 A max., 0.34 A typical	0.9 A max., 0.66 A typical
With 200-VAC input	0.25 A max., 0.22 A typical	0.6 A max., 0.4 A typical
Power factor	---
Harmonic current regulation	Conforms to EN61000-3-2
Leakage current	With 100-VAC input	0.5 mA max.
With 200-VAC input	1.0 mA max.
Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**	- 10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O)	60 mV max.	70 mV max.	60 mV max.	60 mV max.	90 mV max.	150 mV max.
Input variation influence	0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage)	2.0% max. (5 V), 1.5% max. (12 V, 24 V), (with rated input, 0 to 100% load)
Temperature variation influence	0.05%/°C max.
Startup time (at rated I/O) *2	With 100-VAC input	580 ms typical	530 ms typical	600 ms typical	500 ms typical	560 ms typical	560 ms typical
With 200-VAC input	340 ms typical	360 ms typical	400 ms typical	360 ms typical	380 ms typical	400 ms typical
Output hold time (at rated I/O) *2	With 100-VAC input	39 ms typical	27 ms typical	28 ms typical	31 ms typical	22 ms typical	31 ms typical
With 200-VAC input	187 ms typical	134 ms typical	134 ms typical	174 ms typical	123 ms typical	140 ms typical
Additional functions	*Overload protection 2**	The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*Overvoltage protection 2**	Yes *4
Output voltage indication	No
Output current indication	No
Peak-hold current indication	No
Maintenance forecast monitor indication	No
Maintenance forecast monitor output	No
Total run time monitor indication	No
Total run time monitor output	No
Undervoltage alarm indication	Yes (color: red)
Undervoltage alarm output	No
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Series operation	Models with 24-V output: Possible for up to 2 Power Supplies (with external diode) Models with 5- or 12-V output: Not possible
Other	Operating ambient temperature	Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature	- 25 to 65°C
Operating ambient humidity	25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance	150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted Emissions	Conforms to EN55011 Group1 Class B and based on FCC Class A
Radiated Emissions	Conforms to EN55011 Group1 Class B
EMS	Conforms to EN61204-3 high severity levels
Approved standards	UL508 (Listing, Class2 Output: Per 1310) UL60950-1, UL63268-1 CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.60950-1 (cUR) EN50178, EN60950-1, EN62368-1 EAC mark, RCM mark
SEMI	F47-0706 (With 200-VAC input)
Weight	160 g max.	180 g max.

Power ratings	60 W
Type	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency	With 100-VAC input	84% typical	83% typical
With 200-VAC input	83% typical	85% typical
Input	*Voltage 1**	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
*Frequency 1**	50/60 Hz (47 to 450 Hz)
Current	With 100-VAC input	1.7 A max., 1.3 A typical	1.7 A max., 1.3 A typical
With 200-VAC input	1.0 A max., 0.68 A typical	1.0 A max., 0.78 A typical
Power factor	---
Harmonic current regulation	Conforms to EN61000-3-2
Leakage current	With 100-VAC input	0.5 mA max.
With 200-VAC input	1.0 mA max.
*Inrush current 2**	With 100-VAC input	17.5 A max., 14 A typical
With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**	-10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
Ripple noise voltage (at rated I/O)	70 mV max.	90 mV max.
Input variation influence	0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage)	1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.05%/°C max.
Startup time (at rated I/O) *2	With 100-VAC input	620 ms typical	460 ms typical
With 200-VAC input	400 ms typical	290 ms typical
Output hold time (at rated I/O) *2	With 100-VAC input	34 ms typical	33 ms typical
With 200-VAC input	158 ms typical	154 ms typical
Additional functions	*Overload protection 2**	105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset
*Overvoltage protection 2, 4*	Yes
*Output voltage indication 5**	No	Yes (selectable) *6
*Output current indication 5**	No	Yes (selectable) *7
*Peak-hold current indication 5**	No	Yes (selectable) *8
*Maintenance forecast monitor indication 5**	No	Yes (selectable)	No
Maintenance forecast monitor output	No
*Total run time monitor indication 5**	No	Yes (selectable)
*Total run time monitor output 5**	No
*Undervoltage alarm indication 5**	No	Yes (selectable)
Undervoltage alarm output terminals	No
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Series operation	Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature	Refer to the derating curve in . (with no icing or condensation)
Storage temperature	-25 to 65°C
Operating ambient humidity	25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
EMS	Conforms to EN61204-3 high severity levels
*Approved standards 11**	Standard model: UL 508 (Listing; Class 2 Output: Per UL1310) UL 60950-1 (Recognition), UL63268-1 CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223) CSA C22.2 No.60950-1 (cUR) EN 50178, EN 60950-1, EN62368-1 EAC mark, RCM mark With indication monitor: UL508 (Listing, Class2 Output: Per 1310) UL60950-1 (Recognition) CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.60950-1 (cUR) EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1) EAC mark, RCM mark, KOSHA S Mark *10
*SEMI 11**	F47-0706 (With 200-VAC input)
Weight	330 g max.

Power ratings	90 W
Type	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency	With 100-VAC input	83% typical	83% typical
With 200-VAC input	84% typical	85% typical
Input	*Voltage 1**	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
*Frequency 1**	50/60 Hz (47 to 450 Hz)
Current	With 100-VAC input	2.3 A max., 1.9 A typical	2.3 A max., 1.9 A typical
With 200-VAC input	1.4 A max., 1.0 A typical	1.4 A max., 1.2 A typical
Power factor	---
Harmonic current regulation	Conforms to EN61000-3-2
Leakage current	With 100-VAC input	0.5 mA max.
With 200-VAC input	1.0 mA max.
*Inrush current 2**	With 100-VAC input	17.5 A max., 14 A typical
With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**	-10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
Ripple noise voltage (at rated I/O)	250 mV max.	150 mV max.
Input variation influence	0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage)	1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.05%/°C max.
Startup time (at rated I/O) *2	With 100-VAC input	460 ms typical	660 ms typical
With 200-VAC input	300 ms typical	420 ms typical
Output hold time (at rated I/O) *2	With 100-VAC input	28 ms typical	28 ms typical
With 200-VAC input	132 ms typical	136 ms typical
Additional functions	*Overload protection 2**	105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset
*Overvoltage protection 2, 4*	Yes
*Output voltage indication 5**	No	Yes (selectable) *6
*Output current indication 5**	No	Yes (selectable) *7
*Peak-hold current indication 5**	No	Yes (selectable) *8
*Maintenance forecast monitor indication 5**	No	Yes (selectable)	No
Maintenance forecast monitor output	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No
*Total run time monitor indication 5**	No	Yes (selectable)
*Total run time monitor output 5**	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
*Undervoltage alarm indication 5**	No	Yes (selectable)
Undervoltage alarm output terminals	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Series operation	Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature	Refer to the derating curve in . (with no icing or condensation)
Storage temperature	-25 to 65°C
Operating ambient humidity	25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
EMS	Conforms to EN61204-3 high severity levels
*Approved standards 11**	Standard model: UL 508 (Listing) (S8VS-09024S-[] only): UL508 (Listing, Class2 Output: Per 1310) UL 60950-1 (Recognition), UL63268-1 CSA C22.2 No.107.1 (cUL) (S8VS-09024S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.60950-1 (cUR) EN 50178, EN 60950-1, EN62368-1 EAC mark, RCM mark With indication monitor: UL508 (Listing) (S8VS-09024[][]S-[] only): UL508 (Listing, Class2 Output: Per 1310) UL60950-1 (Recognition) CSA C22.2 No.107.1 (S8VS-09024[][]S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.60950-1 (cUR) EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1) EAC mark, RCM mark, KOSHA S Mark *10
*SEMI 11**	F47-0706 (With 200-VAC input)
Weight	490 g max.

Power ratings	120 W	180 W
Type	Standard	Maintenance forecast monitor	Total run time monitor	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency	With 100-VAC input	84% typical	83% typical	85% typical	85% typical
With 200-VAC input	87% typical	85% typical	88% typical	87% typical
Input	*Voltage 1**	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
*Frequency 1**	50/60 Hz (47 to 63 Hz)
Current	With 100-VAC input	1.9 A max., 1.5 A typical	2.9 A max., 2.2 A typical
With 200-VAC input	1.1 A max., 0.71 A typical	1.1 A max., 0.72 A typical	1.6 A max., 1.1 A typical
Power factor	0.9 min.
Harmonic current regulation	Conforms to EN61000-3-2
Leakage current	With 100-VAC input	0.5 mA max.
With 200-VAC input	1.0 mA max.
Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**	- 10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O)	60 mV max.	130 mV max.	50 mV max.	180 mV max.
Input variation influence	0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage)	1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.05%/°C max.
Startup time (at rated I/O) *2	With 100-VAC input	550 ms typical	650 ms typical	570 ms typical	580 ms typical
With 200-VAC input	400 ms typical	520 ms typical	470 ms typical	490 ms typical
Output hold time (at rated I/O) *2	With 100-VAC input	52 ms typical	56 ms typical	58 ms typical	70 ms typical
With 200-VAC input	54 ms typical	56 ms typical	62 ms typical	70 ms typical
Additional functions	*Overload protection 2**	105% to 160% of rated load current, inverted L voltage drop, automatic reset
*Overvoltage protection 2, 4*	Yes
*Output voltage indication 5**	No	Yes (selectable) *6	No	Yes (selectable) *6
*Output current indication 5**	No	Yes (selectable) *7	No	Yes (selectable) *7
*Peak-hold current indication 5**	No	Yes (selectable) *8	No	Yes (selectable) *8
*Maintenance forecast monitor indication 5**	No	Yes (selectable)	No	No	Yes (selectable)	No
Maintenance forecast monitor output	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No
*Total run time monitor indication 5**	No	Yes (selectable)	No	Yes (selectable)
*Total run time monitor output 5**	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
*Undervoltage alarm indication 5**	No	Yes (selectable)	No	Yes (selectable)
Undervoltage alarm output terminals	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Series operation	Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature	Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature	- 25 to 65°C
Operating ambient humidity	25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A
Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
EMS	Conforms to EN61204-3 high severity levels
*Approved standards 11**	UL 508 (Listing), UL 60950-1 (Recognition), CSA C22.2 No. 107.1 (cUL), CSA C22.2 No. 60950-1 (cUR), EN 50178 (= VDE 0160), EN 60950-1 (= VDE 0805 Teil 1) EAC mark, RCM mark, KOSHA S Mark *10
*SEMI 11**	F47-0706 (200-VAC input)
Weight	550 g max.	850 g max.

Power ratings	240 W	480 W
Item Type	Standard	Maintenance forecast monitor	Total run time monitor	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency	With 100-VAC input	85% typical	85% typical
With 200-VAC input	88% typical	89% typical
Input	*Voltage 1**	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)	100 to 240 VAC (allowable range: 85 to 264 VAC)
*Frequency 1**	50/60 Hz (47 to 63 Hz)
Current	With 100-VAC input	3.8 A max., 2.9 A typical	7.4 A max., 5.8 A typical
With 200-VAC input	2.0 A max., 1.5 A typical	3.9 A max., 2.8 A typical
Power factor	0.9 min.	0.95 min.
Harmonic current regulation	Conforms to EN61000-3-2
Leakage current	With 100-VAC input	0.5 mA max.
With 200-VAC input	1.0 mA max.
Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**	- 10% to 15% (with V.ADJ)	-10% to 15% (with V.ADJ)
Ripple noise voltage (at rated I/O)	140 mV max.	160 mV max.	310 mV max.
Input variation influence	0.5% max. (at 85- to 264-VAC input, 100% load)
Load variation influence (rated input voltage)	1.5% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.05%/°C max.
Startup time (at rated I/O) *2	With 100-VAC input	540 ms typical	510 ms typical	460 ms typical
With 200-VAC input	230 ms typical	510 ms typical	340 ms typical
Output hold time (at rated I/O) *2	With 100-VAC input	64 ms typical	46 ms typical	37 ms typical
With 200-VAC input	64 ms typical	46 ms typical	41 ms typical
Additional functions	*Overload protection 2**	105% to 160% of rated load current, inverted L voltage drop, automatic reset
*Overvoltage protection 2, 4*	Yes
*Output voltage indication 5**	No	Yes (selectable) *6	No	Yes (selectable) *6
*Output current indication 5**	No	Yes (selectable) *7	No	Yes (selectable) *7
*Peak-hold current indication 5**	No	Yes (selectable) *8	No	Yes (selectable) *8
*Maintenance forecast monitor indication 5**	No	Yes (selectable)	No	Yes (selectable)	No
Maintenance forecast monitor output	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	Yes (transistor output), 30 VDC max., 50 mA max.	No
*Total run time monitor indication 5**	No	Yes (selectable)	No	Yes (selectable)
*Total run time monitor output 5**	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
*Undervoltage alarm indication 5**	No	Yes (selectable)	No	Yes (selectable)
Undervoltage alarm output terminals	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	Yes (transistor output), 30 VDC max., 50 mA max. *9
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Series operation	Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature	Refer to the derating curve in Engineering Data. (with no icing or condensation)
Storage temperature	- 25 to 65°C
Operating ambient humidity	25% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard 240-W and 480-W models: 30 mA, detection current for 240-W models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions: 240 W 10 to 150 Hz, 0.35-mm single amplitude (3 G max.) for 80 min each in X, Y, and Z directions: 480 W
Shock resistance	150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A	Conforms to EN55011 Group1 Class A and based on FCC Class A Conforms to EN55011 Group1 Class B *11
Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B	Conforms to EN55011 Group1 Class A Conforms to EN55011 Group1 Class B *11
EMS	Conforms to EN61204-3 high severity levels
*Approved standards 11**	UL 508 (Listing), UL 60950-1 (Recognition), CSA C22.2 No.107.1 (cUL), CSA C22.2 No. 60950-1 (cUR), EN 50178 (=VDE 0160), EN 60950-1 (=VDE 0805 Teil 1) EAC mark, RCM mark, KOSHA S Mark *10
*SEMI 11**	F47-0706 (200-VAC input)
Weight	1,150 g max.	1,700 g max.

Power ratings	Input voltage	Output voltage	Output current	UL Class 2 Output standards	Model number (screw terminal block)	Model number (screwless terminal block)
15 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *3)	5 V	2.0 A	Yes	*S8VS-01505 1**	---
12 V	1.2 A	Yes	S8VS-01512
24 V	0.65 A	Yes	S8VS-01524
30 W	5 V	4.0 A	Yes	*S8VS-03005 2**
12 V	2.5 A	Yes	S8VS-03012
24 V	1.3 A	Yes	S8VS-03024
60 W	24 V	2.5 A	Yes	S8VS-06024	S8VS-06024-F
90 W	3.75 A	---	S8VS-09024	S8VS-09024-F
Yes	S8VS-09024S	S8VS-09024S-F
120 W	5 A	---	S8VS-12024	S8VS-12024-F
180 W	7.5 A	---	S8VS-18024	S8VS-18024-F
240 W	10 A	---	S8VS-24024	S8VS-24024-F
480 W	100 to 240 VAC	20 A Peak current 30 A (200 VAC)	---	S8VS-48024	S8VS-48024-F

Power ratings	Input voltage	Output voltage	Output current	Alarm output *2	UL Class 2 Output standards	Model number (screw terminal lock)	Model number (screwless terminal block)
60 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *1)	24 V	2.5 A	---	Yes	S8VS-06024A	S8VS-06024A-F
90 W	3.75 A	Sinking	---	S8VS-09024A	S8VS-09024A-F
Sinking	Yes	S8VS-09024AS	S8VS-09024AS-F
Sourcing	---	S8VS-09024AP	S8VS-09024AP-F
Sourcing	Yes	S8VS-09024APS	S8VS-09024APS-F
120 W	5 A	Sinking	---	S8VS-12024A	S8VS-12024A-F
Sourcing	---	S8VS-12024AP	S8VS-12024AP-F
180 W	7.5 A	Sinking	---	S8VS-18024A	S8VS-18024A-F
Sourcing	---	S8VS-18024AP	S8VS-18024AP-F
240 W	10 A	Sinking	---	S8VS-24024A	S8VS-24024A-F
Sourcing	---	S8VS-24024AP	S8VS-24024AP-F
480 W	100 to 240 VAC	20 A Peak current 30 A (200 VAC)	Sinking/ sourcing	---	S8VS-48024A	S8VS-48024A-F

Power ratings	Input voltage	Output voltage	Output current	Alarm output *2	UL Class 2 Output standards	Model number (screw terminal block)	Model number (screwless terminal block)
60 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC) *1	24 V	2.5 A	---	Yes	S8VS-06024B	S8VS-06024B-F
90 W	3.75 A	---	---	S8VS-09024BE	S8VS-09024BE-F
---	Yes	S8VS-09024BES	S8VS-09024BES-F
Sinking	---	S8VS-09024B	S8VS-09024B-F
Sinking	Yes	S8VS-09024BS	S8VS-09024BS-F
Sourcing	---	S8VS-09024BP	S8VS-09024BP-F
Sourcing	Yes	S8VS-09024BPS	S8VS-09024BPS-F
120 W	5 A	---	---	S8VS-12024BE	S8VS-12024BE-F
Sinking	---	S8VS-12024B	S8VS-12024B-F
Sourcing	---	S8VS-12024BP	S8VS-12024BP-F
180 W	7.5 A	---	---	S8VS-18024BE	S8VS-18024BE-F
Sinking	---	S8VS-18024B	S8VS-18024B-F
Sourcing	---	S8VS-18024BP	S8VS-18024BP-F
240 W	10 A	---	---	S8VS-24024BE	S8VS-24024BE-F
Sinking	---	S8VS-24024B	S8VS-24024B-F
Sourcing	---	S8VS-24024BP	S8VS-24024BP-F
480 W	100 to 240 VAC	20 A Peak current 30 A (200 VAC)	Sinking/ sourcing	---	S8VS-48024B	S8VS-48024B-F

S8VS	Input side	Output side
15W	S82Y-VS-C2P-S
30W	S82Y-VS-C2P-S
60W	S82Y-VS-C3P	S82Y-VS-C2P-M
90W	S82Y-VS-C3P	S82Y-VS-C2P-M
120W	S82Y-VS-C3P	S82Y-VS-C2P-M
180W	S82Y-VS-C3P	S82Y-VS-C4P
240W	S82Y-VS-C3P	S82Y-VS-C4P
480W	S82Y-VS-C3P

Name	Model
Side-mounting Bracket (for 15- and 30-W models)	S82Y-VS30P
Side-mounting Bracket (for 60-, 90-, and 120-W models)	S82Y-VS10S
Side-mounting Bracket (for 180-W models)	S82Y-VS15S
Side-mounting Bracket (for 240-W models)	S82Y-VS20S
Front-mounting Bracket (for 60-, 90-, 120-, 180-, and 240-W models) *	S82Y-VS10F

Return to OMRON
