OMRON A7CN / A7CN-L specification

last update: August 20, 2014

Switching capacity (resistive load)		3.3 to 28 VDC 1 mA to 0.1 A
Continuous carry current		1A
Contact resistance		200 mΩ max.
Insulation resistance	Between non-connected terminals	10 MΩ min. (at 250 VDC)
	Between terminal and non-current carrying part	100 MΩ min. (at 500 VDC)
Dielectric strength	Between non-connected terminals	200 VAC, 50/60 Hz for 1 min
	Between terminal and non-current carrying part	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance		10 to 55 Hz, 1.5-mm double amplitude
Shock resistance		490m/s 2 min.
Durability	Mechanical	30,000 operations min.
	Electrical	20,000 operations min.
Ambient temperature		Operating: -10°C to 65°C (with no icing) Storage: -20°C to 80°C
Ambient humidity		Operating: 35% to 85%
Max. operating force		4.41 N max.

last update: August 20, 2014

OMRON A7CN / A7CN-L dimension

last update: October 16, 2012

Switches

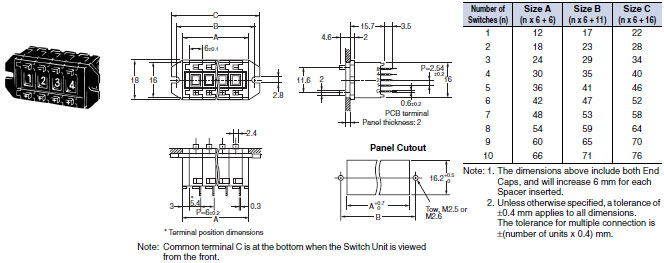

A7CN-106-1
PCB Terminals

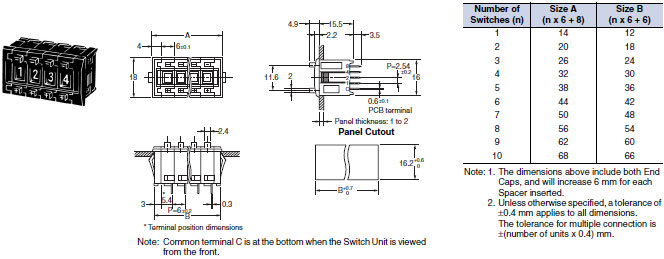

A7CN-206(-1)
PCB Terminals

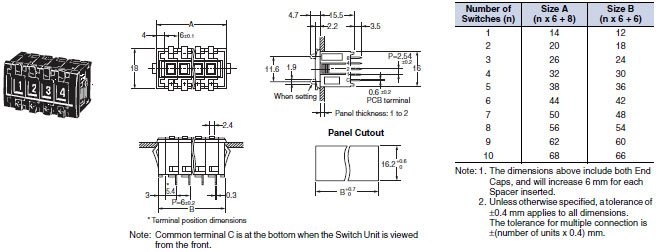

A7CN-L206(-1)
PCB Terminals
Locking Model

Accessories (Order Separately)

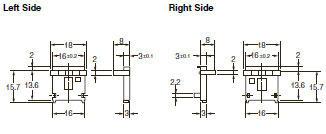

End Caps for Push-operated Switches
A7CN-1M-1 Screw Mounting

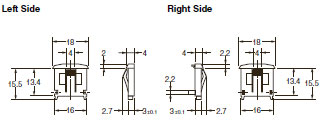

End Caps for Push-operated Switches
A7CN-2M(-1) Snap-in Mounting

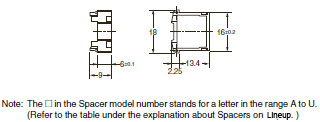

Spacers for Push-operated Switches
A7CN-1P[]-1
Screw Panel Mounting Model

Spacers for Push-operated Switches
A7CN-2P[](-1)
Snap-in Mounting Model

Note:Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ±0.4mm.

last update: October 16, 2012

OMRON A7CN / A7CN-L lineup

last update: May 22, 2014

Switches (Single Switch Units)

Model	A7CN
Classification (See note 1.)	Screw mounting (back mounting)		Snap-in (front mounting)
Character height	3.4 mm
Terminals	PCB terminals
Output code number	Light gray	Black	Light gray	Black
06 (binary coded decimal)	---	A7CN-106-1	A7CN-206	A7CN-206-1

Model	A7CN-L
Classification (See note 1.)	Snap-in (front mounting) Locking type
Character height	3.4 mm
Terminals	PCB terminals
Output code number	Light gray	Black
06 (binary coded decimal)	A7CN-L206	A7CN-L206-1

Note: 1. The classification diagrams show 4 Switch Units combined with End Caps to create 4-digit displays.
           2. The model numbers given above are for Switch Units.
           3. Models with +, - displays can also be produced. Add “-PM” after the “206” in the model number (e.g.,
                A7CN-206-PM or A7CN-206-PM-1).

Accessories (Order Separately)

Use accessories, such as End Caps and Spacers, with the Switch Units.

Classification		Screw mounting (back mounting)	Snap-in (front mounting)
Accessory	Color	Black	Light gray	Black
End Caps (1 pair)		A7CN-1M-1	A7CN-2M	A7CN-2M-1
Spacer		A7CN-1P[]-1 *	A7CN-2P[] *	A7CN-2P[]-1 *

* The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table in the following
  explanation about Spacers.)

End Caps

End Caps are used on the Switch Units at each end and allow all the Switch Units to be securely mounted to a panel. They come in pairs, one for the left and one for the right.

Spacers

• Spacers are used for creating extra space or gaps between the Switch Units and have the same dimensions as the Switch Units themselves.
• There are also Spacers with engraved characters or symbols that can be used for indicating units, such as time and length. (Refer to the following table.) Consult your OMRON representative for details.

Symbol	A	B	C	D	E	F	G	H	J	K	L	Q	T	U
Stamp	No designation	SEC	MIN	H	g	kg	mm	cm	m	°C	PCS	x 10 SEC	0	●

last update: May 22, 2014
