OMRON R87B specification
R87B Box Fan/Specifications
last update: September 24, 2012

Model R87B-F R87B-T

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C) IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC)
Between all power supply connection parts and non-current carrying metal parts

Dielectric strength 2,000 VAC for 1 min
Between all power supply connection parts and non-current carrying metal parts

Ambient operating temperature -30 to 70°C (with no icing) -20 to 70°C (with no icing)

Storage temperature -40 to 85°C (with no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame Die-cast aluminum

Blades Glass polycarbonate Steel plate (black coating)

Bearings Ball bearings

Compliant standards * PSE, EN/IEC 60335 (CE self-declaration)

Certified standards * UL/CSA UL

Note: The rated current is the total for all fans.
* The compliant standards and certified standards apply to the listed Axial Fans.

last update: September 24, 2012

OMRON R87B catalog
R87B Box Fan/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

R87B Data Sheet -
[1306KB] Jan 07, 201920190107 R87B Data Sheet

Axial Fans Series Catalog X076-E1-03
[15784KB] Feb 07, 201920190207 Axial Fans Series Catalog

OMRON R87B lineup
R87B Box Fan/Lineup
last update: January 7, 2019

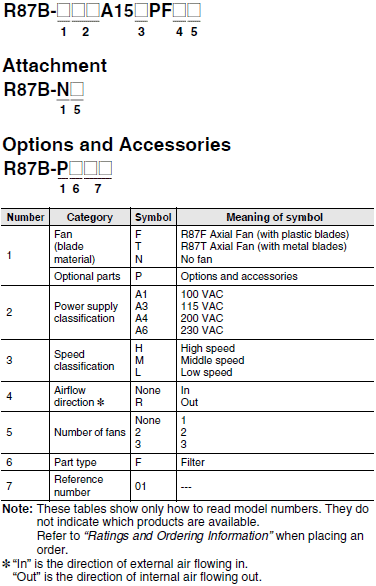

Model Number Structure
Model Number Legend

Ordering Information

Type Number of fans Model Accessories
Plastic blades
High speed 1 R87B-FA[]A15HPF(R) Filter
Finger guard
Plug cord
Mounting bolts
2 R87B-FA[]A15HPF(R)2
3 R87B-FA[]A15HPF(R)3
Plastic blades
Low speed 1 R87B-FA[]A15LPF(R)
2 R87B-FA[]A15LPF(R)2
3 R87B-FA[]A15LPF(R)3
Metal blades
High speed 1 R87B-TA[]A15HPF(R)
2 R87B-TA[]A15HPF(R)2
3 R87B-TA[]A15HPF(R)3
Metal blades
Medium speed 1 R87B-TA[]A15MPF(R)
2 R87B-TA[]A15MPF(R)2
3 R87B-TA[]A15MPF(R)3
Attachment For 1 R87B-N Filter
Finger guard
Mounting screws
For 2 R87B-N2
For 3 R87B-N3
Replacement Filter Any R87B-PF01 Set of two filters

R87B-[]A[]A15[]PF(R)
Single Box Fan
Airflow Direction: In

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPF
R87B-FA3A15HPF
R87B-FA4A15HPF
R87B-FA6A15HPF 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 1.3 1.5 91 85 49 52 Approx.
1,120 g
R87B-FA1A15LPF
R87B-FA3A15LPF
R87B-FA4A15LPF
R87B-FA6A15LPF 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 0.9 1.0 43 42 42 43
R87B-TA1A15HPF
R87B-TA3A15HPF
R87B-TA4A15HPF
R87B-TA6A15HPF 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 1.1 1.3 67 63 45 48 Approx.
1,150 g
R87B-TA1A15MPF
R87B-TA3A15MPF
R87B-TA4A15MPF
R87B-TA6A15MPF 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 0.8 1.0 41 45 41 44

Note: An asterisk (*) indicates a nominal value.

Airflow Direction: Out

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPFR
R87B-FA3A15HPFR
R87B-FA4A15HPFR
R87B-FA6A15HPFR 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 1.3 1.5 91 85 49 52 Approx.
1,120 g
R87B-FA1A15LPFR
R87B-FA3A15LPFR
R87B-FA4A15LPFR
R87B-FA6A15LPFR 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 0.9 1.0 43 42 42 43
R87B-TA1A15HPFR
R87B-TA3A15HPFR
R87B-TA4A15HPFR
R87B-TA6A15HPFR 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 1.1 1.3 67 63 45 48 Approx.
1,150 g
R87B-TA1A15MPFR
R87B-TA3A15MPFR
R87B-TA4A15MPFR
R87B-TA6A15MPFR 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 0.8 1.0 41 45 41 44

Note: An asterisk (*) indicates a nominal value.
• The data in this table comes from measurements that were taken with the filter and cover attached.
• The model number of the AC Axial Fan in the Box Fan can be determined from the model number of the Box Fan as
follows:

R87B-[]A[]A15[]PF(R)2
Double Box Fan
Airflow Direction: In

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPF2
R87B-FA3A15HPF2
R87B-FA4A15HPF2
R87B-FA6A15HPF2 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 2.6 3.0 86 48 55 56 Approx.
2,220 g
R87B-FA1A15LPF2
R87B-FA3A15LPF2
R87B-FA4A15LPF2
R87B-FA6A15LPF2 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 2.0 2.1 47 44 45 46
R87B-TA1A15HPF2
R87B-TA3A15HPF2
R87B-TA4A15HPF2
R87B-TA6A15HPF2 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 2.4 2.7 68 63 49 52 Approx.
2,260 g
R87B-TA1A15MPF2
R87B-TA3A15MPF2
R87B-TA4A15MPF2
R87B-TA6A15MPF2 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 1.6 1.9 41 43 44 47

Note: An asterisk (*) indicates a nominal value.

Airflow Direction: Out

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPFR2
R87B-FA3A15HPFR2
R87B-FA4A15HPFR2
R87B-FA6A15HPFR2 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 2.6 3.0 86 48 55 56 Approx.
2,220 g
R87B-FA1A15LPFR2
R87B-FA3A15LPFR2
R87B-FA4A15LPFR2
R87B-FA6A15LPFR2 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 2.0 2.1 47 44 45 46
R87B-TA1A15HPFR2
R87B-TA3A15HPFR2
R87B-TA4A15HPFR2
R87B-TA6A15HPFR2 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 2.4 2.7 68 63 49 52 Approx.
2,260 g
R87B-TA1A15MPFR2
R87B-TA3A15MPFR2
R87B-TA4A15MPFR2
R87B-TA6A15MPFR2 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 1.6 1.9 41 43 44 47

Note: An asterisk (*) indicates a nominal value.
• The data in this table comes from measurements that were taken with the filter and cover attached.
• The model number of the AC Axial Fan in the Box Fan can be determined from the model number of the Box Fan as
follows:

R87B-[]A[]A15[]PF(R)3
Triple Box Fan
Airflow Direction: In

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPF3
R87B-FA3A15HPF3
R87B-FA4A15HPF3
R87B-FA6A15HPF3 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 3.9 4.5 86 56 56 58 Approx.
3,380 g
R87B-FA1A15LPF3
R87B-FA3A15LPF3
R87B-FA4A15LPF3
R87B-FA6A15LPF3 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 2.9 3.1 42 41 47 48
R87B-TA1A15HPF3
R87B-TA3A15HPF3
R87B-TA4A15HPF3
R87B-TA6A15HPF3 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 3.5 4.0 68 63 50 53 Approx.
3,410 g
R87B-TA1A15MPF3
R87B-TA3A15MPF3
R87B-TA4A15MPF3
R87B-TA6A15MPF3 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 2.4 2.8 41 45 45 48

Note: An asterisk (*) indicates a nominal value.

Airflow Direction: Out

Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static pressure
(Pa) * Noise (dB) * Weight
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
R87B-FA1A15HPFR3
R87B-FA3A15HPFR3
R87B-FA4A15HPFR3
R87B-FA6A15HPFR3 100 VAC
115 VAC
200 VAC
230 VAC 2,700 3,100 3.9 4.5 86 56 56 58 Approx.
3,380 g
R87B-FA1A15LPFR3
R87B-FA3A15LPFR3
R87B-FA4A15LPFR3
R87B-FA6A15LPFR3 100 VAC
115 VAC
200 VAC
230 VAC 2,100 2,200 2.9 3.1 42 41 47 48
R87B-TA1A15HPFR3
R87B-TA3A15HPFR3
R87B-TA4A15HPFR3
R87B-TA6A15HPFR3 100 VAC
115 VAC
200 VAC
230 VAC 2,650 3,000 3.5 4.0 68 63 50 53 Approx.
3,410 g
R87B-TA1A15MPFR3
R87B-TA3A15MPFR3
R87B-TA4A15MPFR3
R87B-TA6A15MPFR3 100 VAC
115 VAC
200 VAC
230 VAC 2,300 2,600 2.4 2.8 41 45 45 48

Note: An asterisk (*) indicates a nominal value.
• The data in this table comes from measurements that were taken with the filter and cover attached.
• The model number of the AC Axial Fan in the Box Fan can be determined from the model number of the Box Fan as
follows:

R87B-N[]/R87B-PF
Optional Parts
R87B-N[] (Attachment)

Item Type Weight
R87B-N Single Approx. 570 g
R87B-N2 Double Approx. 1,100 g
R87B-N3 Triple Approx. 1,700 g

R87B-PF01 (Replacement Filter)

Item Qty. Weight
(grams per filter)
R87B-PF01 2 6

last update: January 7, 2019

OMRON R87B dimension
R87B Box Fan/Dimensions
last update: November 12, 2012

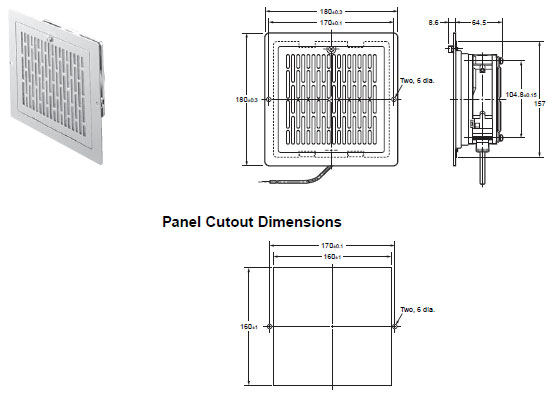

R87B-[]A[]A15[]PF(R)
Single Box Fan

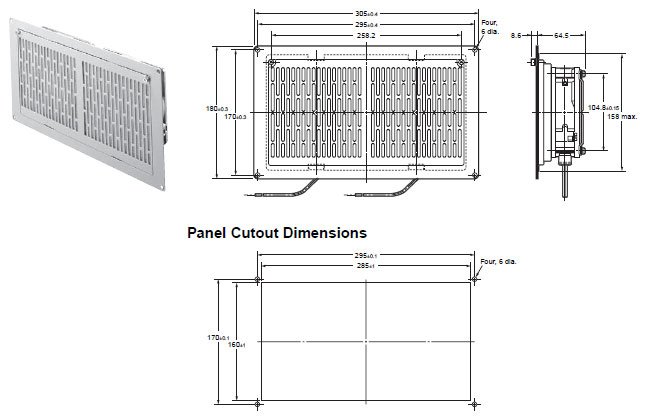

R87B-[]A[]A15[]PF(R)2
Double Box Fan

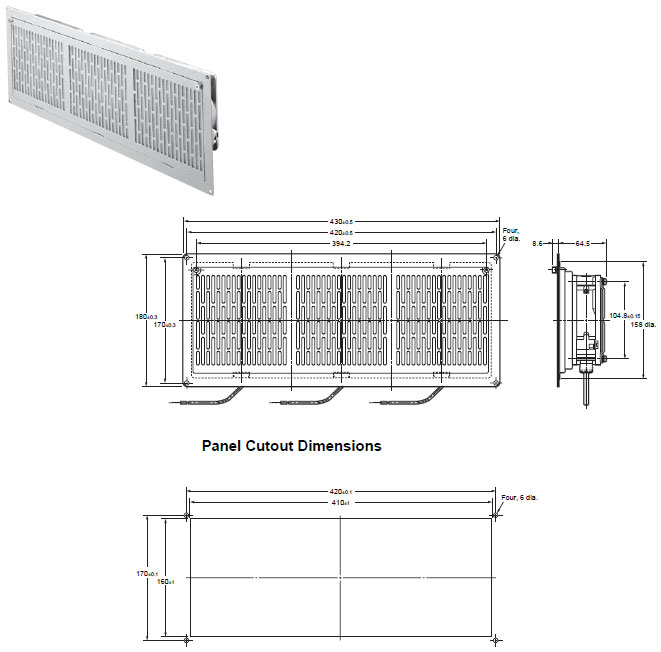

R87B-[]A[]A15[]PF(R)3
Triple Box Fan

R87B-N[]/R87B-PF
Optional Parts
Single Box

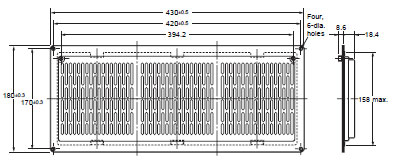

Triple Box

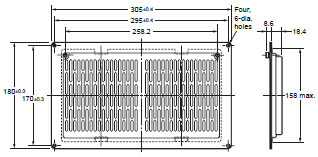

Double Box

R87B-PF01 (Replacement Filter)

last update: November 12, 2012

NO. R87B

TYPE:Axial Fans Copyright Statement Copyright Statement

DATE:2021-06-16

Associated products:
R87F / R87T AC Axial Fans/Features ZUV Series Smart Curing System (Standard model/Multi-function model)/Features

Model	R87B-F	R87B-T
Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) Between all power supply connection parts and non-current carrying metal parts
Dielectric strength	2,000 VAC for 1 min Between all power supply connection parts and non-current carrying metal parts
Ambient operating temperature	-30 to 70°C (with no icing)	-20 to 70°C (with no icing)
Storage temperature	-40 to 85°C (with no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame	Die-cast aluminum
Blades	Glass polycarbonate	Steel plate (black coating)
Bearings	Ball bearings
Compliant standards *	PSE, EN/IEC 60335 (CE self-declaration)
Certified standards *	UL/CSA	UL

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
R87B Data Sheet	- [1306KB]	Jan 07, 201920190107	R87B Data Sheet
Axial Fans Series Catalog	X076-E1-03 [15784KB]	Feb 07, 201920190207	Axial Fans Series Catalog

Type	Number of fans	Model	Accessories
Plastic blades High speed	1	R87B-FA[]A15HPF(R)	Filter Finger guard Plug cord Mounting bolts
2	R87B-FA[]A15HPF(R)2
3	R87B-FA[]A15HPF(R)3
Plastic blades Low speed	1	R87B-FA[]A15LPF(R)
2	R87B-FA[]A15LPF(R)2
3	R87B-FA[]A15LPF(R)3
Metal blades High speed	1	R87B-TA[]A15HPF(R)
2	R87B-TA[]A15HPF(R)2
3	R87B-TA[]A15HPF(R)3
Metal blades Medium speed	1	R87B-TA[]A15MPF(R)
2	R87B-TA[]A15MPF(R)2
3	R87B-TA[]A15MPF(R)3
Attachment	For 1	R87B-N	Filter Finger guard Mounting screws
For 2	R87B-N2
For 3	R87B-N3
Replacement Filter	Any	R87B-PF01	Set of two filters

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPF R87B-FA3A15HPF R87B-FA4A15HPF R87B-FA6A15HPF	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	1.3	1.5	91	85	49	52	Approx. 1,120 g
R87B-FA1A15LPF R87B-FA3A15LPF R87B-FA4A15LPF R87B-FA6A15LPF	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	0.9	1.0	43	42	42	43
R87B-TA1A15HPF R87B-TA3A15HPF R87B-TA4A15HPF R87B-TA6A15HPF	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	1.1	1.3	67	63	45	48	Approx. 1,150 g
R87B-TA1A15MPF R87B-TA3A15MPF R87B-TA4A15MPF R87B-TA6A15MPF	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	0.8	1.0	41	45	41	44

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPFR R87B-FA3A15HPFR R87B-FA4A15HPFR R87B-FA6A15HPFR	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	1.3	1.5	91	85	49	52	Approx. 1,120 g
R87B-FA1A15LPFR R87B-FA3A15LPFR R87B-FA4A15LPFR R87B-FA6A15LPFR	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	0.9	1.0	43	42	42	43
R87B-TA1A15HPFR R87B-TA3A15HPFR R87B-TA4A15HPFR R87B-TA6A15HPFR	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	1.1	1.3	67	63	45	48	Approx. 1,150 g
R87B-TA1A15MPFR R87B-TA3A15MPFR R87B-TA4A15MPFR R87B-TA6A15MPFR	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	0.8	1.0	41	45	41	44

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPF2 R87B-FA3A15HPF2 R87B-FA4A15HPF2 R87B-FA6A15HPF2	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	2.6	3.0	86	48	55	56	Approx. 2,220 g
R87B-FA1A15LPF2 R87B-FA3A15LPF2 R87B-FA4A15LPF2 R87B-FA6A15LPF2	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	2.0	2.1	47	44	45	46
R87B-TA1A15HPF2 R87B-TA3A15HPF2 R87B-TA4A15HPF2 R87B-TA6A15HPF2	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	2.4	2.7	68	63	49	52	Approx. 2,260 g
R87B-TA1A15MPF2 R87B-TA3A15MPF2 R87B-TA4A15MPF2 R87B-TA6A15MPF2	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	1.6	1.9	41	43	44	47

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPFR2 R87B-FA3A15HPFR2 R87B-FA4A15HPFR2 R87B-FA6A15HPFR2	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	2.6	3.0	86	48	55	56	Approx. 2,220 g
R87B-FA1A15LPFR2 R87B-FA3A15LPFR2 R87B-FA4A15LPFR2 R87B-FA6A15LPFR2	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	2.0	2.1	47	44	45	46
R87B-TA1A15HPFR2 R87B-TA3A15HPFR2 R87B-TA4A15HPFR2 R87B-TA6A15HPFR2	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	2.4	2.7	68	63	49	52	Approx. 2,260 g
R87B-TA1A15MPFR2 R87B-TA3A15MPFR2 R87B-TA4A15MPFR2 R87B-TA6A15MPFR2	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	1.6	1.9	41	43	44	47

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPF3 R87B-FA3A15HPF3 R87B-FA4A15HPF3 R87B-FA6A15HPF3	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	3.9	4.5	86	56	56	58	Approx. 3,380 g
R87B-FA1A15LPF3 R87B-FA3A15LPF3 R87B-FA4A15LPF3 R87B-FA6A15LPF3	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	2.9	3.1	42	41	47	48
R87B-TA1A15HPF3 R87B-TA3A15HPF3 R87B-TA4A15HPF3 R87B-TA6A15HPF3	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	3.5	4.0	68	63	50	53	Approx. 3,410 g
R87B-TA1A15MPF3 R87B-TA3A15MPF3 R87B-TA4A15MPF3 R87B-TA6A15MPF3	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	2.4	2.8	41	45	45	48

Model	Rated voltage (V)	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *	Weight
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87B-FA1A15HPFR3 R87B-FA3A15HPFR3 R87B-FA4A15HPFR3 R87B-FA6A15HPFR3	100 VAC 115 VAC 200 VAC 230 VAC	2,700	3,100	3.9	4.5	86	56	56	58	Approx. 3,380 g
R87B-FA1A15LPFR3 R87B-FA3A15LPFR3 R87B-FA4A15LPFR3 R87B-FA6A15LPFR3	100 VAC 115 VAC 200 VAC 230 VAC	2,100	2,200	2.9	3.1	42	41	47	48
R87B-TA1A15HPFR3 R87B-TA3A15HPFR3 R87B-TA4A15HPFR3 R87B-TA6A15HPFR3	100 VAC 115 VAC 200 VAC 230 VAC	2,650	3,000	3.5	4.0	68	63	50	53	Approx. 3,410 g
R87B-TA1A15MPFR3 R87B-TA3A15MPFR3 R87B-TA4A15MPFR3 R87B-TA6A15MPFR3	100 VAC 115 VAC 200 VAC 230 VAC	2,300	2,600	2.4	2.8	41	45	45	48

Item	Type	Weight
R87B-N	Single	Approx. 570 g
R87B-N2	Double	Approx. 1,100 g
R87B-N3	Triple	Approx. 1,700 g

Item	Qty.	Weight (grams per filter)
R87B-PF01	2	6

Return to OMRON

OMRON R87BPower Supplies / In Addition/ Axial Fans/Copyright Statement

OMRON R87B Dimensions

For economy type

AC Axial Fans R87F/R87T R87F Plastic blade type

For environmental resistance

AC Axial Fans R87T Metal blade type

Metal blade models deliver high environmental resistance

For less mounting effort

Box Fan R87B

Just open the cover to replace the filter

All-in-one structure makes it easier to install accessories

Conserves energy by responding to temperatures inside the panel

Electronic Thermostat E5L Series

Purchase the OMRON Copyright Statement Please fill in the following

OMRON R87B specification

OMRON R87B catalog

English

Global Edition

OMRON R87B lineup

Model Number Structure

Model Number Legend

Ordering Information

R87B-[]A[]A15[]PF(R)Single Box Fan

Airflow Direction: In

Airflow Direction: Out

R87B-[]A[]A15[]PF(R)2Double Box Fan

Airflow Direction: In

Airflow Direction: Out

R87B-[]A[]A15[]PF(R)3Triple Box Fan

Airflow Direction: In

Airflow Direction: Out

R87B-N[]/R87B-PFOptional Parts

R87B-N[] (Attachment)

R87B-PF01 (Replacement Filter)

OMRON R87B dimension

R87B-[]A[]A15[]PF(R)Single Box Fan

R87B-[]A[]A15[]PF(R)2Double Box Fan

R87B-[]A[]A15[]PF(R)3Triple Box Fan

R87B-N[]/R87B-PFOptional Parts

Single Box

Triple Box

Double Box

R87B-PF01 (Replacement Filter)

R87B-[]A[]A15[]PF(R)
Single Box Fan

R87B-[]A[]A15[]PF(R)2
Double Box Fan

R87B-[]A[]A15[]PF(R)3
Triple Box Fan

R87B-N[]/R87B-PF
Optional Parts

R87B-[]A[]A15[]PF(R)
Single Box Fan

R87B-[]A[]A15[]PF(R)2
Double Box Fan

R87B-[]A[]A15[]PF(R)3
Triple Box Fan

R87B-N[]/R87B-PF
Optional Parts
