last update: April 6, 2017

• Realized about 25% lower profile than conventional products, contributing to further miniaturization of the control panel.

• Realized opening and closing ability with one pole 6 A slim shape.

• Micro load products for one pole 50 mA using Au-plated contacts for small load switching also available.

• Since G2RV is a transparent case, confirming the state of the contact with the naked eye is possible, and easy to confirm abnormality on-site (installed location).

• Screw terminal is also stocked to meet the screw type needs.

• Mounted relay uses plug-in terminals that are difficult to bend when exchanging.

• G3RV-SR featuring a solid state relay similar in shape to G2RV-SR also available.

last update: April 6, 2017

Purchase the OMRON For Control Panel Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G2RV-SR Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G2RV-SR We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G2RV-SRRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G70D-SOC08 Relay Terminal/Features
E5EC-800 Digital Temperature Controller (Simple Type) (48 × 96 mm)/Features
CJ1W-TC CJ Series Temperature Control Unit/Features
NX-ECC NX-series EtherCAT Coupler Unit/Features
CRT1-TS04T / TS04P Temperature Input Units/Features

OMRON G2RV-SR dimension
G2RV-SR Slim I/O Relay/Dimensions
last update: December 14, 2018

(Unit: mm)

Slim I/O Relay + socket

Push-In Plus Terminal Block

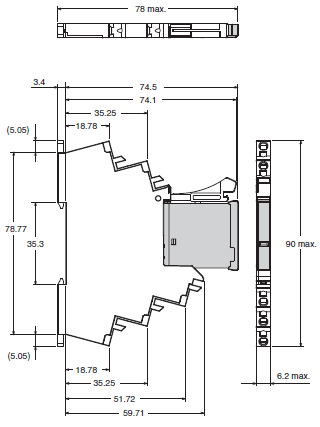

Models without latching lever (without test switch)
G2RV-SR500
G2RV-SR500-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
refer to 3. Recommended Ferrules and Crimp Tools on Data Seet.

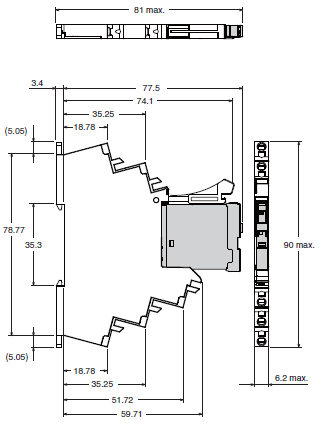

Models with latching lever (with test switch)
G2RV-SR501

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

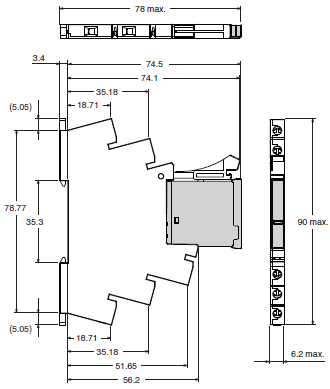

Screw terminal

Models without latching lever (without test switch)
G2RV-SR700
G2RV-SR700-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

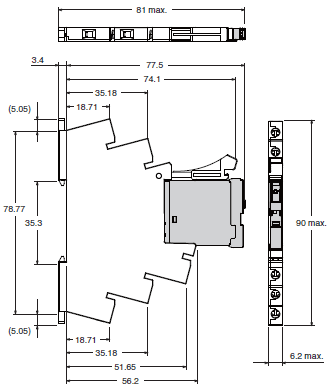

Models with latching lever (with test switch)
G2RV-SR701

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

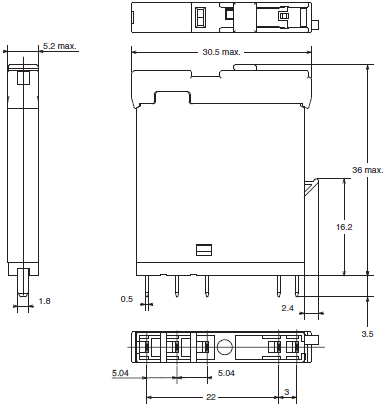

Relay for maintenance

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

Models with latching lever (test switch)
G2RV-1-SI-G

Accessories (order separately)
PLC interface unit

Push-IN
P2RVC-8-I-5(-1)
P2RVC-8-O-5(-1)

Screw
P2RVC-8-I-7-1
P2RVC-8-O-7-1

Except for PLC interface unit

Short Bars
PYDN-6.2-[][] (6.2 mm)

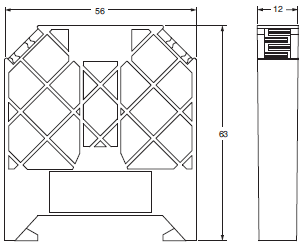

Separate Plate
XW5Z-EP12

last update: December 14, 2018

OMRON G2RV-SR specification
G2RV-SR Slim I/O Relay/Specifications
last update: January 11, 2018
Ratings
Coil ratings

Rated input
voltage Rated current Must
operate
voltage Must
release
voltage Power consumption Maximum
allowable
voltage
AC DC Percentage of
the rated voltage AC (VA) DC (mW) Percentage
of the rated
voltage
50 Hz 60 Hz
12 VDC - - 27.9 mA 80% max.* 10% min. - Approx. 300 mW 110%
24 VDC - - 13.5 mA - Approx. 300 mW
24 VAC/VDC 12.5 mA 12.6 mA 12.6 mA Approx. 0.5 VA Approx. 300 mW
48 VAC/VDC 5.9 mA 6.1 mA 5.2 mA Approx. 0.4 VA Approx. 250 mW
100 VAC 5.9 mA 6.0 mA - Approx. 0.8 VA -
110 VAC 5.9 mA 5.9 mA - Approx. 0.8 VA -
200 VAC 6.6 mA 7.6 mA - Approx. 1.7 VA -
230 VAC 7.3 mA 8.4 mA - Approx. 1.7 VA -

Note: The operating characteristics are measured at ambient temperature of 23°C.
* Operating voltage will be, for mounting in the upside down direction, 85% max.
(Upside down: Direction in which the mechanical indicator faces down)

Contact ratings

Item Standard
(G2RV-SR700, 500, 701, 501) For microloads
(G2RV-SR700-AP,
500-AP) *2
Contact configuration SPDT
Load Resistive load
(cosφ=1) Inductive load
(cosφ=0.4, L/R=7ms) Resistive load
(cosφ=1)
Rated load 6 A at 250 VAC
6 A at 30 VDC 2.5 A at 250 VAC
2 A at 30 VDC 50 mA at 30 VAC
50 mA at 36 VDC
Rated carry current 6 A 50 mA
Maximum switching voltage 440 VAC, 125 VDC 30 VAC, 36 VDC
Maximum switching current 6 A 50 mA
Maximum switching power 1,500 VA
180 W 500 VA
60 W -
Failure rate P value
(reference value) *1 10 mA at 5 VDC 1 mA at 100 mVDC

*1. P level: λ₆₀=0.1×10^-6/times
This value is the value in switching frequency 120 operations/min.
*2. If the Au plating layer is destroyed, the number will be the same as the standard type.

Characteristics

Item Standard
(G2RV-SR700, 500, 701, 501) For microloads
(G2RV-SR700-AP, 500-AP)
Contact resistance * 100 mΩ max.
Operate (Set) time * 20 ms max.
Release time * AC, AC/DC: 40 ms max.
DC: 20 ms max.
Maximum operating
frequency Mechanical: 18,000 operations/h
Electrical: 1,800 operations/h (rated load)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength Between coil and contacts: 4,000VAC 50/60 Hz 1 min
Contact between the same polarity: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Malfunction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Shock resistance Destruction: 1,000 m/s²
Malfunction: Energized 200m/s², Non-energized 100m/s²
Endurance * Mechanical 5,000,000 operations min.
Electrical NO contact: 70,000 operations min.
NC contact: 50,000 operations min. 5,000,000 operations min.
Ambient operating
temperature Operating: -40 to +55°C (with no icing or condensation)
Ambient operating
humidity Operating: 5 to 85% RH
Weight Approx. 30 g
Contact material Ag alloy Ag alloy + Au plating

Note: Above values are initial values.
* Value is at ambient temperature of 23°C.

Approved standards
UL508 (file No.E41643)

Model Contact form Operation coil ratings Contact ratings Operations
G2RV-SR series SPDT 12 to 48 VDC
24 to 230 VAC 6 A at 250 VAC (Resistive load)
6 A at 30 VDC (Resistive load)
2 A at 400 VAC (Resistive load)* 6,000

* If the load voltage exceeds 250 VAC, please attach with a spacing of 12 mm min., or use a separate plate (XW5Z-EP12).

TÜV (EN 61810-1)

Model Contact form Operation coil ratings Contact ratings Operations
G2RV-SR series SPDT 12, 24 VDC
24, 48 VAC/VDC
100, 110, 200, 230 VAC 6 A at 250 VAC (Resistive load)
6 A at 30 VDC (Resistive load)
2 A at 400 VAC (Resistive load)* 50,000
50,000
6,000

* If the load voltage exceeds 250 VAC, please attach with a spacing of 12 mm min., or use a separate plate (XW5Z-EP12).

Lloyd's (File No.07/10020)

Model Contact form Operation coil ratings Contact ratings
G2RV-SR500
G2RV-SR700 SPDT 12, 24 VDC
24, 48 VAC/VDC
100, 110, 200, 230 VAC 6 A at 250 VAC (Resistive load)
2.5 A at 250 VAC (PF0.4)
6 A at 30 VAC (Ress)
2 A at 30 VDC (L/R=7ms)
G2RV-SR501
G2RV-SR701 SPDT 12, 24 VDC
24 VAC/VDC 6 A at 250 VAC (Resistive load)
2.5 A at 250 VAC (PF0.4)
6 A at 30 VAC (Ress)
2 A at 30 VDC (L/R=7ms)
G2RV-SR500-AP
G2RV-SR700-AP SPDT 12, 24 VDC
24, 48 VAC/VDC
100, 110, 200, 230 VAC 0.05 A at 30 VAC (Resistive load)
0.05 A at 36 VDC (Resistive load)

last update: January 11, 2018

OMRON G2RV-SR catalog
G2RV-SR Slim I/O Relay/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G2RV-SR/G3RV-SR Data Sheet J214-E1-02
[7903KB] Dec 14, 201820181214 G2RV-SR/G3RV-SR Data Sheet

Push-In Plus Terminal Block Series Pamphlet J213-E1-05
[7147KB] Nov 01, 201820181101 Push-In Plus Terminal Block Series Pamphlet

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

OMRON G2RV-SR lineup
G2RV-SR Slim I/O Relay/Lineup
last update: September 13, 2017
Model Number Structure

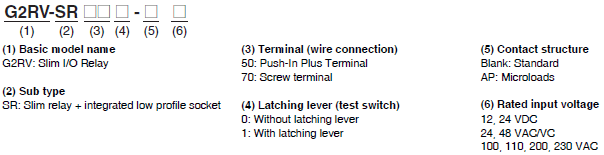

Model Number Legend

Ordering Information

Terminal
(Wire connection) Classification Latching lever
(Test switch) Rated input
voltage (V) Model
Push-In Plus
Terminal Standard No DC 12 G2RV-SR500 DC12
24 G2RV-SR500 DC24
AC/DC 24 G2RV-SR500 AC/DC24
48 G2RV-SR500 AC/DC48
AC 100 G2RV-SR500 AC100
110 G2RV-SR500 AC110
200 G2RV-SR500 AC200
230 G2RV-SR500 AC230
Yes DC 24 G2RV-SR501 DC24
AC/DC 24 G2RV-SR501 AC/DC24
Microloads No DC 12 G2RV-SR500-AP DC12
24 G2RV-SR500-AP DC24
AC/DC 24 G2RV-SR500-AP AC/DC24
48 G2RV-SR500-AP AC/DC48
AC 100 G2RV-SR500-AP AC100
110 G2RV-SR500-AP AC110
200 G2RV-SR500-AP AC200
230 G2RV-SR500-AP AC230
Screw terminal Standard No DC 12 G2RV-SR700 DC12
24 G2RV-SR700 DC24
AC/DC 24 G2RV-SR700 AC/DC24
48 G2RV-SR700 AC/DC48
AC 100 G2RV-SR700 AC100
110 G2RV-SR700 AC110
200 G2RV-SR700 AC200
230 G2RV-SR700 AC230
Yes DC 24 G2RV-SR701 DC24
AC/DC 24 G2RV-SR701 AC/DC24
Microloads No DC 12 G2RV-SR700-AP DC12
24 G2RV-SR700-AP DC24
AC/DC 24 G2RV-SR700-AP AC/DC24
48 G2RV-SR700-AP AC/DC48
AC 100 G2RV-SR700-AP AC100
110 G2RV-SR700-AP AC110
200 G2RV-SR700-AP AC200
230 G2RV-SR700-AP AC230

Note: Sockets are not sold individually.

Relay for Maintenance

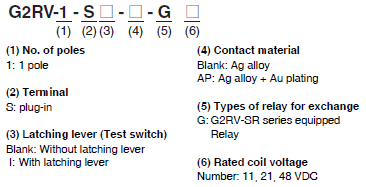

Model Number Legend

Type Latching
Lever
(Test switch) Rated coil
voltage (V) Model Applicable model
Standard No DC 11 G2RV-1-S-G DC11 G2RV-SR700/500 DC12V
21 G2RV-1-S-G DC21 G2RV-SR700/500 DC24V
G2RV-SR700/500 AC/DC24V
48 G2RV-1-S-G DC48 G2RV-SR700/500 AC/DC48V
G2RV-SR700/500 AC100V
G2RV-SR700/500 AC110V
G2RV-SR700/500 AC200V
G2RV-SR700/500 AC230V
Yes DC 21 G2RV-1-SI-G DC21 G2RV-SR701/501 DC24V
G2RV-SR701/501 AC/DC24V
Microload No DC 11 G2RV-1-S-AP-G DC11 G2RV-SR700/500-AP DC12V
21 G2RV-1-S-AP-G DC21 G2RV-SR700/500-AP DC24V
G2RV-SR700/500-AP AC/DC24V
48 G2RV-1-S-AP-G DC48 G2RV-SR700/500-AP AC/DC48V
G2RV-SR700/500-AP AC100V
G2RV-SR700/500-AP AC110V
G2RV-SR700/500-AP AC200V
G2RV-SR700/500-AP AC230V

Note: Voltage is reduced within the socket for the slim I/O relay, so the rated input voltage and rated coil voltage of
replacement relays are different.

Accessories (order separately)
Short Bars

Appearance Pitch No. of
poles Colors Model * Minimum order
(Quantity) Maximum energizing
current
6.2 mm 2 Red (R),
Blue (S),
Yellow (Y) PYDN-6.2-020[] 10 32 A
3 PYDN-6.2-030[]
4 PYDN-6.2-040[]
10 PYDN-6.2-100[]
20 PYDN-6.2-200[]

Note: Use for wiring to the adjacent socket.
* Replace the box ([]) in the model number with the code for the covering color. [] color selection: R = red, S = blue, Y = yellow

Label

Appearance Model Minimum order (Sheet)
(Pieces per sheet)
XW5Z-P2.5LB1 * 5
(1 sheet/72 pieces)
XW5Z-P2.5LB2

* Available following June 2017 production.

Separate Plate

Appearance Model
XW5Z-EP12

PLC interface unit

Appearance I/O classification Connection method Common process Applicable Models * Model
For input Push-In PNP G2RV-SR500-AP P2RVC-8-I-5-1
NPN P2RVC-8-I-5
Screw PNP G2RV-SR700-AP P2RVC-8-I-7-1
For output Push-In PNP G2RV-SR500
G2RV-SR501
G3RV-SR500 P2RVC-8-O-5-1
NPN P2RVC-8-O-5
Screw PNP G2RV-SR700
G2RV-SR701
G3RV-SR700 P2RVC-8-O-7-1

* Please make sure applicable models, P2RVC can not be used other combination than the above table.

Parts for DIN Track Mounting

Appearance Type Model Minimum order
(Quantity)
DIN Tracks 1 m PFP-100N 1
0.5 m PFP-50N
End Plate * PFP-M 10
Spacer PFP-S

* When mounting DIN Track, please use End Plate (PFP-M).

Applicable Cables

Name Appearance Cable
length
L (mm) Connecting Cables Applicable Connectors
Cables with
Loose Wires
P2RV-A[]C 8 I/O
points 1,000 P2RV-A100C Various devices
2,000 P2RV-A200C
3,000 P2RV-A300C
5,000 P2RV-A500C
Cables with
Connectors (1:4)
P2RV-4-[]C 32 output
points 1,000 P2RV-4-100C PLC I/O Units with MIL
connectors (1:4)
CJ1W-OD232/OD262, etc.
2,000 P2RV-4-200C
3,000 P2RV-4-300C
5,000 P2RV-4-500C
Cables with
Connectors (1:4)
P2RV-4-[]IMC 32 input
points 1,000 P2RV-4-100IMC PLC I/O Units with MIL
connectors (1:4)
CJ1W-ID232/ID262, etc.
2,000 P2RV-4-200IMC
3,000 P2RV-4-300IMC
5,000 P2RV-4-500IMC
Cables with
Connectors (1:4)
P2RV-4-[]IFC 32 input
points 1,000 P2RV-4-100IFC PLC I/O Units with Fujitsu
connectors (1:4)
CJ1W-ID231/ID261, etc.
2,000 P2RV-4-200IFC
3,000 P2RV-4-300IFC
5,000 P2RV-4-500IFC
Cables with
Connectors (1:1)
P2RV-A[]C-OMR
GRT1 8 output
points 500 P2RV-A050C-OMR GRT1 Slice I/O Units (1:1)
For inputs: GRT1-ID8-1
For outputs: GRT1-OD8-1
1,000 P2RV-A100C-OMR GRT1
8 input
points 500 P2RV-A050IC-OMR GRT1
1,000 P2RV-A100IC-OMR GRT1
Cables with
Connectors (1:1)
P2RV-A[]C-OMR
NX 8 output
points 500 P2RV-A050C-OMR NX PLC I/O Units with
screw-less clamp
terminal block (1:1)
For inputs: NX-ID4442
For outputs: NX-OD4256
1,000 P2RV-A100C-OMR NX
8 input
points 500 P2RV-A050IC-OMR NX
1,000 P2RV-A100IC-OMR NX
Schneider Electric
PLC Connecting
Cables
P2RV-[]C-SCH-[] 32 input
points 500 P2RV-050C-SCH-A Schneider Electric PLCs with
32-point connectors (1:4)
For inputs: 140 DDI 353 00
For outputs: 140 DDO 353 00
1,000 P2RV-100C-SCH-A
2,000 P2RV-200C-SCH-A
3,000 P2RV-300C-SCH-A
5,000 P2RV-500C-SCH-A
32 output
points 500 P2RV-050C-SCH-B
1,000 P2RV-100C-SCH-B
2,000 P2RV-200C-SCH-B
3,000 P2RV-300C-SCH-B
5,000 P2RV-500C-SCH-B
16 input
points 500 P2RV-050C-SCH-C Schneider Electric PLCs with
16-point connectors (1:2)
For inputs: BMX DDI 1602
For outputs: BMX DDO 1602
1,000 P2RV-100C-SCH-C
2,000 P2RV-200C-SCH-C
3,000 P2RV-300C-SCH-C
5,000 P2RV-500C-SCH-C
16 output
points 500 P2RV-050C-SCH-D
1,000 P2RV-100C-SCH-D
2,000 P2RV-200C-SCH-D
3,000 P2RV-300C-SCH-D
5,000 P2RV-500C-SCH-D
Siemens PLC
Connecting Cables
P2RV-[]C-SIM-[] 32 input
points 500 P2RV-050C-SIM-A Siemens PLCs with
32-point connectors (1:4)
For inputs:
6ES7 321-1BL00-0AA0
For outputs:
6ES7 322-1BL00-0AA0
1,000 P2RV-100C-SIM-A
2,000 P2RV-200C-SIM-A
3,000 P2RV-300C-SIM-A
5,000 P2RV-500C-SIM-A
32 output
points 500 P2RV-050C-SIM-B
1,000 P2RV-100C-SIM-B
2,000 P2RV-200C-SIM-B
3,000 P2RV-300C-SIM-B
5,000 P2RV-500C-SIM-B
16 input
points 500 P2RV-050C-SIM-C Siemens PLCs with
16-point connectors (1:2)
For inputs:
6ES7 321-1BH02-0AA0
1,000 P2RV-100C-SIM-C
2,000 P2RV-200C-SIM-C
3,000 P2RV-300C-SIM-C
5,000 P2RV-500C-SIM-C
32 input
points 500 P2RV-050C-SIM-D Siemens PLCs with
32-point connectors (1:4)
For inputs:
6ES7 421-1BL-0AA0
For outputs:
6ES7 422-1BL-0AA0
1,000 P2RV-100C-SIM-D
2,000 P2RV-200C-SIM-D
3,000 P2RV-300C-SIM-D
5,000 P2RV-500C-SIM-D
32 output
points 500 P2RV-050C-SIM-E
1,000 P2RV-100C-SIM-E
2,000 P2RV-200C-SIM-E
3,000 P2RV-300C-SIM-E
5,000 P2RV-500C-SIM-E

last update: September 13, 2017

NO. G2RV-SR

TYPE:General Purpose Relays For Control Panel Copyright Statement

DATE:2021-06-07

Associated products:
MY-GS Miniature Power Relays/Features MY Miniature Power Relays/Features

Rated input voltage	Rated current	Must operate voltage	Must release voltage	Power consumption	Maximum allowable voltage
AC	DC	Percentage of the rated voltage	AC (VA)	DC (mW)	Percentage of the rated voltage
50 Hz	60 Hz
12 VDC	-	-	27.9 mA	80% max.*	10% min.	-	Approx. 300 mW	110%
24 VDC	-	-	13.5 mA	-	Approx. 300 mW
24 VAC/VDC	12.5 mA	12.6 mA	12.6 mA	Approx. 0.5 VA	Approx. 300 mW
48 VAC/VDC	5.9 mA	6.1 mA	5.2 mA	Approx. 0.4 VA	Approx. 250 mW
100 VAC	5.9 mA	6.0 mA	-	Approx. 0.8 VA	-
110 VAC	5.9 mA	5.9 mA	-	Approx. 0.8 VA	-
200 VAC	6.6 mA	7.6 mA	-	Approx. 1.7 VA	-
230 VAC	7.3 mA	8.4 mA	-	Approx. 1.7 VA	-

Item	Standard (G2RV-SR700, 500, 701, 501)	For microloads (G2RV-SR700-AP, 500-AP) *2
Contact configuration	SPDT
Load	Resistive load (cosφ=1)	Inductive load (cosφ=0.4, L/R=7ms)	Resistive load (cosφ=1)
Rated load	6 A at 250 VAC 6 A at 30 VDC	2.5 A at 250 VAC 2 A at 30 VDC	50 mA at 30 VAC 50 mA at 36 VDC
Rated carry current	6 A	50 mA
Maximum switching voltage	440 VAC, 125 VDC	30 VAC, 36 VDC
Maximum switching current	6 A	50 mA
Maximum switching power	1,500 VA 180 W	500 VA 60 W	-
Failure rate P value (reference value) *1	10 mA at 5 VDC	1 mA at 100 mVDC

Item	Standard (G2RV-SR700, 500, 701, 501)	For microloads (G2RV-SR700-AP, 500-AP)
Contact resistance *	100 mΩ max.
Operate (Set) time *	20 ms max.
Release time *	AC, AC/DC: 40 ms max. DC: 20 ms max.
Maximum operating frequency	Mechanical: 18,000 operations/h Electrical: 1,800 operations/h (rated load)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength	Between coil and contacts: 4,000VAC 50/60 Hz 1 min Contact between the same polarity: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm) Malfunction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Shock resistance	Destruction: 1,000 m/s² Malfunction: Energized 200m/s², Non-energized 100m/s²
Endurance *	Mechanical	5,000,000 operations min.
Electrical	NO contact: 70,000 operations min. NC contact: 50,000 operations min.	5,000,000 operations min.
Ambient operating temperature	Operating: -40 to +55°C (with no icing or condensation)
Ambient operating humidity	Operating: 5 to 85% RH
Weight	Approx. 30 g
Contact material	Ag alloy	Ag alloy + Au plating

Model	Contact form	Operation coil ratings	Contact ratings	Operations
G2RV-SR series	SPDT	12 to 48 VDC 24 to 230 VAC	6 A at 250 VAC (Resistive load) 6 A at 30 VDC (Resistive load) 2 A at 400 VAC (Resistive load)*	6,000

Model	Contact form	Operation coil ratings	Contact ratings	Operations
G2RV-SR series	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	6 A at 250 VAC (Resistive load) 6 A at 30 VDC (Resistive load) 2 A at 400 VAC (Resistive load)*	50,000 50,000 6,000

Model	Contact form	Operation coil ratings	Contact ratings
G2RV-SR500 G2RV-SR700	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	6 A at 250 VAC (Resistive load)
2.5 A at 250 VAC (PF0.4)
6 A at 30 VAC (Ress)
2 A at 30 VDC (L/R=7ms)
G2RV-SR501 G2RV-SR701	SPDT	12, 24 VDC 24 VAC/VDC	6 A at 250 VAC (Resistive load)
2.5 A at 250 VAC (PF0.4)
6 A at 30 VAC (Ress)
2 A at 30 VDC (L/R=7ms)
G2RV-SR500-AP G2RV-SR700-AP	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	0.05 A at 30 VAC (Resistive load) 0.05 A at 36 VDC (Resistive load)

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G2RV-SR/G3RV-SR Data Sheet	J214-E1-02 [7903KB]	Dec 14, 201820181214	G2RV-SR/G3RV-SR Data Sheet
Push-In Plus Terminal Block Series Pamphlet	J213-E1-05 [7147KB]	Nov 01, 201820181101	Push-In Plus Terminal Block Series Pamphlet
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building

Terminal (Wire connection)	Classification	Latching lever (Test switch)	Rated input voltage (V)	Model
Push-In Plus Terminal	Standard	No	DC	12	G2RV-SR500 DC12
24	G2RV-SR500 DC24
AC/DC	24	G2RV-SR500 AC/DC24
48	G2RV-SR500 AC/DC48
AC	100	G2RV-SR500 AC100
110	G2RV-SR500 AC110
200	G2RV-SR500 AC200
230	G2RV-SR500 AC230
Yes	DC	24	G2RV-SR501 DC24
AC/DC	24	G2RV-SR501 AC/DC24
Microloads	No	DC	12	G2RV-SR500-AP DC12
24	G2RV-SR500-AP DC24
AC/DC	24	G2RV-SR500-AP AC/DC24
48	G2RV-SR500-AP AC/DC48
AC	100	G2RV-SR500-AP AC100
110	G2RV-SR500-AP AC110
200	G2RV-SR500-AP AC200
230	G2RV-SR500-AP AC230
Screw terminal	Standard	No	DC	12	G2RV-SR700 DC12
24	G2RV-SR700 DC24
AC/DC	24	G2RV-SR700 AC/DC24
48	G2RV-SR700 AC/DC48
AC	100	G2RV-SR700 AC100
110	G2RV-SR700 AC110
200	G2RV-SR700 AC200
230	G2RV-SR700 AC230
Yes	DC	24	G2RV-SR701 DC24
AC/DC	24	G2RV-SR701 AC/DC24
Microloads	No	DC	12	G2RV-SR700-AP DC12
24	G2RV-SR700-AP DC24
AC/DC	24	G2RV-SR700-AP AC/DC24
48	G2RV-SR700-AP AC/DC48
AC	100	G2RV-SR700-AP AC100
110	G2RV-SR700-AP AC110
200	G2RV-SR700-AP AC200
230	G2RV-SR700-AP AC230

Type	Latching Lever (Test switch)	Rated coil voltage (V)	Model	Applicable model
Standard	No	DC	11	G2RV-1-S-G DC11	G2RV-SR700/500 DC12V
21	G2RV-1-S-G DC21	G2RV-SR700/500 DC24V
G2RV-SR700/500 AC/DC24V
48	G2RV-1-S-G DC48	G2RV-SR700/500 AC/DC48V
G2RV-SR700/500 AC100V
G2RV-SR700/500 AC110V
G2RV-SR700/500 AC200V
G2RV-SR700/500 AC230V
Yes	DC	21	G2RV-1-SI-G DC21	G2RV-SR701/501 DC24V
G2RV-SR701/501 AC/DC24V
Microload	No	DC	11	G2RV-1-S-AP-G DC11	G2RV-SR700/500-AP DC12V
21	G2RV-1-S-AP-G DC21	G2RV-SR700/500-AP DC24V
G2RV-SR700/500-AP AC/DC24V
48	G2RV-1-S-AP-G DC48	G2RV-SR700/500-AP AC/DC48V
G2RV-SR700/500-AP AC100V
G2RV-SR700/500-AP AC110V
G2RV-SR700/500-AP AC200V
G2RV-SR700/500-AP AC230V

Appearance	Pitch	No. of poles	Colors	Model *	Minimum order (Quantity)	Maximum energizing current
	6.2 mm	2	Red (R), Blue (S), Yellow (Y)	PYDN-6.2-020[]	10	32 A
3	PYDN-6.2-030[]
4	PYDN-6.2-040[]
10	PYDN-6.2-100[]
20	PYDN-6.2-200[]

Appearance	Model	Minimum order (Sheet) (Pieces per sheet)
	XW5Z-P2.5LB1 *	5 (1 sheet/72 pieces)
XW5Z-P2.5LB2

Appearance	Model
	XW5Z-EP12

Appearance	I/O classification	Connection method	Common process	Applicable Models *	Model
	For input	Push-In	PNP	G2RV-SR500-AP	P2RVC-8-I-5-1
NPN	P2RVC-8-I-5
Screw	PNP	G2RV-SR700-AP	P2RVC-8-I-7-1
For output	Push-In	PNP	G2RV-SR500 G2RV-SR501 G3RV-SR500	P2RVC-8-O-5-1
NPN	P2RVC-8-O-5
Screw	PNP	G2RV-SR700 G2RV-SR701 G3RV-SR700	P2RVC-8-O-7-1

Appearance	Type	Model	Minimum order (Quantity)
	DIN Tracks	1 m	PFP-100N	1
0.5 m	PFP-50N
	End Plate *	PFP-M	10
	Spacer	PFP-S

Name	Appearance	Cable length L (mm)	Connecting Cables	Applicable Connectors
Cables with Loose Wires P2RV-A[]C	8 I/O points		1,000	P2RV-A100C	Various devices
2,000	P2RV-A200C
3,000	P2RV-A300C
5,000	P2RV-A500C
Cables with Connectors (1:4) P2RV-4-[]C	32 output points		1,000	P2RV-4-100C	PLC I/O Units with MIL connectors (1:4) CJ1W-OD232/OD262, etc.
2,000	P2RV-4-200C
3,000	P2RV-4-300C
5,000	P2RV-4-500C
Cables with Connectors (1:4) P2RV-4-[]IMC	32 input points		1,000	P2RV-4-100IMC	PLC I/O Units with MIL connectors (1:4) CJ1W-ID232/ID262, etc.
2,000	P2RV-4-200IMC
3,000	P2RV-4-300IMC
5,000	P2RV-4-500IMC
Cables with Connectors (1:4) P2RV-4-[]IFC	32 input points		1,000	P2RV-4-100IFC	PLC I/O Units with Fujitsu connectors (1:4) CJ1W-ID231/ID261, etc.
2,000	P2RV-4-200IFC
3,000	P2RV-4-300IFC
5,000	P2RV-4-500IFC
Cables with Connectors (1:1) P2RV-A[]C-OMR GRT1	8 output points		500	P2RV-A050C-OMR GRT1	Slice I/O Units (1:1) For inputs: GRT1-ID8-1 For outputs: GRT1-OD8-1
1,000	P2RV-A100C-OMR GRT1
8 input points	500	P2RV-A050IC-OMR GRT1
1,000	P2RV-A100IC-OMR GRT1
Cables with Connectors (1:1) P2RV-A[]C-OMR NX	8 output points		500	P2RV-A050C-OMR NX	PLC I/O Units with screw-less clamp terminal block (1:1) For inputs: NX-ID4442 For outputs: NX-OD4256
1,000	P2RV-A100C-OMR NX
8 input points	500	P2RV-A050IC-OMR NX
1,000	P2RV-A100IC-OMR NX
Schneider Electric PLC Connecting Cables P2RV-[]C-SCH-[]	32 input points		500	P2RV-050C-SCH-A	Schneider Electric PLCs with 32-point connectors (1:4) For inputs: 140 DDI 353 00 For outputs: 140 DDO 353 00
1,000	P2RV-100C-SCH-A
2,000	P2RV-200C-SCH-A
3,000	P2RV-300C-SCH-A
5,000	P2RV-500C-SCH-A
32 output points	500	P2RV-050C-SCH-B
1,000	P2RV-100C-SCH-B
2,000	P2RV-200C-SCH-B
3,000	P2RV-300C-SCH-B
5,000	P2RV-500C-SCH-B
16 input points		500	P2RV-050C-SCH-C	Schneider Electric PLCs with 16-point connectors (1:2) For inputs: BMX DDI 1602 For outputs: BMX DDO 1602
1,000	P2RV-100C-SCH-C
2,000	P2RV-200C-SCH-C
3,000	P2RV-300C-SCH-C
5,000	P2RV-500C-SCH-C
16 output points	500	P2RV-050C-SCH-D
1,000	P2RV-100C-SCH-D
2,000	P2RV-200C-SCH-D
3,000	P2RV-300C-SCH-D
5,000	P2RV-500C-SCH-D
Siemens PLC Connecting Cables P2RV-[]C-SIM-[]	32 input points		500	P2RV-050C-SIM-A	Siemens PLCs with 32-point connectors (1:4) For inputs: 6ES7 321-1BL00-0AA0 For outputs: 6ES7 322-1BL00-0AA0
1,000	P2RV-100C-SIM-A
2,000	P2RV-200C-SIM-A
3,000	P2RV-300C-SIM-A
5,000	P2RV-500C-SIM-A
32 output points	500	P2RV-050C-SIM-B
1,000	P2RV-100C-SIM-B
2,000	P2RV-200C-SIM-B
3,000	P2RV-300C-SIM-B
5,000	P2RV-500C-SIM-B
16 input points		500	P2RV-050C-SIM-C	Siemens PLCs with 16-point connectors (1:2) For inputs: 6ES7 321-1BH02-0AA0
1,000	P2RV-100C-SIM-C
2,000	P2RV-200C-SIM-C
3,000	P2RV-300C-SIM-C
5,000	P2RV-500C-SIM-C
32 input points		500	P2RV-050C-SIM-D	Siemens PLCs with 32-point connectors (1:4) For inputs: 6ES7 421-1BL-0AA0 For outputs: 6ES7 422-1BL-0AA0
1,000	P2RV-100C-SIM-D
2,000	P2RV-200C-SIM-D
3,000	P2RV-300C-SIM-D
5,000	P2RV-500C-SIM-D
32 output points	500	P2RV-050C-SIM-E
1,000	P2RV-100C-SIM-E
2,000	P2RV-200C-SIM-E
3,000	P2RV-300C-SIM-E
5,000	P2RV-500C-SIM-E

Return to OMRON
