last update: January 7, 2019

• The soft-start function allows a smooth startup of motors by holding down the starting current, and functions like an inverter.

• Comply with UL, CSA, CCC, IEC, and JEM requirements.

• Mount with screws or to DIN tracks.

• Compact monoblock construction (W: 80 × H: 100 × D: 100 mm) with a heat sink.

• Snubber circuit and varistor are built-in.

• Operation indicator.

last update: January 7, 2019

Purchase the OMRON For Three-phase Motors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3J-S Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3J-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3J-SRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3S-A Built-in Amplifier Photoelectric Sensor (Medium Size)/Features
E2J Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor/Features
LY Bi-power Relays/Features
G3J Simple Solid State Contactors/Features
CPM2C-S1[]0C CPU Units with CompoBus/S Master/Features

OMRON G3J-S catalog
G3J-S Soft-start Solid State Contactors/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3J-S Data Sheet -
[324KB] Jan 07, 201920190107 G3J-S Data Sheet

Information Common to the G3J-T, G3J-S, and G3J -
[1498KB] Aug 24, 201220120824 Information Common to the G3J-T, G3J-S, and G3J

Safety Precautions for the G3J-T-C, G3J-T, G3J-S, and G3J -
[300KB] Aug 24, 201220120824 Safety Precautions for the G3J-T-C, G3J-T, G3J-S, and G3J

OMRON G3J-S dimension

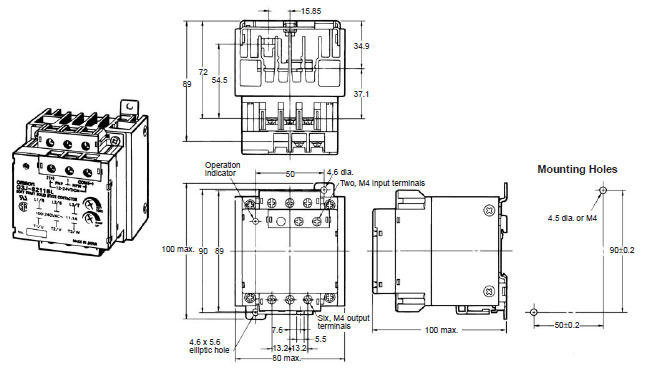

G3J-S Soft-start Solid State Contactors/Dimensions
last update: November 06, 2012
G3J-S211BL
G3J-S205BL
G3J-S405BL
G3J-S403BL

last update: November 06, 2012

OMRON G3J-S lineup
G3J-S Soft-start Solid State Contactors/Lineup
last update: November 06, 2012

Number of
elements Insulation
method Rated supply
voltage Input method Applicable motor Model
3 Phototriac 12 to 24 VDC No-voltage input
(open and short-
circuit input) 2.2 kW (5.5 A) 380 to 400 VAC G3J-S405BL
0.75 kW (2.4 A) G3J-S403BL
2.2 kW (11.1 A) 200 to 220 VAC G3J-S211BL
0.75 kW (4.8 A) G3J-S205BL

Note: When ordering, specify the rated supply voltage.

last update: November 06, 2012

OMRON G3J-S specification
G3J-S Soft-start Solid State Contactors/Specifications
last update: January 7, 2019
Ratings (at an Ambient Temperature of 25℃)
Power Supply

Rated supply voltage 12 to 24 VDC
Operating voltage range 10.2 to 26.4 VDC
Current consumption 100 mA max. (at 12 to 24 VDC)

Operation Circuit

Input current 10 mA max. (at 12 to 24 VDC)
Input method No-voltage input
(short-circuiting and opening inputs) (See note.) Short-circuiting or opening terminals 1 and COM or 2 (+) and 1
SSR input turned ON: A maximum residual voltage of 2 V between short-circuited terminals
SSR input turned OFF: A maximum leakage current of 0.15 mA Relay input: For minute signals

Note: Refer to Safety Precautions for the G3J-T, G3J-S, and G3J.

Main Circuit

Item G3J-S405BL G3J-S403BL G3J-S211BL G3J-S205BL
Rated load voltage 200 to 400 VAC (50/60 Hz) 200 to 240 VAC (50/60 Hz)
Load voltage range 180 to 440 VAC (50/60 Hz) 180 to 264 VAC (50/60 Hz)
Rated carry current 5.5 A (Ta = 40°C) 2.4 A (Ta = 40°C) 11.1 A (Ta = 40°C) 4.8 A (Ta = 40°C)
Min. load current 0.5 A
Peak-value current
resistivity 220 A, 60 Hz, 1 cycle 96 A, 60 Hz, 1 cycle 350 A, 60 Hz, 1 cycle 150 A, 60 Hz, 1 cycle
Overload resistance Refer to Iengneering data on Datasheet.
Closed current
(effective value) AC3 55 A 24 A 111 A 48 A
AC4 66 A 28.8 A 133.2 A 57.6 A
Breaking current
(effective value) AC3 44 A 19.2 A 88.8 A 38.4 A
AC4 55 A 24 A 111 A 48 A
Applicable load 3-phase inductive
motor
(AC3 AC4
AC53-a) 380 to 400 VAC,
2.2 kW, 5.5 A 380 to 400 VAC,
0.75 kW, 2.4 A 200 to 220 VAC,
2.2 kW, 11.1 A 200 to 220 VAC,
0.75 kW, 4.8 A
Motors passing the AC3-class, AC4-class, and AC53-a-class switching frequency test (Ta = 40°C) under conditions specified by OMRON.
Resistive load
(AC1)
(See note.) 200 to 400 VAC,
5.5 A 200 to 400 VAC,
2.4 A 200 to 240 VAC,
11.1 A 200 to 240 VAC,
4.8 A

Note: No single-phase load can be connected.

Characteristics

Item G3J-S405BL G3J-S403BL G3J-S211BL G3J-S205BL
Ramp-up time Set within a range from 1 to 25 s.
Reset time 5/6 cycles of load power supply + 1 ms max.
Starting torque Set within a range from 200% to 450% In.
Output ON-voltage
drop 1.8 VRMS max. 1.6 V_RMS max.
Leakage current 20 mA max. (at 400 VAC) 10 mA max. (at 200 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Destruction: 294 m/s²
Ambient temperature Operating: -20°C to 60°C (with no icing or condensation)
Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Weight 730 g max.
Certified standards UL508 File No. E64562
CSA 22.2 No. 14 File No. LR35535
CCC GB/T 14048.6 No. 2016010304855598 (G3J-S405BL, G3J-S403BL)
CCC GB/T 14048.6 No. 2016010304855599 (G3J-S211BL, G3J-S205BL)
IEC947-4-1 File No. 96.2597.02
EMC Emission AC mains IEC947-4-2, CISPR 11 Class A
Emission Electromagnetic IEC947-4-2, CISPR 11 Class A
Immunity ESD IEC947-4-2, IEC801-2: 4 kV contact discharge, 8 kV air discharge
Immunity Electromagnetic IEC947-4-2, IEC1000-4-3 10 V/m (80 MHz to 1 GHz)
Immunity EFT IEC947-4-2, IEC801-4: 2 kV AC power-signal line
Immunity Surge transient IEC947-4-2, IEC1000-4-5 1 kV differential mode, 2 kV common mode
Immunity RF disturbance IEC947-4-2, IEC/DIS1000-4-6 10 V (0.15 to 80 MHz)

last update: January 7, 2019
